Page 1

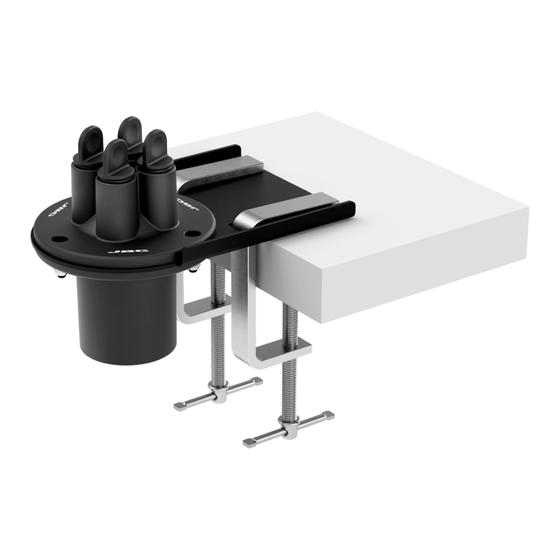

INSTRUCTION MANUAL FAE040 Collector Flange with Clamps for Stand Aspiration Ducts...
Page 2
Flange Ref. 0019101 (includes 2 caps) Main Aspiration Duct Collector Flange Collector Flange with Clamps for Stand Aspiration Ducts ............1 unit Ref. FAE040 Screws* ............2 units Clamps ............2 units Ref. 0018681 Ref. 0018940 Washers* ............ 2 units Manual ............
Page 3
Clamps 100 mm FAE020 80 mm Flexible Arm ø50 mm FAE040 Collector Flange with or use alternatively Clamps for Stand FAE070 Aspiration Ducts Flexible Arm ø50 mm with Clamp 60 mm or use alternatively...
Page 4
9.06 x 5.31 x 5.12 in / 1.71 lb Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
