Summary of Contents for jbc AM120

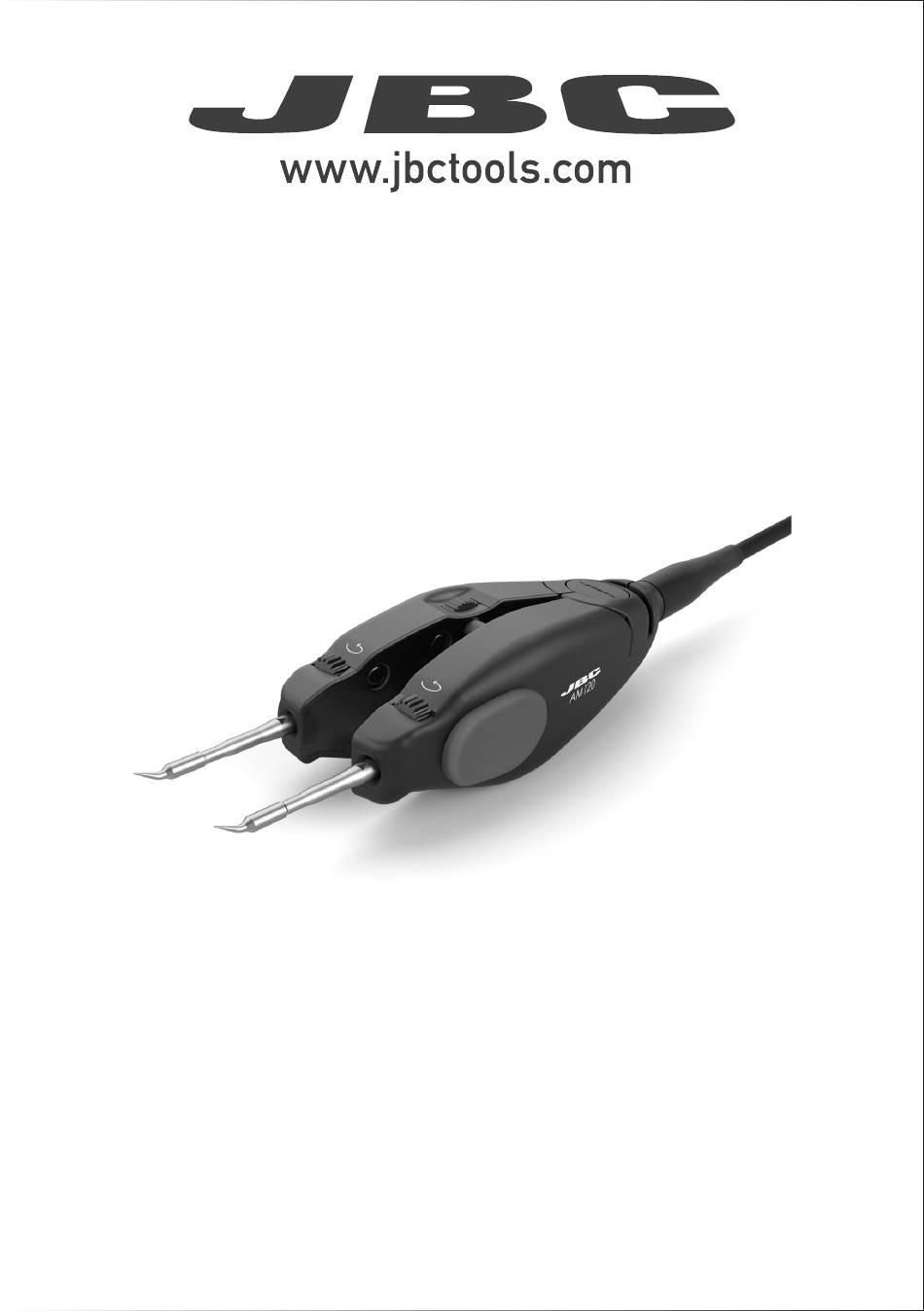

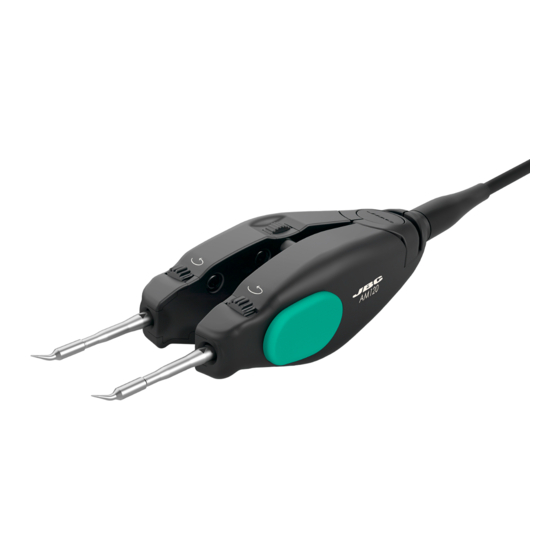

- Page 1 INSTRUCTION MANUAL AM120 Adjustable Micro Tweezers...
-
Page 2: Packing List
This manual corresponds to the following reference: AM120-A Packing List The following items are included: Adjustable Micro Tweezers ....1 unit Manual ...........1 unit Ref. 0029699... - Page 3 200 mm Connections 130 mm 130 mm 100 mm DIU, DDU or DMU Control Unit* 80 mm Stand for AM120 & P120 Tweezers* 60 mm 50 mm 40 mm C120 Cartridges* AM120 Adjustable Micro Tweezers * not included, sold separately...
-
Page 4: Changing Cartridges
Changing Cartridges 1. Removing Place the cartridges in the extractor and pull the tweezers to remove them. 2. Positioning Place the tweezers on top of the new cartridge and slightly press down. 3. Inserting Use the grooves to insert the cartridges as far as the mark Mark *Important... -
Page 5: Compatible Cartridges
Close the tweezers and the rear wheel allows the cartridges to be equally aligned en vertical 50 mm direction. 40 mm TOOL TOOL Compatible Cartridges TOOL AM120 works with C120 cartridges. Find the model that best suits your soldering needs at www.jbctools.com Conical Bent Blade Chisel Bent... - Page 6 The Pedal is frequently used to rework components with tweezers. AM120 JBCs adjustable micro tweezers is the most effective tool for desoldering chip components but also it facilitates its rapid placement and soldering by using a pedal connected to JBC´s station. P105 Control Unit www.jbcto ols.com...
- Page 7 For this operation JBC´s desoldering station DSS is needed. Solder Paste Dispensing Manual Solder Paste Dispenser Apply the solder paste amount needed to solder the new chip component. The use of JBC´s DPM solder paste dispenser is recommended. NT105 Selected 350 Power...
- Page 8 POR T 1 POR T 2 STATIO N TOOL PERI PHER ALS Placing Do not press the pedal. Use the tweezers to position the component on the previously tinned pad. Note: The inactive tweezers prevents the component from heating up prematurely. Soldering Once in position press and hold the pedal to activate the tweezers and perform the...
- Page 9 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases.
- Page 10 Notes...
- Page 11 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
-
Page 12: Specifications
In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
