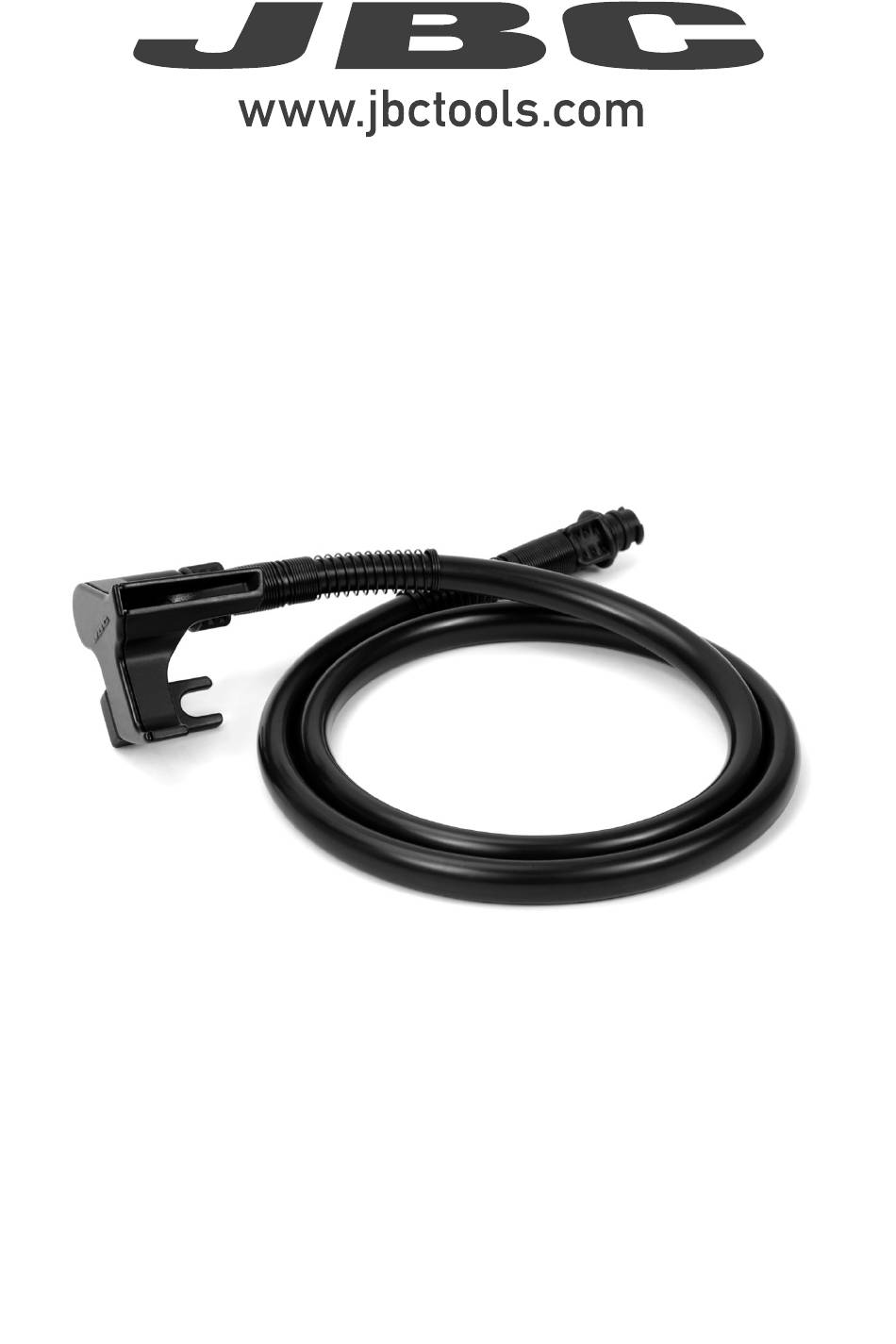

- Page 1 INSTRUCTION MANUAL FAE060 Fume Aspiration Duct for Compact Stations...
- Page 2 The following items are included: Manual ............1 unit Fume Aspiration Duct for Compact Stations ......1 unit Ref. 0029361 Ref. FAE060 Connection Turn the knob counterclockwise (1) until it Insert the fume aspiration duct between the knob loosens. and the tool holder (2).
- Page 3 para manuales - color gris 200 mm Connection 130 mm 130 mm Tool in the stand Hose Aspiration Intake 100 mm 80 mm Collector Flange 60 mm Fumes Connect the hose of the fume aspiration duct The system detects when the tool is returned 50 mm to the collector flange FAE030 or FAE040 (3).
- Page 4 11.81 x 5.12 x 2.56 in / 0.619 lb Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor. Warranty does not cover product wear or misuse.
