- Page 1 INSTRUCTION MANUAL TMSK / TMBK ESD Table Mat Set...
-
Page 2: Packing List

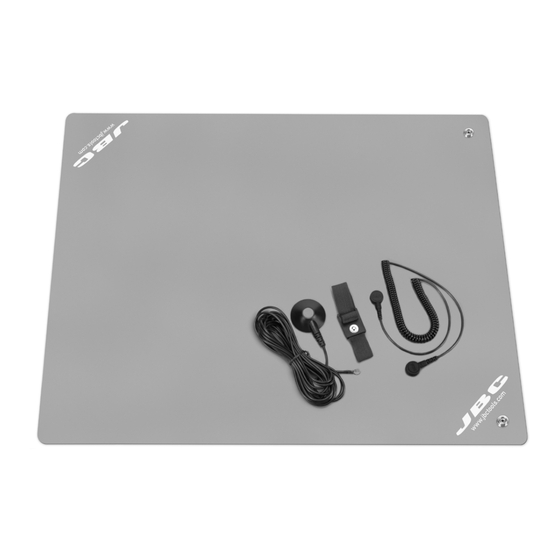

This manual corresponds to the following references: TMS-KA (450 x 600 mm / 17.72 x 23.62 in) TMB-KA (900 x 600 mm / 35.43 x 23.62 in) Packing List The following items are included: ESD Table Mat ........... 1 unit ESD Spiral Earthing Cable ..... 1 unit Ref. - Page 3 Workplace Connection Example 130 mm 130 mm JBC table mat set is equipped with a high quality ESD table mat and the following matching accessories: an ESD spiral earthing cable, an ESD earthing cable and an ESD earthing wristband. 100 mm...
- Page 4 TM20 ESD Spiral Earthing Cable spiral earthing cable length 2.4 m / 94.49 in and is made out of a highly elastic material that allows the user great freedom of movement when working. It comes in black color and with 2 press studs - one with a ø10 mm (female) connector and the other with ø10 mm Press stud ø3 mm (female) connector.
- Page 5 para manuales - color gris 200 mm TM50 130 mm 130 mm ESD Earthing Wristband. Buckle for Length Adjustment earthing wristband length 220 mm / 8.66 in and comes with a buckle that allows to adjust the length of the strap and incorporates a 100 mm ø3 mm press stud.
- Page 6 Notes...
-
Page 7: Specifications
- color gris 200 mm Specifications 130 mm 130 mm TMSK / TMBK ESD Table Mat Set Ref.: TMS-KA (450x600mm / 17.72 x 23.62 in) Ref.: TMB-KA (900x600mm / 35.43 x 23.62 in) 100 mm Table Mat - Electrical resistance: - 10 Ω... - Page 8 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
