- Page 1 COMBO MINI - Low profile recessed architectural fixtures...

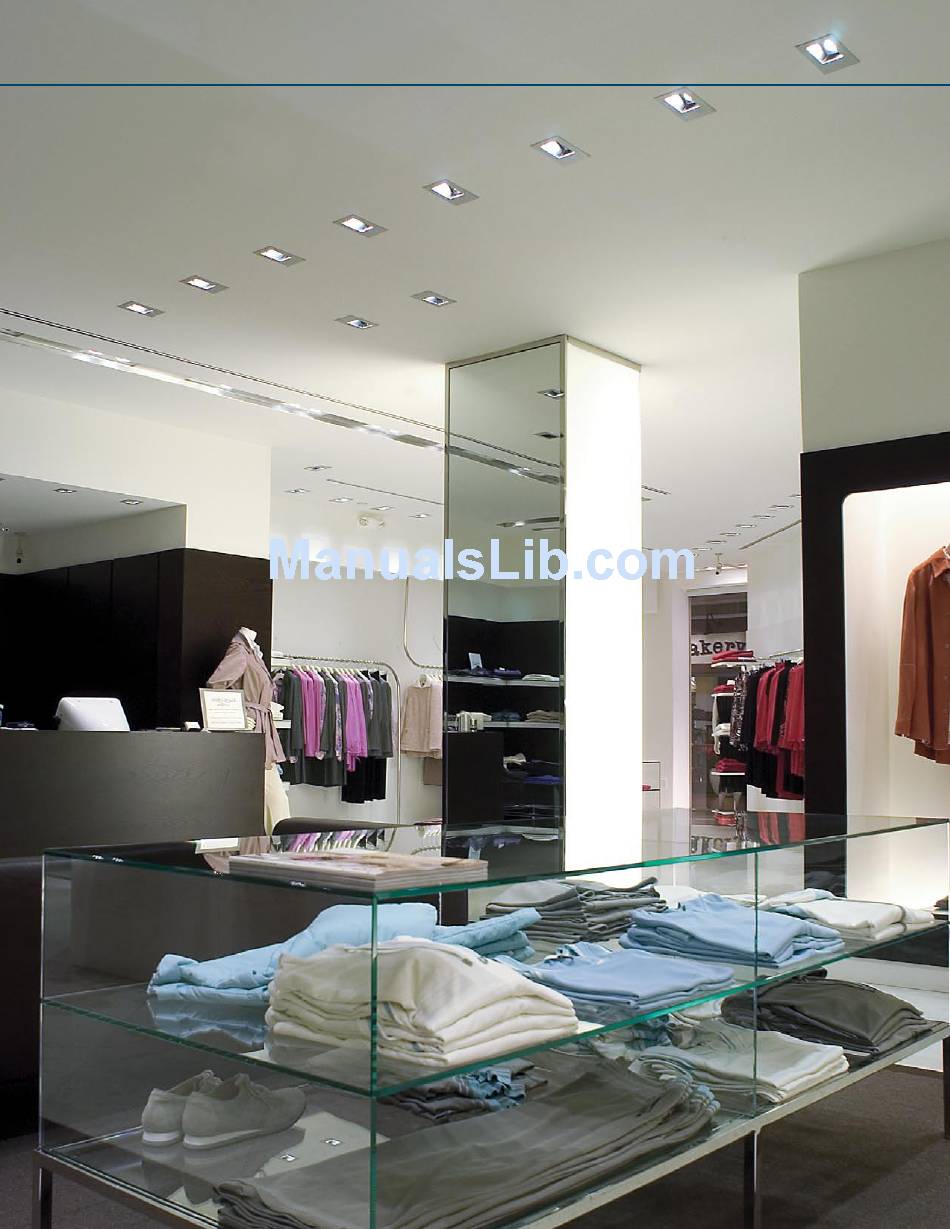

- Page 2 (2) optical accessories. The fixed downlight trim is also available with a 120V PAR20 lamp. Combo Mini is suitable for a wide range of retail, commercial, THIS TRIM AVAILABLE IN MR16 OR PAR20 hospitality and residential lighting applications.
- Page 3 COMBO MINI 15.00" (MR16) 17.14" (PAR20) 7.13" OVERALL PLASTERFRAME 4.50" sq. (MR16) WIDTH: 6.00” 5.00" sq. (PAR20) Now available with PAR20 120V lamp 18.13" 7.13" OVERALL PLASTERFRAME WIDTH: 6.00” 7.68" 4.50" 4.19" x 2.45" ONE LIGHT DOWNLIGHT TRIM Ultra Low Profile Square Fixed Downlight 12V Halogen MR16 12 volts 71 watts max.
- Page 4 • Socket is pre-wired to the j-box with 18AWG SF-1 leads. • J-box U.L. listed for through branch wiring for eight #12, 90ºC supply wires or 60ºC supply wires for end of run. • Includes butterfly brackets for black iron installations COMBO MINI...
