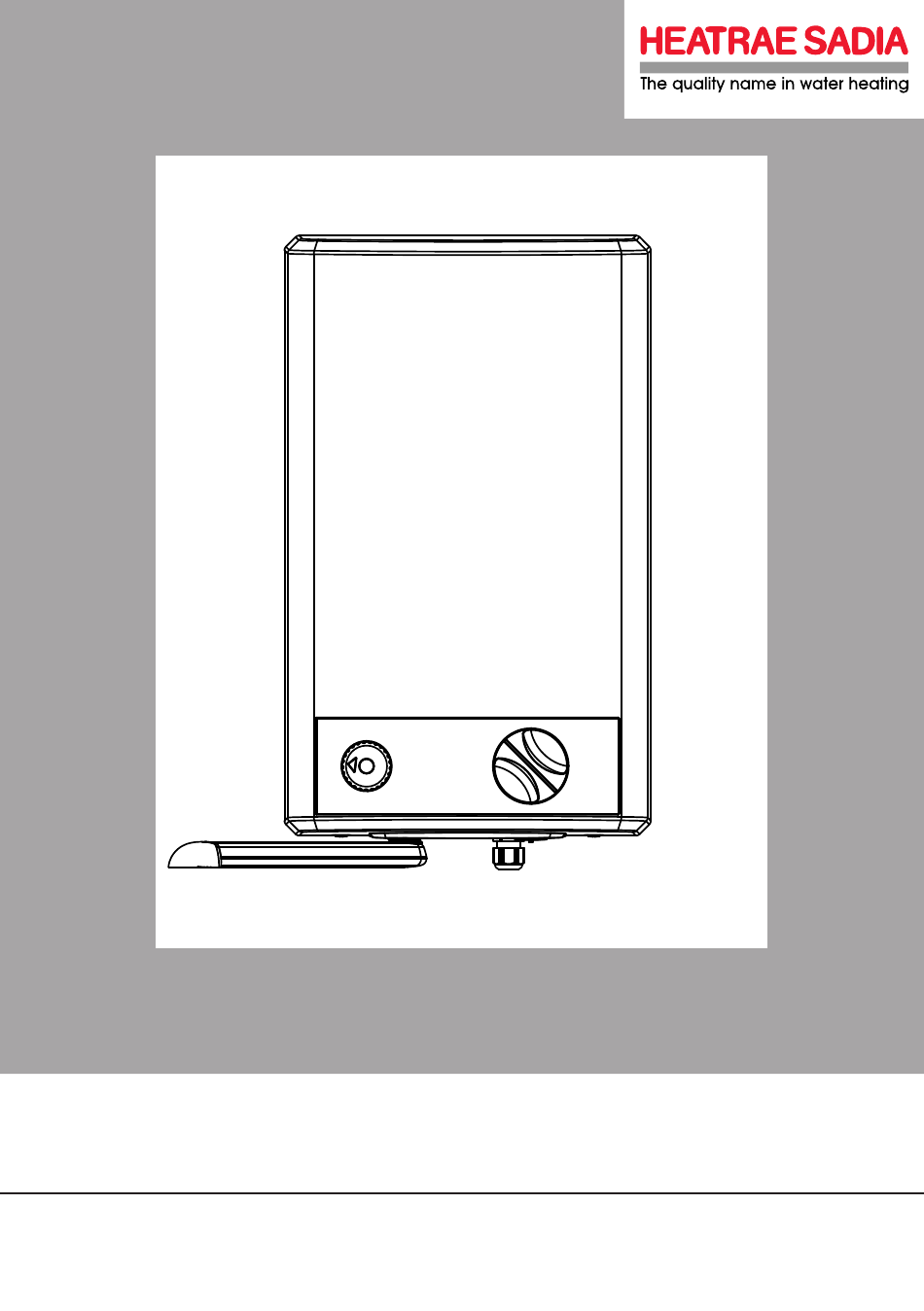

STREAMLINE OVERSINK
1
Fitting Instructions and User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STREAMLINE OVERSINK and is the answer not in the manual?

Questions and answers

Related Manuals for Heatrae Sadia STREAMLINE OVERSINK

Summary of Contents for Heatrae Sadia STREAMLINE OVERSINK

  • Page 1 STREAMLINE OVERSINK Fitting Instructions and User Guide...

  • Page 2: Table Of Contents

    CONTENTS SECTION PAGE 1.0 INTRODUCTION 2.0 TECHNICAL SPECIFICATIONS 3.0 INSTALLATION 4.0 COMMISSIONING 5.0 EXPLANATION TO USER 6.0 MAINTENANCE 7.0 FAULT FINDING 8.0 SPARE PARTS 9.0 GUARANTEE 10.0 ENVIRONMENTAL INFORMATION 11.0 COMMISSIONING RECORD 12.0 SERVICE RECORD 13.0 SPARES STOCKISTS...

  • Page 3: Introduction

    1.0 INTRODUCTION Thank you for purchasing a Heatrae Sadia Streamline Oversink Vented Water Heater. The Streamline is manufactured in the UK to the highest standards and has been designed to meet all the latest relevant safety specifications. 1.1 IMPORTANT POINTS The Streamline must be installed and commissioned by a competent person.

  • Page 4: Technical Specifications

    2.0 TECHNICAL SPECIFICATIONS Electrical Rating 1.0kW @ 240v / 0.9kW @ 230v~ 3.0kW @ 240v / 2.7kW @ 230v~ Capacity 7 and 10 litres Weight (7 Litre) 3.6Kg (empty), 10.6Kg (full) Weight (10 Litre) 4.0Kg (empty), 14.0Kg (full) Enclosure rated IPX4 Operating Pressure 0 MPa (0 bar)
  • Page 5 FIGURE 02: DIMENSIONS (IN mm) THIRD FIXING HOLE 32.5 R276 DIMENSION A 7 LITRE 10 LITRE...

  • Page 6: Installation

    WARNING: THE STREAMLINE IS AN OPEN OUTLET WATER HEATER. THE OUTLET OF THE STREAMLINE ACTS AS A VENT AND MUST ONLY BE CONNECTED TO HEATRAE SADIA VENTED TAPS OR SPOUTS. THESE FITTINGS MUST NEVER BE BLOCKED, RESTRICTED OR MODIFIED, IN ANY WAY.
  • Page 7 3.3 FIXING 1. Mark the position of the Streamline and the position of the fixing bracket (see Figure 02, p.5). 2. Fix the wall bracket using the two larger fixing plugs and screws provided 3. Remove the cover of the Streamline by removing the two screws from the bottom face and rotating the cover about the top edge.
  • Page 8 FIGURE 05 - PLUMBING DIAGRAM WATER HEATER INLET WATER SUPPLY FLOW SERVICE RESTRICTOR VALVE 3.5 SPOUT ASSEMBLY 1. Fit the 1/2”BSP nut to the inner container boss. 2. Remove the spout clamp. 3. Fit the spout through the back plate and grommet. 4.
  • Page 9 FIGURE 07: SPOUT FRONT SPOUT FRONT SPOUT BODY 3.6 ELECTRICAL WARNING: THIS APPLIANCE MUST BE EARTHED. IT IS SUITABLE FOR A.C. SUPPLY ONLY. ELECTRICAL INSTALLATION MUST BE CARRIED OUT BY A COMPETENT ELECTRICIAN AND BE IN ACCORDANCE WITH THE LATEST I.E.E. WIRING REGULATIONS.

  • Page 10: Commissioning

    4.0 COMMISSIONING DO NOT SWITCH ON THE ELECTRICAL SUPPLY UNTIL THE STREAMLINE HAS BEEN FILLED WITH WATER AND CHECKED FOR LEAKS. 1. Check all water and electrical connections are tight. 2. Check that the thermostat and cutout capillaries are located correctly in the element pockets.

  • Page 11: Explanation To User

    FIGURE 10: CONTROL KNOB ASSEMBLY CONTROL KNOB INTERNAL RIB EXTENSION BRASS SPINDLE 5.0 EXPLANATION TO USER Following Installation and Commissioning of the water heater the operation should be fully explained to the user. 5.1 HOT WATER 1. Indicate the location of the water heater and identify the outlets to which it is connected.

  • Page 12: Maintenance

    Maintenance should be carried out by a competent person and any replacement parts used should be Heatrae Sadia ‘Streamline’ spare parts. Little maintenance is required, however in hard water areas the Streamline may require periodic descaling to ensure efficient operation.
  • Page 13 6.2 DESCALE THE STREAMLINE 1. Drain the Streamline (see section 6.1, p.12). 2. Undo the locknut (rotate the locknut anticlockwise until it is clear of the inner container) 3. Remove the Element Plate Assembly (EPA) and gasket. 4. Remove scale from the element and the inner container. 5.

  • Page 14: Fault Finding

    2. Remove the front cover (see section 3.3.3, p.6). 3. Depress the red button (see figure 13, p.15). 4. Recommission the Streamline (see section 4, p.10). 5. If the cut out continues to operate contact the Heatrae Sadia Service Team (see p20 for contact details).

  • Page 15: Spare Parts

    FIGURE 13 - OVER TEMPERATURE CUT OUT RESET 8.0 SPARE PARTS The following comprehensive list of spare parts is available for your Streamline. Please refer to the rating label bottom face of the Streamline before ordering to ensure the correct spare part is obtained. DO NOT REPLACE WITH PARTS NOT RECOMMENDED BY HEATRAE SADIA.
  • Page 16 FIGURE 14: SPARE PARTS...

  • Page 17: Guarantee

    The Streamline is not guaranteed against damage by frost or due to the build up of scale. Please note that if Heatrae Sadia personnel or agents are requested to descale the Streamline, this work will be chargeable. This guarantee does not affect the statutory rights of the consumer.

  • Page 18: Commissioning Record

    11.0 COMMISSIONING RECORD Installation Date: ____________________________________________ Model and Serial Number: __________________________________ Installer (Plumbing): ________________________________________ Contact Details: ____________________________________________ Competency Scheme & ID Number: _________________________ Installer (Electrical): ________________________________________ Contact Details: ____________________________________________ Competency Scheme & ID Number: _________________________ Comments: ________________________________________________ ________________________________________________ ________________________________________________ Mains supply pressure and flow rate Isolation valve fitted Flow reducer fitted Pipework checked for leaks...

  • Page 19: Service Record

    12.0 SERVICE RECORD Service Date: _______________________________________________ Engineer: __________________________________________________ Contact Details: ____________________________________________ Competency Scheme & ID Number: _________________________ Comments: ________________________________________________ ________________________________________________ ________________________________________________ Service Date: _______________________________________________ Engineer: __________________________________________________ Contact Details: ____________________________________________ Competency Scheme & ID Number: _________________________ Comments: ________________________________________________ ________________________________________________ ________________________________________________ Service Date: _______________________________________________ Engineer: __________________________________________________...

  • Page 20: Spares Stockists

    Almondsbury, Bristol BS32 4TF Tel: 01454 620500 Alternatively, contact your local supplying merchant or wholesale branch. Service: 0844 8711535 Service Fax: 0844 8711528 E-mail: heatraesadiaservice @heateam.co.uk Heatrae Sadia Heating Hurricane Way Norwich NR6 6EA www.heatraesadia.com 36005997 issue 04 © 2012...
