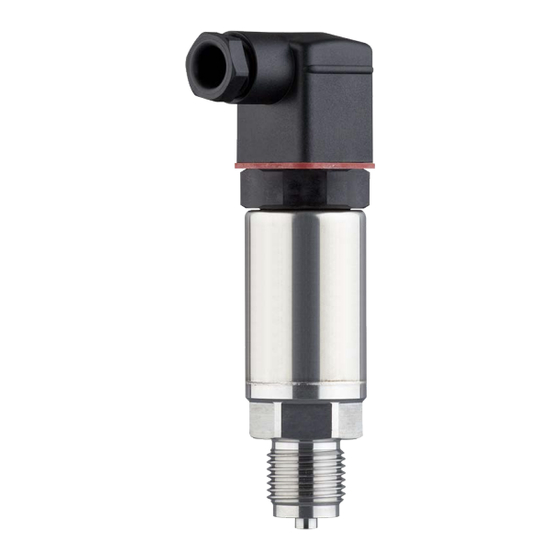

- Page 1 Operating Instructions Pressure sensor with metallic measuring cell VEGABAR 19 Two-wire 4 … 20 mA Document ID: 55576...
-
Page 2: Table Of Contents
NAMUR recommendations .................... 24 Environment management system ................. 24 Supplement ..........................25 Technical data ........................ 25 Dimensions ........................29 Industrial property rights ....................31 Licensing information for open source software ............. 31 Trademark ........................31 VEGABAR 19 • Two-wire 4 … 20 mA... - Page 3 Contents Safety instructions for Ex areas: Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions. Editing status: 2022-02-22 VEGABAR 19 • Two-wire 4 … 20 mA...
-
Page 4: About This Document
Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work. -
Page 5: For Your Safety
During work on and with the device, the required personal protective equipment must always be worn. Appropriate use The VEGABAR 19 is a pressure transmitter for process pressure measurement. You can find detailed information about the area of application in chapter " Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions. - Page 6 2 For your safety Installations in the US shall comply with the relevant requirements of the National Electrical Code (ANSI/NFPA 70). Installations in Canada shall comply with the relevant requirements of the Canadian Electrical Code. VEGABAR 19 • Two-wire 4 … 20 mA...
-
Page 7: Product Description
• Hardware version from 1.0.0 • Software version from 1.0.0 Constituent parts Fig. 1: Components of VEGABAR 19 1 Process fitting Electronics housing Plug connector Type label The type label contains the most important data for identification and use of the instrument. VEGABAR 19 • Two-wire 4 … 20 mA... -
Page 8: Principle Of Operation
Enter serial number manually in the VEGA Tools app (available free of charge in the respective stores) Principle of operation Application area VEGABAR 19 is suitable for applications in virtually all industries. It is used for the measurement of the following pressure types. • Gauge pressure Measured products Measured products are gases, vapours and liquids. - Page 9 Relative pressure: the measuring cell is open to the atmosphere. Pressure types The ambient pressure is detected in the measuring cell and compen- sated. It thus has no influence on the measured value. Recessed installation The recessed installation is particularly suitable for applications with gases, vapours and transparent liquids. VEGABAR 19 • Two-wire 4 … 20 mA...
-
Page 10: Adjustment
• Avoiding mechanical shock and vibration • Storage and transport Storage and transport temperature see chapter " Supplement - temperature Technical data - Ambient conditions" • Relative humidity 20 … 85 % VEGABAR 19 • Two-wire 4 … 20 mA... -
Page 11: Accessories
Welded sockets are used to connect the devices to the process. and hygienic adapter Threaded and hygienic adapters enable simple adaptation of devices with standard threaded fittings to process-side hygiene connections. Mounting accessories The suitable mounting accessories for VEGABAR 19 includes si- phons, blocking valves and measuring instrument holders. VEGABAR 19 • Two-wire 4 … 20 mA... -
Page 12: Mounting
Use a suitable connection cable (see chapter " Connecting to power supply") • Tighten the cable gland or plug connector • Lead the connection cable downward in front of the cable entry or plug connector VEGABAR 19 • Two-wire 4 … 20 mA... - Page 13 This applies mainly to outdoor installations, in areas where high humidity is expected (e.g. through cleaning processes) and on cooled or heated vessels. Ventilation and pressure Ventilation and pressure compensation for VEGABAR 19 are provided compensation by an air-permeable, moisture-blocking filter element. Fig. 6: Position of the filter element Filter element For effective ventilation, the filter element must always be free of buildup.
-
Page 14: Process Pressure Measurement
Fig. 8: Measurement setup for process pressure measurement of gases in pipelines VEGABAR 19 Blocking valve Pipeline In vapours Keep the following in mind when setting up the measuring system: • Connect via a siphon VEGABAR 19 • Two-wire 4 … 20 mA... - Page 15 Mount the instrument below the measuring point The effective pressure line is always filled with liquid and gas bubbles can bubble up to the process line. Fig. 10: Measurement setup for process pressure measurement of liquids in pipelines VEGABAR 19 Blocking valve Pipeline VEGABAR 19 • Two-wire 4 … 20 mA...
-
Page 16: Connecting To Power Supply
ISO 4400 1. Loosen the screw on the rear of the plug connector 2. Remove the plug connector and seal from VEGABAR 19 3. Remove the plug insert from the plug housing VEGABAR 19 • Two-wire 4 … 20 mA... - Page 17 Plug housing Plug insert Plug seal 7. Snap the plug insert into the plug housing and insert the sensor seal 8. Plug the plug insert with seal to VEGABAR 19 and tighten the screw The electrical connection is finished. Connection via angle Proceed as follows: plug connector with 1.
- Page 18 9. Tighten the screws on the strain relief and cable entry 10. Hook in the cover and push onto the plug connection, tighten cover screw 11. Plug the plug insert with seal to VEGABAR 19 and tighten the screw VEGABAR 19 • Two-wire 4 … 20 mA...
-
Page 19: Wiring Plan
Voltage supply, signal output/+ Voltage supply, signal output/- Free Electrically connected with metal housing Switch-on phase After switching on, the device first carries out a self-check: • Internal check of the electronics • The output signal jumps to the set fault current VEGABAR 19 • Two-wire 4 … 20 mA... - Page 20 5 Connecting to power supply The current measured value is then output on the signal cable. VEGABAR 19 • Two-wire 4 … 20 mA...
-
Page 21: Diagnostics And Servicing
24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is also available outside normal working hours, seven days a week around the clock. -
Page 22: Diagnosis, Fault Messages
Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Ask the agency serving you to get the address for the return ship- ment. You can find the agency on our homepage. VEGABAR 19 • Two-wire 4 … 20 mA... -
Page 23: Dismount
If personal data is stored on the old device to be disposed of, delete it before disposal. If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGABAR 19 • Two-wire 4 … 20 mA... -
Page 24: Certificates And Approvals
That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observ- ing the environmental instructions in chapters " Packaging, transport and storage", " Disposal" of these operating instructions. VEGABAR 19 • Two-wire 4 … 20 mA... -
Page 25: Supplement
Nominal measuring ranges and overload capability in bar/kPa Nominal range Overload capacity, max. pressure Overload capacity, min. pressure 0 … +0.4 bar/0 … +40 kPa +4 bar/+400 kPa -1 bar/-100 kPa Data on overload capability apply for reference temperature. VEGABAR 19 • Two-wire 4 … 20 mA... - Page 26 5 µA Fault signal output current 3.6 mA Load See load resistance under Power supply Transferred measured value Pressure Dynamic behaviour output Dynamic characteristics - Current output Depending on medium and temperature VEGABAR 19 • Two-wire 4 … 20 mA...
- Page 27 Relating to the nominal measuring range, incl. non-linearity, hysteresis and non-reproducibility. In the compensated temperature range of -40 … +100 °C (-40 … +212 °F), reference temperature 20 °C (68 °F). Relating to the nominal measuring range. VEGABAR 19 • Two-wire 4 … 20 mA...
- Page 28 Protection according to UL 50 EN 60529/IEC 529 M12 x 1 plug IP66/IP67 Type 4X Plug according to ISO 4400 IP65 Altitude above sea level 5000 m (16404 ft) MWP: Maximum Working Pressure Achieving a UL-approved degree of protection requires the use of UL-certified plugs or connection sets. This is fulfilled when using the supplied plug according to ISO 4400. VEGABAR 19 • Two-wire 4 … 20 mA...
-
Page 29: Dimensions
ø 6 mm ( 0.69 ") ( 0.24 ") Fig. 19: VEGABAR 19, threaded fitting not front-flush DU Thread G½ (EN 837), manometer connection DN Thread G½, inside G¼ (ISO 228-1) LF Thread ½ NPT, inside ¼ NPT (ASME B1.20.1) VEGABAR 19 • Two-wire 4 … 20 mA... - Page 30 (1.06") G½ ø 18 mm ø 30 mm ( 0.71 ") ø27 mm ( 1.18 ") ø 40 mm ( 1.06 ") ( 1.57 ") LU/3P C5/3Q Fig. 20: VEGABAR 19, threaded fitting front-flush LU/3P Thread G½ (ISO 228-1); front-flush, with O-ring C5/3Q Thread G1 (ISO 228-1), front-flush VEGABAR 19 • Two-wire 4 … 20 mA...
-
Page 31: Industrial Property Rights
Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com. - Page 32 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2022 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
