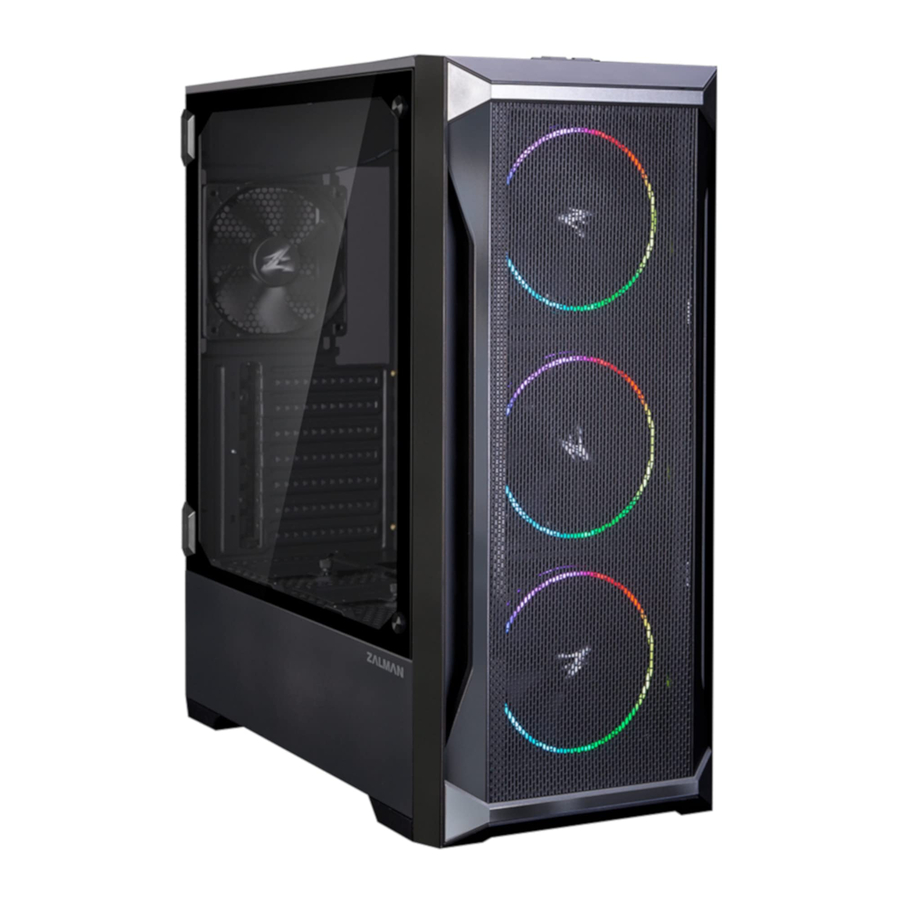

ZALMAN Z8, Z8 MS, Z8 TG - ATX Mid Tower Computer Case Manual

• Read this manual carefully before installing.
• Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
• Wear gloves to prevent accidents when installing the product.
• Severe damage may occur when mounting the system, so do not apply excessive force.
• Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
• Be careful not to block the ventilation hole of the product when using the system.
• Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
• Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
• Do not insert your hand or other object into the product during operation, as this may injure your hand or damage the object.
• Store and use the product out of children's reach.
• Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
• The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

Specifications

Accessories

I/O Ports

1. Removing the side panels

2. Removing the front panel

3. Mounting the motherboard


3-1. Motherboard size

4. Mounting the PCI-E(VGA) Card


5. Mounting the 2.5" SSD

6. Mounting the 3.5" HDD


Z8 MS, Z8 TG Only

Please do not connect ARGB fans more than 8pcs, otherwise it may cause malfunction.

How to control RGB LED

• LED colors & patterns can be changed by pressing the LED Button on I/O ports.
• Long pressing on the LED Button for 6 seconds, RGB LED will be turn off after blinking twice in white.
• Long pressing on the LED Button for 3 seconds, RGB will be synchronized with motherboard after blinking once in white. Press the LED Button again to desynchronize with motherboard.

1. ARGB LED 1-4 / 3-Pin


2. ARGB LED Control Button / 2-Pin

   • Connector to ARGB LED Control Button

3. Other Motherboards Sync / 3-Pin

   • Connector to Motherboard
   • Requires Motherboard that Supports RGB Sync


   ※
   if Addressable 3 Pin connects to 12V header instead of 5V header improperly, It may cause fatal damages to the product by the overvoltage.

4. SATA Power / 15-Pin

   • Connector to PSU
   • Input : 5V

5. Connect the ARGB connector to the RGB hub

7. Mounting the PSU

8. Mounting the radiator
