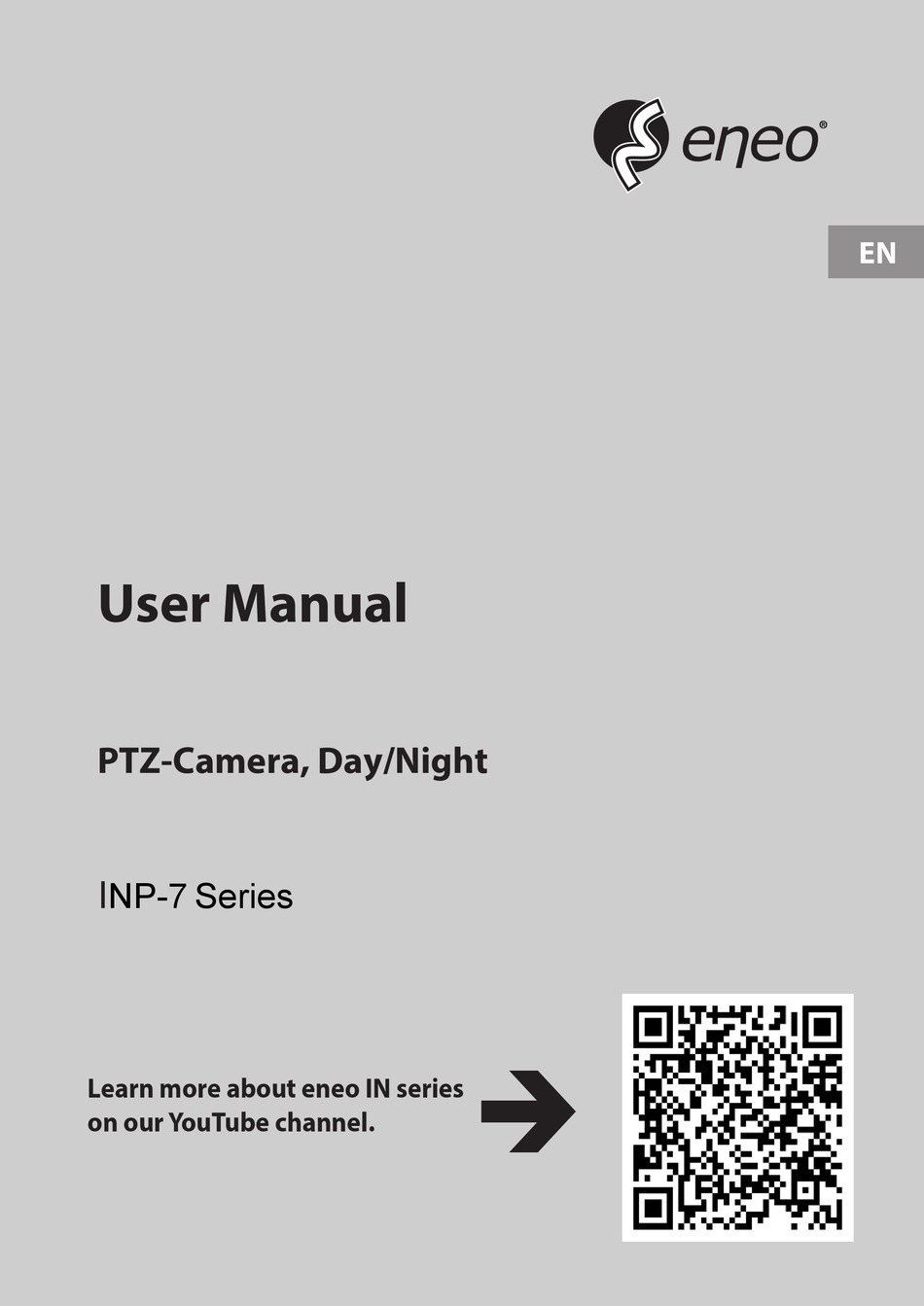

- Page 1 User Manual PTZ-Camera, Day/Night NP-7 Series è Learn more about eneo IN series on our YouTube channel.
-
Page 2: Table Of Contents
USER MANUAL Content Content .................................. 1 Introduction ................................4 Statement: ................................. 4 1、Overview ................................5 1.1、Range of Application ..........................5 1.2 Product Description ............................5 1.3 Operation Environment ..........................5 2 Device Connection ............................... 6 2.1 Connection to PC ............................6 2.2 Connection to router/switch ......................... - Page 3 USER MANUAL 6.3.6 Tour..............................15 6.3.7 Pattern Scan ..........................15 6.4 Pigtail Description ............................16 7 Preview Interface ..............................16 7.1 Live Menu ..............................16 7.2 Recording Status ............................17 8 Playback ................................18 8.1 General Playback............................18 8.2 Picture Search ............................. 19 8.3 Tag Playback ..............................
- Page 4 USER MANUAL 9.8.2 Recognition ........................... 48 9.8.3 Alarm .............................. 51 9.8.4 Statistics ............................54 9.9 Network ..............................56 9.9.1 General ............................56 9.9.2 Email Configuration........................58 9.9.3 FTP ..............................59 9.9.4 RTSP Protocol ..........................59 9.9.5 DDNS ............................. 60 9.9.6 HTTPS ............................60 9.9.7 IP Filter ............................
-
Page 5: Introduction
USER MANUAL Introduction Thank you for using our network HD PTZ speed dome. (Herein after referred to as the Dome). The product is a new network speed dome integrating network remote monitoring, video server and HD speed dome function. High-performance single SOC chips are used in media processor for audio/video acquisition, compression and transmission/transfer. -
Page 6: 1、Overview
USER MANUAL 1、Overview 1.1、Range of Application The network dome with powerful image processing capacity may be applied at various public places such as mall, supermarket, school, factory and workshop, as well as in environments requiring HD video image such as bank and traffic control system, as shown below: 1.2 Product Description The Speed dome is a digital networked monitoring device that can operate independently with a built-in web server... -
Page 7: Device Connection
USER MANUAL 2 Device Connection The Speed dome can be connected in two ways: 2.1 Connection to PC Connect the speed dome to PC via straight-through network cable, with power input connected to a DC 12V adaptor, and set the IP addresses of the PC and the dome in the same network segment. The dome will communicate with PC within one minute after being powered on if the network operates normally. -
Page 8: Network Connection & Ip Assignment
If necessary, uncheck “DHCP”. Make the necessary settings and confirm with “OK”. The camera settings are updated. Now you can also perform a factory reset of the camera inside the eneo Site Manager. For further information, please refer to the eneo Site Manager Quick Start Guide. -
Page 9: Web Log In
USER MANUAL 4 Web Log in 4.1 Initial login In the first time accessing the web of the dome, you have to set an admin password to activate your device. The interface as shown in Figure 4.1.1 will be popped up. to check password Click requirements: The password should be 8-15 characters, including letters, numbers or special characters. -
Page 10: Log-In
USER MANUAL ① Security Question Configuration： Figure 4.1.2 Check the <Security Question Configuration> option, Set the three security questions and answers. ② Certificate of authorization： The maximum length of the answer is 64 characters Check the <Certificate of authorization> option, Insert USB flash drive to your device Click <Export>... -
Page 11: Reset Password
USER MANUAL 4.3 Reset Password After the device is activated, you should properly keep the password. When you forget the password, there are three methods to reset. At the first access, you have to configure at least one password resetting method. For details, please refer to section 4.2- <Log in>... -
Page 12: Password Expired
USER MANUAL 1、Input the system time 2、Input the Mac address of Device 3、Click <Generate> Then you will get a 6-digital code. Click <OK> Figure 4.3.3 4.4 Password Expired We recommend you change your password regularly, especially in the high security system. In order to better protect your products, System will record the system time you modified password. -
Page 13: Plug-In Installation
USER MANUAL 5 Plug-in Installation Use IE browser to log in, you need to install the plug-in to preview the image normally. When the prompt in Figure 5.1.1 appears, please download and install the plug-in according to the prompt. Figure 5.1.1 Note: Programs without plug-ins are supported. -
Page 14: Ptz Control
USER MANUAL 6.3 PTZ Control 6.3.1 Button Introduction Click and hold the directional key to pan/tilt the device horizontally and vertically. Click " " icon, and the smart dome will continue to rotate horizontally. At this time, the button will turn sky blue; Click again to stop the rotation Drag the slider to adjust its speed of pan/tilt movement. -
Page 15: Assist Function Key
USER MANUAL 6.3.2 Assist Function Key Click < > icon to enable/disable the 3D positioning function. Now the button changes to “Highlight ” mode, click the button again, then you will disable the 3D positioning function. Once system enable the 3D positioning function, you will can operate as follows: Click somewhere in the preview screen, and the smart dome will move the corresponding point to the video center. -
Page 16: Line Scan
USER MANUAL 6.3.5 Line Scan Select the <Line Scan> mode. Click the <Start set> icon to record the start position; Click the directional key to turn the device. Click <End set> icon to record the end position Click <Cruise> and device will cruise at constant speed between the start position and end position 6.3.6 Tour The <Tour>... -
Page 17: Pigtail Description
USER MANUAL 6.4 Pigtail Description Label Printing Corresponding Colour AUDIO IN Pink AUDIO OUT White/Yellow AUDIO GND Purple RS485+ Brown/White RS485- Brown GROUND Yellow/Green ALARM IN BLUE ALARM GND Green/Purple ALARM OUT+ Green ALARM OUT- gray Note: The Pigtail description vary depending on the models. 7 Preview Interface 7.1 Live Menu After successful log-in, we will enter into the <Live>... -
Page 18: Recording Status
USER MANUAL AI alarm: Open the alarm push bar on the right, and push the corresponding picture when performing functions such as face alarm, human and vehicle detection. Color: Adjust the current image settings, such as image saturation, sharpness, etc. PTZ Setting: Open the pan/tilt operation setting and re-adjust the focus of dome. -
Page 19: Playback
USER MANUAL 8 Playback The speed dome not only needs to allow us to see the real-time image, but also needs to save the image information so that it can be retrieved and viewed when needed. 8.1 General Playback The playback function is mainly composed of General video search and AI search functions. The following figure shows the video search. -
Page 20: Picture Search
USER MANUAL 8.2 Picture Search Click <Playback> menu Set Search condition, such as type, date and time etc. and click <Search> The matched video files show in the search results display area. When dome enable <auto-capture> function, you can search and play these pictures auto captured. 1、Search Mode：Switch the search mode. -
Page 21: Smart Ai
USER MANUAL 8.4 Smart AI Log in with a plug-in free browser to playback smart AI. Refer to below Figure The blue in the processing bar stand for the alarm triggered by human. 1、Select <Smart> option 2、Select the <date> you desire to search, and click search and you will be prompted with the date of the video file. -
Page 22: Face Detection
USER MANUAL 8.5 AI 8.5.1 Face Detection The speed dome performs face recognition function, stores the captured face images to the TF card, and saves the image related information at the same time. During the search, you can quickly retrieve the face capture that meets the user's requirements as needed, and quickly locate the video according to the capture. -
Page 23: Pid&Lcd
USER MANUAL Select <Human & Vehicle detection> option Set the <Start time> of searching for human & Vehicle capturing Set the <End time> of searching for human & Vehicle capturing Select <Detection Type>, herein allow you select <Human> <Motor Vehicle> and <Non-motorized Vehicle>... -
Page 24: Face Attendance
USER MANUAL Set the <Start time> of searching for human & Vehicle capturing Set the <End time> of searching for human & Vehicle capturing Set the <minimum time interval> between two snapshots of the same target during search to increase its accuracy Similarity: allow you set the minimum similarity value to other reference pictures when matching and comparing repeat customers. - Page 25 USER MANUAL If you select <day>, the end date and start date will be synchronized automatically; Selecting <week> will automatically change the start date and end date into Monday and Sunday of the week in which the selected date is located; Selecting <Month>...
- Page 26 USER MANUAL Working Day：Click to set attendance date Duty Time：Click to set Duty Time Refresh: After changing the attendance parameters, click to refresh the search results. Export: Click to Export the results to PC. Attendance Result “←”stand for Leave early “→”stand for Late “←,→”stand for Late and Leave early “√”...
-
Page 27: License Plate
USER MANUAL 8.5.6 License Plate Enable the license plate detection function. When recognizing License plate info, it will alarm and record pictures or video information to facilitate search and view. Go to <PlaybackAI> interface as follows Select <Face Attendance> option Set the <Start time>... -
Page 28: Image Control
USER MANUAL Name：Set the channel name that dome shown on the OSD. Date Format：Set OSD date format displaying. There are three types: MM/DD/YYYY, YYYY-MM-DD, and DD/MM/YYYY. Time Format：Set OSD time format. There are 12 hours and 24 hours optional. Flicker Control：Set the refresh rate of the image. There are two options of 60Hz and 50Hz, corresponding to N standard and P standard. - Page 29 USER MANUAL Day/Night – the image are in color at day mode, and switch to in B/W at day mode. Schedule – the dome auto-switch between full color mode and Day/Night mode according to the <Schedule> setting White Light: Under the full color mode, allow you set the fill light effect of white light. Totally 4 modes. Automatic Mode: can auto control its fill light effect.
-
Page 30: Video Cover
USER MANUAL Time Exposure：Set the dome's exposure time, used in conjunction with Shutter. When the exposure time is long, the image will be overexposed, and when the exposure time is short, the picture will be dark. Defog：You can enable the defog function when the environment is foggy and the image is misty. It enhances the subtle details so that the image appears clearer. -
Page 31: Ptz
USER MANUAL Bitrate: Select the bitrate to be set. Region ID: Select the region ID, up to eight regions can be set. Enable Region: Turn on. ROI Level: Set the image quality in the area. The higher the quality is, the higher the resolution and frame rate are. -
Page 32: Record
USER MANUAL Resolution: The resolution of the recorded image. It refer to a measure of how much detail a digital image can hold. The greater the resolution, the greater the level of detail. FPS: It refers to the number of frames captured each second. A higher frame rate is advantageous when there is movement in the video stream. -
Page 33: Event
USER MANUAL When the dome connected to one NVR, an ANR switch will appear on the <record> interface, and the playback will also have this type of video search. The supplementary record will not start until one minute after the connection between NVR and IPC is restored 9.6.2.2 Record Schedule The dome would automatically start/stop record according to the configured record schedule. - Page 34 USER MANUAL 9.7.1.2 Sound Detection Setup When the dome detects a change in the connected audio and meets the requirements of the alarm detection setting, an alarm will be triggered. Enable：Turn on/off sound detection. Rise：The alarm will be triggered only when the volume rises steeply. Rise Sensitivity: Fine-tuning sound rise sensitive detection, and the sensitivity can be set to 1-100.
- Page 35 USER MANUAL When dome is set to Full Color mode, The menu can’t be configured, Drag the left mouse to delimit the deterrence area in the right window. Only when the alarm is triggered in the area can white light deterrence be carried out. 1、Turn on the light 2、Adjust the Flood Light Value 3、Set the duration of white light deterrence...
-
Page 36: Alarm
USER MANUAL 9.7.1.4 Video Tampering Setup When detecting the real-time view is blocked, an alarm will be triggered. Enable the function and click Save Enable：Enable/disable the <Video Tampering> function 9.7.2 Alarm The menu allow you configure the alarm parameters 9.7.2.1 Motion Alarm... - Page 37 USER MANUAL Latch Time：Set the external alarm triggering time when motion is detected. Post Recording：Set the duration of the device's recording after the event occurs. There are 5s, 10 s, 20s, and 30s optional. The default recording time is 5s. The max is 30s. Send Email：Set the dome to send email to your mailbox when it detects motion.
- Page 38 USER MANUAL Alarm Out: Optional function. If your dome supports to connect an external alarm device, you can enable this function to activate the external alarm device. Enable Record：This type of recording will be activated when an alarm is triggered. Deterrent: Enable Deterrent function, when alarms are triggered, the deterrent light will be lit Schedule: Set the scheduled time of each alarm.
-
Page 39: Setup
USER MANUAL 9.7.2.4 Video Tampering Alarm Latch Time：Set the external alarm triggering time when video tampering is detected. Send Email：Set the dome to send email to your mailbox when the event occurs FTP Picture Upload: Upload the alarm picture to the FTP server after the alarm is triggered. FTP Video Upload: Upload the alarm video to the FTP server after the alarm is triggered. - Page 40 USER MANUAL 9.8.1.1 FD It helps to detect the face in the detection region. If a face is detected, the device triggers the linkage actions. Enable：Enable/Disable Face Detection Dynamic Marking：Enable/disable Dynamic Marking Face Enhance：When enabled the function, the effect of capturing the face of a moving target is enhanced, but the overall image quality will be reduced.
- Page 41 USER MANUAL Click <Multi Default> button in the lower left corner to display the default values of Multi Apply mode as follows: Roll Range：180、Pitch Range：180、Yaw Range:180、Picture Quality：100 Min Pixel: allow you set <Min Pixel> value Its defaulted resolution: 64*64 The setting range: 32~1080 pixels Max Pixel: allow you set <Max Pixel>...
- Page 42 USER MANUAL Interval Mode：Set the number of shots and the interval between shots and push pictures as needed. Snap number can be set to 1, 2, 3 and unlimited. Snap frequency: the time range is 1-255 seconds. If it is set to 5 seconds, a push will be generated respectively at 5, 10 and 15s when the target is detected.
- Page 43 USER MANUAL Motor Vehicle: Alarm is triggered when cars enter into the perimeter intrusion area Non-Motorized Vehicle: Alarm is triggered when bike, motor bicycle etc. enter into the perimeter intrusion area. Rule Number: Support to set up to 4 rules Rule Switch: allow you enable/disable the current rule number.
- Page 44 USER MANUAL 9.8.1.5 SOD SOD refer to the Stationary Object Detection function. When detecting some items left or lost in the monitoring scene, an alarm will be triggered. Enable/Disable SOD function Set Sensitivity level, The higher the sensitivity, the smaller the detectable target Enable Dynamic Marking option Rule Number: Support to set up to 4 rules Rule Switch: allow you enable/disable the current rule number.
- Page 45 USER MANUAL Alarm Number: Set the limit/condition of triggering the alarm. Its range 1~255. If the parameter is set to “5”, the CC alarm will be triggered once the “in” count minus the “out” count is greater or equal to the setting value.
- Page 46 USER MANUAL Enable/Disable CD function. Set Sensitivity level, the higher the sensitivity is, the smaller the detectable target is. Enable Dynamic Marking option Min Pixel: allow you set <Min Pixel> value Its defaulted resolution: 64*64 The setting range: 32~1080 pixels Max Pixel: allow you set <Max Pixel>...
- Page 47 USER MANUAL Max Pro Time: Set the Maximum time allowed to stay in the detection area. If no one left after reaching the set time, an alarm will be triggered. Note: Count only when a target is detected in the area. Only restart counting when a target leaves the detection area, Ignore the target who suddenly disappears in the area Detection Range: Set the <Detection Range>, you can select <Full Screen>...
- Page 48 USER MANUAL The setting range: 320~1080 pixels Detection Type：Set the Detection type of License Plate. There are two types, including European License Plate and American License Plate. Detection mode: There are two modes to select, covering: European license plate & American license plate Set Detection Range, there are two modes to select: 1、Full Screen：Detect all the areas that can be monitored by the dome...
-
Page 49: Recognition
USER MANUAL Enable/Disable AI schedule function Note: The mutually exclusive AI function can’t be configured in the same time. After enabling the AI schedule, the switches of all AI functions of the channel can no longer be on or off manually. - Page 50 USER MANUAL Select one images from the display area and right-click the mouse, then you can find its info of the image, covering <Detail Information> <Move to…><Edit><Delete> Right-click and select the <Detail Information>, you can check the detail info of the selected images. Select the <Move to…>...
- Page 51 USER MANUAL Check the license plate info you need to import and click <Import> to add the LP info into the group. Click <Delete> to remove the unnecessary LP info (Shown as below). Note: It support to add up to 5000 LP information. Once it exceeds the value, system will pop up one prompt box with the content “the added data reach the upper limit of the group.”...
-
Page 52: Alarm
USER MANUAL Click one data to edit the PL information Click <Save> When the icon change to , that means your modification succeed. 4）Select the <Delete> to remove the selected PL info. 5）Check the LP info and Select the <Move to…> button to move the LP to other group 6）Click <Export>... - Page 53 USER MANUAL 1、Alarm Type：AD alarm is a specific options. There are three modes to alarm according to whether the captured target wears a mask. Close：Disable AD alarm NO Mask：An alarm is triggered when it is found that the target is not wearing a mask. Wear Mask：An alarm is triggered when the target is found wearing a mask 2、Latch Time：Refer to the time that I/O alarm will last after the alarm ends Remarks: The dome needs to support I/O output function, and the working time is controlled by the...
- Page 54 USER MANUAL Group Name：Edit the current Group Name. When pushing the alarm, the group name will be prompted. Enable/Disable Face Recognition Alarm Policy: you can customize the <Alarm Policy> Note: the previous three groups can’t be modified. Similarity: set the similarity value, the alarm will be triggered when the Similarity is larger than the value. Alarm：Enable the alarm of the group.
-
Page 55: Statistics
USER MANUAL Week：Send the attendance file by week. For example, if it is set to “Tuesday”, The attendance info from last Tuesday to this Monday will be sent on Wednesday. Month: Send the attendance file by Month. For example, if it is set to the “15th”, The attendance info from last 15th to this 14th will be sent on every 15th. - Page 56 USER MANUAL Click Intelligent option to select the PID [Human], PID[Vehicle], LCD[Human], LCD[Vehicle], Human and Vehicle Click Search Export: Enter one export file name and export the current search data. Display Area: Display the current search result in the form of Chart on the Display area. 9.8.4.3 Cross Counting Statistics Report Type：allow you set four report types, covering Daily report、Weekly report、Monthly report、...
-
Page 57: Network
USER MANUAL Report Type：allow you set four report types, covering Daily report、Weekly report、Monthly report、 Annual report. Date：the date/time data search is referring to Start Hour：Only will be set in the Daily Report type. End Hour：Only will be set in the Daily Report type. Mode：Set Data Display Mode, there are Graph and Table to select. - Page 58 USER MANUAL 9.9.1.2 PPPoE PPPoE, Point-to-Point Protocol over Ethernet, is a network protocol for encapsulating point-to-point Protocol (PPP) frame inside Ethernet frames. It is mainly used with ADSL service where individual user connect to the ADSL transceiver (modem) over Ethernet and in plain Metro Ethernet network. Enable <PPPoE>...
-
Page 59: Email Configuration
USER MANUAL 9.9.1.4 Port Configuration Web Port: This is the port you use to log in to the IPC remotely (for example, using a web client). If other application is using port 80, please change it. Client Port: This is the port that IPC will use to send information (for example, using a mobile application). -
Page 60: Ftp
USER MANUAL 9.9.3 FTP Through this menu, you can enable the FTP server to view pictures and videos uploaded from IPC to FTP Enable FTP option Enter IP address or domain name of Server and Port Enter User Name and Password Enable Transfer Images and Transfer Videos option to transfer images or videos to FTP server. -
Page 61: Ddns
USER MANUAL 9.9.5 DDNS This menu allows you configure DDNS setting. DDNS provide a static IP address to simplify IPC remote access. To use DDNS service, please apply an account on the webpage of DDNS service provider. Enable DDNS option Select one preferred DDNS server (DDNS_3322, DDNDNS, NO_IP, some support CHANGEIP DNSEXIT）... -
Page 62: Ip Filter
USER MANUAL 9.9.7 IP Filter This function can set the allow list and block list of dome. Enable：Enable or disable filter function. After enabling, allow list and block list are optional. Restricted Type：Select the list (allow list and block list) to be set. Start Address：Enter the start address. -
Page 63: Audio Setting
USER MANUAL Add NetHDD this menu allows you add NetHDD to record videos or capture images. Please note AI database can only save as HDDs 1、Select Mounting Type, There are NFS & SMB/CIFS type. NFS does not need to enter the NAS account and password, while SMB / CIFS needs to enter the NAS account and password. -
Page 64: Cloud
USER MANUAL 9.10.3 Cloud The dome can upload snapshots or videos to cloud services through Dropbox, which is a free service that allows you to easily store and share pictures. Before enabling cloud storage services, we recommend that you create a Dropbox account by using mail as user name. - Page 65 USER MANUAL Time setting mode：Time mode, there are static and NTP synchronization optional. Static time needs to be set by yourself, while NTP synchronization will perform time calibration via network. Date Format：Set the date format. Time Zone: Select the time zone related to your area or city. Time Format: Select the preferred time format.
-
Page 66: Multi-User Management
USER MANUAL 9.11.2 Multi-user management This menu allows you to configure user name, password and user permissions The system supports the following user types: ADMIN —System Administrator: The administrator can fully configure the system, and can change the administrator password and user password, and enable/disable password protection. USER —... -
Page 67: System Maintenance
USER MANUAL Select one of the disabled users and click "Editing" icon. Check <Enable> Edit <User Name> Input <password> you desired Input the <Password> again Click <Save> Input admin’s password for verification purpose. Check user permissions Click <All> to select all the permissions Click <Clear>... - Page 68 USER MANUAL 3、Click <Log type> and Select event type from pull-down menu. Log type include SYSTEM LOG, Configuration Log, Alarm Log, Account Log, Record Log, Storage Log and Network Log etc. 4、Click the drop-down menu under the <Minor Type> option, you will find the following options: Under the <System>...
- Page 69 USER MANUAL 9.11.3.3 Upgrade The menu can upgrade the device’s firmware. 1、Automatic Detection: Enable the option, system will auto detect online upgrade F/W; 2、Username: Input the FTP server name 3、Password: Input the FTP server password. 4、FTP/HTTP URL address: Input online upgrade address. Details format please refer to the example shown as the menu bottom 5、...
- Page 70 USER MANUAL 9.11.3.4 Parameters Management The menu allows you export the configured main parameters to your PC, or import the exported configured file to your device. Import File: Click <Import File> to popup the Path Window Select the parameters file from your PC Click <Import>...
-
Page 71: System Information
USER MANUAL 9.11.3.6 Developer Mode The menu allows you export P2P info of the Speed Dome to your PC. Input the exporting parameter file name at the <Export RS P2P Log> column Click <Export>。 9.11.4 System Information This menu allows you to view system information, such as dome ID, model name, MAC address, firmware version, etc. -
Page 72: Local Settings
USER MANUAL 10 Local Settings This menu allows you to set the save path of recording, downloading and snapshot files, as well as the format of recording and snapshot. Note: Programs without plug-ins are supported. If you use Safari 12 and above, Chrome57 and above, Firefox 52 and above, Edge 41 and other browsers for web access, this menu can be ignored. - Page 73 VIDEOR E. Hartig GmbH Exclusive distribution through special- ised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
