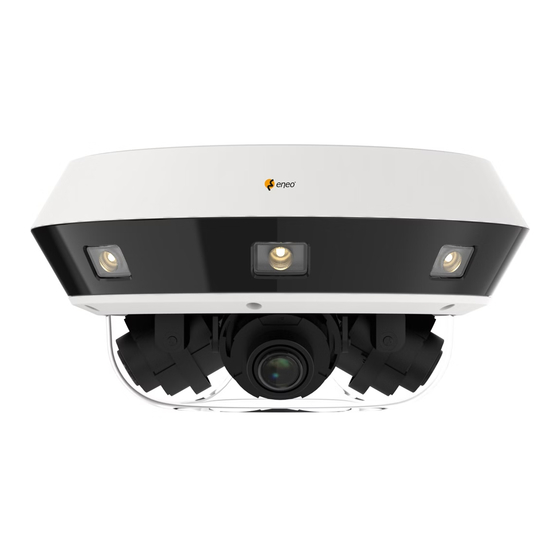

Eneo IN Series Quick Installation Manual

Multisensor 4x 3840x2160, day/night, wdr, 2,8-12mm, ir, ik10, ip67
Hide thumbs Also See for IN Series:

Advertisement

Available languages

Available languages

Quick Links

Quick Installation Guide
Network Camera, Multisensor
4x 3840x2160, Day/Night, WDR,
Learn more about eneo IN series
on our YouTube channel.
INM-78M2812M0A
2,8-12mm, IR, IK10, IP67
EN
DE

Advertisement

Chapters

Table of Contents
loading

Summary of Contents for Eneo IN Series

  • Page 1 Quick Installation Guide INM-78M2812M0A Network Camera, Multisensor 4x 3840x2160, Day/Night, WDR, 2,8-12mm, IR, IK10, IP67 Learn more about eneo IN series on our YouTube channel.
  • Page 2 THIS DOCUMENT CABLES & PLUGS �������������������������������������������������������������������������������������������������������������������� 3 SD & RESET �����������������������������������������������������������������������������������������������������������������������������7 ENGLISH ���������������������������������������������������������������������������������������������������������������������������������� 9 DEUTSCH �������������������������������������������������������������������������������������������������������������������������������23...
  • Page 3: Cables & Plugs

    Cables & Plugs...
  • Page 4 CONNECTION CABLES / ANSCHLUSSKABEL Multisensor English Deutsch Anschluss Beschreibung No. Connector Description Ethernet, RJ-45 Anschluss Ethernet, RJ-45 Port RJ-45 kompatibel mit 10/100 RJ-45 compatible with 10/100 Mbps PoE Modulbuchse Mbps PoE Modular Jack Mic Audio In Mic Audio In Audio Input, 2-Pin Terminal Audio Input, 2-Pin Terminal G: GND G: GND...
  • Page 5 1 - RJ-45 Pin 1 Green Pin 2 White / Green Pin 3 RX - Orange Pin 4 RX + White / Orange Pin 5 TX - Pin 6 TX + 2 - Audio In / 3 - Audio Out 4 - Alarm In / Out Yellow / Black Pin 1...
  • Page 6 6 - Alarm In / Out Yellow / Black Pin 1 White / Yellow Pin 2 White / Brown Pin 3 White / Grey Pin 4...
  • Page 7: Sd & Reset

    SD & Reset...
  • Page 8 RESET BUTTON & SD CARD LOCATION RESET-TASTE & POSITION DER SD-KARTE Step 1: Remove the cover on the bottom of the camera by removing the screws. Entfernen Sie die Abdeckung auf der Unterseite der Kamera, indem Sie die Schrauben entfernen. Step 2: Open the cover in the center of the dome as shown in the...
  • Page 9: English

    English...
  • Page 10: Table Of Contents

    TABLE OF CONTENT ABOUT THIS DOCUMENT ����������������������������������������������������������������������������������������������������11 SAFETY INSTRUCTIONS ������������������������������������������������������������������������������������������������������12 OPEN SOURCE SOFTWARE LICENSE INFORMATION ��������������������������������������������������������14 PRIOR TO USE / INSTALLATION�������������������������������������������������������������������������������������������15 Dimensions (in mm) & Specifications ..........................15 Parts supplied ..................................15 1 - INSTALLATION �����������������������������������������������������������������������������������������������������������������16 2 - CAMERA CONNECTION DIAGRAM ��������������������������������������������������������������������������������17...
  • Page 11: About This Document

    ABOUT THIS DOCUMENT In this document you will find a comprehensive description of a specific series of devices, which we have prepared with great care and accuracy in order to provide you with a deep insight into the general functions and features that characterize this series of devices. However, you should be aware that the detailed characterization presented in this document is based on the general product line.
  • Page 12: Safety Instructions

    SAFETY INSTRUCTIONS Read the safety instructions and the operating instructions carefully before installing the product. Depending on the product type, individual points may be omitted. Mounting & Installation • Ensure that the intended mounting location is suitable for the respective product (e.g. in terms of weight). •...
  • Page 13 Operation • The devices may only be operated within the temperature and humidity ranges specified in the data sheet. • Sufficient ventilation must be provided to prevent overheating. This applies in particular to devices such as recorders and switches that can generate heat. •...
  • Page 14: Open Source Software License Information

    • the product detail pages on the eneo website (www.eneo-security.com), • the eneo download portal (https://datacloud.videor.com/s/eneodownloadportal). In case that previous link is broken, the latest link to the eneo download portal can be found on the respective eneo product page at www. eneo-security.com.
  • Page 15: Prior To Use / Installation

    PRIOR TO USE / INSTALLATION • Make sure that the device is working properly and meets your requirements. • Make sure that the latest firmware is installed on the device. • Install the product in a suitable location. • Depending on the location, use the material supplied for installation. Dimensions (in mm) &...
  • Page 16: Installation

    1 - INSTALLATION Step 1: Stick the mounting template to the Step 2: Hammer the 4 dowels into the drilled wall, drill 4 expansion screw holes. wall holes Wall Wall Mounting Template Dowel Step 3: Align the 4 dowels with the holes of Step 4: Fasten the anti-dropping rope of the the bracket, install the gasket and the spring locked dome camera into the suspending...
  • Page 17: Camera Connection Diagram

    2 - CAMERA CONNECTION DIAGRAM iPhone / iPad Android Phone Internet DC 48V Power & Data PoE Camera PoE Injector Router / Switch DC 48V Phone PoE Camera PoE Injector PoE NVR Router / Switch NOTE: There are two connection modes: •...
  • Page 18 APP INSTALLATION Mobile 1. Search for and install the eneo INsight mobile app in the Apple App Store or Google Play Store, depending on which device you are using. Alternatively, you can also scan the corresponding QR code below to go directly to the store page.
  • Page 19 3. To add devices, tap on Devices. If you tap on the + in the top right-hand corner, you can select the device type. Then follow the instructions in the app. If you have any problems, we recommend that you read the explanations in the main menu item Help.
  • Page 20 Windows 1. Install the eneo Site Manager app. If the device is in the same network as the computer on which the app was installed, the new device will be recognised immediately. You can access the device from here. Download the eneo Site Manager App from: https://eneo-security.com/de/eneo-site-manager.html...
  • Page 21 3. Alternatively, you can open the device in the browser of your choice via the context menu and change the password via the web interface. You can then access the remaining functions. 4. Once you have updated the password, you can log in to the device. Here you can configure the device settings according to your requirements and view the various device streams.
  • Page 23: Deutsch

    Deutsch...
  • Page 24 INHALTSVERZEICHNIS ÜBER DIESES DOKUMENT ��������������������������������������������������������������������������������������������������� 25 SICHERHEITSHINWEISE ������������������������������������������������������������������������������������������������������� 26 OPEN SOURCE SOFTWARE LICENSE INFORMATION �������������������������������������������������������� 28 VOR GEBRAUCH / INSTALLATION �������������������������������������������������������������������������������������� 29 Abmessungen (in mm) & Spezifikationen ........................29 Lieferumfang .....................................29 1 - INSTALLATION ����������������������������������������������������������������������������������������������������������������� 30 2 - ANSCHLUSSDIAGRAMM ������������������������������������������������������������������������������������������������ 31...
  • Page 25: Über Dieses Dokument

    ÜBER DIESES DOKUMENT In diesem Dokument finden Sie eine umfassende Beschreibung einer bestimmten Geräteserie, die mit großer Sorgfalt und Genauigkeit erstellt wurde, um Ihnen einen detaillierten Einblick in die allgemeinen Funktionen und Merkmale zu geben, die diese Geräteserie auszeichnen. Bitte beachten Sie jedoch, dass sich die detaillierte Charakterisierung in diesem Dokument auf die allgemeine Produktlinie bezieht.
  • Page 26: Sicherheitshinweise

    SICHERHEITSHINWEISE Lesen Sie die Sicherheitshinweise und die Bedienungsanleitung vor der Installation des Produkts sorgfältig durch. Je nach Produkttyp können einzelne Punkte entfallen. Montage & Installation • Stellen Sie sicher, dass der vorgesehene Montageort für das jeweilige Produkt geeignet ist (z.B. hinsichtlich Gewicht).
  • Page 27 Betrieb • Die Geräte dürfen nur innerhalb der im Datenblatt angegebenen Temperatur- und Feuchtebereiche betrieben werden. • Zur Vermeidung von Überhitzung ist für ausreichende Belüftung zu sorgen. Dies gilt insbesondere für Geräte wie Recorder und Switches, die Wärme erzeugen können. •...
  • Page 28: Open Source Software License Information

    • die Produkt-Detailseiten auf der eneo Website (www.eneo-security.com), • das eneo Download-Portal (https://datacloud.videor.com/s/eneodownloadportal). Sollte der vorherige Link nicht mehr funktionieren, finden Sie den aktuellen Link zum eneo Downloadportal auf der jeweiligen eneo Produktseite unter www.eneo-security.com. • das Download-Paket Ihrer Firmware. Die vollständigen Open Source Software-Lizenzinformationen für Ihr Produkt sind in dem entsprechenden Software-Download-Paket enthalten, das Sie in unserem Download-Portal finden.
  • Page 29: Vor Gebrauch / Installation

    VOR GEBRAUCH / INSTALLATION • Vergewissern Sie sich, dass das Gerät ordnungsgemäß funktioniert und Ihren Erwartungen entspricht. • Vergewissern Sie sich, dass auf dem Gerät die neueste Firmware installiert ist. • Installieren Sie das Produkt an einem geeigneten Ort. • Nutzen Sie für die Montage je nach Ort das mitgelieferte Material. Abmessungen (in mm) &...
  • Page 30: Installation

    1 - INSTALLATION Schritt 1: Kleben Sie die Montageschablone Schritt 2: Hämmern Sie die 4 Dübel in die an die Wand, bohren Sie 4 Löcher für gebohrten Wandlöcher Spreizschrauben. Wand Wand Montageschablone Dübel Schritt 3: Richten Sie die 4 Dübel an den Schritt 4: Befestigen Sie das Sicherungsseil Löchern der Halterung aus, setzen Sie die der verriegelten Kuppelkamera in der...
  • Page 31: Anschlussdiagramm

    2 - ANSCHLUSSDIAGRAMM iPhone / iPad Android Phone Internet DC 48V Power & Data PoE Camera PoE Injector Router / Switch DC 48V Phone PoE Camera PoE Injector PoE NVR Router / Switch HINWEIS: Es gibt zwei Verbindungsmodi: • Bei einem Nicht-PoE-Router schließen Sie die Kamera bitte über einen PoE-Switch oder einen PoE-Injektor an.
  • Page 32 APP INSTALLATION Mobil 1. Suchen und installieren Sie die eneo INsight Mobile App, je nach verwendetem Gerät, im Apple App Store oder Google Play Store. Alternativ können Sie auch den entsprechenden QR-Code unten scannen, um direkt zur Store-Seite zu gelangen.
  • Page 33 3. Um Geräte hinzuzufügen, tippen Sie auf Geräte. Wenn Sie auf das + in der oberen rechten Ecke tippen, können Sie den Gerätetyp auswählen. Folgen Sie dann den Anweisungen in der App. Sollten Sie Probleme haben, empfehlen wir Ihnen, die Erklärungen im Hauptmenüpunkt Hilfe zu lesen.
  • Page 34 App installiert wurde, wird das neue Gerät sofort erkannt. Sie können von hier aus auf das Gerät zugreifen. Laden Sie die eneo Site Manager App herunter unter: https://eneo-security.com/de/eneo-site-manager.html 2. Klicken Sie mit der rechten Maustaste auf das Gerät in der Liste, um das Kontextmenü...
  • Page 35 3. Alternativ können Sie das Gerät über das Kontextmenü im Browser Ihrer Wahl öffnen und das Kennwort über die Weboberfläche ändern. Sie können anschließend auf die übrigen Funktionen zugreifen. 4. Sobald Sie das Kennwort aktualisiert haben, können Sie sich beim Gerät anmelden.
  • Page 36 Videor E. Hartig GmbH Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark / Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
