Summary of Contents for Kränzle WS 800 TS

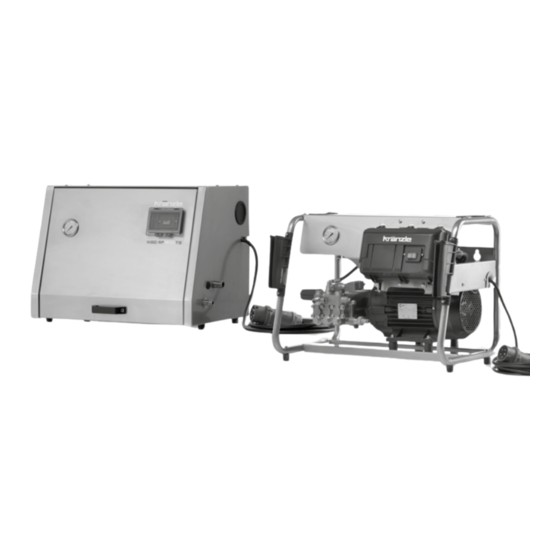

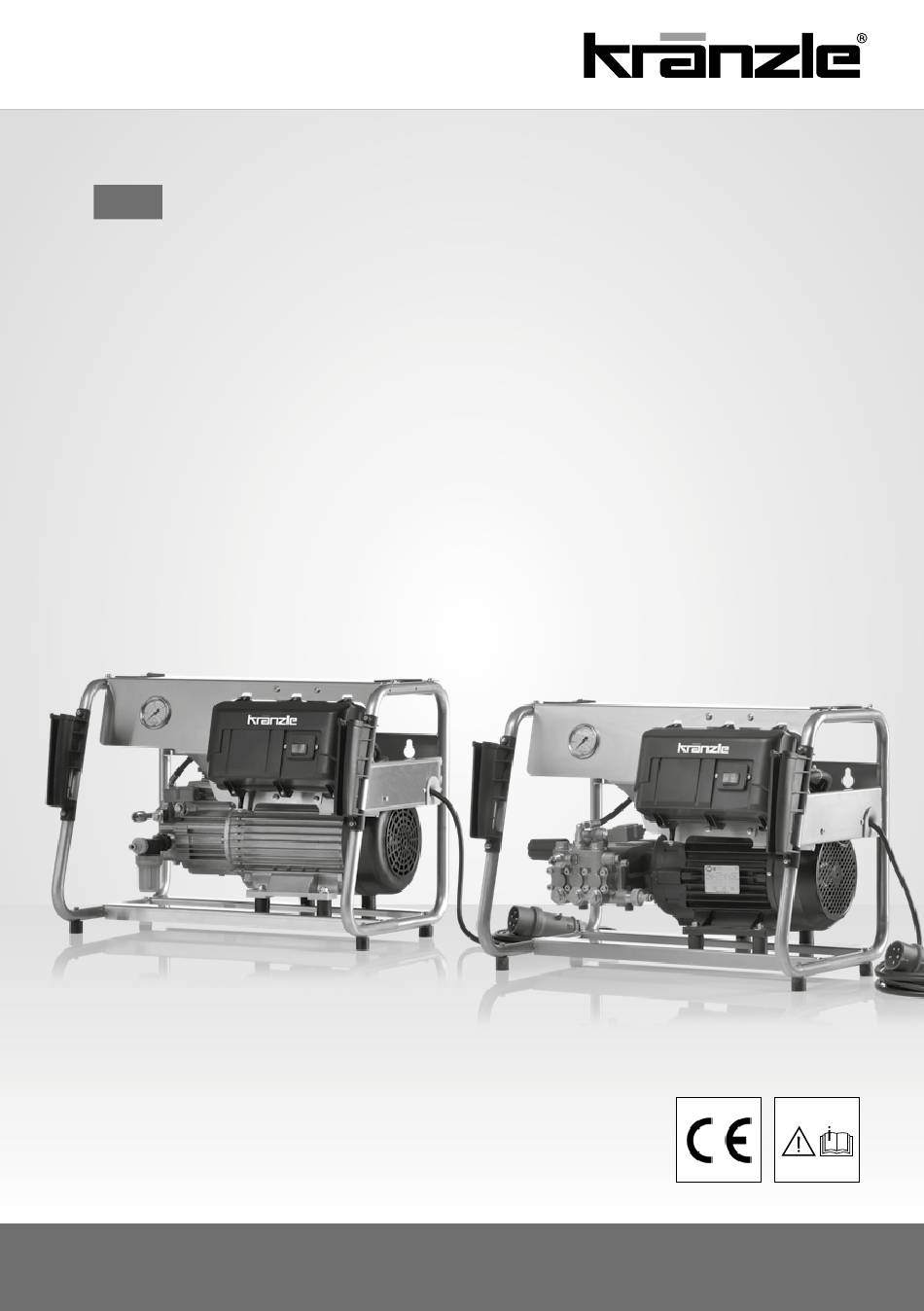

- Page 1 Operating manual High-pressure cleaner WS 800 TS WS 1000 TS WS 1200 TS WS RP-1000 TS WS RP-1200 TS WS RP-1400 TS www.kraenzle.com...
- Page 3 Operating manual High-pressure cleaner WS 800 TS WS 1000 TS WS 1200 TS WS RP-1000 TS WS RP-1200 TS WS RP-1400 TS Operating manual! This manual is a translation of the original manual. Read and conform safety instructions before use! Keep instructions in a safe place for later use and pass...
-
Page 4: Table Of Contents
Contents Dear customer: We would like to congratulate you on the purchase of your new high pressure cleaner and thank you for your confidence in our products! Your choice has fallen on an absolute quality product! Kränzle high pressure cleaners are characterized by their convenient and compact design as well as their high suitability for everyday use. -
Page 5: Explanatory Symbols
Explanatory symbols Explanatory symbols used in the operating manual Failure to observe this note may entail environmental damage. Note on the use of the high pressure cleaner that failure to adhere to the instructions may cause excessive wear or total breakdown of the WS-series. Warning! Failure to observe this note may result in serious injuries! Auf dem Hochdruckreiniger verwendete Bildzeichen... -
Page 6: Safety Notes
Safety notes User operating the high pressure cleaner should wear the necessary protective clothing, i.e. waterproof clothing, rubber boots, safety goggles, headwear etc. It is prohibited to use the high pressure cleaner in close vicinity to people lacking suitable protective clothing. Do not spray against matter containing asbestos or other hazardous substances! Never spray liquids containing solvents like varnish solvents, petrol, oil or similar liquids! There is an explosion hazard due to spraying such materials! - Page 7 Safety notes - This is prohibited! When using high pressure water for cleaning, make sure that there is a clearly noticeable recoil effect on the lance. Therefore ensure a firm footing (see technical data). Never allow children or untrained persons to use the high pressure cleaner or to play with it! Never direct the high pressure jet at the...
- Page 8 Safety notes - This is prohibited! Never direct the high pressure jet at power sockets or any other electrical installations! Within the working area, all live parts are to be protected from both water jet and spray mist. Apply the safety catch on the safety trigger gun after each use in order to prevent unintentional spraying! Always pay attention to the underbody...
- Page 9 Safety notes - This is prohibited! Never direct the high pressure jet at people or animals! Never direct the high pressure jet at yourself or other persons, not even to clean clothing or shoes. Only use a power supply cable in perfect working order! Do not damage or improperly repair the power cable (tearing, squeezing,...
-
Page 10: Description Of High Pressure Cleaner
Description of high pressure cleaner Design: The devices of the WS series are high-pressure cleaners capable of being applied both standing on the floor or hanging on the wall. Please see construction scheme for more details. 1. - Page 11 Description of high pressure cleaner This is what you have purchased: 1. Kränzle high pressure cleaner WS 800 TS WS 1000 TS WS 1200 TS WS RP-1000 TS WS RP-1200 TS WS RP-1400 TS 2. Trigger gun with safety catch,...
-
Page 12: General Rules
General rules Intended use This high pressure cleaner is to be used solely for high pressure water jet cleaning applications without detergents or low-pressure cleaning work with detergents (e.g. with a foam injector or washing brush). Environmental, refuse disposal and water protection regulations must be observed! Inspections The high pressure cleaner must be inspected according to the “Guidelines for... - Page 13 General rules Oil change The first oil change should be carried out after approximately 50 operating hours, then every year or after 250 operating hours. If the oil turns grey or white, you must change the oil. In case of exchanging oil being required, the oil drain screw must be opened above a container and the high pressure cleaner...
-
Page 14: Functional Details
Functional details Please note: Lack of water Lack of water occurs more often than you probably believe. The more powerful a high pressure cleaner is the greater is the danger that a lack of water occurs. If there is only an insufficient amount of water available, cavitation (water-gas mixture) arises inside the high pressure pump, which is normally... - Page 15 Functional details Insufficient quantity of electricity If there are too many collectors in your proximity connected to the network at the same time, the available voltage and the current intensity may decline. Consequently the motor of the high pressure cleaner does not start or even blows.
- Page 16 Functional details Water and cleaning system Water must be supplied to the high pressure pump under pressure or directly sucked in out of a pressureless container. The water is then forced under pressure by the high pressure pump to the lance. The high pressure jet is formed by the nozzle at the end of the lance.
- Page 17 Functional details Pressure control valve/safety valve The pressure control valve/safety valve protects the high pressure cleaner from a build up of excess pressure, and is designed not to permit an excess pressure to be selected for operation. The limit nut on the handle is sealed with a spray coating.
- Page 18 Functional details Safety shutdown If the high-pressure cleaner is accidentally not turned off after use or the safety trigger gun is not used for 20 minutes, the high-pressure cleaner automatically changes into safety state by deactivation. By operating the main switch once more, the high-pressure cleaner is activated again.
-
Page 19: Putting Into Operation
Putting into operation The high-pressure cleaner may be carried by two persons. Please note the weight of the high-pressure cleaner (refer to technical data). When setting down the high-pressure cleaner please provide for a safe stand. The WS series may be applied both as a standing device as well as mounted on the wall. - Page 20 Putting into operation Neither set up or operate the WS-series in rooms where there is a risk of fire or explosion nor put it into puddles. Do not use the high pressure cleaner under water. If, none the less, the high pressure cleaner is operated in a hazardous area, the applicable safety regulations are to be observed.
- Page 21 Putting into operation First pull back the retaining sleeve of the safety trigger gun, then insert lance into the plug coupling sconnection of the safety trigger gun. After insertion of the lance, release retaining sleeve and make sure that the lance is in a secure position. Grease quick release nipple regularly using acid-free grease.
- Page 22 Putting into operation 10. If using a water inlet filter check it for cleanliness prior to each startup. Manually unscrew filter bowl, remove sieve and thoroughly rinse and clean with the rest of the parts in clear water. If the sieve is dirty, water can not get through and pressure will not build up.
- Page 23 Putting into operation 13. Connect to circuit (see technical data). Do not touch the mains plug or any live parts with wet or moist hands. 14. Switch on high pressure cleaner with opened safety trigger gun. Bleeding of the high pressure cleaner: Pull and release trigger of safety trigger gun several times.
-
Page 24: Direct Suction
Direct suction Direct water extraction Due to the suction capacity of its high pressure pump (up to 2.5 m suction height, max. hose length 3 m) this high pressure cleaner can suck in water for cleaning purposes from separate containers or ponds. Mount suction hose with suction filter (Item.-no.: 150383). -
Page 25: Taking Out Of Operation
Taking out of operation Switch off the high pressure cleaner 2. Cut off the water supply Open the safety trigger gun catch briefly until the pressure is released 4. Apply safety catch on the trigger gun Remove high pressure hose and safety trigger gun 6. -
Page 26: Small Repairs - Do It Yourself
Small repairs - do it yourself Problem No water from nozzle although the high pressure cleaner is running. The stainless steel pressure gauge shows full pressure. Cause Most likely the nozzle is blocked. The stainless steel pressure gauge shows full pressure, but from the nozzle comes only little water or no water at all. - Page 27 Small repairs - do it yourself Problem Irregular jet from nozzle. The stainless steel pressure gauge shows low pressure. Cause Most likely the valves are soiled or sticky. The stainless steel pressure gauge shows low pressure despite fully turned up pres- sure regulation.
- Page 28 Small repairs - do it yourself Problem After closing the safety trigger gun the high pressure cleaner keeps switching on and off. The stainless steel pressure gauge continuously displays full pressure. Possible cause No. 1 Leckage. Having closed the trigger gun with safe- ty catch, the high pressure cleaner must shut down and the stainless steel pressure gauge must show „0“...
- Page 29 Small repairs - do it yourself Problem After closing the safety trigger gun the high pressure cleaner keeps switching on and off. The stainless steel pressure gauge continuously displays full pressure. Possible cause No. 2 The non-return valve is defective. Proceeding: Switch off the high pressure cleaner and pull plug from socket.
-
Page 30: Kränzle Accessories
Kränzle accessories Double lance With insulated ISO handle With plug-in nipple and low pressure nozzle D3035 (standard) WS 800 TS: 12333-D2504 WS 1000 TS: 12333-D2505 WS 1200 TS: 12333-D2507 WS RP 1000 TS: 12333-D2505 WS RP 1200 TS: 12333-D2507 WS RP 1400 TS: 12333-D2508... - Page 31 Kränzle accessories Adapter for accessories with screw connections With quick release nipple For item no.: 12440 (fig. left) 400 mm extension With grip plates Item no.: 12440 (fig. left) Item no.: 12441 (fig. right) Suction hose with suction filter With return valve Hose length 3 m Item no.: 150383 Rotating washing brush...
-
Page 32: Ec Declaration Of Conformity
Kränzle WS 800 - 1200 TS the high pressure cleaner: Kränzle WS RP 1000-1400 TS Nominal flow: Kränzle WS 800 TS: 798 l/h Kränzle WS 1000 TS: 960 l/h Kränzle WS 1200 TS: 1140 l/h Kränzle WS RP 1000 TS: 960 l/h Kränzle WS RP 1200 TS: 1140 l/h... -
Page 33: Warranty
Warranty The warranty obligation of Josef Kränzle GmbH & Co. KG towards the dealer from whom you have purchased this Kränzle high-pressure cleaner (= product) applies to material faults only such as material and manufacturing defects. Defects attributable to long and frequent use of the product, typically arising due to the age of the high-pressure cleaner and intensity of its use are defined as normal wear in respect of product components. -
Page 34: Inspection Reports
Inspection reports High pressure cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. (This inspection sheet serves as proof for the completion of the retest and must be kept carefully!) Kränzle-test seals: Item no.: UVV200106 Owner:... - Page 35 Inspection reports High pressure cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. (This inspection sheet serves as proof for the completion of the retest and must be kept carefully!) Kränzle-test seals: Item no.: UVV200106 Owner:...
- Page 36 Josef Kränzle GmbH & Co. KG Rudolf-Diesel-Straße 20 89257 Illertissen (Germany) sales @ kraenzle.com Made Germany www.kraenzle.com...
