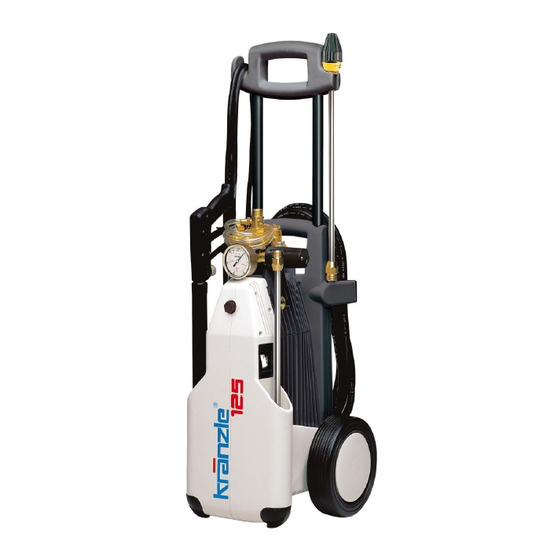

Summary of Contents for Kränzle K 115

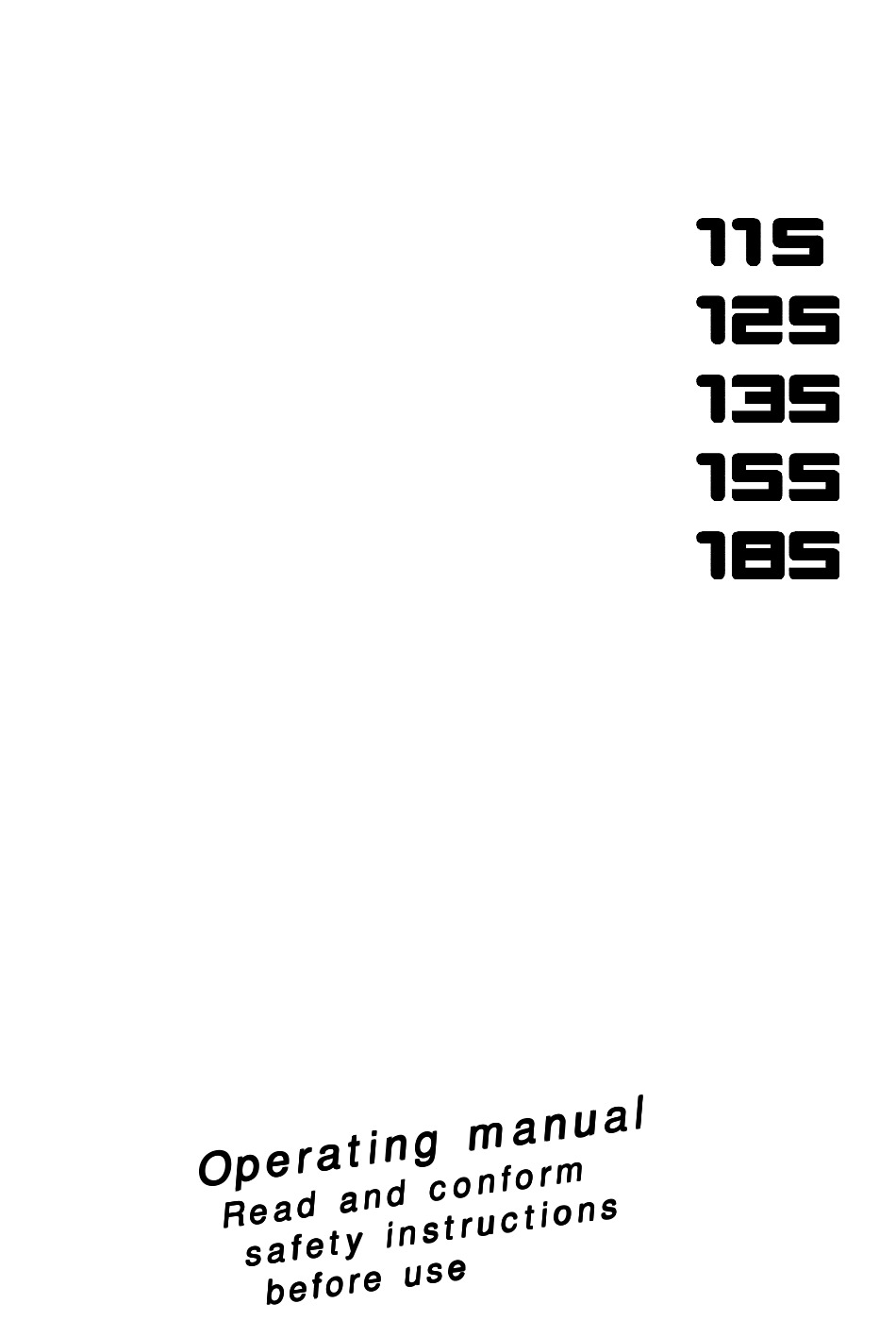

  • Page 1 High Pr High Pr essur essur e Cleaners e Cleaners High Pr essur essur e Cleaners e Cleaners High Pr High Pr essur e Cleaners...
  • Page 2 Description Description Description Description Description Dear Customer We would like to congratulate you on your new high pressure cleaner with integrated undercarriage and integrated hose drum and to thank you for the purchase. To ease your introduction to the use of the cleaner, we have provided the following pages of explanations, tips and hints, which we ask you to read before using for the first time.
  • Page 3 Description Description Description Description Description Water 400 V 230 V Construction The KRÄNZLE 115 + 125 + 135 + 155 + 185 - high pressure cleaners are mobile machines. The design can be seen from the diagram. Item 1 Water inlet connection with filter 6 High pressure injector for 2 Suction hose with filter (special cleaning agents...

  • Page 4: Water And Cleaning System

    Description Description Description Description Description Water and Cleaning System Water can be connected at mains pressure to the high pressure pump or it can be sucked directly from a storage tank. The water is then forced under pressure by the high pressure pump to the lance. The high pressure jet is formed by the nozzle at the end of the lance.

  • Page 5: Motor Protection Switch

    Description Description Description Description Description Motor protection switch The motor is protected from overload by a motor protection switch, which automatically cuts out the motor in the event of overload. However should the switch trip frequently, the cause of the malfunction should be located and rectified (see page 6).

  • Page 6: Electrical Connection

    Description Description Description Description Description Electrical connection The machine is supplied with an electrical power cord with plug. The mains plug must be fitted to a standard grounded socket with a 30mA residual current operated device. The socket must be protected with a 16A delay action fuse on the mains side. KRÄNZLE 115, 125, and 135 - 230 Volt 50 Hz KRÄNZLE 155 and 185 - 400 Volt 50 Hz (phase-sequence not significant)

  • Page 7: High Pressure Hose And Spray Device

    Description Description Description Description Description Brief operating instructions are fitted to the machine. Numbers 1-6. When operating your high pressure cleaner pay attention that it is in a horizontal position. 1. Connect the high pressure hose with spray gun and machine. 2.

  • Page 8: Safety Notes

    Safety notes Safety notes Safety notes Safety notes Safety notes As to the recoil - see notice on page Apply the safety catch on the spray gun after each use, in order to prevent uninten- tional spraying! Always aim the underbody lance.
  • Page 9 This is what you’ve purchased: This is what you’ve purchased: This is what you’ve purchased: This is what you’ve purchased: This is what you’ve purchased: 1. Spray lance with regulator and high pressure nozzle, flat spray 25045 2. Spray gun with insulated pistol grip and screw connection 3.
  • Page 10 How to assemble and furnish your high pressure cleaner How to assemble and furnish your high pressure cleaner How to assemble and furnish your high pressure cleaner How to assemble and furnish your high pressure cleaner How to assemble and furnish your high pressure cleaner Put high Pressure cleaner into upright position.

  • Page 11: Preparation For Use

    Preparation for use Preparation for use Preparation for use Preparation for use Preparation for use Do not replace the plug ! 1. Put high pressure cleaner into horizontal position! THE HIGH PRESSURE CLEANER IS ONLY TO BE OPERATED IN HORIZONTAL POSITION ! 2.
  • Page 12 Preparation for use Preparation for use Preparation for use Preparation for use Preparation for use 4. The machine can be connected to a 4. The machine can be connected to a pressurised water line with cold or pressurised water line with cold or 70°C hot water (K 185 T up to 60°) 70°C hot water (K 185 T up to 60°) (see page 2).

  • Page 13: Adjusting The Pressure

    Preparation for use Preparation for use Preparation for use Preparation for use Preparation for use Adjusting the pressure This is accomplished by turning the handwheel. The default setting is maximum pressure. When using cleansing agents: Unwind HP-hose completely. Place chemical filter no. 5 in the reservoir with the cleansing agent.
  • Page 14 This is prohibited This is prohibited This is prohibited This is prohibited ! This is prohibited Never allow Never allow children to use the children to use the high pressure high pressure cleaner ! cleaner ! Never direct the Never direct the water jet at the water jet at the machine itself !
  • Page 15 This is prohibited ! This is prohibited ! This is prohibited ! This is prohibited ! This is prohibited ! Never direct the water jet at people or animals ! Do not damage the power cord or repair it incorrectly ! Never pull the high pressure hose if it has formed kinks or...
  • Page 16 Additional KRÄNZLE-accessories for ... Additional KRÄNZLE-accessories for ... Additional KRÄNZLE-accessories for ... Additional KRÄNZLE-accessories for ... Additional KRÄNZLE-accessories for ... Rotary scrubbing brush Order No. 41050 1 Drain and pipe cleaning hose 8 m - Order No. 41051 15 m - Order No. 41058 Underbody lance, new Order No.
  • Page 17 ... for further combination possibilities ... for further combination possibilities ... for further combination possibilities ... for further combination possibilities ... for further combination possibilities Car cleaning, glass, caravan, boat etc. rotary washing brush with 40 cm exten- sion and ST 30 nipple M 22 x 1,5 Cleaning pipes, channels and drains: pipe cleaning hose with KN nozzle and ST 30 nipple M 22 x 1,5...

  • Page 18: Small Repairs

    Small repairs - Small repairs - Small repairs - Small repairs - Small repairs - You only get a weak flow of water or no water at all! The pressure gauge shows a 10% higher pressure than the working pres The injector may be dirty and Now turn on the water and you should get a powerful...

  • Page 19: Do-It-Yourself

    Do it yourself! The nozzle is blocked! No water but the gauge shows full pressure ! You should now have a but if you Rinse the hose powerful stream of only get a few through first. water, drops from the lance remove the lance and clean Using the flat spray lance you the nozzle.
  • Page 20 Small repairs - Do it yourself! Small repairs - Do it yourself! Small repairs - Do it yourself! Small repairs - Do it yourself! Small repairs - Do it yourself! Nozzle dirty or sticky! The high-pressure Pressure gauge does not show full pressure. hose vibrates.
  • Page 21 T T T T T rigger gun with lance rigger gun with lance rigger gun with lance rigger gun with lance rigger gun with lance...

  • Page 22: Complete Assembly

    Complete assembly Complete assembly Complete assembly Complete assembly Complete assembly...
  • Page 23 KRÄNZLE 115 / 125 / 135 / 155 / 185 KRÄNZLE 115 / 125 / 135 / 155 / 185 KRÄNZLE 115 / 125 / 135 / 155 / 185 KRÄNZLE 115 / 125 / 135 / 155 / 185 KRÄNZLE 115 / 125 / 135 / 155 / 185 223232323...
  • Page 24 V V V V V alve housing 18 mm alve housing 18 mm alve housing 18 mm alve housing 18 mm alve housing 18 mm...
  • Page 25 KRÄNZLE 115 / 125 / 135 / 155 KRÄNZLE 115 / 125 / 135 / 155 KRÄNZLE 115 / 125 / 135 / 155 KRÄNZLE 115 / 125 / 135 / 155 KRÄNZLE 115 / 125 / 135 / 155 52524...
  • Page 26 T T T T T ransmission unit ransmission unit ransmission unit 18 mm 18 mm ransmission unit ransmission unit 18 mm 18 mm 18 mm...
  • Page 27 KRÄNZLE 115 / 125 / 135 / 155 KRÄNZLE 115 / 125 / 135 / 155 KRÄNZLE 115 / 125 / 135 / 155 KRÄNZLE 115 / 125 / 135 / 155 KRÄNZLE 115 / 125 / 135 / 155...
  • Page 28 A. C. motor A. C. motor A. C. motor A. C. motor A. C. motor...
  • Page 29 KRÄNZLE 115, 125, 135 KRÄNZLE 115, 125, 135 KRÄNZLE 115, 125, 135 KRÄNZLE 115, 125, 135 KRÄNZLE 115, 125, 135 29999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999...
  • Page 30 V V V V V alve housing 14 mm alve housing 14 mm alve housing 14 mm alve housing 14 mm alve housing 14 mm...
  • Page 31 KRÄNZLE 185 KRÄNZLE 185 KRÄNZLE 185 KRÄNZLE 185 KRÄNZLE 185...
  • Page 32 T T T T T ransmission unit ransmission unit ransmission unit 14 mm 14 mm ransmission unit ransmission unit 14 mm 14 mm 14 mm...
  • Page 33 KRÄNZLE 185 KRÄNZLE 185 KRÄNZLE 185 KRÄNZLE 185 KRÄNZLE 185 3333...
  • Page 34 Three-phase current motor Three-phase current motor Three-phase current motor Three-phase current motor Three-phase current motor...
  • Page 35 KRÄNZLE 155 KRÄNZLE 155 / 185 / 185 KRÄNZLE 155 KRÄNZLE 155 / 185 KRÄNZLE 155 / 185 / 185...
  • Page 36 Dirtkiller Dirtkiller Dirtkiller Dirtkiller Dirtkiller...

  • Page 37: Wiring Diagram

    Wiring diagram Wiring diagram Wiring diagram Wiring diagram Wiring diagram braun = brown 70 µF blau = blue schw = black = red Terminal strip = yellow = green = white Weber-Unimat WT 22 - 551 13,5A excess current release Motor-Stator KRÄNZLE 115, 125, 135 230 Volt / 50 Hz Switch Weber - Amazonas...

  • Page 38: General Rules

    General rules General rules General rules General rules General rules Inspections The machine must be inspected according to the “Guidelines for Liquid Spray Devices” at least once every 12 months by a qualified person, to ensure that continued safe operation is guarateed. The results of the inspec- tion are to be recorded in writing.
  • Page 39 89/392/EEC Annex II A and the EC low-voltage directive 73/23 EEC and the EC-EWV directive 89/336 Herewith we K 115 - K 185 declare that 91/368 EEC Ann. I Nr. 1 complies with the following...
  • Page 40 Reprint only allowed with the authorization of As of date of 10. 05. 2001...
