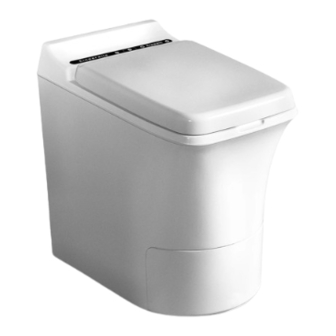

Cinderella FREEDOM Product Manual
Hide thumbs
Also See for FREEDOM:
- Installation manual (32 pages) ,
- Owner's manual (40 pages) ,
- User manual (2 pages)
Related Manuals for Cinderella FREEDOM
Summary of Contents for Cinderella FREEDOM

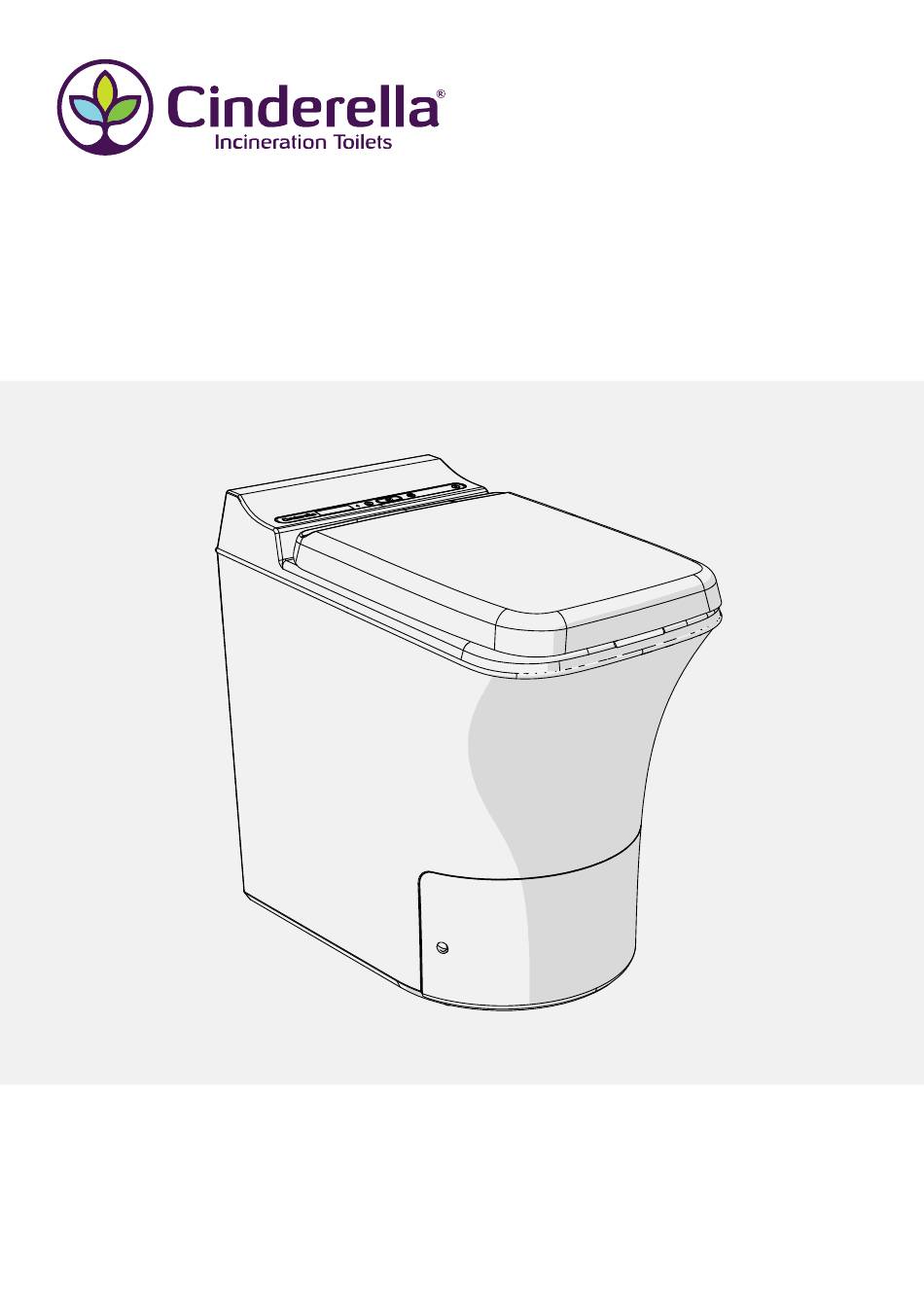

- Page 1 CINDERELLA FREEDOM CINDERELLA FREEDOM AUS/NZ Product manual Document number: D000348 Revision number: 02 English Cinderella Freedom Product Manual | 01.06.2022...
-
Page 2: Table Of Contents
3.4 SAFE OPERATIONS 3.5 CINDERELLA FREEDOM SAFETY FEATURES 3.6 IMPORTANT USER INFORMATION 3.7 THE CONTROL PANEL 3.8 USING THE CINDERELLA FREEDOM TOILET 3.9 OPERATING THE FRONT COVER AND ASH CONTAINER 3.10 APPLIANCE ORIENTATION 4. GENERAL MAINTENANCE INSTRUCTIONS 4.1 END PRODUCT CHARACTERISTICS 4.2 CUSTOMER MAINTENANCE... -
Page 3: General Section
Use of non-original bowl liners and spare parts 1.5 LISTINGS AND CERTIFICATIONS The Cinderella Freedom AUS/NZ has been extensively tested by Underwriters Laboratory in accordance with the Global-Mark certification scheme. The toilet is tested and certified to the Gas Safety standard AS/NZS 5263.0. -
Page 4: General Safety Instructions
1.6 GENERAL SAFETY INSTRUCTIONS WARNING! Safety instruction: Failure to observe this instruction could cause fatal or serious injury. CAUTION! Safety instruction: Failure to observe this instruction could lead to injury. Failure to observe this instruction could cause material damage and impair the function of the product. -
Page 5: Appliance Rating Plate
1.9 UNPACKING THE TOILET AND ACCESSORIES NOTE! • When unpacking the Cinderella Freedom appliance use the pre-fixed strip on the bottom of the box. Release the strip all around the box and lift up the box. • The contents of the box are loose inside the box and it is therefore important to unpack... -
Page 6: Installation Section
2.1 SECURING THE TOILET TO THE FLOOR It is essential to secure the toilet to the floor, and the Cinderella Freedom is therefore delivered with a custom docking station to make this possible. It is important to be sure of the location of the toilet before fastening the docking station to the floor. -
Page 7: Measurement Specifications Cinderella Freedom
6. Place the toilet back the docking and fasten the toilet by crewing back the screws you released earlier from the top of the appliance bottom plate and into the docking. 2.2 MEASUREMENT SPECIFICATIONS CINDERELLA FREEDOM SPECIFICATIONS CINDERELLA FREEDOM Seated height... -
Page 8: Flue Pipe Installation
• The toilet must be placed on a firm and level base. • Your Cinderella Freedom incinerating toilet can be installed on a heated floor. • This appliance must be secured to the floor (see section 2.1 of this manual). -
Page 9: Flue Pipe Specification
2.3.1 FLUE PIPE SPECIFICATION NOTE! • When installing the Cinderella Freedom appliance, it is required to use 4 ‘’ pipes for horizontal pipe section, and 5 ‘’ pipes for vertical pipe section. This is to preserve an optimal flow effect and ensure good product Vertical tubes functionality. -
Page 10: Horizontal Flue Pipe Specifications
2.3.2 HORIZONTAL FLUE PIPE SPECIFICATIONS For specifications on horizontal flue pipe installation, see illustration as presented below. The table is used to calculate the distances and possible variants based on a selection of components from the Type-B system. DURAVENT TYPE B - ROUND PIPES (HORIZONTAL SECTION) LENGTH OUTER DIAMETER INNER DIAMETER... -
Page 11: Vertical Flue Pipe Specifications
2.3.3 VERTICAL FLUE PIPE SPECIFICATIONS For specifications on vertical flue pipe installation, see illustration as presented below. The table is used to calculate the distances and possible variants based on a selection of components from the Type-B system. DURAVENT TYPE B - ROUND PIPES (VERTICAL SECTION) LENGTH OUTER DIAMETER INNER DIAMETER... -
Page 12: Inlet Air
It is required to install adequate venting in accordance with AS/NZS 5601.1. The air inlet vent should preferably be installed as close to the Cinderella toilet as possible, to ensure a good air supply to the toilet and reduce the environmental impact in the toilet room. -
Page 13: Gas Installation
2.5 GAS INSTALLATION This Appliance must be installed by a qualified plumber /gas fitter who can provide a certificate of compliance in accordance with AS/NZS 5601.1. This appliance is designed to be used with ULPG gas and is to be installed with rigid piping only. -
Page 14: Electric Connection
2.6 ELECTRIC CONNECTION The correct voltage, frequency and amperage must be supplied to the appliance from a dedicated, earthed circuit that is protected by a properly sized circuit breaker. The proper voltage, frequency and amperage are listed in this manual, and on the product rating plate on the back of the toilet. Please note: This toilet requires a 12V 4A DC supply. -
Page 15: Performance Test To Verify The System Functionality
2.8 PERFORMANCE TEST TO VERIFY SYSTEM FUNCTIONALITY When the “Start” button is pressed, the incineration cycle will be activated. The estimated incineration time for the verification test is approximately 60 – 70 minutes. The yellow light will be lit when the incineration is ongoing, and the complete test should be completed without any fault indications or system interruptions. -
Page 16: User Section
The toilet is solely designed to burn bodily waste products and small sanitary products such as toilet paper, sanitary pads and baby, face and cleaning wipes. Using the Cinderella Freedom to burn other items constitutes misuse and will void your warranty. -
Page 17: Safe Operations
• The Cinderella Freedom’s smart software includes a ’’watchdog’’ function that monitors the temperature while incineration is taking place. If any deviations from the normal temperature range are detected, this will... -
Page 18: Important User Information
‘‘Start’’ at the completion of each visit. Capacity: 4 persons The Cinderella Freedom is designed to handle up to four visits per hour. To avoid overload, more than six visits per hour is not recommended. Overloading the toilet with many visits in a short... -
Page 19: The Control Panel
Emptying indicator Your Cinderella Freedom will indicate when it is time to empty the ash container. The display will read ‘‘EMPTY THE ASH CONTAINER” and you will hear three short beeps when the toilet lid is opened. If not emptied within a certain amount of uses, the toilet will lock down. -
Page 20: Using The Cinderella Freedom Toilet
3.8 USING THE CINDERELLA FREEDOM TOILET 1. Check that the green light on the 2. Lift the toilet lid and seat. A red 3. Place a bowl liner in the bowl. control panel is lit, indicating the light starts flashing. The ventilation Use a new bowl liner for every visit. -
Page 21: Operating The Front Cover And Ash Container
3.9 OPERATING THE FRONT COVER AND ASH CONTAINER CAUTION! Only operate the ash container when the toilet is in sufficiently cooled and in standby mode. NOTE! Please see the maintenance section for instructions regarding cleaning and emptying the ash container. -
Page 22: Appliance Orientation
In order to ensure optimal operation and extend the lifetime of your Cinderella Freedom appliance you will need to set aside a little time for preventive maintenance. Good maintenance routines will give you lower operating costs and cause less wear on the product. -
Page 23: End Product Characteristics
4.1 END PRODUCT CHARACTERISTICS The residual waste, or “ashes”, will consist of pathological residue, salts and minerals, and will therefore often be perceived as hard and crystallised. There should be no visible signs of paper or flaky layers of unburned waste, the ashes should be a combination of white and dark shade of grey. If there are larger deposits of black unburned waste, humidity or paper when emptying the toilet, please start an additional incineration without inserting paper or water. -
Page 24: Steam-Cleaning The Catalytic Converter
NOTE! Make sure to dry the external part of the insert before reinserting it into the ash container • Do not use any sharp tools or objects when cleaning the ash container insert, as this will damage the insert and reduce its service life. •... -
Page 25: Inspecting The Catalytic Converter
NOTE! Do not use the toilet during the maintenance procedure, as this will impair the function of the cleaning. The toilet can be used when the toilet returns to standby mode. 4.2.3 INSPECTING THE CATALYTIC CONVERTER The catalyst is the primary air duct between the incineration chamber and the appliance flue terminal. -
Page 26: Maintenance Duravent Flue Pipe System
5. Place the toilet where it is OK to spill water, e.g. where there is a suitable drain, outside or in a bath. Use the specially designed Cinderella funnel, or a funnel that fits in the exhaust pipe. Slightly tilt the toilet forward, and pour 2–3 L of hot water through the exhaust pipe and catalyst. -
Page 27: Troubleshooting And Faq
CAUTION! The front of the outer shell is thin and should therefore not carry the entire weight of the toilet. Be gentle while tilting the appliance and make sure that the toilet is placed in such a position that the toilet shell is safeguarded. It is advised to be two people to do this operation, where one can hold the toilet while the other rinses the catlytic converter 5. -
Page 28: Troubleshooting Table
5.1 TROUBLESHOOTING TABLE DISPLAY YELLOW GREEN ERROR SOUND ACTIONS MESSAGE LIGHT LIGHT LIGHT Ash container Empty the FLASHING FLASHING STEADY Remove and empty the ash container 3 BEEPS should be emptied ash container Alternately Alternately * Toilet must be connected to 230V. Ash container 3 BEEPS Remove and empty the ash container... -
Page 29: Repairs And Spare Parts
6. REPAIRS AND SPARE PARTS CAUTION! All service requiring the toilet to be disconnected from the flue pipe and-/or gas supply should be performed in accordance with all state, municipal and local codes, and AS/NZS 5601.1. 6.1 SPARE PARTS LIST PART DESCRIPTION ART. -
Page 30: Appliance Process Overview
6.2 APPLIANCE PROCESS OVERVIEW The Cinderella appliance is designed according to fail-safe principles. In the event of component failure or faulty control signals, the toilet will go into “safety mode”. This means that the unit will not be able to start an incineration and error messages will appear on the display, ensuring that all component and/ or signal failures that may occur are safeguarded in the system. -
Page 31: Wire Diagram
This warranty lasts for a period of three (3) years from the original date of purchase. What will Cinderella Eco Australia do? If you submit a valid claim under this warranty, Cinderella Eco Australia will either repair, replace or refund the purchase price of your Cinderella incineration toilet, at its sole discretion. - Page 32 CINDERELLA’S GLOBAL PRESENCE Nordic Region Europe North America Greenland China Africa South Korea Oceania Cinderella Eco Group AS Sjøvikvegen 67, NO-6475 Midsund, Norway www.cinderellaeco.com...
