Installing the Device
2.5.1 Connecting High AC/DC Power
1. Connect the power supply terminal block to the device.
Figure 2.4
Figure 2.5
12
All manuals and user guides at all-guides.com

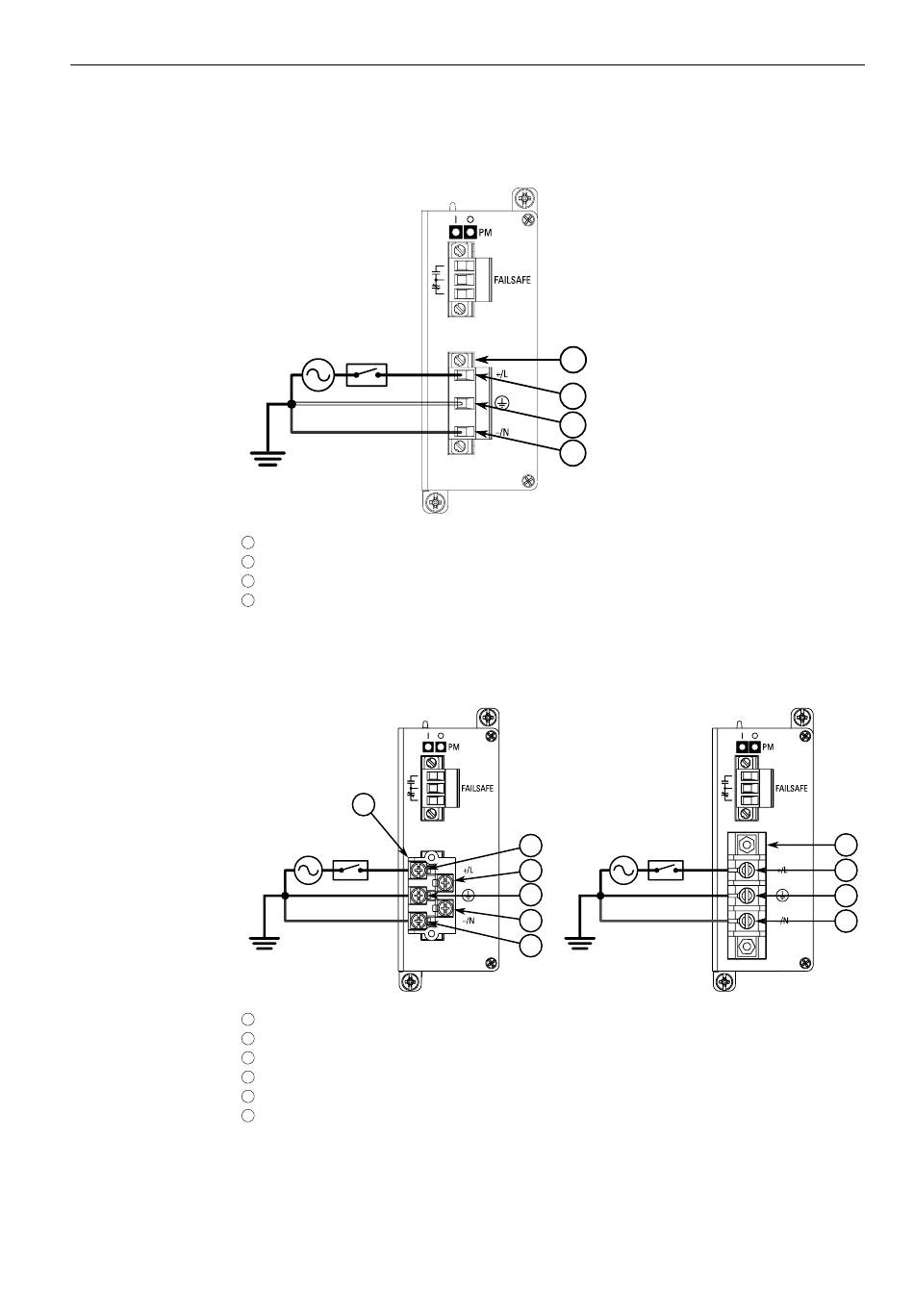

European-style (Euroblock) Terminal Block
1
Positive/Live (+/L) Terminal
2
Ground Terminal
3
Negative/Neutral (-/N) Terminal
4
AC Terminal Block Wiring – European-style (Euroblock) Terminal Block for HIP
Power Supplies
2
Not Connected
1
Removable Screw Terminal Block
2
Non-removable Screw Terminal Block
3
Positive/Live (+/L) Terminal
4
Ground Terminal
5
Negative/Neutral (-/N) Terminal
6
AC Terminal Block Wiring – Screw Terminal Block for HI Power Supplies
1 1
2
3
4
4
1
5
1
6
