RADLEY 5125-015 Manual

RADLEY 5125-015 Manual

15 amp lawn mower

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5125-015 and is the answer not in the manual?

Questions and answers

Peggy Campbell
May 22, 2025

What replacement blade will work?

1 comments:
Mr. Anderson
May 25, 2025

The compatible replacement blade for RADLEY part number 5125-015 is the Radley 15.75" Lawn Mower Blade.

This answer is automatically generated

roy
March 11, 2025

I have a:- Radley 5125-15 electric Mower and need details of replacement blade. Front label: Radley GY5220 15A. Canada BC

1 comments:
Mr. Anderson
March 11, 2025

The replacement blade for the Radley 5125-015 electric mower should be of the same type as the original. It must be replaced after 50 hours of mowing or every 2 years, whichever comes first. If the blade is cracked or damaged, it must be replaced immediately. When installing the new blade, the hex bolt should be tightened to 33-44 Ft./Lbs. for safe operation. Additionally, the blade should be lubricated with light machine oil after each use to prolong its lifespan.

This answer is automatically generated

Gail Klein
March 15, 2025

I purchased a Radley 5125-015 lawnmower but have been unable to replace the plate so I can attach the grass catcher

1 comments:
Mr. Anderson
March 15, 2025

To replace the plate on a Radley 5125-015 lawnmower to attach the grass catcher, follow these steps:

1. Identify the grass chute cover plate (Part #119).
2. Remove any screws securing the existing plate using a proper tool.
3. Align the new grass chute cover plate in place.
4. Secure it with the appropriate screws (Part #120).
5. Ensure the plate is firmly attached before attaching the grass catcher.

Always follow safety precautions while performing maintenance.

This answer is automatically generated

Summary of Contents for RADLEY 5125-015

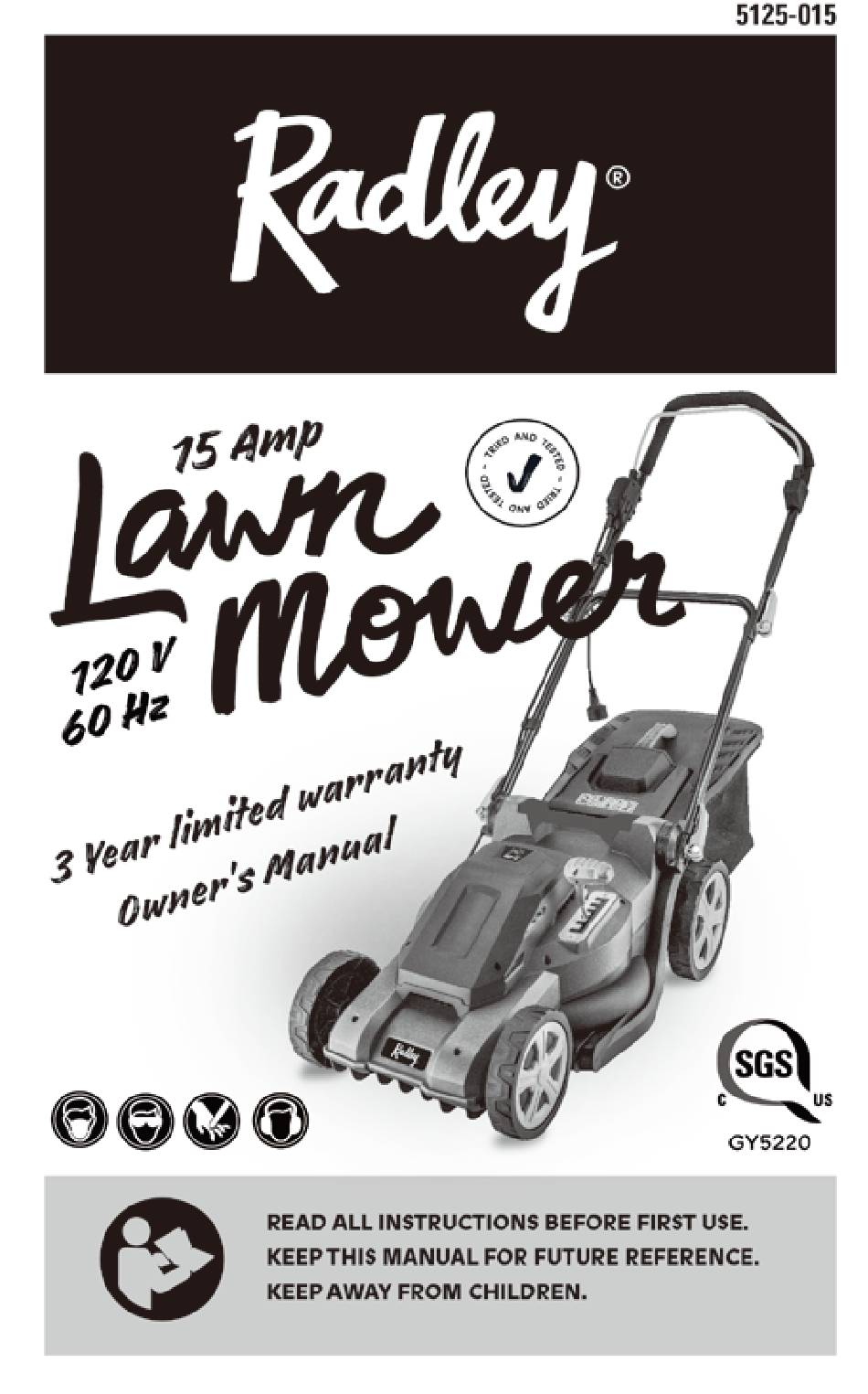

  • Page 2 15 Amp Lawn Mower Owner's Manual PRODUCT SPECIFICATIONS 15 AMP LAWN MOWER Voltage 120 V~ 60 Hz No load 3200 RPM Ampere 15 A Clearing width 15-¾" /40cm Bag capacity 45L (12 gallons) Weight 28.7 Lbs /13kg Need Assistance? Call us on our toll free customer support line: 1-866-349-8665 (Monday through Friday 9am –...
  • Page 3: Table Of Contents

    5125-015 TABLE OF CONTENTS Product specifications ………….……………………………………………………………1 Table of contents ………….……………………………………………………………2 General safety warnings ……….……………………………………………………………3 Electrical safety ……………………………………………………………………3-4 Lawn mower safety ……….……………………………………………………………4-6 Extension cord safety ……….……………………………………………………………7-8 Symbols …….……………………………………………………………9-10 Know your electric lawn mower …………………………………………………………11 Assembly ….……………………………………………………………12-13 Operation ….……………………………………………………………14-16 Maintenance .….……………………………………………………………17-19 Exploded view ……….……………………………………………………………20...
  • Page 4: General Safety Warnings

    15 Amp Lawn Mower Owner's Manual GENERAL SAFETY WARNINGS IMPORTANT SAFETY INSTRUCTIONS Read and understand all safety and operational instructions. Failure to follow the safety rules listed below and other basic safety precautions may result in serious personal injury. Keep this manual, sales receipts and applicable warranty forms for future reference.
  • Page 5: Lawn Mower Safety

    5125-015 This tool is wired at the factory for 120V AC operation. It must be connected to a 120V AC, 15 AMP circuit that is protected by a time-delayed fuse or circuit breaker. To avoid shock or fire, replace power cord immediately if it is worn, cut or damaged in any way.
  • Page 6 15 Amp Lawn Mower Owner's Manual OPERATION Operate the product in daylight or in good artificial light. When using the electric lawn mower, you must respect local laws and regulations regarding noise control and environmental protection. To avoid noise disturbance, you should carefully decide upon an appropriate operation time and consider the surrounding conditions.
  • Page 7 5125-015 MAINTENANCE AND STORAGE Keep all nuts, bolts and screws tight to be sure the product is in safe working condition. Check the grass catcher frequently for wear or deterioration. Be careful during adjustment of the product to prevent entrapment of the fingers between moving blades and fixed parts of the product.
  • Page 8: Extension Cord Safety

    15 Amp Lawn Mower Owner's Manual EXTENSION CORD SAFETY WARNING: Keep the extension cord clear of the working area. Position the cord so it will not get caught on the workpiece, tools or any other obstructions while you are working with the power tool. Make sure any extension cord used with this tool is in good condition.
  • Page 9 5125-015 Fig. 1 Appliance Cord set cord (A)Tie cord as shown (B)Connect plug and receptacle Avoid unintentional starting – Turn off the power switch and disconnect the power cable before making any adjustments to the unit and before inspecting, servicing, changing accessories or cleaning the lawn mower.
  • Page 10: Symbols

    15 Amp Lawn Mower Owner's Manual SYMBOLS Inspect the area where the Warning! Danger. product is to be used and remove all objects which Read the operator’s manual can be thrown by the product. If objects are hidden while WARNING! Beware of operating stop the product electric shocks.
  • Page 11 5125-015 Beware of sharp blades. Protection class II (Double Blades continue to rotate insulation). after the motor is switched off - Remove disabling device before Guaranteed sound power maintenance. level value in dB. GO – grass catcher ready for grass collection STOP...
  • Page 12: Know Your Electric Lawn Mower

    15 Amp Lawn Mower Owner's Manual KNOW YOUR ELECTRIC LAWN MOWER Foam grip Quick release Start lever lever Upper handlebar Safety lock-off switch Power cord Push rod with plug Cover Height adjustment lever Control cord Grass catcher Rear wheel Front wheel...
  • Page 13: Assembly

    5125-015 ASSEMBLY UNPACKING Unpack all parts and lay them on a flat, stable surface. Remove all packing materials and shipping devices if applicable. Make sure the contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact Customer Service @ 1-866-349-8665.
  • Page 14 15 Amp Lawn Mower Owner's Manual UPPER HANDLEBARS Align the upper handlebar to the lower handlebar and ensure the foam handle is pointed up when viewed from behind. Pass the bolts through the mounting holes of handles (Fig. 2). Attach the washer to the bolt and secure the upper handlebar by turning the lever up for tightening (Fig.2).
  • Page 15: Operation

    5125-015 OPERATION CUTTING HEIGHT ADJUSTMENT WARNING: Switch the product off and wait until the blade has come to a complete stop before adjusting the cutting height! Adjust the cutting height according to the needs of your lawn. The cutting height depends on the kind of lawn and its actual height.
  • Page 16 15 Amp Lawn Mower Owner's Manual When the hatch is open the grass catcher has sufficient volume left to collect grass (Fig. 7). When the hatch is closed, the grass catcher is full and must be emptied (Fig. EMPTYING THE GRASS CATCHER Empty the grass catcher frequently during use.
  • Page 17 5125-015 STARTING/STOPPING Plug in power Stand behind the grip handle . While holding the safety lock-off switch pressed, pull the start lever towards the handle. After the mower starts, release the safety lock-off switch. Release the start lever to stop the mower.
  • Page 18: Maintenance

    15 Amp Lawn Mower Owner's Manual MAINTENANCE WARNING: Always switch the product and let the product cool down before performing inspection, maintenance and cleaning work! Keep the product clean. Remove debris after each use and before storage. Regular and proper cleaning will help ensure safe use and prolong the life of the product.
  • Page 19 5125-015 Keep the blade sharp to ensure a good cutting performance. Replace a worn or damaged blade with a new one of the same type or have it sharpened by a qualified specialist. Loosen the hex bolt counterclockwise using the supplied hex wrench and remove it together with the washer and the blade (Fig.
  • Page 20 15 Amp Lawn Mower Owner's Manual CONTROL CORD Check the control cord before each use. WARNING: Do not use the product with a defective or a loose control cord! STORAGE Turn off the power and unplug the power cord. Clean the product as described above. Store the product and its accessories in a dry, frost-free place.
  • Page 21: Exploded View

    5125-015 EXPLODED VIEW Steel wire handle Motor assembly and push rod assembly Blade Chassis assembly components Grass box component Upper housing assembly Grass catcher components...
  • Page 22: Parts List

    15 Amp Lawn Mower Owner's Manual PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the electric lawn mower. Any attempt to repair or replace electrical parts on this electric lawn mower may create a safety hazard unless repairs are performed by a qualified technician.
  • Page 23 5125-015 Key # Part Name Quantity MACHINE ASSEMBLY - UPPER HOUSING ASSEMBLY 3122530101094001 Handle 3152200101069001 Upper cover 33SBAQA00460101 Screw 3122530101131001 Vibration dampener 3152200101142001 Upper housing 3122530201131001 Vibration dampener 3181000101053001 Pressing plate 3252200201030001 Height setting gauge 3152200201030001 Gasket 33SEADA004120101 Screw MACHINE ASSEMBLY - CHASSIS COMPONENTS 3152200301069001 9"...
  • Page 24 15 Amp Lawn Mower Owner's Manual Key # Part Name Quantity 3152200501053001 Breakwater 3252200101103001 Connecting rod button - 1 3252200301057001 Front connecting rod 3252200501060001 Tension spring 3252200201074001 Bolt 3252200101150001 Straw baling 3252200501153001 Grass baffle plate MACHINE ASSEMBLY - STEEL WIRE HANDLE ASSEMBLY 3252200301057001 Upper push rod 3150000201049001...
  • Page 25 5125-015 Key # Part Name Quantity 3222530101025001 Ring 3152300101139001 Disk 3252200101132001 Blade 3352200301030001 Washer 33SNDDC008250101 Bolt PART PACKED GRASS CATCHER COMPONENTS 3152200401069001 Cover 3122530701069001 Cover 355220101045001 33SBAQD004150101 Screw 3252200101039001 Shell frame 3122530201094001 Handle 3152200401072001 Grass shute cover plate 33SBAQA004160101 Screw...
  • Page 26: Warranty

    WARRANTY RADLEY ELECTRIC LAWN MOWER WARRANTY If this Radley tool fails due to a defect in material or workmanship within three years from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. Two years for battery and charger. This warranty does not include expendable parts including but not limited to blades, brushes, belts and light bulbs.
