Summary of Contents for RADLEY 5125-019

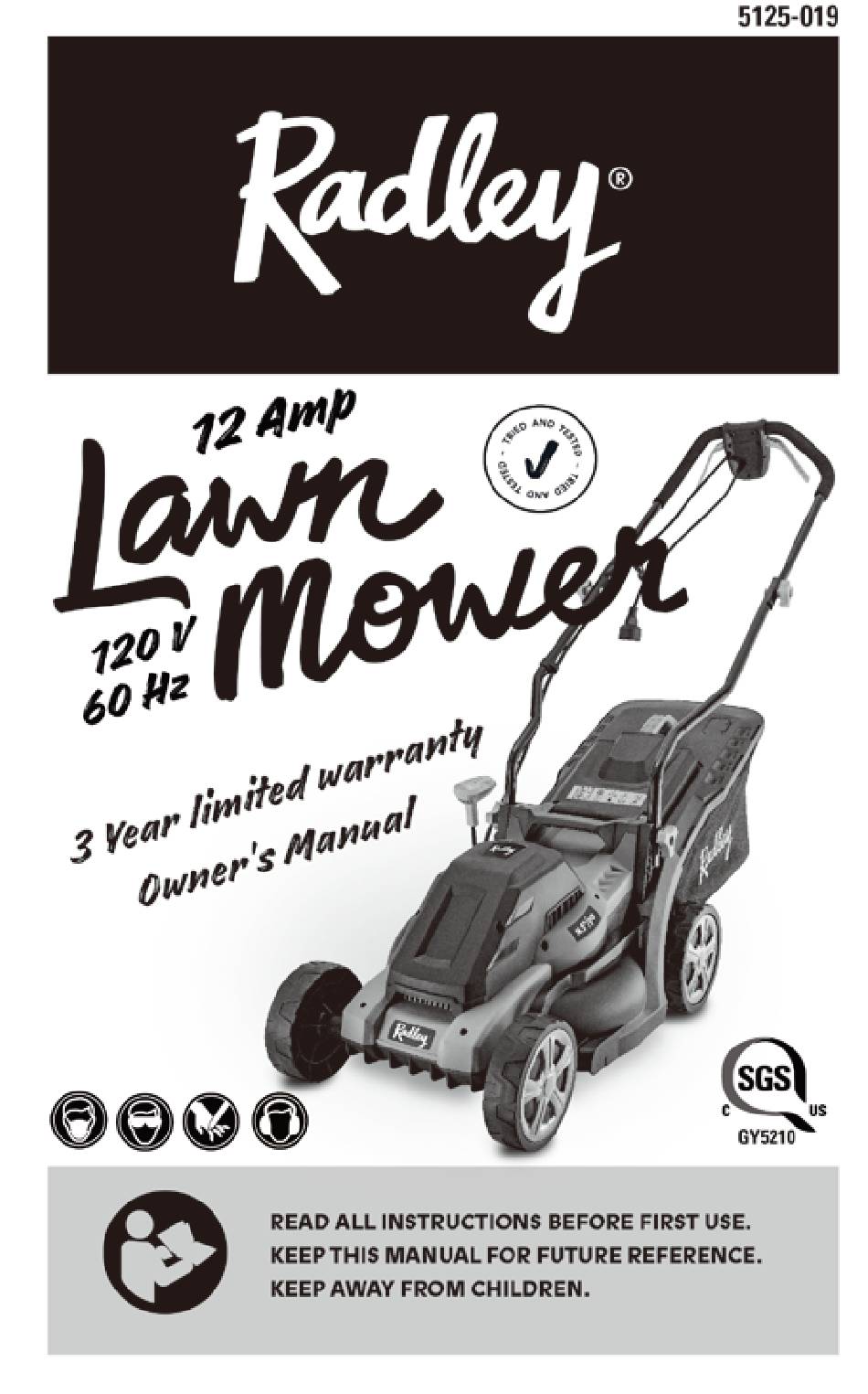

- Page 2 12 Amp Lawn Mower Owner’s Manual PRODUCT SPECIFICATIONS 14” ELECTRIC LAWN MOWER Voltage 120 V~ 60 Hz No load 3300 RPM Ampere 12 A Clearing width 13" (34mm) Bag Capacity 35L (9 gallons) Weight 20 Lbs (9.5 kg) Need Assistance? Call us on our toll free customer support line: 1-866-349-8665 (Monday through Friday 9am –...
-
Page 3: Table Of Contents
5125-019 TABLE OF CONTENTS Product specifications ………….……………………………………………………………1 Table of contents ………….……………………………………………………………2 General safety warnings ……….……………………………………………………………3 Electrical safety ……………………………………………………………………3-4 Lawn mower safety ……….……………………………………………………………4-6 Extension cord safety ……….……………………………………………………………7-8 Symbols …….……………………………………………………………9-10 Know your electric lawn mower …………………………………………………………11 Assembly ….……………………………………………………………12-13 Operation ….……………………………………………………………14-16 Maintenance .….……………………………………………………………17-19 Exploded view ……….……………………………………………………………20... -
Page 4: General Safety Warnings
12 Amp Lawn Mower Owner’s Manual GENERAL SAFETY WARNINGS IMPORTANT SAFETY INSTRUCTIONS Read and understand all safety and operational instructions. Failure to follow the safety rules listed below and other basic safety precautions may result in serious personal injury. Keep this manual, sales receipts and applicable warranty forms for future reference. -
Page 5: Lawn Mower Safety
5125-019 This tool is wired at the factory for 120V AC operation. It must be connected to a 120V AC, 15 AMP circuit that is protected by a time-delayed fuse or circuit breaker. To avoid shock or fire, replace power cord immediately if it is worn, cut or damaged in any way. - Page 6 12 Amp Lawn Mower Owner’s Manual OPERATION Operate the product in daylight or in good artificial light. When using the electric lawn mower, you must respect local laws and regulations regarding noise control and environmental protection. To avoid noise disturbance, you should carefully decide upon an appropriate operation time and consider the surrounding conditions.
- Page 7 5125-019 MAINTENANCE AND STORAGE Keep all nuts, bolts and screws tight to be sure the product is in safe working condition. Check the grass catcher frequently for wear or deterioration. Be careful during adjustment of the product to prevent entrapment of the fingers between moving blades and fixed parts of the product.
-
Page 8: Extension Cord Safety
12 Amp Lawn Mower Owner’s Manual EXTENSION CORD SAFETY WARNING: Keep the extension cord clear of the working area. Position the cord so it will not get caught on the workpiece, tools or any other obstructions while you are working with the power tool. Make sure any extension cord used with this tool is in good condition. - Page 9 5125-019 Fig. 1 Appliance Cord set cord (A)Tie cord as shown (B)Connect plug and receptacle Avoid unintentional starting – Turn off the power switch and disconnect the power cord before making any adjustments to the unit and before inspecting, servicing, changing accessories or cleaning the snow thrower.
-
Page 10: Symbols
12 Amp Lawn Mower Owner’s Manual SYMBOLS Inspect the area where the Warning! Danger. product is to be used and remove all objects which Read the operator’s manual. can be thrown by the product. If objects are hidden while WARNING! Beware of operating stop the product electric shocks. - Page 11 5125-019 Beware of sharp blades. Protection class II (Double Blades continue to rotate insulation). after the motor is switched off - Remove disabling device before Guaranteed sound power maintenance. level value in dB. GO – grass catcher ready for grass collection STOP...
-
Page 12: Know Your Electric Lawn Mower

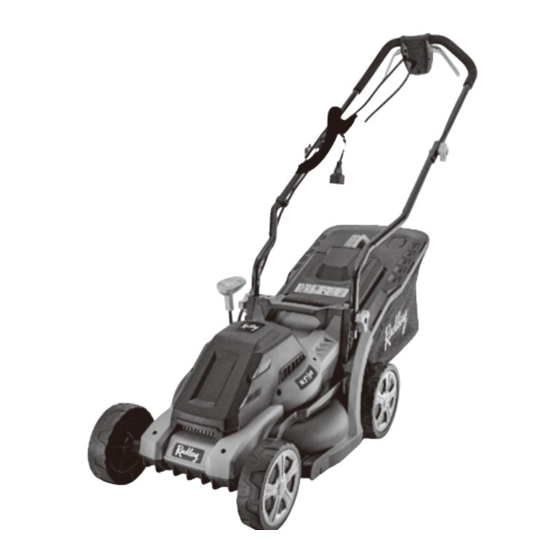

12 Amp Lawn Mower Owner’s Manual KNOW YOUR ELECTRIC LAWN MOWER Upper handle Safety lock-off Left start handle Power cord Right handle Right start lever Control cord Lower left handlebar Lower right handlebar Front wheel Catcher bag Rear wheel Height adjust handle... -
Page 13: Assembly
5125-019 ASSEMBLY UNPACKING Unpack all parts and lay them on a flat, stable surface. Remove all packing materials if applicable. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. - Page 14 12 Amp Lawn Mower Owner’s Manual UPPER HANDLEBARS Align the upper handlebar to the lower handlebar and ensure the switch box is pointed downward when viewed from behind. Pass the bolts through the mounting holes of handles (Fig. 2). Attach the washer to the bolt and secure the upper handlebar by turning the knob clockwise for tightening (Fig.2).
-
Page 15: Operation
5125-019 OPERATION CUTTING HEIGHT ADJUSTMENT WARNING: Switch the product off and wait until the blade has come to a complete stop before adjusting the cutting height! Adjust the cutting height according to the needs of your lawn. The cutting height depends on the kind of lawn and its actual height. - Page 16 12 Amp Lawn Mower Owner’s Manual When the hatch is open the grass catcher has sufficient volume left to collect grass (Fig. 7). When the hatch is closed, the grass catcher is full and must be emptied (Fig. 7). EMPTYING THE GRASS CATCHER Empty the grass catcher frequently during use.
- Page 17 5125-019 STARTING/STOPPING Plug in power Stand behind the grip handle . While holding the safety lock-off switch pressed, pull the start lever towards the handle. After the mower starts, release the safety lock-off switch. Release the start lever to stop the mower.
-
Page 18: Maintenance
12 Amp Lawn Mower Owner’s Manual MAINTENANCE WARNING: Always switch the product and let the product cool down before performing inspection, maintenance and cleaning work! Keep the product clean. Remove debris after each use and before storage. Regular and proper cleaning will help ensure safe use and prolong the life of the product. - Page 19 5125-019 Keep the blade sharp to ensure a good cutting performance. Replace a worn or damaged blade with a new one of the same type or have it sharpened by a qualified specialist. Loosen the hex bolt counterclockwise using the supplied hex wrench and remove it together with the washer and the blade (Fig.
- Page 20 12 Amp Lawn Mower Owner’s Manual CONTROL CORD Check the control cord before each use. WARNING: Do not use the product with a defective or a loose control cord. STORAGE Turn off the power and unplug the power cord. Clean the product as described above. Store the product and its accessories in a dry, frost-free place.
-
Page 21: Exploded View
5125-019 EXPLODED VIEW... -
Page 22: Parts List
12 Amp Lawn Mower Owner’s Manual PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the electric lawn mower. Any attempt to repair or replace electrical parts on this electric lawn mower may create a safety hazard unless repairs are performed by a qualified technician. - Page 23 5125-019 Key # Part Name Quantity Part # 33SNDDC008350101 Bolt 3352200301030001 Washer 3222530201132001 Blade 3152300101139001 Blade retaining hub 3222530101060001 Tension spring 3252300101030001 Brake block 3252300101030001 Friction plate 3122530101049001 Gearbox base 33SBAQA005200101 Screw 3152300201131001 Vibration dampener 33DB600302011 Bearing 3222530301020001 Output shaft...
- Page 24 12 Amp Lawn Mower Owner’s Manual Key # Part Name Quantity Part # 3522530101045001 Catcher bag 3222530201057001 Down left push rod 36040101 Double hole male terminal sleeve 74-1 36010108 Female terminal 36040102 Double hole bushing 75-1 36010109 Male terminal 3452100201027001 Cord 3222530301057001 Down push rod...
-
Page 25: Warranty
WARRANTY RADLEY ELECTRIC LAWN MOWER WARRANTY If this Radley tool fails due to a defect in material or workmanship within three years from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. Two years for battery and charger. This warranty does not include expendable parts including but not limited to blades, brushes, belts and light bulbs.
