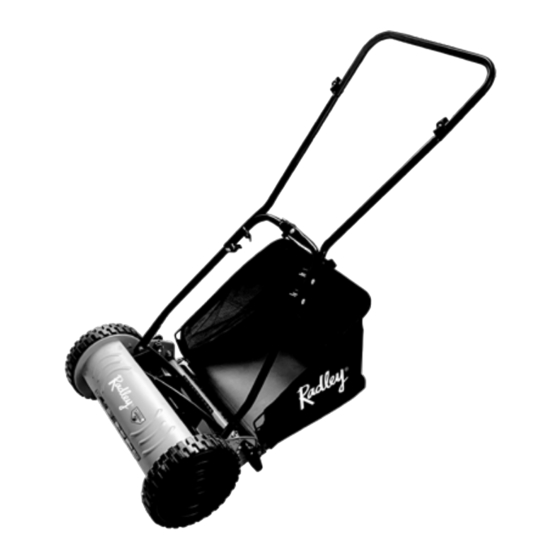

- Page 1 15" Push Reel Lawn Mower Item # 5122-003 3 Year Limited Warranty on tool READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. KEEP AWAY FROM CHILDREN. WEAR CSA APPROVED WEAR EAR WEAR A EYE PROTECTION PROTECTION...
- Page 2 15" PUSH REEL LAWN MOWER Cutting path 15” (381 mm) Height adjustments 4 presets – from 5/8" - 1 5/8" (15-40 mm ) Number of blades 5 Helical blades Weight 16.5Lbs (7.1kg) NEED ASSISTANCE? Call us on our toll- free customer support line: 1-866-349-8665 (Monday through Friday 9am –...
-
Page 3: Table Of Contents
15" PUSH REEL LAWN MOWER TABLE OF CONTENTS Table of Contents Safety Warnings Safety Symbols ........................Know Your 15" push reel lawn mower ................Assembly And Operation ...................... 8-11 Exploded View ........................Parts List........................... 13-14 Warranty .......................... -
Page 4: Safety Warnings
SAFETY WARNINGS IMPORTANT SAFETY INSTRUCTIONS WARNING: READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in serious personal injury. WARNING: This symbol points out important safety instructions, which if not followed, could endanger the personal safety and/or property of yourself and others. - Page 5 15" PUSH REEL LAWN MOWER 10. Many injuries occur because of the mower being pulled over the foot during a fall caused by slipping or tripping. Do not hold on to the mower if you are falling, release the handle immediately. 11.
- Page 6 CHILD SAFETY Tragic accidents can occur if the operator is not aware of the presence of children. • Keep children out of the mowing area and under the watchful care of a responsible adult. • Do not allow children under the age of 14 to operate this reel mower. Children who are 14 years of age and older must read and understand the operating instructions and safety rules in this manual and must be trained and supervised by a parent.
-
Page 7: Safety Symbols
15" PUSH REEL LAWN MOWER SAFETY SYMBOLS WARNING: Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Read The Operator’s... -
Page 8: Know Your 15" Push Reel Lawn Mower
KNOW YOUR 15" PUSH REEL LAWN MOWER 1. Push bar 2. Roller cutter and blade reel assembly Wheel Housing Guide roller Grass basket Grass basket strap... -
Page 9: Assembly And Operation
15" PUSH REEL LAWN MOWER ASSEMBLY AND OPERATION Box contents Fig. 1 Mower assembly NOTE: Do not completely tighten bolts until assembly is complete. Screw the push bar top section (2) (Fig. 2) to the two push bar extensions (3) (Fig. 2). Use the two screws M6x25 (9) (Fig. - Page 10 First attach one push bar bottom section to the roller cutter and blade reel assembly, then press the push bar together slightly and attach the other side. (Fig. 4) Fig. 4 Grass basket assembly (Fig. 5 / 6) A. Push the bar frame into the grass basket tube. B.
- Page 11 15" PUSH REEL LAWN MOWER Balancing the cutting bar (Fig. 8) WARNING: Mower blades are sharp and can cut. Wear gloves and use extra caution. Never place hands, fingers, or feet inside the reel. Although a motor does not power this mower, when the wheels turn the reel spins and can cut.
- Page 12 Operation • The mower can cut grass up to approx. 4” (10 cm) in length. • When starting the mowing session (and when mowing over freshly laid sod), it is advisable to set the cutting height relatively high, then gradually work your way down.
-
Page 13: Exploded View
5240-051 15" PUSH REEL LAWN MOWER EXPLODED VIEW... -
Page 14: Parts List
PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the push reel lawn mower . For more information, call the Toll-free Helpline, at 1-866-349-8665; Monday - Friday: 9am to 5pm Eastern Standard Time. -
Page 15: Warranty
WARRANTY 15" PUSH REEL LAWN MOWER WARRANTY If this Radley tool fails due to a defect in material or workmanship within three years from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. - Page 16 © 2023 Home Hardware Stores Limited Made in China 1-866-349-8665 Customer Service/Tech Support This Radley® product carries a three (3) year LIMITED warranty against defects in workmanship and materials. See Owner’s Manual for full details. READ ALL INSTRUCTIONS BEFORE FIRST USE.
