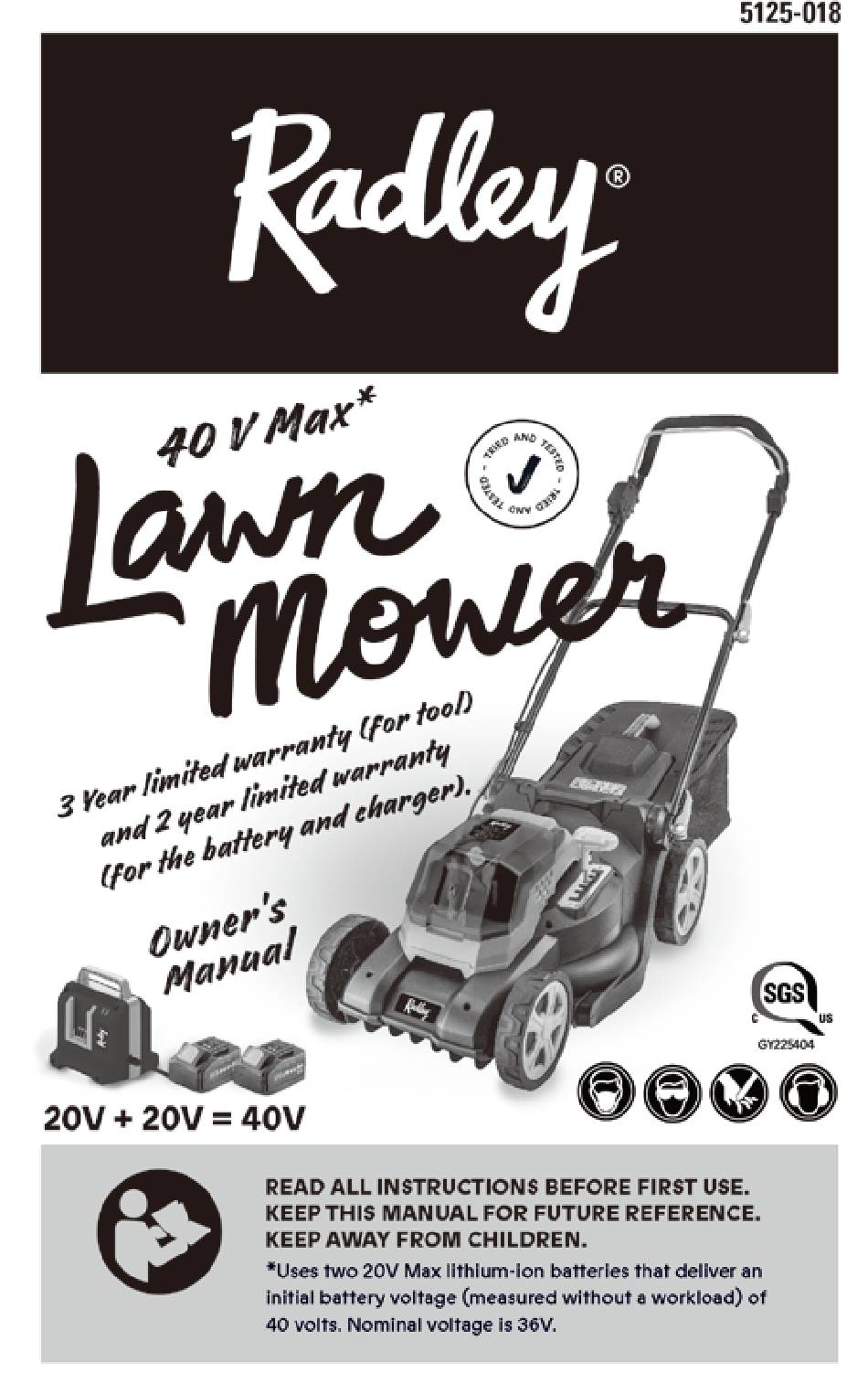

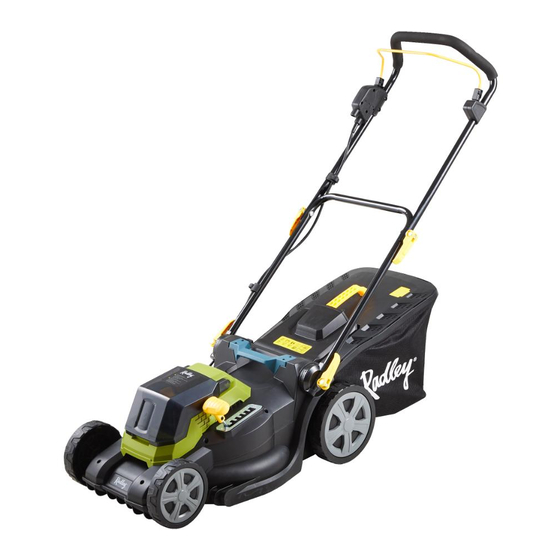

  • Page 2 40 V Max Lawn Mower Owner’s Manual PRODUCT SPECIFICATIONS 17” 40V BRUSHLESS LAWN MOWER Voltage 40V (2 x 20V) No Load No load 3300 RPM 15-3/4" (40cm) Clearing Width Bag Capacity 45L (11.9 gal) Weight 31.7 lbs (14.4kg) BATTERY AND CHARGER Battery voltage: 2x20V 5 Ah Li-ion (Maximum charged battery voltage, measured without load,...

  • Page 3: Table Of Contents

    5125-018 TABLE OF CONTENTS Product specifications ………….……………………………………………………………1 Table of contents ………….……………………………………………………………2 General safety warnings ……….……………………………………………………………3 Electrical safety ……………………………………………………………………3-4 Lawn mower safety ……….……………………………………………………………4-6 Battery Pack & Charger Safety …………………………………………………………6-8 Recycling and disposal ……….……………………………………………………………9 Symbols …….……………………………………………………………10-12 Know your lawn mower …………………………………………………………13 Assembly ….……………………………………………………………14-17...

  • Page 4: General Safety Warnings

    40 V Max Lawn Mower Owner’s Manual GENERAL SAFETY WARNINGS IMPORTANT SAFETY INSTRUCTIONS Read and understand all safety and operational instructions. Failure to follow the safety rules listed below and other basic safety precautions may result in serious personal injury. Keep this manual, sales receipts and applicable warranty forms for future reference.

  • Page 5: Lawn Mower Safety

    5125-018 WARNING: Ventilation openings in batteries and chargers must always be open to allow cooling air to circulate freely. Air vents that are blocked, restricted or covered may result in the battery or charger overheating. Overheating may lead to damage to the tool or cause a fire, resulting in possible serious injury.
  • Page 6 40 V Max Lawn Mower Owner’s Manual Mow across the face of slopes, never up and down. Exercise extreme caution when changing direction on slopes. Do not mow excessively steep slopes. Use extreme caution when reversing or pulling the product towards you. Stop the cutting device(s) if the product has to be tilted for transportation when crossing surfaces other than grass, and when transporting the product to and from the area to be mowed.

  • Page 7: Battery Pack & Charger Safety

    5125-018 Wear strong work gloves when removing and reassembling the cutting device. BATTERY PACK & CHARGER SAFETY BATTERY SAFETY INSTRUCTIONS WARNING! Only use the charger supplied with this kit to charge the 20V Li-ion batteries for this tool. Charging any other batteries may damage the charger and possibly cause serious injury.
  • Page 8 40 V Max Lawn Mower Owner’s Manual water. If liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention. When battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.
  • Page 9 5125-018 Avoid mechanical damage to the charger. This can result in internal short circuits. Do not operate the charger on easily inflammable surfaces (e.g. paper, textiles, etc.). The heating of the battery charger during the charging process could pose a fire hazard.

  • Page 10: Recycling And Disposal

    40 V Max Lawn Mower Owner’s Manual RECYCLING AND DISPOSAL WARNING! Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling advice. Old products are potentially recyclable and do not, therefore, belong in your household garbage.
  • Page 11 5125-018 SAFETY SYMBOLS WARNING! Please read all of the safety and operating instructions carefully before using this tool. Please pay particular attention to all sections of this User Guide that carry warning symbols and notices. Some of the following symbols may be used on this tool.
  • Page 12 40 V Max Lawn Mower Owner’s Manual Inspect the area where the Warning! Danger. product is to be used and remove all objects which Read the operator’s manual. can be thrown by the product. If objects are hidden while WARNING! Beware of operating stop the product electric shocks.
  • Page 13 5125-018 Beware of sharp blades. Remove plug from the Blades continue to rotate power source immediately if the power cord is after the motor is switched off - Remove disabling damaged or cut. device before Batteries and battery maintenance. packs should not be disposed of with house- GO –...
  • Page 14 40 V Max Lawn Mower Owner’s Manual KNOW YOUR 40V BRUSHLESS LAWN MOWER Quick release Start lever lever Upper handlebar Foam Grip Safety lock-off Lower switch handlebar Control cord Height adjustment Cord lever retainer Grass catcher Rear wheel Battery charger Front wheel 5350-046 Battery...

  • Page 15: Assembly

    5125-018 ASSEMBLY UNPACKING Unpack all parts and lay them on a flat, stable surface. Remove all packing materials if applicable. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact Customer Service @ 1-866-349-8665.
  • Page 16 40 V Max Lawn Mower Owner’s Manual UPPER HANDLE BAR Align the upper handlebar to the lower handlebar and ensure the foam handle is pointed up when viewed from behind. Pass the bolts through the mounting holes of handles (Fig. 2). Attach the washer to the bolt and secure the upper handlebar by turning the lever up for tightening (Fig.2).
  • Page 17 5125-018 CHECKING THE BATTERY CHARGE STATUS The level of charge remaining in the battery can be checked by using the battery LED power indicator that is contained on the end of the battery. NOTE: The battery charge remaining may be checked while the battery is installed in the tool with the ON/OFF switch turned OFF.
  • Page 18 40 V Max Lawn Mower Owner’s Manual Battery Inserted Green Light Red Light Charging Status Into Charger Charger connected to power supply. Battery being charged. Battery fully charged. Battery is charged but not operational on tool. This may indicate defective / bad contact on battery or charging conditions are either too hot or too cold.
  • Page 19 5125-018 CUTTING HEIGHT ADJUSTMENT WARNING: Switch the product off and wait until the blade has come to a complete stop before adjusting the cutting height! Remove the safety key before adjusting the cutting height! Adjust the cutting height according to the needs of your lawn. The cutting height depends on the kind of lawn and its actual height.
  • Page 20 40 V Max Lawn Mower Owner’s Manual When the hatch is open the grass catcher has sufficient volume left to collect grass (Fig. 11). When the hatch is closed, the grass catcher is full and must be emptied (Fig. 11). EMPTYING THE GRASS CATCHER Empty the grass catcher frequently during use.
  • Page 21 5125-018 STARTING/STOPPING Insert batteries. Plug the safety key into the slot fully. Stand behind the grip handle . While holding the safety lock-off switch pressed, pull the start lever towards the handle. After the mower starts, release the safety lock-off switch.

  • Page 22: Maintenance

    40 V Max Lawn Mower Owner’s Manual MAINTENANCE WARNING: Always switch the mower off, remove the battery packs and the safety key and let the mower cool down before performing inspection, maintenance and cleaning work! Keep the mower clean. Remove debris after each use and before storage. Regular and proper cleaning will help ensure safe use and prolong the life of the product.
  • Page 23 5125-018 Keep the blade sharp to ensure a good cutting performance. Replace a worn or damaged blade with a new one of the same type or have it sharpened by a qualified specialist. Loosen the hex bolt counterclockwise using the supplied hex wrench and remove it together with the washer and the blade (Fig.
  • Page 24 40 V Max Lawn Mower Owner’s Manual CHARGER If the power cord of the charger is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a safety hazard. STORAGE Remove batteries from mower. Clean the product as described above.

  • Page 25: Exploded View

    5125-018 EXPLODED VIEW...

  • Page 26: Parts List

    40 V Max Lawn Mower Owner’s Manual PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the brushless lawn mower. Any attempt to repair or replace electrical parts on this brushless lawn mower may create a safety hazard unless repairs are performed by a qualified technician.
  • Page 27 5125-018 Key # Part # Part Name Quantity 3252200101053001 Height setting gauge 3181000101053001 Clamping plate MACHINE ASSEMBLY - CHASSIS COMPONENTS 3152200301069001 9"Wheel cover 3322530101138001 Cotter pin 3360000201030001 Washer 3152200101031001 9"Wheel 3252200101020001 Rear axle shaft 3252200201053001 Axle clamping plate 3252200201020001 Back cover shaft...
  • Page 28 40 V Max Lawn Mower Owner’s Manual Key # Part # Part Name Quantity 3150000301049001 Tie rod fixed seat 2 3150000401049001 Switch board seat 2 3150000201157003 Switch board seat 2 3150000501023001 Handle cover 33SBAQA004160101 Screw 3222540201057001 Switch lever 3250000201030001 Switch spring 3150000201058001 Switch unlock button 3150000101069001...

  • Page 29: Warranty

    WARRANTY RADLEY 40V BRUSHLESS LAWN MOWER WARRANTY If this Radley tool fails due to a defect in material or workmanship within three years from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange.
