Ruckus Wireless C110 Quick Setup Manual

C110 Cable Modem Access
Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how to set up
your Ruckus Wireless C110 Dual Band 802.11ac Wall Plate Cable Modem
Access Point. After completing the steps described in this Guide, you will
be able to access the C110 and begin providing wired and wireless
network access to your users.
NOTE: The C110 requires a minimum firmware revision of SmartZone
3.4.1 or later, or ZoneDirector 9.13.3 or later to operate.
The C110 has many options:
• Includes DOCSIS (or EuroDOCSIS) 3.0 cable modem
• It can be mounted on a standard USA- or EU-style single-gang wall
outlet box.
• It has bottom cutouts for one or two bypass cables. The mounting
bracket has locating hooks to keep the bypass cables aligned with the
cutouts when attaching the C110 to the mounting base.
• It can have a low-power (0.5W or less) USB device plugged in.
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
http://
docs.commscope.com/?docs-box.
• Vous trouverez la version française de ce guide à l'adresse suivante
http://docs.commscope.com/?docs-box.
• このガイドの日本語版は
http://docs.commscope.com/?docs-box
ご覧ください。
• 이 가이드의 한국어 버전은 웹 사이트
(http://docs.commscope.com/?
docs-box) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
docs.commscope.com/?docs-box
• Puede ver la versión en español (América Latina) de esta guía en
docs.commscope.com/?docs-box

Before You Begin

Before deploying RUCKUS products, please check for the latest software
and the release documentation.
• Release Notes and other user documentation are available at
support.ruckuswireless.com/documents.
• Software upgrades are available at http://support.ruckuswireless.com/
software.
• Software license and limited warranty information are available at
http://support.ruckuswireless.com/warranty.
Before deploying your RUCKUS Access Point, verify that all items listed
in Package Contents are included in the package. If any item is damaged
Copyright © 2019 CommScope, Inc. All rights reserved.
Published November 2019, Part Number 800-71062-001 Rev G
or missing, notify your authorized RUCKUS sales representative. Also,
make sure that you have the required hardware and tools.

Package Contents

• C110 Cable Modem Access Point
• AC/DC power supply
• Mounting bracket
• Two 6mm M3 Torx screws (white)
• Four 1" 6-32 thread Phillips pan head machine screws
• Two 4" long cable ties
• Product warranty statement
• Regulatory flyer
• Declaration of Conformity, if required
• This Quick Setup Guide

Required Tools and Setup Requirements

• No. 2 Phillips screwdriver and T10 Torx driver for the mounting bracket
screws
• Coaxial cable for backhaul
• A standard USA- or EU-style single-gang wall outlet box
NOTE: If a standard wall outlet box is not available, Ruckus offers a
C110 Spacer Bracket (part #902-0124-0000) as an optional accessory.

About Peripheral Devices

The C110 can supply power to USB devices through its USB port on the
bottom of the unit.
The USB port is intended for low-power devices such as BLE (Bluetooth low
energy) beacons. The maximum power that the USB port can supply is
0.5W.

Step 1: Configuring the Cable Modem (Optional)

NOTE: The C110 normally receives its latest WLAN AP and CM firmware
and initial configuration settings from the Ruckus WLAN controller and
cable modem termination system (CMTS) high speed data services
で
equipment, respectively, when it t powers up; if this is the case, then
skip the following steps and continue with Step 6: Attaching the
Mounting Bracket to an Outlet t Box.
If the WLAN AP in the C110 does not receive its latest firmware and initial
http://
configuration settings from the Ruckus WLAN controller when the AP
powers up, or if the WLAN AP will be operating in a standalone mode, then
http://
continue with these procedures:

• Step 2: Connecting the Computer to the C110

• Step 3: Preparing Your Computer for C110 Setup

• Step 4: Logging Into the C110 Access Point
• Step 5: Customizing the Wireless Settings
http://
STEP 2: CONNECTING THE COMPUTER TO THE
C110
NOTE: The following instructions are for configuring the C110's wireless
interfaces. If your C110 will receive its configuration settings from the
CMTS/Ruckus WLAN controller, then skip these steps and proceed to

Step 6: Attaching the Mounting Bracket to an Outlet Box.

NOTE: For this step you will need a computer with an Ethernet port,
wireless card and a web browser.

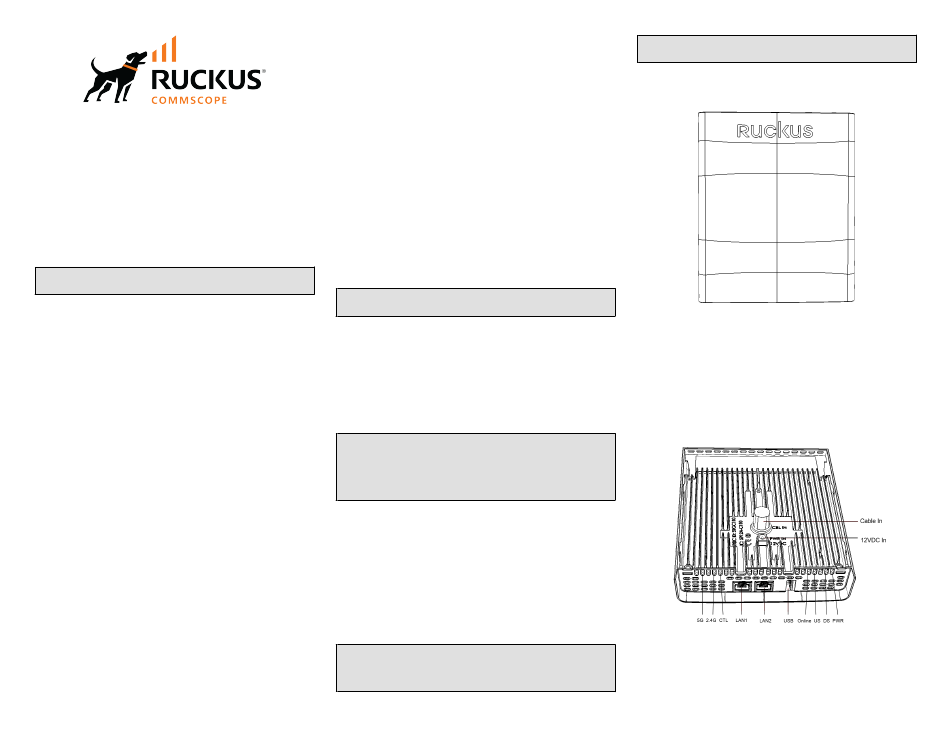

FIGURE 1 Front view
1. After removing your C110 from its package, place it next to your
computer.
2. Using an Ethernet cable, connect your computer's network port to
either of the Ethernet ports on the bottom of the C110.
3. Using an AC adapter (included), connect the C110 12VDC port to a
protected power source.
FIGURE 2 Rear and bottom view
Page 1 of 3
