Ruckus Wireless C110 Quick Setup Manual

C110 Dual Band 802.11ac Wall
Plate Cable Modem Access
Point

Quick Setup Guide

This Quick Setup Guide provides step-by-step instructions
on how to set up your Ruckus Wireless C110 Dual Band
802.11ac Wall Plate Cable Modem Access Point. After
completing the steps described in this Guide, you will be
able to access the C110 and begin providing wired and
wireless network access to users.
The C110 has many options:
• Includes DOCSIS (or EuroDOCSIS) 3.0 cable modem
• It can be mounted on a standard USA- or EU-style
single-gang wall outlet box.
• It has bottom cutouts for one or two bypass cables. The
mounting bracket has locating hooks to keep the
bypass cables aligned with the cutouts when attaching
the C110 to the mounting base.
• It can have a low-power (0.5W or less) customer-
supplied USB device plugged in.
NOTE: The C110 requires a minimum firmware revision
of SmartZone 3.4 or later to operate.
T G O L
HIS UIDE IN THER ANGUAGES
请从以下网站获得该指南的简体中文版
•
https://support.ruckuswireless.com
• Vous trouverez la version française de ce guide à
l'adresse suivante
https://support.ruckuswireless.com
こ の ガ イ ド の⽇本語版は
•
https://support.ruckuswireless.com
で ご 覧 く だ さ い
이 가이드의 한국어 버전은 웹 사이트
•
( ) 에서 확인하시기 바랍니다
https://support.ruckuswireless.com
• Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com
• Puede ver la versión en español (América Latina) de
esta guía en
https://support.ruckuswireless.com
Copyright © 2016 Ruckus Wireless, Inc.
Published June 2016, Part Number 800-71062-001 Rev A
B Y B
EFORE OU EGIN
Before deploying Ruckus Wireless products, please check
for the latest software and the release documentation.
• User Guides and Release Notes are available at
http://support.ruckuswireless.com/documents
• Software Upgrades are available at
http://support.ruckuswireless.com/software
• Open Source information is available at
http://opensource.ruckuswireless.com
• Software License and Limited Warranty are available at
http://support.ruckuswireless.com/warranty
About Peripheral Devices
The C110 can supply power to USB devices through its
USB port on the bottom of the unit.
• The USB port is intended for low-power devices such
as BLE (Bluetooth low energy) beacons. The maximum
power that the USB port can supply is 0.5W.
P C
ACKAGE ONTENTS
• C110 Cable Modem Access Point
• AC/DC power supply
• Mounting bracket
• Two 10mm M3x0.5 thread Torx flat head machine
screws
• Two 1" 6-32 thread Phillips pan head machine screws
• Two 4" long cable ties
• Product warranty statement
• Regulatory flyer
• Declaration of Conformity, if required
• This Quick Setup Guide
C C110 (
ONFIGURING THE OPTIONAL
Note: The C110 normally receives its latest AP and CM
firmware and initial configuration settings from the cable
modem termination system (CMTS) high speed data
services equipment when it powers up; if this is the case,
then skip the following steps and continue with
.
the Mounting Bracket to an Outlet Box
If the C110 does not receive its latest firmware and initial
configuration settings from the CMTS equipment when the
AP powers up, then continue with these procedures:
•
Step 1: Collecting Tools and Setup Requirements
•
Step 2: Connecting the Computer to the C110
•
Step 3: Preparing Your Computer for C110 Setup
•
Step 4: Logging Into the C110 Access Point
•
Step 5: Customizing the Wireless Settings
S 1: C
TEP OLLECTING
R
EQUIREMENTS
• No. 2 Phillips screwdriver and T10 Torx driver for the
mounting bracket screws
• A standard USA- or EU-style single-gang wall outlet
box
• Coaxial cable for backhaul
• A computer with an Ethernet port, wireless card and a
web browser
• Cat 5e or better Ethernet cable (for initial software
configuration)
S 2: C
TEP ONNECTING THE

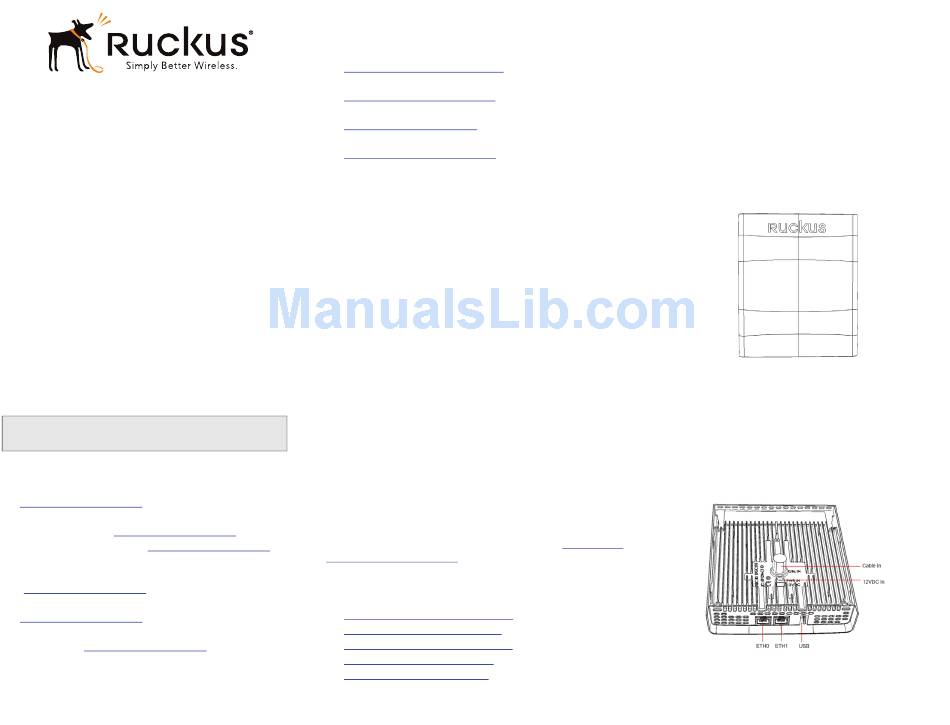

Figure 1: Front view
After removing your C110 from its package, place it
1
next to your computer.
2 Using an Ethernet cable, connect your computer's net-
work port to either of the Ethernet ports on the bottom
of the C110.
3 Using an AC adapter (included), connect the C110
port to a protected power source.
12VDC
)
Figure 2: Rear and bottom view
Step 6: Attaching
T S
OOLS AND ETUP
C C110
OMPUTER TO THE
Page 1 of 4
