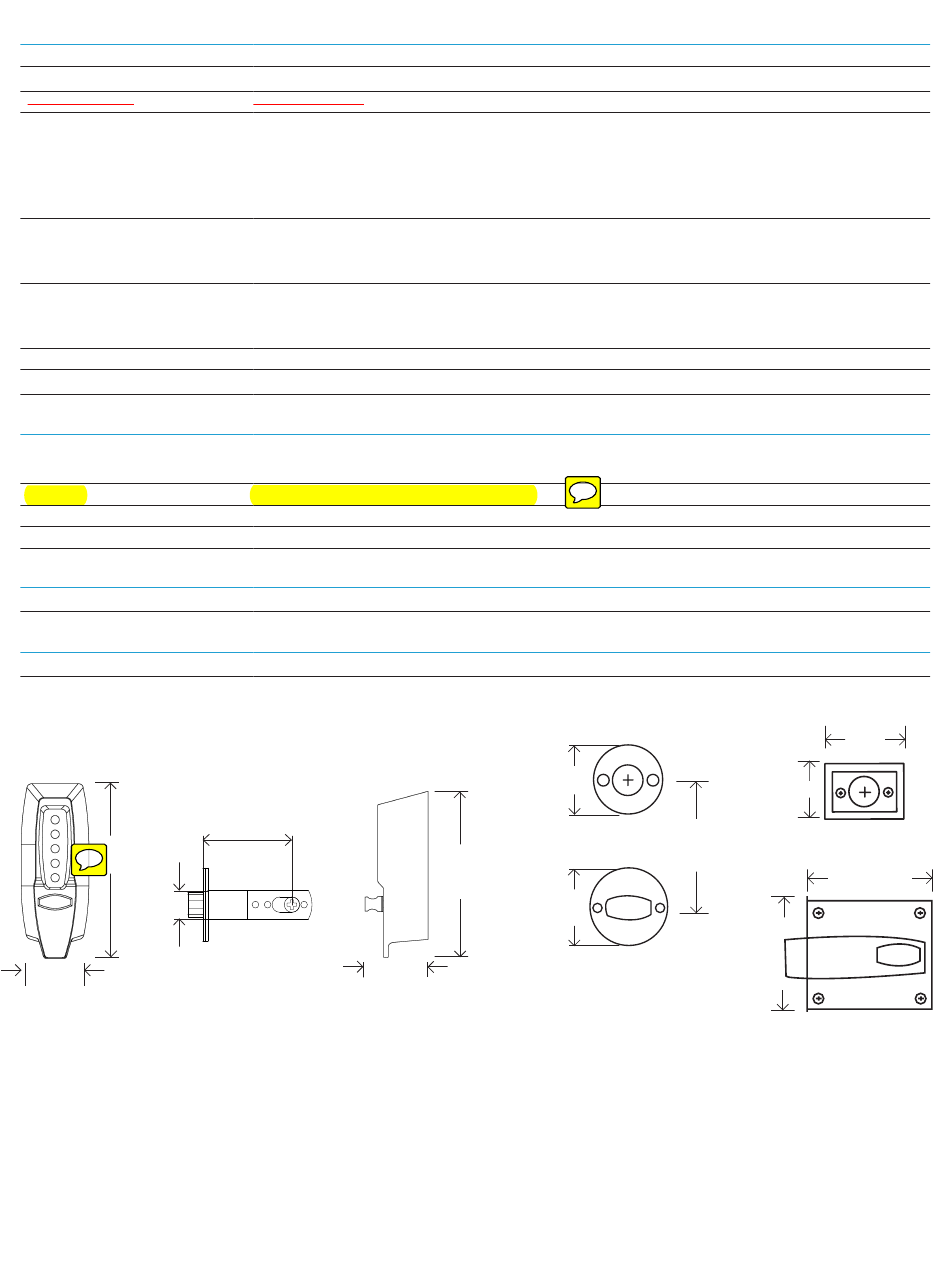

Kaba Simplex 7102 Instructions page 2

Mechanical Features
Construction
Numeric Keypad
Door Handing
Finishes
Latch
Strike
Minimum Stile Recommended 4" (102 mm)
Weight
Installation
Installation
Backset
Door Thickness
Items Supplied Include
Certification and Testing
Durability
Warranty
Warranty
6½"
(165 mm)
⅞"
(22 mm)
2½"
(64 mm)
Exterior
Kaba Access & Data Systems Americas
Winston-Salem NC 27105
1-800-849-8324
www.kaba-adsamericas.com
All metal cast front housing; force-resistant, clutch-protected exterior thumbturn
Vandal resistant, solid metal pushbuttons
Field reversible
For all models except 7106: Bright Brass 03 (605), Satin Chrome 26D (626),
Antique Copper (AC) (059), Gold Vein (GV) (060), Antique White (AW) (062),
Silver Vein (SV) (061), Black 19 (676), and Antique Brass 05 (609)
Model 7106: Inside trim (Black only)
All other Black models, inside trim (Satin Chrome)
1" (25 mm) tubular deadbolt
½" (13 mm) deadlocking latch
⅝" (16 mm) rim deadlocking latch
Models 7102 and 7108: Flat deadbolt strike plate
Model 7104: Curved lip strike plate
Model 7106: Box strike for in-swing doors and flat strike for out-swing doors
2.5 lbs. (1.1 kg)
1⅜" (35 mm) diameter through bore; 1" (25 mm) diameter cross bore; ¾" (19 mm)
through bore; 2 x ¼" through bores
2¾" (70 mm) or 2⅜" (60 mm) backset
1⅜" (35 mm) to 2¼" (57 mm), wood or metal
Installation manual, full-scale template and required installation hardware
Weather resistant
1-year warranty
2¾"
(70 mm)
2½"
(64 mm)
Latch
Exterior Side
2"
(51 mm)
6½"
(165 mm)
2¼"
(57 mm)
Models 7102, 7104, 7108
(54 mm)
1⅜"
(35 mm)
3⅝"
(92 mm)
(86 mm)
3"
(76 mm)
Model 7106
Interior
2⅛"
3⅜"
KAA1356 0416
