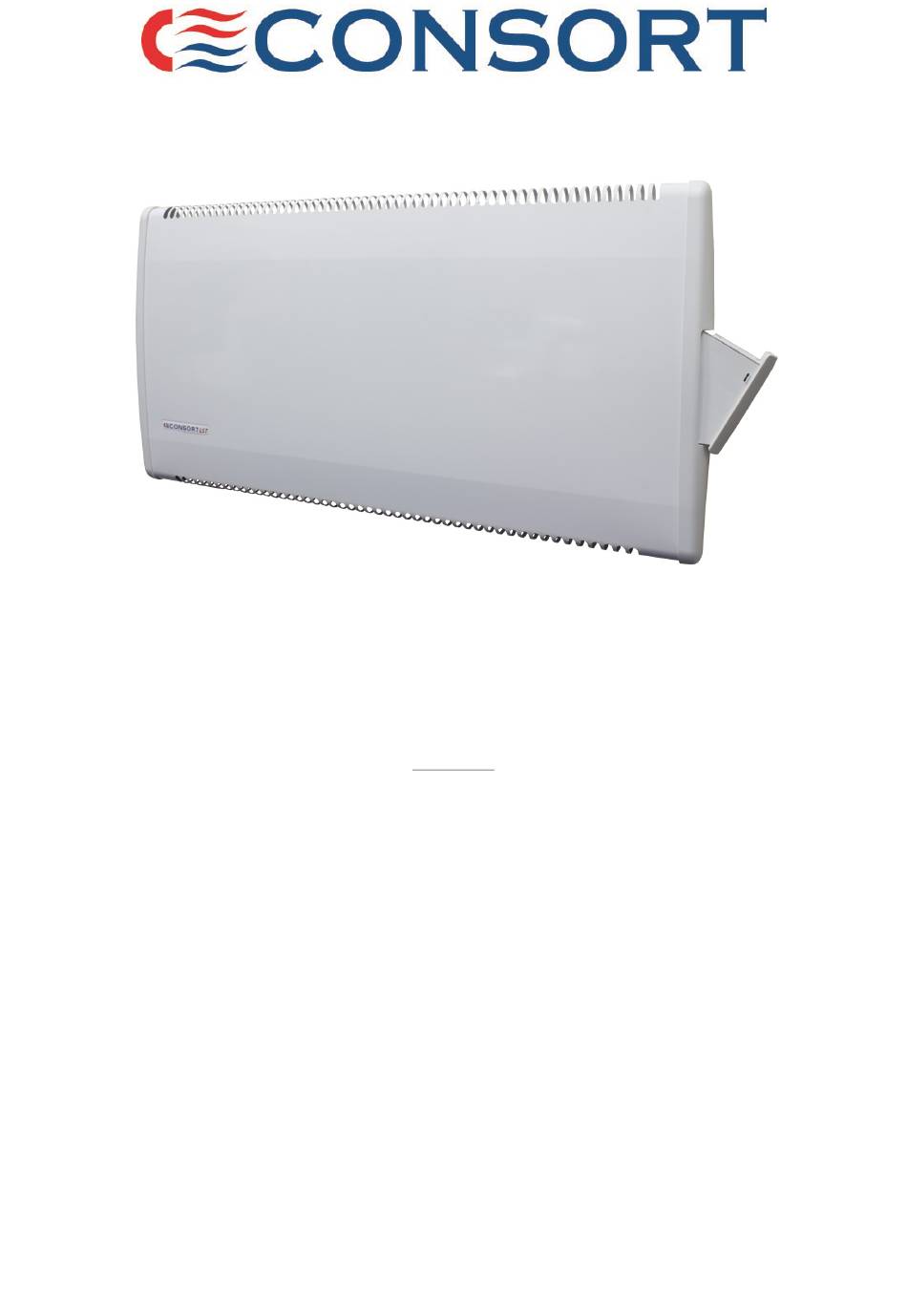

Installation & Control Guide for
Low Surface Temperature Convector Panel Heaters
with Electronic 7-Day Timer
Models
LST500EWIFI, LST800EWIFI
LST500EMWIFI, LST800EMWIFI
All electrical appliances produced by the Company are guaranteed for one year against
faulty materials or workmanship.
This applies only if the appliance has been used for
purposes in accordance with the instructions provided and has not been connected to an
unsuitable electricity supply, or subject to misuse, neglect, damage or modified or repaired
by any person not authorised by us. This guarantee is offered to you as an extra benefit and
does not affect your legal rights.
The correct electricity supply voltage is shown on the rating label attached to the
appliance.
Reasonable care has been taken to ensure that this guide is accurate at the time of
printing. In the interest of progress the Company reserve the right to vary specifications from
time to time without notice.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Consort LST500EWIFI
Summary of Contents for Consort LST500EWIFI
- Page 1 Installation & Control Guide for Low Surface Temperature Convector Panel Heaters with Electronic 7-Day Timer Models LST500EWIFI, LST800EWIFI LST500EMWIFI, LST800EMWIFI All electrical appliances produced by the Company are guaranteed for one year against faulty materials or workmanship. This applies only if the appliance has been used for...
-
Page 2: General Safety
General safety This heater is fitted with a 3-core mains supply cable and must be permanently connected to the electricity supply via Our Low Surface Temperature heaters a double pole switch having 3mm gap on each pole. There have been designed and built to the NHS are no exceptions. -
Page 3: Installation And Mounting
Installation & Mounting To wall mount, the wall bracket supplied must be used. Remove the wall bracket from the heater, with the chains at- tached, by removing the 2 securing screws from the top of the rear panel. Fix the wall bracket to the wall using 4 screws. Fig 1: Present the heater to the bracket Fig 2: Locate the heater onto the bottom lugs via the 2 slots in rear panel. -
Page 4: Temp Mode
Time Prog SET TIME SET PROGRAMME PRESS AND HOLD PRESS AND HOLD FOR 5 SECONDS FOR 5 SECONDS MODE SELECTION EMPERATURE SET Mode BOOST, MANUAL, Temp WHEN DISPLAY SHOWS SETBACK AND ROOM TEMPERATURE, PROGRAM PRESS TO ADJUST 1. Basic Operation 5. - Page 5 Setup instructions problem. Press and hold PROG for 5 seconds to enter the Pairing the heater to the Consort Connect app. program setup menu. Ensure the smartphone or tablet is connected to The day will be flashing, this is the select day 2.4GHz WIFI network and the Bluetooth is enabled.
- Page 6 10. Open Window Detection 13. Heat symbol on the display Ensuring you don’t waste energy on heating the outside Every time there is a demand for heat, the display will world, the heater is equipped with optional open / show the heat icon. closed window detection.
- Page 7 Basic control of an individual heater time schedules immediately. It is When you open the Consort Connect app, select the recommended to leave the heaters in manual heater you would like to control. This will bring you to the mode with occupancy sensor enabled for the main page for controlling the heater.
-
Page 8: Customer Helpline
Repeat these steps for all time periods so that the heater screen. runs as required. USTOMER ELPLINE Should you need any advice on the use of your new Consort product please contact our Helpline: Consort Equipment Products Limited Thornton Industrial Estate, Milford Haven, Pembrokeshire, SA73 2RT Tel: 01646 692172 Email: technical@consortepl.com...
