4 Set-up

Information on the Meaning
identification plate
IP Level of protection
Heating mode
Hot water generation
Pn Nominal heat output range in heating
mode
Pnc Nominal heat output range in heating
mode (condensing technology)
P Nominal heat output range in hot water
handling mode
Qn Nominal heating load range in heating
mode
Qnw Nominal heating load range in hot water
handling mode
T Max. flow temperature
max.
NOx NOx class for the product
Code (DSN) Specific product code
GC no. Gas council number
3.4

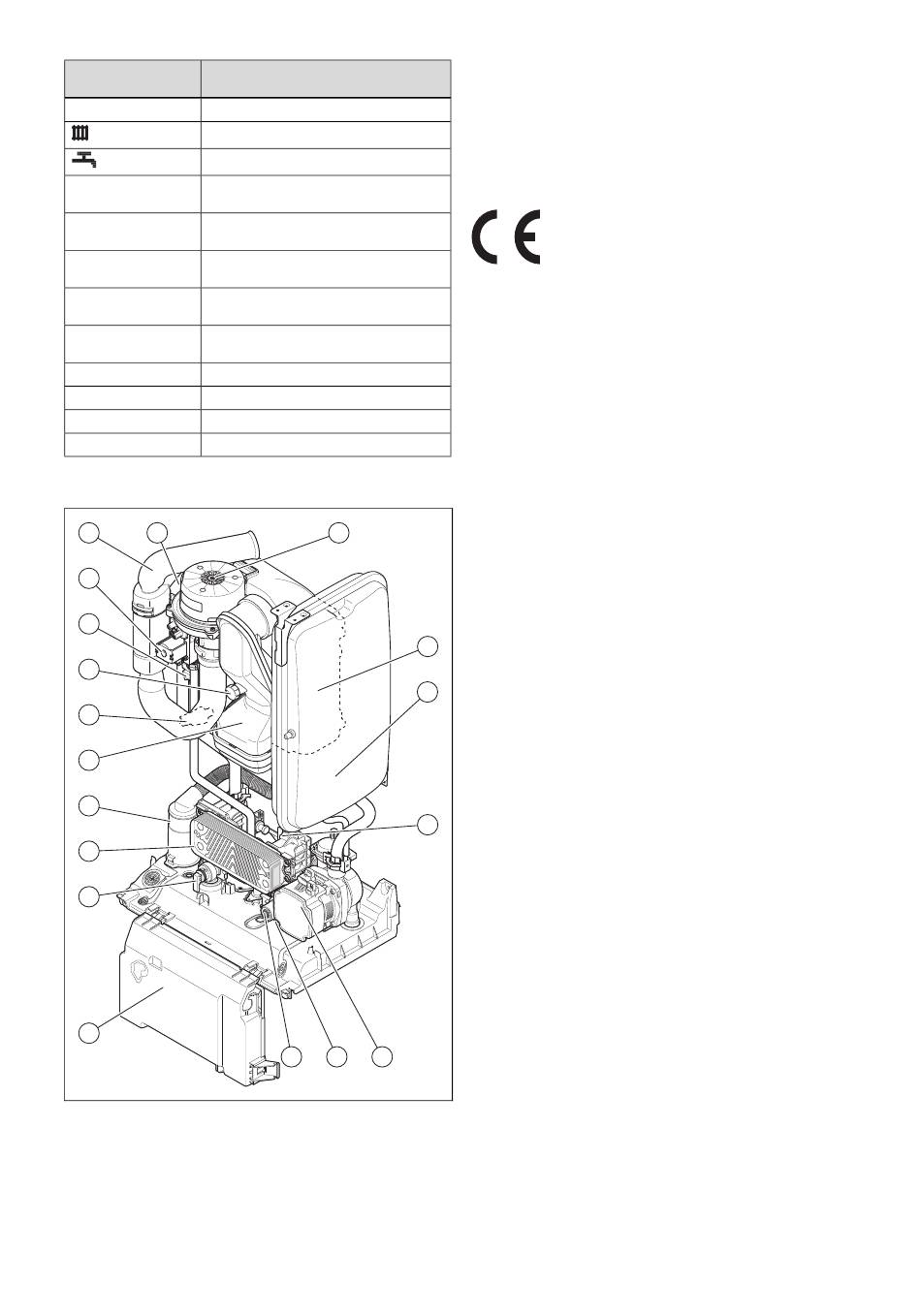

Functional elements: Combination unit

10 11
9
8
7
6
5
4
3
2
1
1 Electronics box
2 Heating circuit expan-
sion relief valve
3 Plate heat exchanger
4 Condensate siphon
5 Flue gas pipe
8
12
13
14
15
18 17 16
6 Pressure sensor
7 Flue gas measuring
stub pipe
8 Ignition transformer
9 Gas valve
10 Air intake pipe
11 Ignition electrode
12 Fan
13 Primary heat exchanger
14 Heating expansion
vessel
3.5

CE label

The CE label shows that the products comply with the basic
requirements of the applicable directives as stated on the
identification plate.
The declaration of conformity can be viewed at the manufac-
turer's site.
4 Set-up
4.1

Transporting the unit

Important: With regard to the regulations of 1992 concern-
ing the manual handling of loads, the unit exceeds the
weight that can be lifted by a single person.
4.1.1 General
▶
Hold the load as close as possible to your body. Avoid
rotational movements. Instead, reposition your feet.
▶
If the unit is being lifted by two persons, ensure your
movements are coordinated during lifting.
▶
Avoid bending your upper body – do not lean forwards or
to the side.
▶
Wear suitable non-slip protective gloves in order to pro-
tect your hands against sharp edges. Ensure that you are
carrying the load securely.
▶
If required, get somebody to assist you in this.
4.1.2 Unloading the box from the delivery van
▶
It is recommended that two people lift the unit together.
▶
Lift the box using the straps provided.
▶
Use safe lifting techniques – keep your back straight and
bend your legs at the knee.
▶
Hold the load as close as possible to your body.
▶
If the unit is being lifted by two persons, ensure your
movements are coordinated during lifting.
▶
If required, get somebody to assist you in this.
4.2

Unpacking the product

1. Remove the product from its box.
2. Remove the protective film from all of the product's
components.
Installation and maintenance instructions EASICOM 3 0020239562_02
15 Flow rate sensor
16 Heating pump
17 Bypass
18 Diverter valve
