G Opening in the air/flue pipe
J
G.1

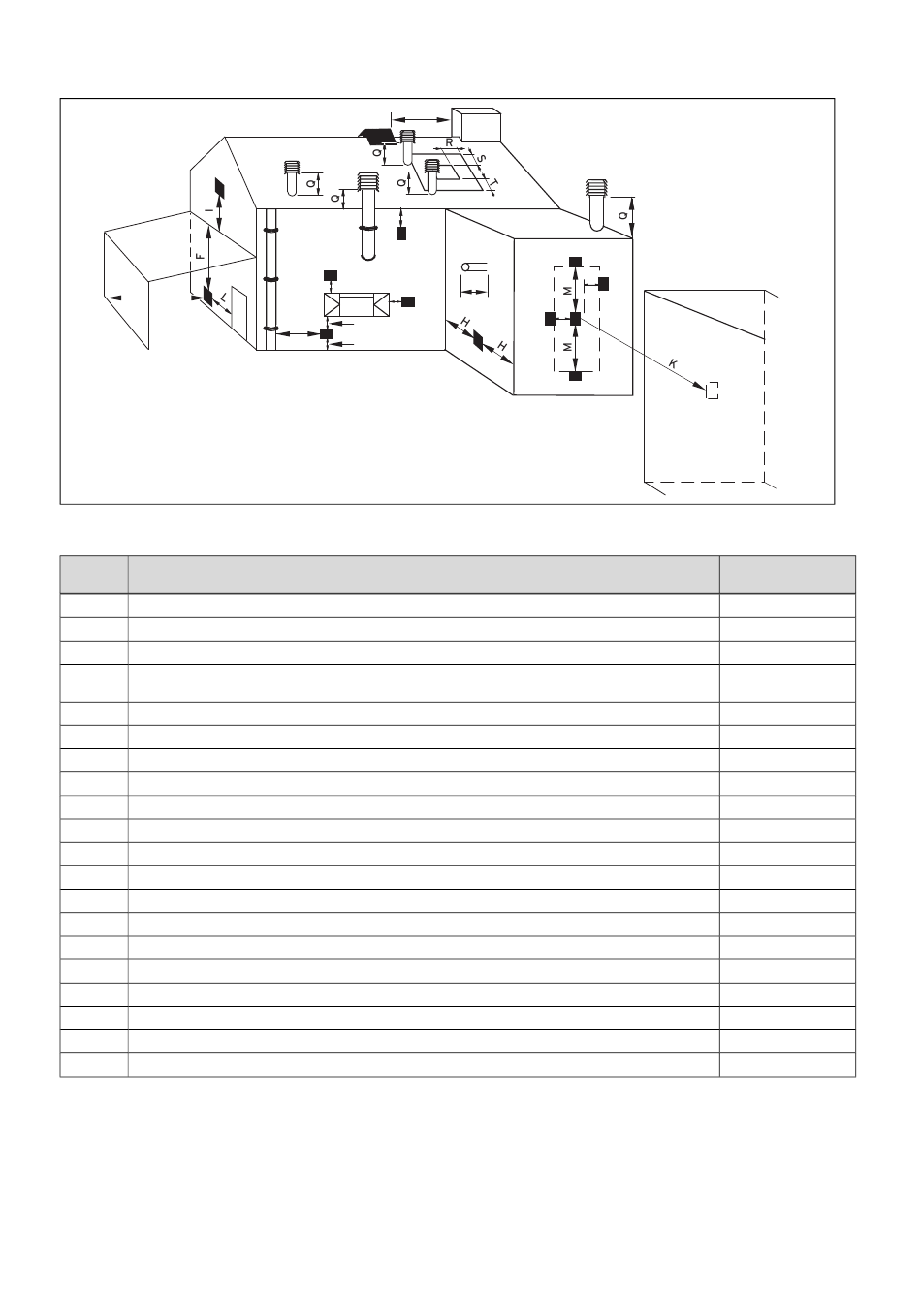

Positioning of the opening of a fan-supported flue gas pipe

Installation site
A
Directly below an opening, air bricks, opening windows, etc., that can be opened.
B Above an opening, air bricks, opening windows, etc., that can be opened.
C Horizontally to an opening, air bricks, opening windows, etc., that can be opened.
Below temperature-sensitive building components, e.g. plastic gutters, down pipes or wastewater
D
pipes
E Below eaves
F Below balconies or car port roofs
G From vertical wastewater pipes or down pipes
H From external or internal corners
I Above floors, roofs or balconies
J From a surface facing a terminal
K From a terminal facing a terminal
L From an opening in the car port (e.g. door, window) which leads into the dwelling
M Vertical from a terminal on the same wall
N Horizontal from a terminal on the same wall
O From the wall on which the terminal has been installed
P From a vertical structure on the roof
Q Above the roof area
R Horizontal from adjacent windows on pitched or flat roofs
S Above adjacent windows on pitched or flat roofs
T Below adjacent windows on pitched or flat roofs
0020239562_02 EASICOM 3 Installation and maintenance instructions
P
D, E
O
B
C
A
G
I I
N
N
Minimum dimen-
sions
300 mm
300 mm
300 mm
75 mm
200 mm
200 mm
150 mm
200 mm
300 mm
600 mm
1,200 mm
1,200 mm
1,500 mm
300 mm
0 mm
300 mm
300 mm
600 mm
600 mm
2,000 mm
