- Page 1 ZA-POS19A2L Motherboard User Manual ® Support Intel J1900 2.42GHz Processor...

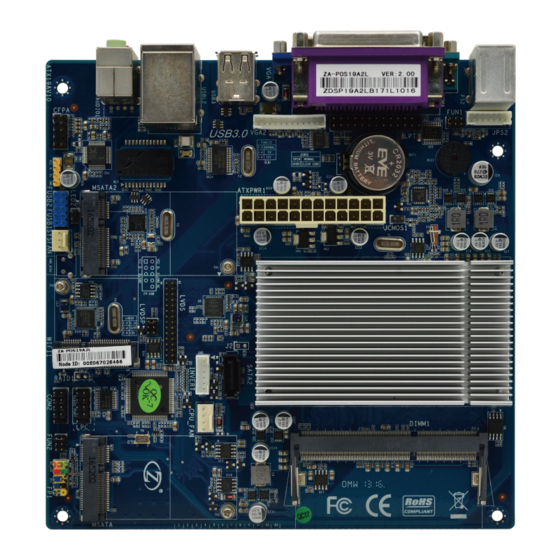

- Page 2 ZA-POS19A2LMotherboard Diagram...
-
Page 3: Motherboard Specification
Motherboard Specification 板形结构 尺寸：170mm x 170mm 支持 Intel J1900 2.42GHz 处理器 中央处理器 图形显示 Intel HD Graphics 芯片组 J1900 系统存贮器 1个DDR3内存槽,1066/1333/MHz最大支持8GB 2组USB排针支持3个USB2. 0 1个系统风扇连接器 1个CPU风扇连接器 前置I/O接口 1个SATA接口 2组LVDS排针(可选EDP和LVDS屏) 2个COM排针(可选4个COM接口) 1个4Pin ATX 电源输入接口 1个LPC打印接口 1个COM 接口 1个VGA 接口 3个USB2.0 后置I/O接口 1个USB3.0 1个LAN 端口 1个PS/2 鼠标+键盘接口... - Page 4 Motherboard I/O Interface Diagram SATA2 CPU_FAN MSATA DDR3 FUN2 COM2 INVERT WIFI1 LVDSP LVDS MSATA2 SYSFAN FUSB1 ATXPWR1 FUSB2 CFPA JSP2 FUN1 VGA2 COMA LPT1 USB2.0 Mic/Lineout USB2.0 MS/KB...
- Page 5 SYS_FAN CPU_FAN Note: these fan connectors are not jumpers, and the jumper cap is placed above the head. Installation memory: 1. Please turn off the power before installing or removing the memory, and dial down the AC power cord. 2. Carefully hold both ends of the memory stick, and do not touch the metal contact above.
- Page 6 Define Define HDD LED+ PWR LED+ HDD LED- P_SWIN RESET_GND HDD Actiuve LED:1,3 Power Button:6,8 Power LED:2,4 Reset Button:5,7 SPK1 Define Define SPKOUT_L- SPKOUT_L+ SPKOUT_R- SPKOUT_R+ Define Define VGA_VSYNC VGA_HSYNC VGA_RED VGA_GRN VGA_BULE DDC_DATA DDC_CLK...
- Page 7 INVERT Define Define ON/OFF PIN 1-2 Close: PIN 3-4 Close: PIN 5-6 Close: Define Define LCDVDD LCDVDD LCDVDD LVDSA_DATA0N LVDSA_DATA0P LVDS1 LVDSA_DATA1N LVDSA_DATA1P LVDSA_DATA2N LVDSA_DATA2P LVDSA_CLKN LVDSA_CLKP LVDSA_DATA3N LVDSA_DATA3P LVDSB_TX0N LVDSB_TX0P LVDSB_TX1N LVDSB_TX1P LVDSB_TX2N LVDSB_TX2P LVDSB_CLKN LVDSB_CLKP LVDSB_TX3N LVDSB_TX3P FUSB1 Define Define FUSB1...
- Page 8 Mic-in/Line-out *Other Matters Please consult the sales. ShenZhen Zeal-All Technology Co.,Ltd www.zeal-all.com +86-0755-86959086...
