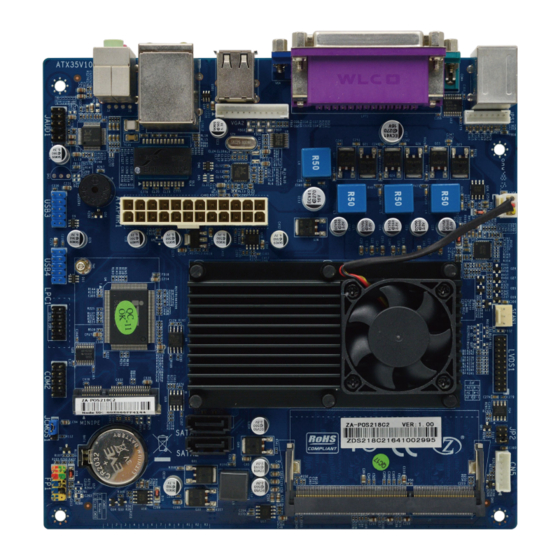

- Page 1 ZA-POS218C2 Motherboard User Manual Support AMD E2-1800 1.7GHz Processor...
- Page 2 ZA-POS218C2 Motherboard Diagram...
-
Page 3: Motherboard Specification
Motherboard Specification Size 170mm x 170mm Support AMD E2-1800 1.7GHz Dual Core Processor Graphics AMD Radeon HD 7340D Chipset E2-1800/E2-2000(Optional) Memory 1*DDR3 Slot ,1066/1333MHz memory,Up to 4GB 2*Group USB Pin,support 4*USB 2.0 Ports 1* CPU FAN And SYS FAN Internal I/O 1*COM Pin 2* SATA 1*24Pin Power supply... - Page 4 Motherboard I/O Interface Diagram DDR3 SATA1-2 JCMOS1 COM2 LVDS1 LPC1 SFAN2 USB4 ATXOWR1 USB3 JAUD1 JPS1 VGA2 COMA LPT1 USB2.0 Mic/Lineout USB2.0 MS/KB...
- Page 5 CPU_FAN Note: these fan connectors are not jumpers, and the jumper cap is placed above the head. Installation memory: 1. Please turn off the power before installing or removing the memory, and dial down the AC power cord. 2. Carefully hold both ends of the memory stick, and do not touch the metal contact above.
- Page 6 Define Define HDD LED+ PWR LED+ HDD LED- P_SWIN RESET_GND HDD Actiuve LED:1,3 Power Button:6,8 Power LED:2,4 Reset Button:5,7 COMA COM2 Define Define Pin13 Pin24 Pin1 Pin12 Define Define +3.3V +3.3V ATXPWR1 PWR OK 5VSB +12V +12V +3.3V +3.3V -12V PS-ON# PWR OK Res -5V...
- Page 7 LCDVDD LCDVDD LCDVDD LVDS1 LVDSA_DATA0N LVDSA_DATA0P LVDSA_DATA1N LVDSA_DATA1P LVDSA_DATA2N LVDSA_DATA2P LVDSA_CLKN LVDSA_CLKP LVDSA_DATA3N LVDSA_DATA3P LVDSB_TX0N LVDSB_TX0P FUSB1-2 Define Define FUSB1 FUSB2 DATA 0- DATA1- DATA0+ DATA1+ NC(CUT) Mic-in/Line-out *Other Matters Please consult the sales. ShenZhen Zeal-All Technology Co.,Ltd www.zeal-all.com +86-0755-86959086...
