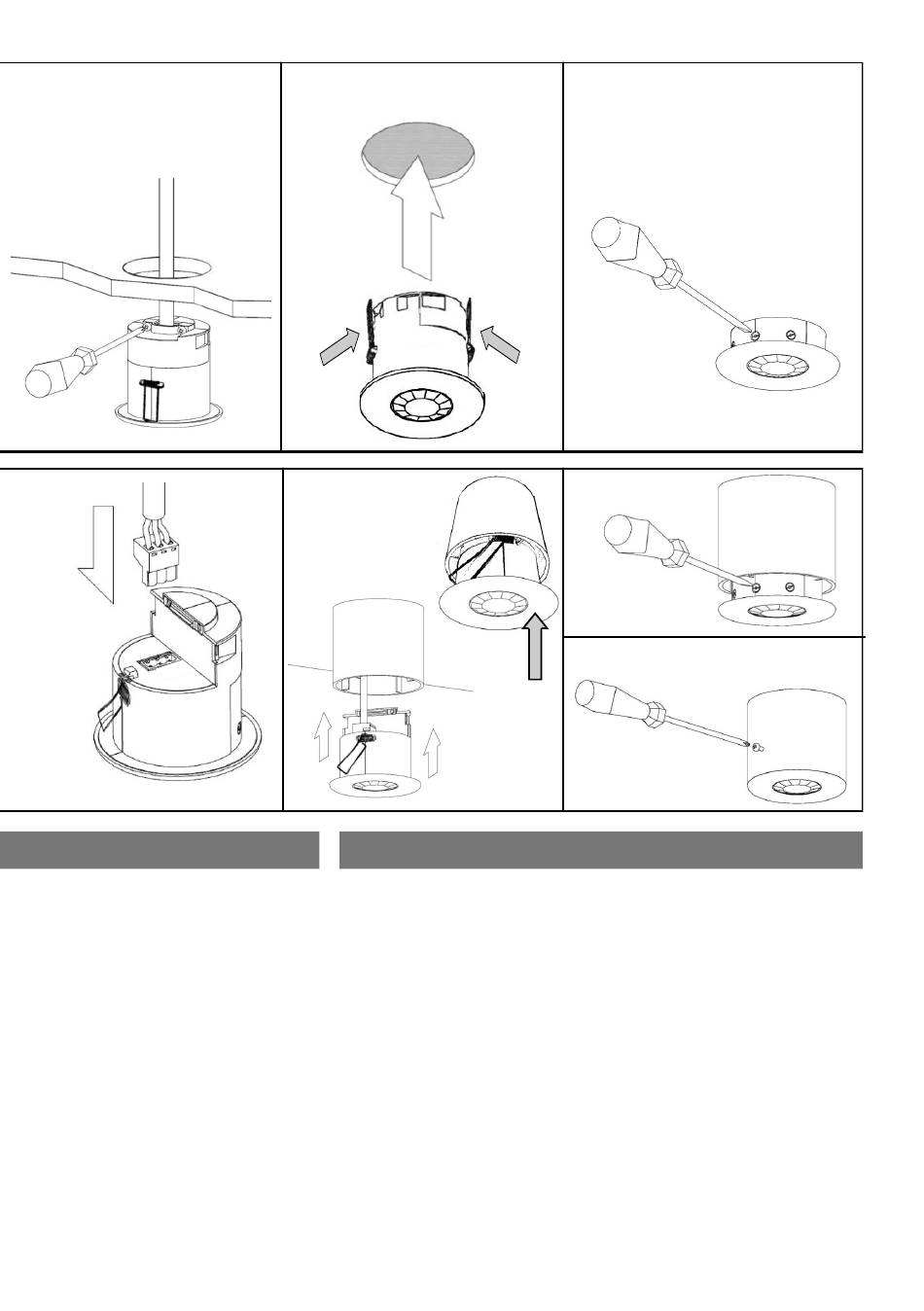

CP Electronics EBDSPIR Product Manual page 3

3
3
nd the time to minimum.
uld come on immediately.
still and wait for the load to switch off
nutes).
when movement is detected.
ntil the level of natural daylight is just
Starting with the LUX control fully clock-
urn the control anti-clockwise until the
he LUX control is at maximum then the
occupancy.
4
4
LOAD DOES NOT COME ON
Check to see if the live supply to the circuit is good. Strap across
the L and LIVE OUT terminal to turn the load on.
If the supply and wiring are good, check the LUX level setting.
Increase the LUX level setting to allow the controller to turn on at
higher ambient natural light level.
If the detection range is smaller than expected, check the dia-
gram above. Rotating the sensor slightly may improve the range.
LIGHTS DO NOT GO OFF
Ensure that the area is left unoccupied for longer than the se-
lected timer setting.
Make sure that the sensor is not adjacent to circulating air, heat-
ers or lamps.
5
5
6
Fault Finding
