EBDSPIR

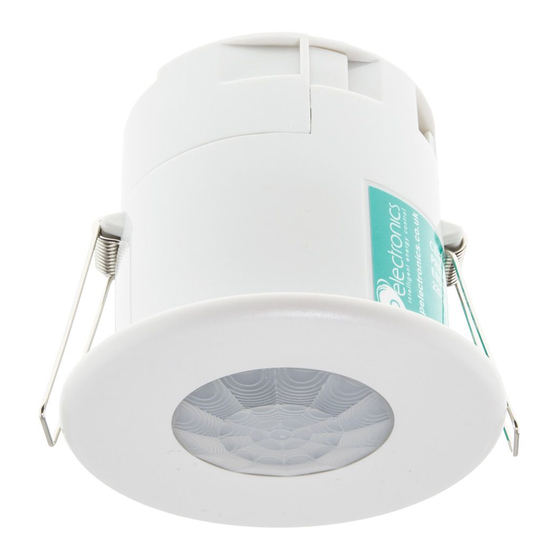

Ceiling Presence Detector
The EBDSPIR series of presence detector switches are designed to provide automatic control of light-
ing, heating or ventilation loads. They detect movement using a PIR sensor and turn the load on.
When an area is no longer occupied the load will switch off after an adjustable time out period.
An adjustable internal light sensor provides additional energy saving in lighting applications. When an
area is occupied lighting is only switched on when the level of natural light is below a preset level.
When the unit is first powered up the PIR sensor will always detect immediately regardless of whether
the room is occupied.
Product Guide
Overview

Advertisement

loading
Need help?

Need help?

Do you have a question about the EBDSPIR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CP Electronics EBDSPIR

Summary of Contents for CP Electronics EBDSPIR

  • Page 1 Ceiling Presence Detector Overview The EBDSPIR series of presence detector switches are designed to provide automatic control of light- ing, heating or ventilation loads. They detect movement using a PIR sensor and turn the load on. When an area is no longer occupied the load will switch off after an adjustable time out period.

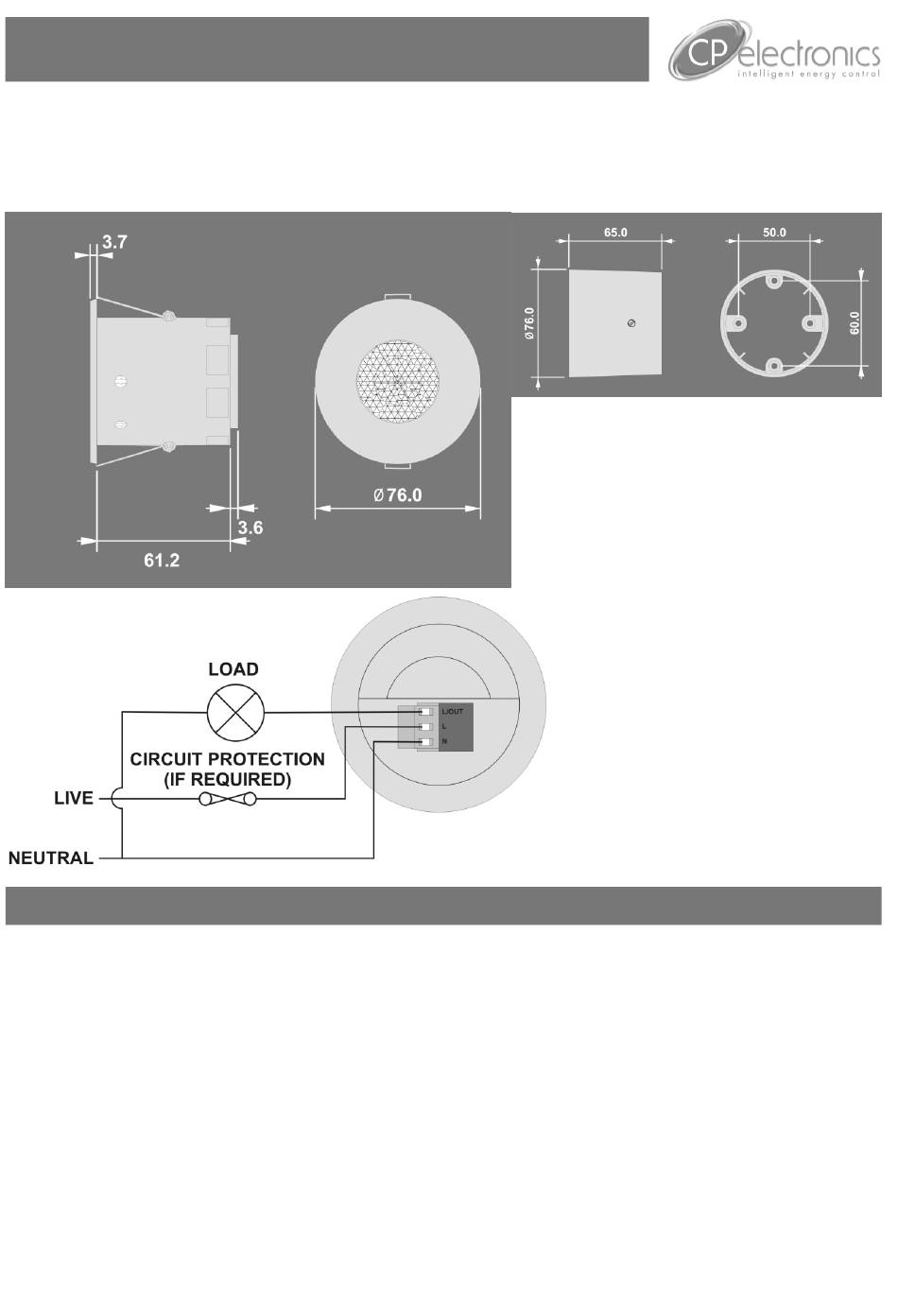

  • Page 2 FLUSH FIXING Hole Ø64mm Warning - be careful bending springs when mounting unit. SURFACE FIXING 50mm or 60mm fixing centres Pull out spring tab and rotate spring arm as shown Installation   The detector should be sited so that the occupants of the room fall Set the LUX level to maximum a inside the detection pattern shown overleaf, at a recommended height of ...
  • Page 3 Fault Finding LOAD DOES NOT COME ON nd the time to minimum. uld come on immediately. Check to see if the live supply to the circuit is good. Strap across still and wait for the load to switch off the L and LIVE OUT terminal to turn the load on. nutes).
  • Page 4 Fax: + 44 (0) 333 900 0674 www.cpelectronics.co.uk enquiry@cpelectronics.co.uk FM 45789 EMS 534520 Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice. Ref #WD101 Issue 7...
