CP Electronics EBDSPIR-HB-AD Product Manual

High bay analogue dimming pir presence detector

Advertisement

Quick Links

EBDSPIR-HB-AD
HIGH BAY Analogue Dimming PIR Presence Detector
Section
Contents
1
2
3
4
5
6
7
8
9
Product Guide
Contents
Page
1
2
3
6
8
11
11
12
12

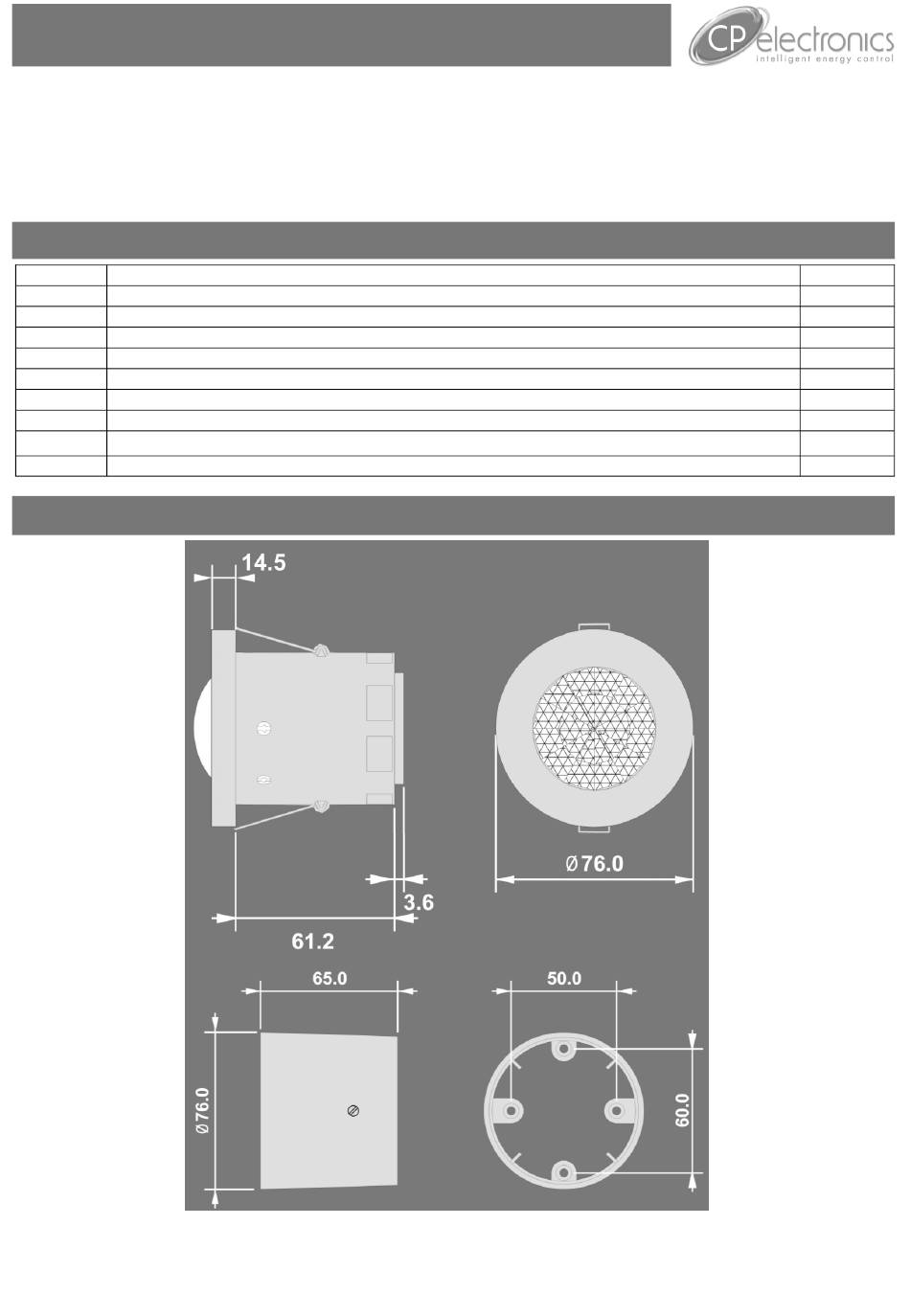

1. Dimensions
page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EBDSPIR-HB-AD and is the answer not in the manual?

Questions and answers

Summary of Contents for CP Electronics EBDSPIR-HB-AD

  • Page 1: Table Of Contents

    Product Guide EBDSPIR-HB-AD HIGH BAY Analogue Dimming PIR Presence Detector Contents Section Contents Page Dimensional information Description and operation Wiring and fixing Programming Wiring diagrams Detection pattern diagrams Fault finding Specification Part numbers 1. Dimensions page...
  • Page 2: Description And Operation

    In most applications the EBDSPIR-HB-AD can be used with simple manual adjustment. However, the EBDSPIR-HB-AD unit has a comprehensive set of features that can be set using the DD-LCDHS-LR handset. Alternatively the units can be commissioned as follows: ...
  • Page 3: Wiring And Fixing

    3. Wiring & Fixing Wire the products using the diagrams shown in section 5. To switch from more than one position simply wire two or more units in parallel using the Live, Neutral, Switched Live and manual switch wires only. The dimming connection must be wired to one unit only.
  • Page 4 FLUSH FIXING Hole Ø64mm Warning - be careful bending springs when mounting unit. SURFACE FIXING 50mm or 60mm fixing centres Pull out spring tab and rotate spring arm as shown page 4...
  • Page 5 page 5...
  • Page 6: Programming

    4. Programming All the following functions can be programmed using the remote control DD-LCDHS-LR handset: Detector Parameters (factory default in brackets): 1.1 Time adjustment 10 seconds to 99 minutes time delay (select 0 for 10 second delay – use for commissioning only). 1.2 Sensitivity On (9) Sensitivity level when the detector is already operational adjustable between 1 (min.) and 9 (max.)
  • Page 7 Dimming Channel 2 functions (factory default in brackets): Light level Maintained illuminance level (adjustable between 1 and 999). At 999 the output will be always be at maximum. Presence detection Not used. See Channel 1 setting. Absence detection Not used. See Channel 1 setting. Switch level on (9) Not used.
  • Page 8: Wiring Diagrams

    5. Wiring Diagrams 5.1 Single channel dimming Functions: Switches the luminaire with occupancy and maintains illuminance. Dims and switches using optional centre biased retractive switch (MK K4900 or similar). Configured to presence detection: Turns on automatically with occupancy. Maintains illuminance. Press and release down switch to turn off.
  • Page 9 5.2 Single channel switching Functions: Switches channel 1 only with occupancy, optional override switch. No dimming output. Configured to presence detection: Turns on automatically with occupancy. Press and release down switch to turn off. Press and release up switch to turn back on. Turns off after occupancy. DIMMING BALLAST Configured to absence detection: Press and release up switch to turn on.
  • Page 10 6. Detection Patterns and Aisle Mounting Height Range 5.1m x 5.1m 4.0m x 4.0m 3.4m x 3.4m 2.7m x 2.7m 2.0m x 2.0m Formula Range at Xm = (X/15 x 6) x 0.85 Aisle Mounting page 10...
  • Page 11: Detection Pattern Diagrams

    7. Fault Finding LOAD DOES NOT COME ON LIGHTS DO NOT GO OFF Check to see if the live supply to the circuit is good. Ensure that the area is left unoccupied for longer Strap across the L and LIVE OUT terminal to turn than the selected timer setting.
  • Page 12: Specification

    + 44 (0) 333 900 0674 www.cpelectronics.co.uk enquiry@cpelectronics.co.uk FM 45789 EMS 534520 Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice. Ref #WD319 Issue 2 page 12...
