CP Electronics EBDSPIR-AD-IP Product Manual

EBDSPIR-AD, EBDSPIR-AD-IP

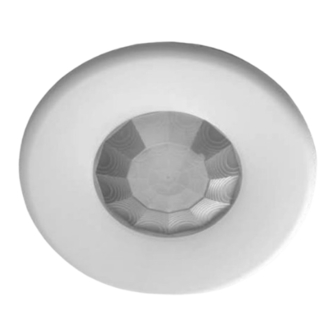

Ceiling PIR presence detector – 1-10V dimming

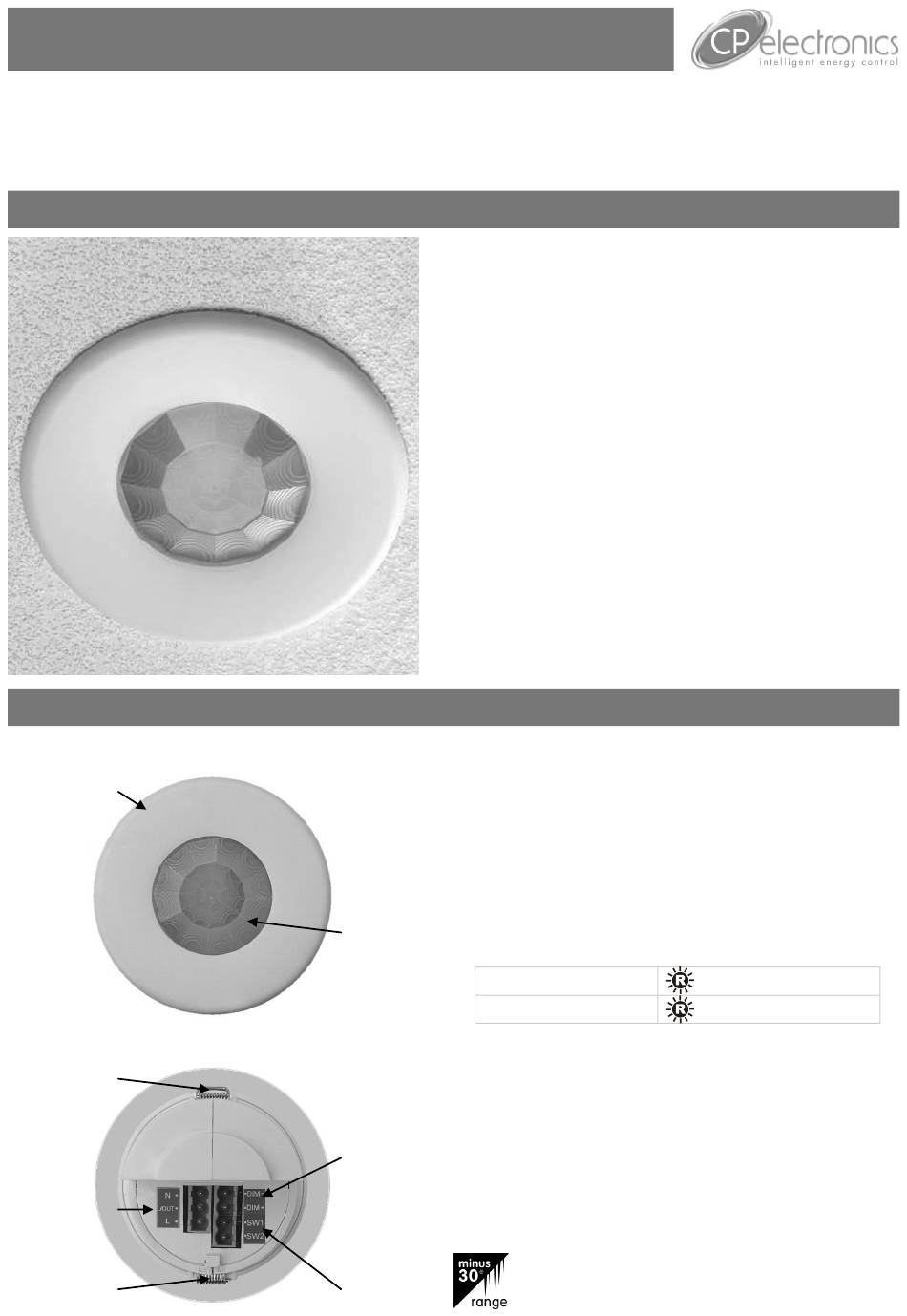

Front features
Mounting Bezel
Back features
Retaining Spring
Power Input
& Switched
Output Connector
(Channel 1)
Retaining Spring
Product Guide
The EBDSPIR-AD PIR (passive infrared) presence detector
provides automatic control of lighting loads with optional
manual control.
Output Channel 1 comprises a mains voltage relay capable
of simple on/off switching, while Output Channel 2 provides
dimmable control of 1-10V ballasts.
Functioning as a presence detector, the unit can turn lights
on when a room is occupied and off when the room is
empty. Optional settings allow lights to be turned off in
response to ambient daylight, or to implement a maintained
illuminance (daylight harvesting) system.
All functionality is fully programmable using an IR handset.
PIR Sensor
Detects movement within the unit's detection range,
allowing load control in response to changes in occupancy.
IR Receiver
Receives control and programming commands from an
IR (infrared) handset.
Light Level Sensor
Measures the overall light level in the detection area
Status LEDs
Sensor Lens
which covers...
The LED flashes Red to indicate the following:
PIR Sensor
Walk Test LED active
IR Receiver
Light Level Sensor
Valid setting received
Status LEDs
Power Input & Switched Output Connector (Channel 1)
Used to connect mains power to the unit and to connect a
switched load.
Dimmable Control Output Connector (Channel 2)
Used to connect 1-10V controllable ballasts and
Dimmable
transformers for dimmable loads.
Control Output
Connector
Switch Input Connector
(Channel 2)
Two input terminals can be used to manually override the
dimming levels and override the lights on or off.
Switch Input
Connector
EBDSPIR-AD-IP-LT30
A special order version that can be used down to -30ºC
Overview
Features
when movement is detected
