CP Electronics EBDSPIR-VFC Product Manual

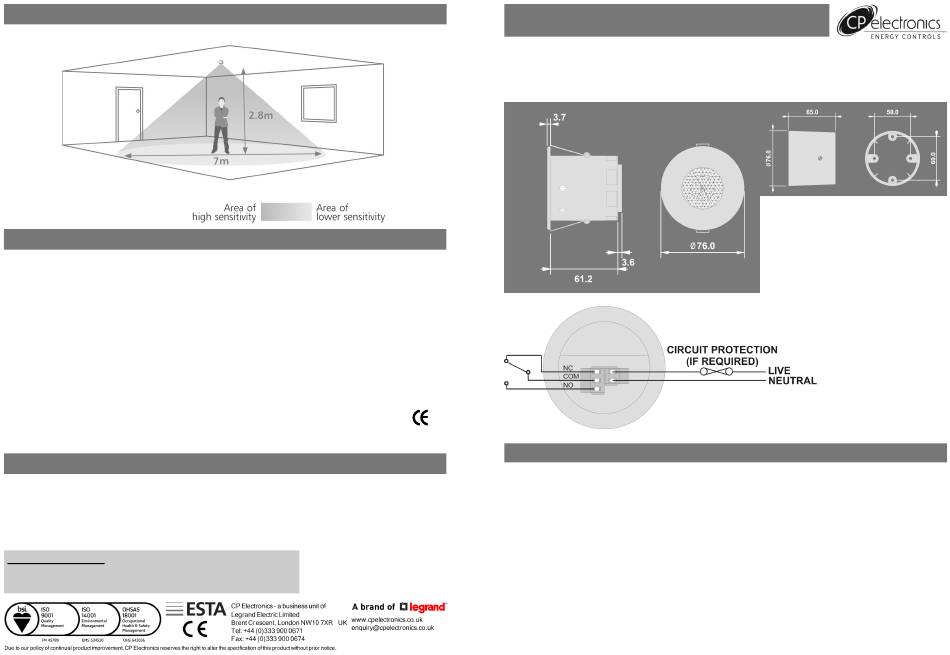

Detection Pattern
Specification
Load
Normally closed contact
2 Amp maximum
Minimum load 100mA
Normally open contact
6 Amp fluorescent lighting and resistive
3 Amp compact fluorescent lighting
3 Amp low energy lighting
3 Amp low voltage lighting (switch primary of
transformer)
Fluorescent lighting (max 6 fittings recommended)
For fluorescent lighting total power factor correc-
tion capacitance must not exceed 40μF.
3 Amp fans and ventilation equipment
Switch SON lighting loads via a contactor
Minimum load 100mA
Part Numbers
EBDSPIR-VFC Ceiling mounted presence detector voltage free output contact
DBB Surface mounting back box
IMPORTANT NOTICE!
This device should be installed by a qualified electrician in
accordance with the latest edition of the IEE wiring regulations.
Supply voltage 220-240 Volts AC 50 Hz
Time out period Adjustable 10s to 30m
Light level Light to dark
2
Terminal capacity 2.5 mm
Material Flame retardant ABS
Rated Impulse voltage2500V
Purpose Sensing control
Construction Independent, flush
mounted, electronic
Type of action Type 1.B action
Pollution Degree 2
Software Class A
Temperature -10°C to 35°C
Compliance EMC-2014/30/EU
LVD-2014/35/EU
Ref #WD234
EBDSPIR-VFC
Ceiling Presence Detector
The EBDSPIR series of presence detector switches are designed to provide automatic control of light-
ing, heating or ventilation loads. They detect movement using a PIR sensor and turn the load on.
When an area is no longer occupied the load will switch off after an adjustable time out period.
An optional adjustable internal light sensor provides additional energy saving in lighting applications.
When an area is occupied lighting is only switched on when the level of natural light is below a preset
level.
When the unit is first powered up the PIR sensor will always detect immediately regardless of whether
the room is occupied.
This unit has a mains voltage power supply and provides an isolated voltage free contact output.
Issue 4
Product Guide
Overview
