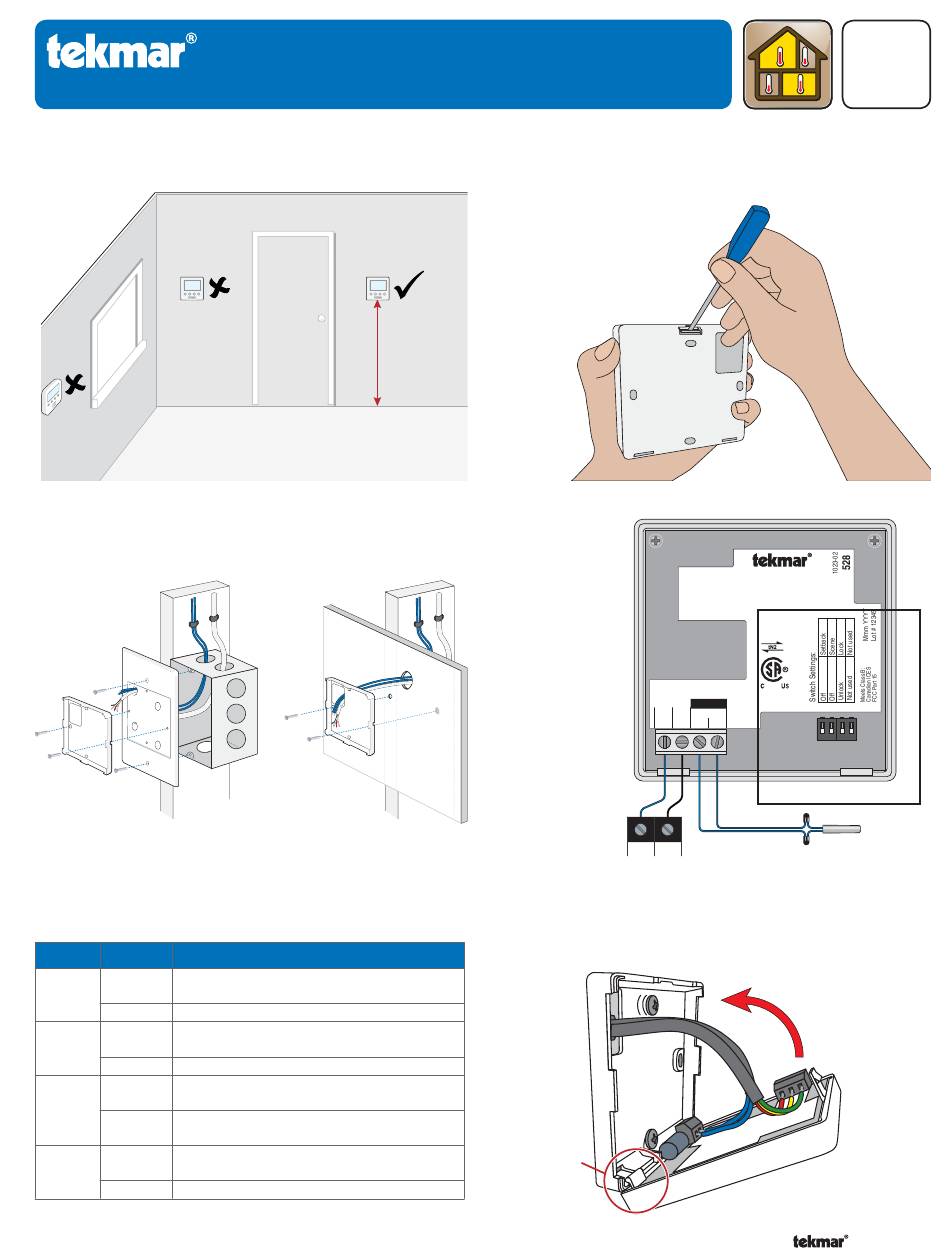

tekmarNet ® 2 Thermostat 528
1.
Location
Exterior
Wall
3.
Install Mounting Base
Adaptor
Plate 007
Thermostat
Base
5.
Switch Settings
Switch Position Action
SETBACK Allow thermostat to respond to
ON
1 available schedule. Requires Timer 033.
OFF OFF No setback schedule response.
SCENE Allow thermostat to respond to
ON
scenes. Requires User Switch 479.
2
OFF OFF No scene response.
LOCK Locked to 'User' access level. Set
ON
to Lock when installation completed.
3
UNLOCK Unlock to access all settings.
OFF
Set to Unlock during installation.
ON Not used
4
OFF Not used
Quick Setup Guide
Interior
Wall
5 feet
1.5 m
Thermostat
Base
OR
Switch
Box
2.
Remove Mounting Base
4.
Wiring
Wall
6.
Close Thermostat
pivot
tab
1 of 2
Zoning
tNt 528
One Stage Heat
For instructions see brochure
Use at least 65°C conductors
No Power
tN2 tN2 Sensor
1 2 3 4
Switch Setting Location
tN2 tN2
Slab Sensor 079, or
tN2 Manager, Module
Outdoor Sensor 070, or
or Wiring Center Indoor Sensor 076, 077, 084
© 2011
Q 528
12/11
Replaces: 08/10
ON
1 2 3 4
1 2 3 4
Q 528 - 12/11
