Tekmar 528 Quick Setup Manual

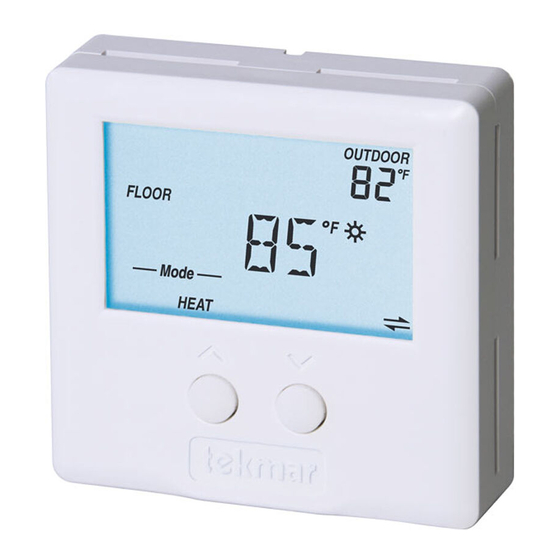

tekmarNet ® 2 Thermostat 528

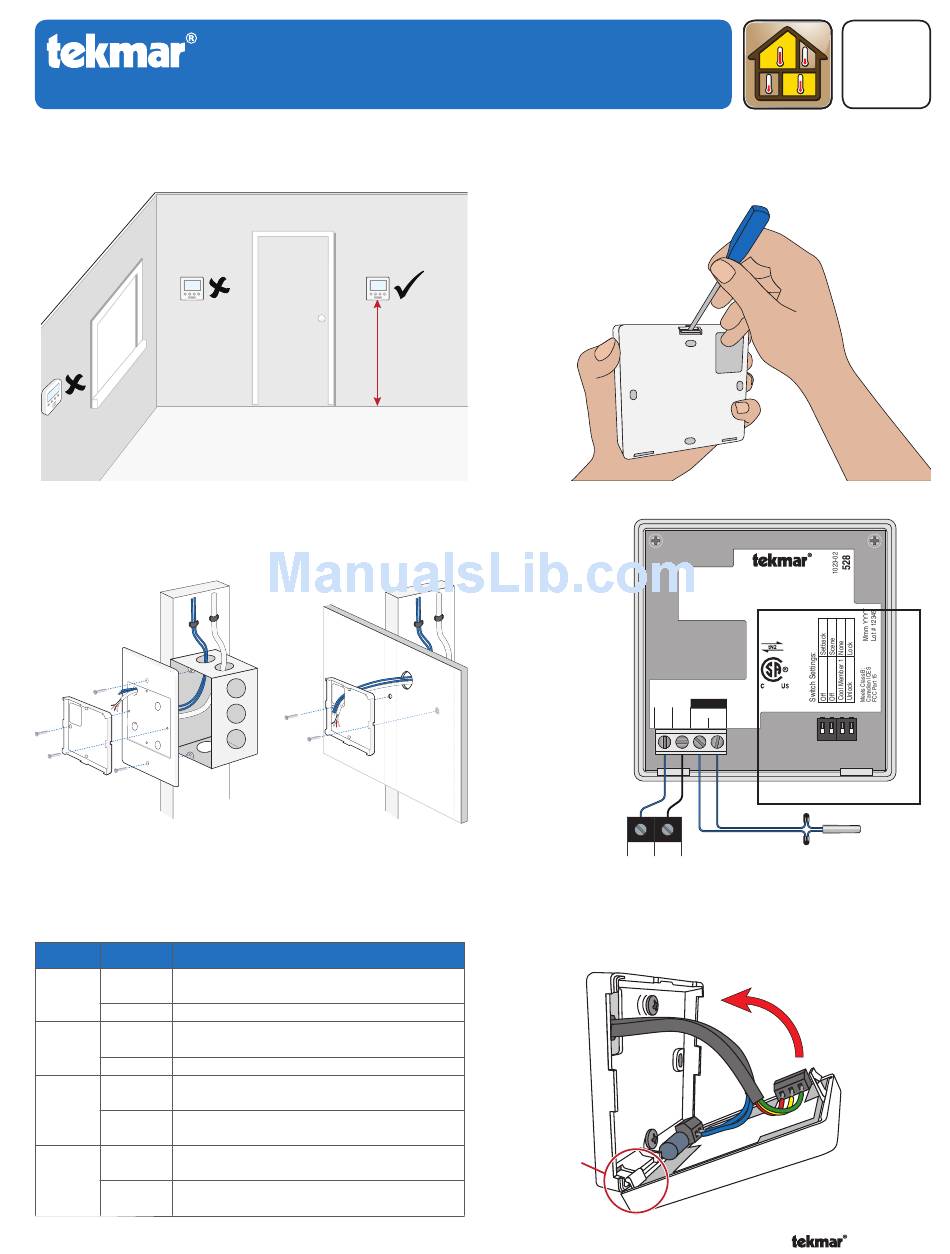

1.
Location
Exterior
Wall
3.
Install Mounting Base
Adaptor
Plate 007
Thermostat
Base
5.

Switch Settings

Switch Position Action
SETBACK Allow thermostat to respond to
ON
available schedule. Requires Timer 033.
1
OFF OFF No setback schedule response.
SCENE Allow thermostat to respond to
ON
scenes. Requires User Switch 479.
2
OFF OFF No scene response.
NONE The thermostat is not part of a
ON
cooling group.
3
COOL MEMBER 1 The thermostat is a
OFF
member of cooling group number 1.
LOCK Locked to 'User' access level. Set
ON
to Lock when installation completed.
4
UNLOCK Unlock to access all settings.
OFF
Set to Unlock during installation.
Quick Setup Guide
Interior
Wall
5 feet
1.5 m
Thermostat
Base
OR
Switch
Box
2.
Remove Mounting Base
4.
Wiring
Wall
6.
Close Thermostat
pivot
tab
1 of 2
Zoning
tNt 528
One Stage Heat
For instructions see brochure
Use at least 65°C conductors
Made in
No Power
Canada
tN2 tN2 Sensor
1 2 3 4
Switch Setting Location
tN2 tN2
Slab Sensor 079, or
tN2 Manager, Module
Outdoor Sensor 070, or
or Wiring Center Indoor Sensor 076, 077, 084
© 2010
Q 528
08/10
Replaces: 10/09
ON
1 2 3 4
1 2 3 4
Q 528 - 08/10
