Summary of Contents for Sacred Sun SPG Series
-
Page 2: Table Of Contents
Contents Chapter I: Product Introduction Product Characteristics ....................01 Main Applications ......................02 Battery Construction ....................02 General Specifications ....................03 VRLA Technology ......................04 Chapter II: Technical Characteristics Discharge Curve ......................05 Charge Curve ......................06 Performance Data .......................08 Chapter III: Operation and maintenance Security Instruction ..................15 Operating Parameters .................16 Factors Influencing capacity .................16 Charge ....................17... -
Page 3: Chapter I: Product Introduction

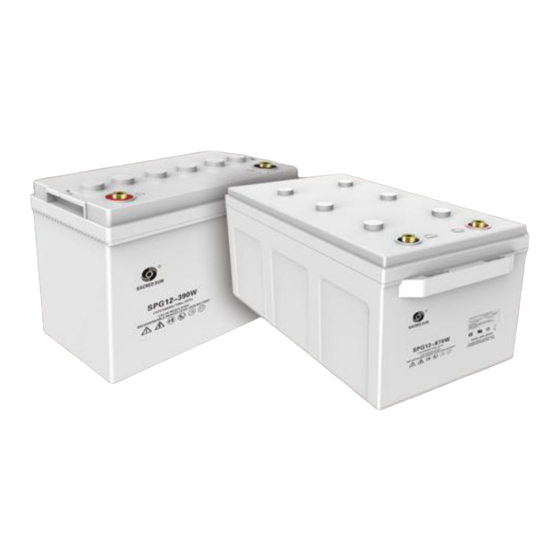

Chapter I: Product Introduction Product Characteristics Advantages Design life: 12 years ( 25℃) EUROBAT Classification: Long life High Power and High Energy Density Maximum charge efficiency High gas recombination efficiency Low self-discharge rate Easy handling ... -
Page 4: Main Applications
Main Applications UPS units Data Center Generators starting EPS unit Standards IEC60896-21/22: 2004 JIS C8702-1/2:2009 Eurobat Guide Installation compliant with EN50272-2 Battery Construction... -
Page 5: General Specifications
General Specifications SPG series Table 1-1 SPG series battery general specifications Rated W/pc Short Rated Capacity 15 min Dimensions (mm) Internal Battery Weight Circuit Terminal Terminal Voltage (Ah,25℃) Resistance Model (kg) Current Type Layout (mΩ,25℃) 1.67V Total Length Width Heigth 1.80V/cell... -
Page 6: Vrla Technology
VRLA Technology The electrochemical reaction of batteries in charge and discharge process is as follows: Discharge + Pb PbSO + 2H O + PbSO Charge In the final stage of charge process, active substance in positive plate is fully transformed to lead dioxide, but negative plate has not reached fully charged stage, the process of active substance in negative plate transforming to spongy lead is not finished, oxygen gas generated in positive plate reaches the negative plate through separator pores and then reacts with active substance in... -
Page 7: Discharge Curve
Chapter II: Electrical Characteristics Discharge Curve All series common curves Figure 2-1 Floating service life curve under different temperature Figure 2-2 Floating service life and storage time curve... -
Page 8: Charge Curve
All series characteristic curves Figure 2-3 Discharge characteristic curve under different discharge rates (25 ℃) Charge Curve Figure 2-4 Charge characteristic curve... - Page 9 Figure 2-5 Floating charge service life characteristic curve...
-
Page 10: Performance Data
Performance Data Constant current discharge data Table 2-1 SPG Series Battery Constant Current Discharge Data Sheet Constant Current Discharge Data Sheet(25℃)-------Amperes(A) Discharge Time End Voltage Battery model (V/cell) 5min 10min 15min 20min 25min 30min 45min 1.5h 1.60 98.4 77.9 66.5 57.2... - Page 11 Table 2-1 SPG Series Battery Constant Current Discharge Data Sheet Constant Current Discharge Data Sheet(25℃)-------Amperes(A) Discharge Time End Voltage Battery model (V/cell) 5min 10min 15min 20min 25min 30min 45min 1.5h 1.60 83.3 67.2 45.8 36.3 26.2 20.1 16.9 14.4 9.90 1.65...
- Page 12 Table 2-1 SPG Series Battery Constant Current Discharge Data Sheet Constant Current Discharge Data Sheet(25℃)-------Amperes(A) End Voltage Discharge Time Battery model (V/cell) 5min 10min 15min 20min 25min 30min 45min 1.5h 1.60 84.4 65.1 45.4 34.8 28.4 24.3 15.1 1.65 82.5 63.8...
- Page 13 1.80 93.9 63.7 49.8 42.4 36.9 25.0 Constant power discharge data Table 2-2 SPG Series Battery Constant Power Discharge Data Sheet(W/cell, 25 ℃) Constant Power Discharge Data Sheet (25℃)-------Watt (W) Discharge Time End Voltage Battery model (V/cell) 5min 10min 15min...
- Page 14 Table 2-2 SPG Series Battery Constant Power Discharge Data Sheet(W/cell, 25 ℃) Constant Power Discharge Data Sheet (25℃)-------Watt (W) End Voltage Discharge Time Battery model (V/cell) 5min 10min 15min 20min 25min 30min 45min 1.5h 1.60 93.2 71.1 53.1 41.3 33.6 28.6...
- Page 15 Table 2-2 SPG Series Battery Constant Power Discharge Data Sheet(W/cell, 25 ℃) Constant Power Discharge Data Sheet (25℃)-------Watt (W) Discharge Time End Voltage Battery model (V/cell) 5min 10min 15min 20min 25min 30min 45min 1.5h 1.60 77.3 61.5 52.4 45.9 28.8 1.65...
- Page 16 Table 2-2 SPG Series Battery Constant Power Discharge Data Sheet(W/cell, 25 ℃) Constant Power Discharge Data Sheet (25℃)-------Watt (W) Discharge Time End Voltage Battery model (V/cell) 5min 10min 15min 20min 25min 30min 45min 1.5h 1.60 1125 85.3 73.1 64.1 41.5 1.65...
-
Page 17: Chapter Iii: Operation And Maintenance
Chapter III: Operation and maintenance Safety Instructions Please read these instructions carefully in order to ensure correct, safe and effective operation. This manual provides you very important guidance for installation and operation, which will guarantee your equipment with optimal performance and longer service life. For your safety, please do not open the batteries;... -
Page 18: Operating Parameters
Operating Parameters Ambient temperature is -15℃~45℃ and the optimal operation temperature is 25℃±5℃. Ambient humidity less than RH 92% Altitude less than 4500m, if operation altitude more than 4500m, please make special reminder when confirm order. Factors Influencing Capacity Battery capacity consists both of nominal capacity and actual capacity, for nominal capacities of the FT series battery please refer to Table 1-1. -
Page 19: Charge
Figure 3-2 Design life and temperature curve Charge Floating charge Charge method: 2.27V / cell with limited current of 0.3 C (A). Charge voltage must be adjusted according to ambient temperature, temperature compensation coefficient is -3mV / cell /℃. Floating charge voltage at different ambient temperature, as below table Temperature（℃）... -
Page 20: Operation
Operation Warning The batteries are already charged when delivered, and are fitted with a protective cap on each terminal. They should be unpacked with care. Avoid short-circuiting terminals of opposite polarity, because these units are capable of discharging at a very high current especially if the lid or the container is damaged. Unpacking the battery Each shipment is accompanied by a packing list ... - Page 21 In series The number of cells in series will determine the total float of voltage: U = V x N U --- Total float voltage V --- Float voltage for one cell N --- Number of cells In parallel The same battery may be connected in parallel to give higher current capability. This connection in parallel will be preferably carried out through an equipotential wiring for an equal current distribution in each string.
-
Page 22: Storage
Storage Storage Interval: Battery should be stored in fully charged state. It is strictly prohibited to storage after discharge. Battery storage location must be away from heat, sparks and smoke. Battery must be stored in an upright position, avoiding impacts of external force or abrupt loads. ... -
Page 23: Maintenance
Maintenance 1. Cleaning Notes: Battery appearance, terminal area and working environment must be kept clean and dry. In battery cleaning process, avoid use of electrostatic cleaning tools. Clean the battery with damp cloth. Do not use of gasoline, alcohol or other organic solvents; ... - Page 24 Item Content Standard Maintenance Use hex or torque Securely connected If found bolt loosened, tighten it wrench to tighten loose bolts. 1-Battery cables, No evidence of If slight corrosion found after connecting terminals clean / corrosion bar removed, clean it with cloth. If severe 4- Joints non-corrosive.
- Page 25 2.3 Annual Maintenance Inspection Items In addition to the quarterly maintenance items above, inspect the following items: Item Content Standard Maintenance Disconnect the AC, take At the end of If the battery voltage is lower load discharge discharge, battery than a voltage reference value or the discharge online method voltage should be differential pressure is greater than the...
- Page 26 No.1,Shengyang Road, Qufu City, Shandong Province,273100,P.R.China Tel:0086-537-4422313 Fax:0086-537-4411980 E-mail:sales@sacredsun.cn...
