Summary of Contents for Sacred Sun FMJ Series

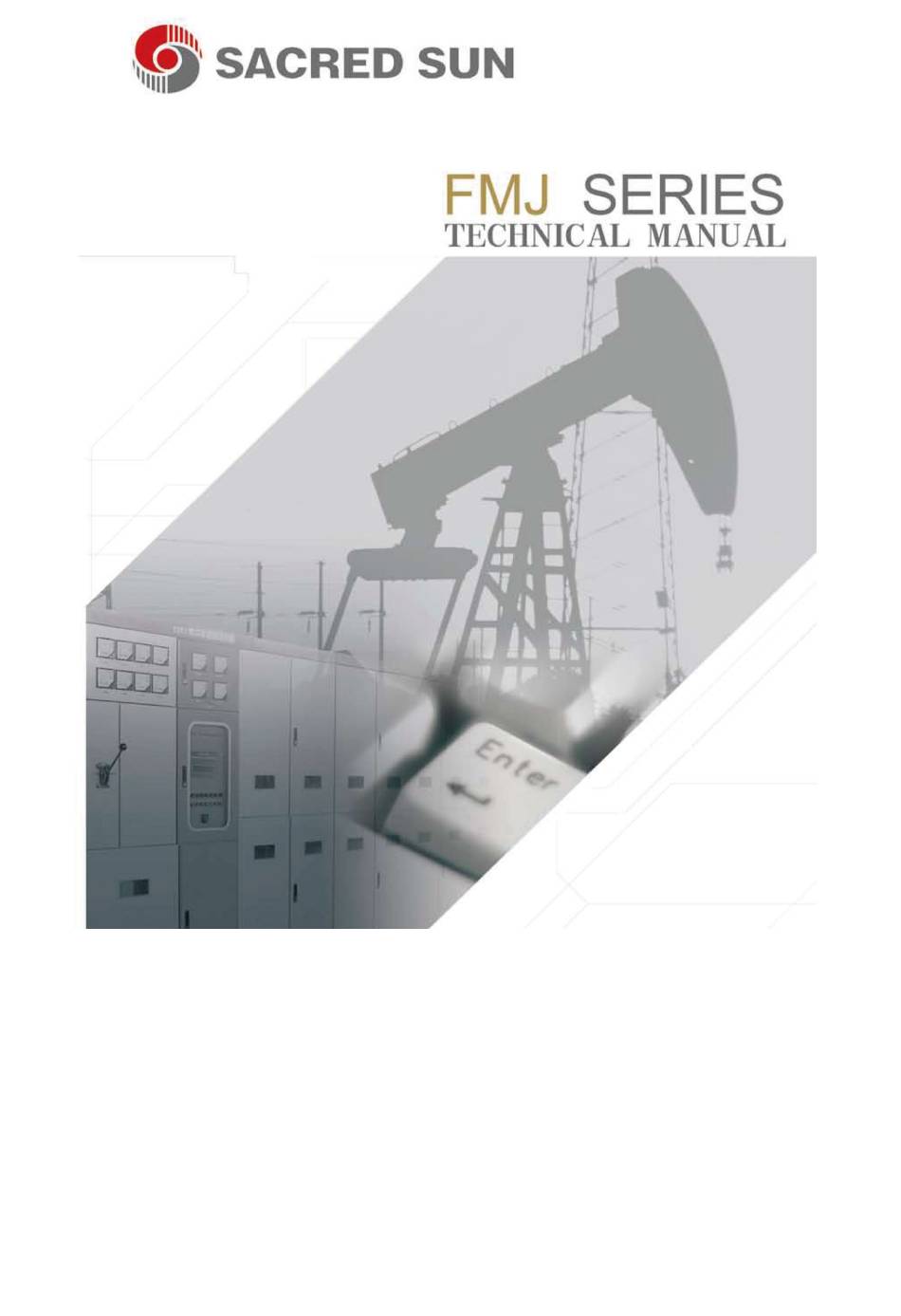

  • Page 1    ...
  • Page 2: Table Of Contents

                  contents     Security Instruction ......................01       Chapter One Product Introduction   1. Product Characteristics ....................02   2. Main Applications......................03       Chapter Two Type and Dimensions   1. Product Series ........................04  ...
  • Page 3: Security Instruction

                Security Instruction     Please read these instructions carefully in order to make correct, safe, and effective operation. This manual provides you with very important installation and operation guidelines, which will guarantee your equipment an optimal performance and longer service life.  ...
  • Page 4: Chapter One Product Introduction

      Chapter One Product Introduction Product Characteristics   Floating design life Floating design life is 10 years Gel electrolyte High purity gas phase SiO used for Gel electrolyte ensuring even distribution inside battery and no acid stratification.Extra electrolyte acid filling system which ensure quantity of gel electrolyte is correctly filled over the plates and separators,perfect heat dispersion, prevents thermal runaway caused by water loss under high temperature and over discharged conditions.
  • Page 5: Main Applications

                Reliable sealing performance Electrode poles sealing adopt multi-layer,no terminal electrolyte leakage. Excellent gas recombination performance, no acid fog escape in operation, no corrosion to equipment and battery could be installed together with equipment. Applicable for wide temperature range Extra electrolyte design ensures it can work in high temperature or over discharge condition, preventing dry up of the battery.
  • Page 6: Chapter Two Type And Dimensions

      Chapter Two Type and Dimensions Product Series   Table 2-1 battery type and dimensions             Dimensions       Rated Short Reference   Weight Rated Capacity C Circuit Internal Terminal Model Voltage Length Width Height Total Height 1.8V/cell...
  • Page 7: Battery And Terminal Layout

                Battery and Terminal Layout           Battery Layout                                       6FMJ-65 6FMJ-85      ...
  • Page 8: Chapter Three Technical Characteristics

                Chapter Three Technical Characteristics     Performance Curve     Cycle performance curve ( 25℃ )                                      ...
  • Page 9   Discharge capacity and temperature curve       Temperature (℃)   Figure 3-3 Discharge capacity curve under different temperature         Service life and temperature curve             Figure 3-4 Floating service life curve under different temperature...
  • Page 10   Charge characteristic curve under different depth of discharge ( 25℃ )                             1. 25%D.O.D         2. 50%D.O.D         3. 75%D.O.D  ...
  • Page 11: Chapter Four Operation

            Chapter Four Operation     Discharge     End voltage with different discharge rate must be less than the specified value. Charge the battery as soon as possible after discharge. In order to extend the service life, the depth of discharge should be less than 60% of the rated capacity.
  • Page 12             Table 4-1 Floating charge voltage under different temperature     Ambient Temperature Floating Charge Voltage   ( ℃ ) ( V/cell )   2.33       2.29     2.27       2.25  ...
  • Page 13: Recharge

                Table 4-2 Equalizing charge voltage under different temperature     Ambient Temperature Equalizing Charge Voltage ( ℃ ) ( V/cell )     2.43     2.39       2.37       2.35  ...
  • Page 14: Storage

                Table 4-3 Required charge time in different depth of discharge         Charge current of Time for changing constant Charge voltage of Depth of constant current current charge to constant constant voltage Charge time(h) dischrge(%) charge(A)
  • Page 15   Table 4-4 open circuit voltage at different charge state     Charge State Voltage(V)/cell   100% ≥2.16         ≥2.14       ≥2.10       ≥2.08       ≥2.04       The battery supplemental charge method during the storage is: charge battery with 2.35V/cell for 8 to 12 hours.
  • Page 16: Chapter Five Installation,Commissioning And Maintenance

                Chapter Five Installation,Commissioning and Maintenance   Installation     Batteries integrated in equipment should be compliance with the installation instructions, Battery which is separately installed on rack and cabinets should be connected by bolts to the foundation. Battery racks or cabinets should be properly installed according to instructions.
  • Page 17: Maintenance

        Maintenance     Monthly maintenance:   Measure and record the ambient temperature of the battery-room, battery container and terminals temperature. Check battery cleanliness,terminal damage and heating track,container and lid damage and temperature. Measure and record the total voltage and floating current of the battery system. Correct immediately once finding problem.
  • Page 18             Maintenance notes     Please do not operate and store battery in inversion position or in horizontal position Check whether the battery installation is comply with design requirement or installation documents or not. Please use insulated tools when operation and maintenance,any metal objects to be put on top of the battery shall be strictly prohibited;...
  • Page 19                                                                                  ...
