    Contents Chapter I: Product Introduction Product Characteristics ....................01 Main Applications ......................02 Battery Construction ....................02 General Specification ....................03 VRLA Technology ......................04 Chapter II: Electrical Characteristics Discharge/Charge Curve .....................05 Performance Data ......................07 Chapter III: Operation and Maintenance Security Instruction ......................13 Operation Parameters ....................14 Factors Influencing Capacity .................14 Charge ....................15 Battery Calculations ..................16...

  • Page 3: Chapter I: Product Introduction

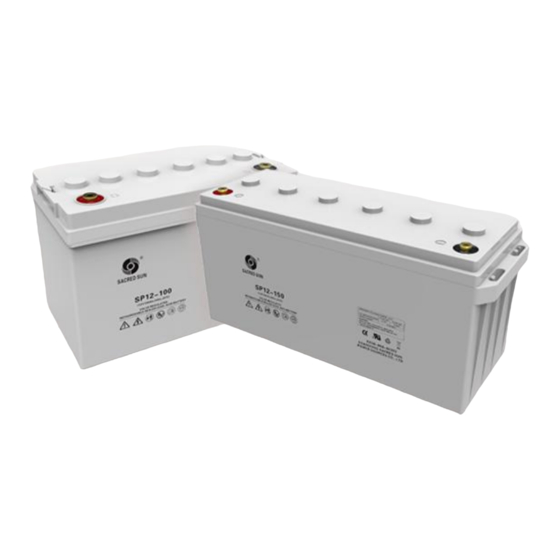

    Chapter I: Product Introduction Product Characteristics Advantages Design life: >20Ah,10 years; ≤20Ah, 5 years (25℃);  EUROBAT Classification: Long life (>20Ah) and Standard Commercial (≤20Ah);  Maximum charge efficiency;  High gas recombination efficiency;  Low self-discharge rate;  Easy handling; ...

  • Page 4: Main Applications

    Main Applications UPS units  Emergency power  Alarms , Fire & Security Systems  Medical  General Electronics & Control Equipment  Communications Equipment  Standards IEC61056-1/2:2002  IEC60896-21/22  GB/T 19639.1-2005  JIS C8702-1/2:2009  JIS C8704-1/2: 2009 ...

  • Page 5: General Specification

    General Specification SP series Table 1-1 SP series general specification Rated Dimensions (mm) Capacity Short Internal Rated Weight Terminal Terminal Battery Type (Ah,25℃) Circuit Resistance Voltage (V) (kg) Type Layout Current (A) (mΩ,25℃) 1.80V/cell 1.75V/cell SSP12-6.5 5.95 65.5 2.05 SP-03 SSP12-7 6.44...

  • Page 6: Vrla Technology

    Terminal Type SP-03 SP-02(Optional) SP-11 VRLA Technology The electrochemical reaction of batteries in charge and discharge process is as follows: Discharge + Pb PbSO + 2H O + PbSO Charge In the final stage of charge process, active substance in positive plate is fully transformed to lead dioxide, but negative plate has not reached fully charged stage, the process of active substance in negative plate transforming to spongy lead is not finished, oxygen gas generated in positive plate reaches the negative plate through separator pores and then reacts with active substance in...

  • Page 7: Chapter Ii: Electrical Characteristics

    Chapter II: Electrical Characteristics Discharge/Charge Curve Figure 2-1 Discharge capacity and temperature curve Figure 2-2 Discharge capacity and storage time curve...
  • Page 8 Figure 2-3 Discharge characteristic curve under different discharge rates (25 ℃) Figure 2-4 Charge characteristic curve...

  • Page 9: Performance Data

    Performance Data Constant current discharge data Table 2-1 SP Battery Constant Current Discharge Data Sheet (Amperes, 25 ℃) Constant Current Discharge Data Sheet (25℃)-------Amperes(A) Discharge Time End Voltage Battery Type (V/cell) 5 min 10 min 15 min 20 min 30 min 45 min 1.5 h 10 h...
  • Page 10 Table 2-1 SP Battery Constant Current Discharge Data Sheet (Amperes, 25 ℃) Constant Current Discharge Data Sheet (25℃)-------Amperes(A) Discharge Time End Voltage Battery Type (V/cell) 5 min 10 min 15 min 20 min 30 min 45 min 1.5 h 10 h 20 h 1.60 98.90...
  • Page 11 Table 2-1 SP Battery Constant Current Discharge Data Sheet (Amperes, 25 ℃) Constant Current Discharge Data Sheet (25℃)-------Amperes(A) Discharge Time End Voltage Battery Type (V/cell) 5 min 10 min 15 min 20 min 30 min 45 min 1.5 h 10 h 20 h 1.60 261.0...
  • Page 12 Constant power discharge data Table 2-2 SP Battery Constant Power Discharge Data Sheet (W/cell, 25℃) Constant Power Discharge Data Sheet (25℃)-------Watt (W) Discharge Time End Voltage Battery Type (V/cell) 5 min 10 min 15 min 20 min 30 min 45 min 1.5 h 10 h 20 h...
  • Page 13 Table 2-2 SP Battery Constant Power Discharge Data Sheet (W/cell, 25℃) Constant Power Discharge Data Sheet (25℃)-------Watt (W) Discharge Time End Voltage Battery Type (V/cell) 5 min 10 min 15 min 20 min 30 min 45 min 1.5 h 10 h 20 h 1.60 180.65...
  • Page 14 Table 2-2 SP Battery Constant Power Discharge Data Sheet (W/cell, 25℃) Constant Power Discharge Data Sheet (25℃)-------Watt (W) Discharge Time End Voltage Battery Type (V/cell) 5 min 10 min 15 min 20 min 30 min 45 min 1.5 h 10 h 20 h 1.60 440.0...

  • Page 15: Chapter Iii: Operation And Maintenance

    Chapter III: Operation and Maintenance Safety Instructions Please read these instructions carefully in order to ensure correct, safe and effective operation. This manual provides you very important guidance for installation and operation, which will guarantee your equipment with optimal performance and longer service life. For your safety, please do not open the batteries;...

  • Page 16: Operation Parameters

    Factors Influencing Capacity Battery capacity consists both of nominal capacity and actual capacity, for nominal capacities of the FT series battery please refer to Table 1-1. Actual capacity is the real quantity of electricity battery discharge under certain condition, it equals to discharge current multiplied by discharge time, the unit is Ah.

  • Page 17: Charge

    Figure 3-2 service life and temperature curve --- SSP series Figure 3-3 Service life and temperature curve --- SP series Charge Floating charge Charge method: 2.27V/cell with limited current of 0.3 C (A). Charge voltage must be adjusted according to ambient temperature, temperature compensation coefficient is -3mV/cell/℃.

  • Page 18: Battery Calculations

    Cycle application Charge method: 2.45V/cell with limited current of 0.25 C (A). Charge voltage must be adjusted according to ambient temperature, temperature compensation coefficient is -4mV/cell/℃. When charged capacity is about 105-110% of discharged capacity or in constant voltage case, the charge current must be kept unchanged for 3 hours in the final stage of charge., charge is ended.
  • Page 19 Preliminary calculation: The maximum number of cells: 490V/2.27V=216 cells;  The minimum voltage per cell at the end of discharge: 378/216=1.75V.  Case1: discharge with a surge at the end of discharge The surge power is to be 50kW for 10 minutes, followed by 10kW for 2 hours. Discharge current: During the surge:50000W/378V=132 amps, and then:10000W/378V=26 amps Determining the cell required for the current required:...
  • Page 20 Accidental deep discharge This may involve discharge of the battery into indicator lamps, a lower load on the battery than that Initially planned, a failure of the charging system, a discharged battery not recharged immediately, etc… On a fully discharge battery: All of the sulphuric acid has been consumed, and the electrolyte is now nearly water.

  • Page 21: Operating

    Operating Warning The batteries are already charged when delivered, and are fitted with a protective cap on  each terminal. They should be unpacked with care. Avoid short-circuiting terminals of opposite polarity, because these units are capable of  discharging at a very high current especially if the lid or the container is damaged. Unpacking the battery Each shipment is accompanied by a packing list ...

  • Page 22: Storage

    In parallel: The same battery may be connected in parallel to give higher current capability. This connection in parallel will be preferably carried out through an equipotential wiring for an equal current distribution in each string. There is no technical reason for limiting the number of strings, but for practical installation reasons, it is recommended not to exceed 4 strings in parallel especially if the battery is used in high discharge rates (standby time lower than 1 hour).
  • Page 23 Storage Maximum storage times / Recommended refreshening charge method temperature refreshening charge intervals -10～30℃ Every 6 months Using constant current 0.1C A～0.15C A to charge battery bank till battery average voltage rises to equalizing charge voltage, then switch to constant 31～45℃...

  • Page 24: Maintenance

    Maintenance 1. Cleaning Notes: Battery appearance, terminal area and working environment must be kept clean and dry. In battery cleaning process, avoid use of electrostatic cleaning tools. Clean the battery with damp cloth. Do not use of gasoline, alcohol or other organic solvents; also do not use cloth containing these substances.
  • Page 25 Item Content Standard Maintenance torque Securely connected If found bolt loosened, tighten it wrench to tighten loose bolts. 1-Battery cables, No evidence of If slight corrosion found after connecting terminals clean / corrosion bar removed, clean it with cloth. If severe 4- Joints non-corrosive.
  • Page 26 2.3 Annual Maintenance Inspection Items In addition to the quarterly maintenance items above, inspect the following items: Item Content Standard Maintenance Disconnect the AC, take At the end of If the battery voltage is lower load discharge discharge, battery than a voltage reference value or the discharge online method voltage should be differential pressure is greater than the...
  • Page 27 No.1,Shengyang Road, Qufu City, Shandong Province,273100,P.R.China Tel:0086-537-4422313 Fax:0086-537-4411980 E-mail:sales@sacredsun.cn...
