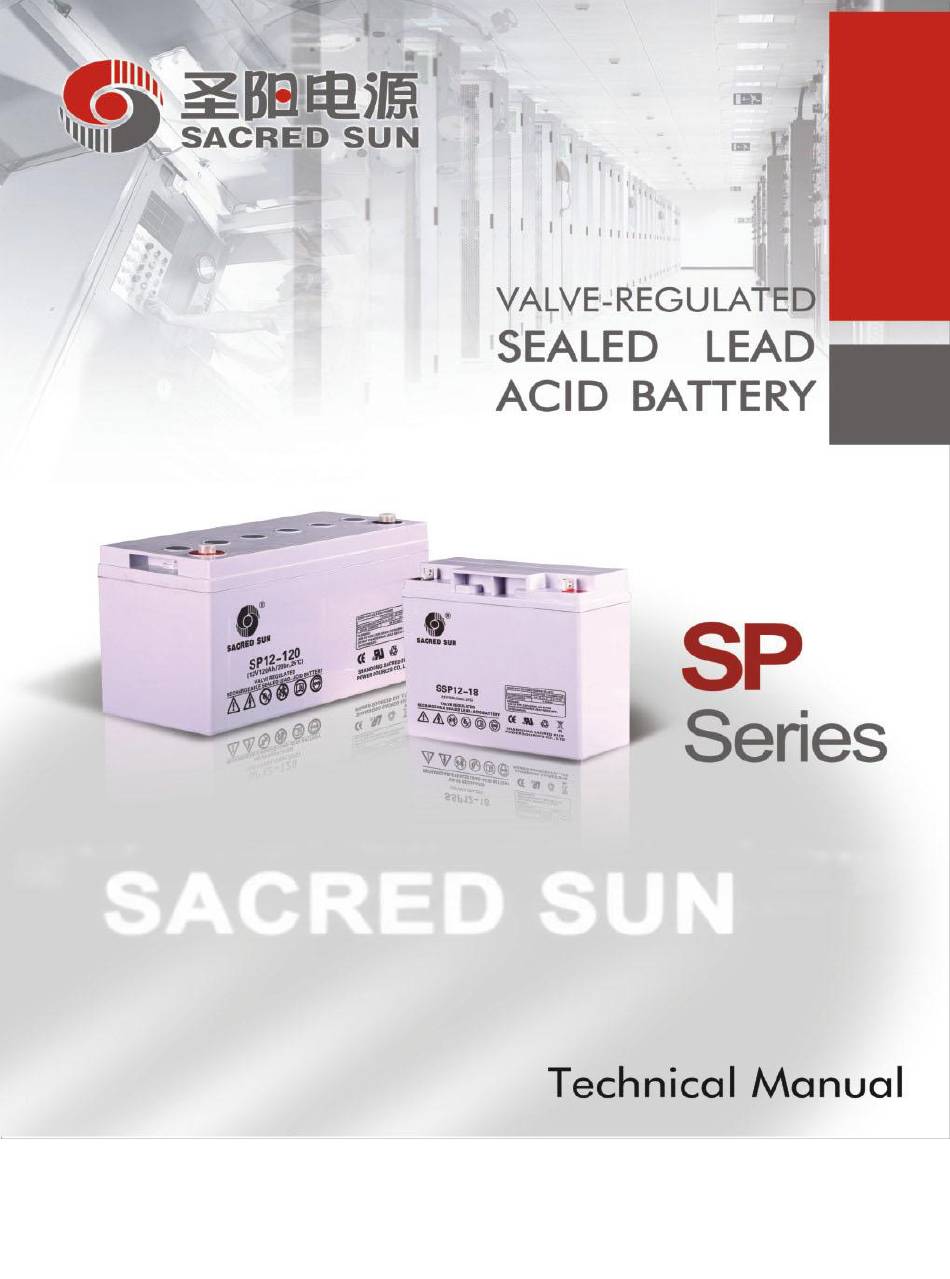

Sacred Sun SP Series Technical Manual

Valve-regulated sealed lead acid battery
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sacred Sun SP Series

Summary of Contents for Sacred Sun SP Series

  • Page 2: Table Of Contents

    Contents Chapter I: Product Introduction Product Characteristics ....................01 Main Applications ......................02 Battery Construction ....................02 General Specification ....................03 VRLA Technology ......................04 Chapter II: Electrical Characteristics Discharge/Charge Curve .....................05 Performance Data ......................07 Chapter III: Operation and Maintenance Security Instruction ......................13 Operation Parameters ....................14 Factors Influencing Capacity .................14 Charge ....................

  • Page 3: Chapter I: Product Introduction

    Chapter I: Product Introduction Product Characteristics Advantages  Design life: >20Ah,10 years; ≤20Ah, 5 years (25℃); EUROBAT Classification: General Purpose (>20Ah) and Standard Commercial (≤20Ah);   Maximum charge efficiency;  High gas recombination efficiency;  Low self-discharge rate;  Easy handling;...

  • Page 4: Main Applications

    Main Applications  UPS units  Emergency power  Alarms , Fire & Security Systems  Medical  General Electronics & Control Equipment  Communications Equipment Standards  IEC61056-1/2:2002  GB/T 19639.1-2005  JIS C8702-1/2:2009  Eurobat Guide Battery Construction...

  • Page 5: General Specification

    General Specification SP series Table 1-1 SP series general specification Rated Dimensions (mm) Capacity Short Internal Rated Weight Terminal Terminal Battery Type (Ah,25℃) Circuit Resistance Voltage (V) (kg) Type Layout (mΩ,25℃) Current (A) 1.75V/cell SSP12-6.5 65.5 2.05 SP-03 SSP12-7 65.5 2.15...

  • Page 6: Vrla Technology

    Terminal Type SP-03 SP-02(Optional) SP-11 VRLA Technology The electrochemical reaction of batteries in charge and discharge process as follows: Discharge + Pb PbSO + 2H O + PbSO Charge In the final stage of charge process, active substance in positive plate transformed to lead dioxide, negative plate has not reached fully charged stage, the process of active substance in negative plate transformed to spongy lead has not finished, oxygen gas generated in positive plate reaches the negative plate through separator pores and reacts active substance in negative plate, resulting...

  • Page 7: Chapter Ii: Electrical Characteristics

    Chapter II: Electrical Characteristics Discharge/Charge Curve Figure 2-1 Discharge capacity and temperature curve Figure 2-2 Discharge capacity and storage time curve...
  • Page 8 Figure 2-3 Discharge characteristic curve under different discharge rates (25 ℃) Figure 2-4 Charge characteristic curve...

  • Page 9: Performance Data

    Performance Data Constant current discharge data Table 2-1 SP Battery Constant Current Discharge Data Sheet (Amperes, 25 ℃) Constant Current Discharge Data Sheet (25℃)-------Amperes(A) Discharge Time End Voltage Battery Type (V/cell) 5 min 10 min 15 min 20 min 30 min 45 min 1.5 h 10 h...
  • Page 10 Table 2-1 SP Battery Constant Current Discharge Data Sheet (Amperes, 25 ℃) Constant Current Discharge Data Sheet (25℃)-------Amperes(A) Discharge Time End Voltage Battery Type (V/cell) 5 min 10 min 15 min 20 min 30 min 45 min 1.5 h 10 h 20 h 1.60 98.90...
  • Page 11 Table 2-1 SP Battery Constant Current Discharge Data Sheet (Amperes, 25 ℃) Constant Current Discharge Data Sheet (25℃)-------Amperes(A) Discharge Time End Voltage Battery Type (V/cell) 5 min 10 min 15 min 20 min 30 min 45 min 1.5 h 10 h 20 h 1.60 261.0...
  • Page 12 Constant power discharge data Table 2-2 SP Battery Constant Power Discharge Data Sheet (W/cell, 25℃) Constant Power Discharge Data Sheet (25℃)-------Watt (W) Discharge Time End Voltage Battery Type (V/cell) 5 min 10 min 15 min 20 min 30 min 45 min 1.5 h 10 h 20 h...
  • Page 13 Table 2-2 SP Battery Constant Power Discharge Data Sheet (W/cell, 25℃) Constant Power Discharge Data Sheet (25℃)-------Watt (W) Discharge Time End Voltage Battery Type (V/cell) 5 min 10 min 15 min 20 min 30 min 45 min 1.5 h 10 h 20 h 1.60 180.65...
  • Page 14 Table 2-2 SP Battery Constant Power Discharge Data Sheet (W/cell, 25℃) Constant Power Discharge Data Sheet (25℃)-------Watt (W) Discharge Time End Voltage Battery Type (V/cell) 5 min 10 min 15 min 20 min 30 min 45 min 1.5 h 10 h 20 h 1.60 440.0...

  • Page 15: Chapter Iii: Operation And Maintenance

    Chapter III: Operation and Maintenance Security Instruction Please read these instructions carefully in order to make correct, safe, and effective operation. This manual provides you with very important installation and operation guidelines, which will guarantee your equipment an optimal performance and longer service life. For your safety, please do not open battery by yourself, only professionals shall be allowed to open and maintain the battery ;...

  • Page 16: Operation Parameters

    Operation Parameters Ambient temperature is -15℃~45℃ and the optimal operation temperature is 25℃±5℃. Ambient humidity less than RH 92% Altitude less than 4500m, if operation altitude more than 4500m, please make special reminder when confirm order. Factors Influencing Capacity Quantity of electricity battery discharge under certain condition is called battery capacity, symbol is C, normal unit is Ampere Hour, and in short is Ah.

  • Page 17: Charge

    Figure 3-2 service life and temperature curve --- SSP series Figure 3-3 Service life and temperature curve --- SP series Charge Floating charge Charge method: 2.27V/cell with limited current of 0.3 C (A). Charge voltage should be adjusted according to ambient temperature, temperature compensation coefficient is -3mV/cell/℃.

  • Page 18: Battery Calculations

    Cycle application Charge method: 2.45V/cell with limited current of 0.25 C (A). Charge voltage should be adjusted according to ambient temperature, temperature compensation coefficient is -4mV/cell/℃. Setting charge capacity as 105-110% of discharge capacity, when the constant charge current keep as same value for 3hrs, charge end. Fast charge Increasing the charge voltage to 2.40V per cell can reduce recharge time and it is possible, depending on the depth of discharge, to half the recharge time.
  • Page 19 Preliminary calculation:  The maximum number of cells: 490V/2.27V=216 cells;  The minimum voltage per cell at the end of discharge: 378/216=1.75V. Case1: discharge with a surge at the end of discharge The surge power is to be 50kW for 10 minutes, followed by 10kW for 2 hours. Discharge current: During the surge:50000W/378V=132 amps, and then:10000W/378V=26 amps Determining the cell required for the current required:...

  • Page 20: Operating

    Accidental deep discharge This may involve discharge of the battery into indicator lamps, a lower load on the battery than that Initially planned, a failure of the charging system, a discharged battery not recharged immediately, etc… On a fully discharge battery: All of the sulphuric acid has been consumed, and the electrolyte is now nearly water.
  • Page 21 Unpacking the battery  Each shipment is accompanied by a packing list  The packing list should be checked, and the Sales Department should be told immediately of any missing items. Setting up the battery racks The structure should be assembled in accordance with instructions supplied with the equipment.

  • Page 22: Storage

    General recommendations  Do not wear clothing of synthetic material, to avoid the generation of static potentials.  Use insulated tools  Place the cells beginning with the least accessible rows, spacing the cells as shown on the drawing.  Consult the drawing for the correct position of the battery poles (positive=red color, negative=black color).

  • Page 23: Maintenance

    % of capacity Voltage per cell at different temperature at 25℃ 0℃ 10℃ 20℃ 30℃ 40℃ 100% 2.16 2.15 2.14 2.13 2.13 2.09 2.09 2.09 2.09 2.09 2.06 2.06 2.06 2.06 2.06 2.02 2.02 2.02 2.02 2.02 1.97 1.97 1.97 1.97 1.97 Commissioning...
  • Page 24 Three yearly maintenance After three years operation, battery capacity should be tested, if battery bank actual capacity is below 80% of rated capacity, battery bank is considered life over. Note: It is recommended that a battery log be maintained, and that records should be kept of the total voltage measurements, any mains failures, major battery discharges (current and time) etc.
  • Page 25 No.1,Shengyang Road, Qufu City, Shandong Province,273100,P.R.China Tel:0086-537-4438666-6028 Fax:0086-537-4411936 E-mail:sales@sacredsun.cn...
