Summary of Contents for Supermicro MBI-6219B-T41N MicroBlade

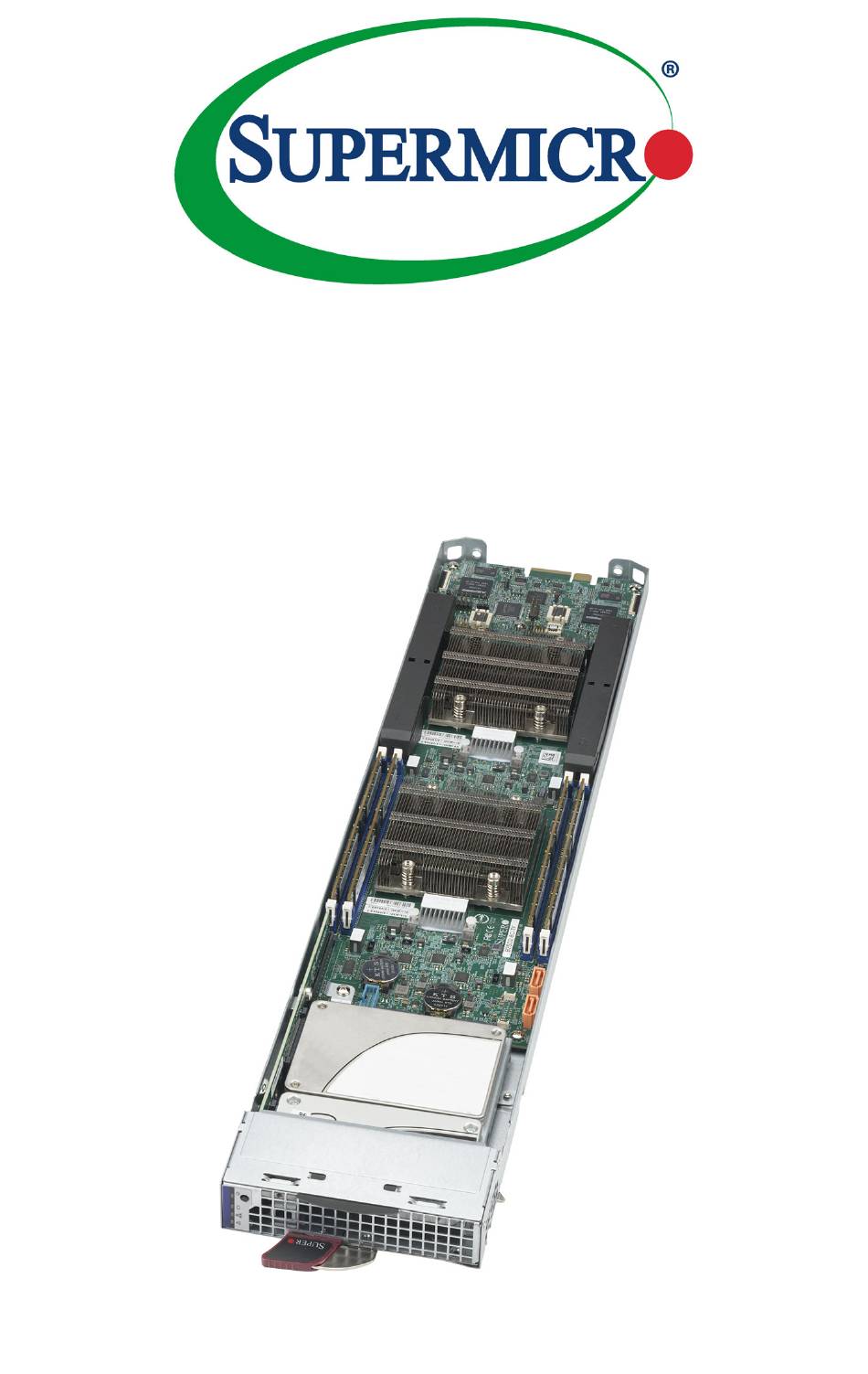

- Page 1 MBI-6219B-T41N MicroBlade MBI-6219B-T63N MicroBlade MBI-6219B-T83N MicroBlade User’s Manual Revision 1.0a...
- Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
- Page 3 If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level. Secure Data Deletion A secure data deletion tool designed to fully erase all data from storage devices can be found on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/...
- Page 4 MBI-6219B-TxxN MicroBlade User’s Manual...
-
Page 5: Table Of Contents
1-2 Blade Module Features ..............1-2 Processors ....................1-2 Memory ....................1-2 Storage ....................1-3 Density ....................1-3 BMC Password ..................1-3 1-3 Contacting Supermicro ..............1-4 Chapter 2 Setup and Installation ..........2-1 2-1 Overview ..................... 2-1 2-2 Installing MicroBlade Modules ............ - Page 6 MBI-6219B-TxxN MicroBlade User’s Manual Storage Drives ..................3-8 Chapter 4 BIOS ..................4-1 4-1 Introduction ................4-1 4-2 Main BIOS Setup ..............4-3 4-3 Advanced Setup ................4-5 4-4 Event Logs Setup..............4-30 4-5 IPMI Setup ................4-32 4-6 Security ...................4-36 4-7 Boot..................4-42 4-8 Save & Exit................4-44 4-8 BIOS Updates .................4-46 Appendix A AMI UEFI BIOS POST Codes ......A-1...
-
Page 7: Chapter 1 Introduction
For information on operating systems that have been certified for use with the MicroBlade see (http://www.supermicro.com/products/nfo/microblade.cfm). Download the necessary drivers and utilities at: https://www.supermicro.com/wftp See the safety warnings in the appendix in this manual or the Supermicro web site http://www.supermicro.com/about/policies/safety_information.cfm. Table 1-1. Blade Model Differences Blade Unit... -
Page 8: Blade Module Features
Each of the two nodes support one Intel Xeon D-2100 series processor in an FCBGA-2518 socket embedded in the motherboard. This is a system on a chip. Refer to the Supermicro web site for a complete listing of supported processors (http:// www.supermicro.com/products/microblade). -
Page 9: Density
It can be found on a sticker on the blade service tab, and a sticker on the motherboard. The sticker also displays the BMC MAC address. For more information, refer to our website at https://www.supermicro.com/en/support/ BMC_Unique_Password. The service tab and an example sticker are illustrated below. Service Tab... -
Page 10: Contacting Supermicro
Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 marketing@supermicro.com (General Information) Email: support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML ‘s-Hertogenbosch, The Netherlands... -
Page 11: Chapter 2 Setup And Installation
Chapter 2 Setup and Installation Overview This chapter covers the setup and installation of the MicroBlade and its components. Installing MicroBlades Up to twenty-eight MBI-6219B-TxxN MicroBlade may be installed into a single MBE-628E-xxx and MBE-314E-xxx MicroBlade enclosure. MicroBlades with Windows and Linux operating systems may be mixed together in the same blade enclosure. -
Page 12: Powering Down A Microblade Module Unit
MBI-6219B-TxxN MicroBlade User’s Manual Removing a MicroBlade Unit from the Enclosure Although the system may continue to run, individual MicroBlades should always be powered down before removing them from the enclosure. Removing a MicroBlade Unit from the Enclosure 1. Power down the MicroBlade unit (see "Powering Down a MicroBlade Module Unit"... -
Page 13: Onboard Battery Installation
Chapter 2: Setup and Installation Onboard Battery Installation A battery is included on the motherboard to supply certain volatile memory components with power when power has been removed from the MicroBlade. If this battery dies, it must be replaced with an equivalent CR2032 Lithium 3V battery. Dispose of used batteries according to the manufacturer's instructions. -
Page 14: Memory Installation
Super Micro authorized manufacturer due to compatibility issues. See details below on supported memory and our web site (http:// www.supermicro.com/products/microblade/ for recommended memory. Populating Memory Slots The motherboard of a MBI-6219B-TxxN blade module has four memory slots. For optimized memory bandwidth it is strongly recommended that ALL memory slots in this MicroBlade be populated by DIMMs. -
Page 15: Dimm Installation
Chapter 2: Setup and Installation DIMM Installation Caution: Exercise care when installing or removing DIMM modules to prevent damage. Installing DIMM Memory Modules 1. Power down the blade module (see "Powering Down a MicroBlade Module Unit" on page 2-1). 2. Remove the blade from the enclosure. 3. -
Page 16: Storage Drive Installation
An operating system (OS) must be installed on each MicroBlade. Blades with Microsoft Windows OS and blades with Linux OS can both occupy and operate within the same blade enclosure. Refer to the SuperMicro web site for a complete list of supported operating systems. -
Page 17: Installing Using Virtual Media (Drive Redirection)
Chapter 2: Setup and Installation Once these conditions are met, make sure the PXE server is running. Then turn on the blade on which you wish to boot and/or install the OS. The BIOS in the blade will look at all bootable devices and finding none will connect to the PXE server to begin the boot/ install. - Page 18 Chapter 3 MicroBlade Features Figure 3-1. MBI-6219B-TxxN Blade Unit Front View This chapter describes the MBI-6219B-TxxN MicroBlade unit. Installation and maintenance should be performed by experienced technicians only. Figure 3-1 for a front view of the blade unit and Table 3-1 for its features.
-
Page 19: Control Panel
MBI-6219B-TxxN MicroBlade User’s Manual Control Panel Each MicroBlade has a control panel with power on/off button and LED status indicators on the front of the unit. Figure 3-2. Blade Control Panel Table 3-2. Blade Control Panel Item Function State Description Power Button Turns MicroBlade on and off Green... -
Page 20: Power Button
Chapter 3: MicroBlade Features Power Button Each MicroBlade has its own power button so that individual blade units within the enclosure may be turned on or off independently of the others. Press the power button (#1) to turn on the blade server. The power LED (#3) will turn green. To turn off, press and hold the power button for longer than 4 seconds and the power LED will turn orange. -
Page 21: Motherboard
MBI-6219B-TxxN MicroBlade User’s Manual Motherboard The motherboard of the MBI-6219B-TxxN MicroBlade unit is a proprietary design, which is based on the Intel Intel Xeon D-2100 series processor. See Figure 3-4 for a block diagram of this chipset, Figure 3-3 for a view of the B2SD2-(8C/12C/16C)-TF motherboard. - Page 22 Chapter 3: MicroBlade Features Table 3-4. B2SD2-(8C/12C/16C)-TF motherboard Layout Item Description Processors in an FCBGA-2518 socket, with heatsink DIMM slots for memory modules CMOS Clear contacts Batteries IPMI/BMC password stickers SATA Ports Figure 3-4. Intel B2SD2-(8C/12C/16C)-TF Block Diagram DDR4 1866/2133/2400 DDR4 1866/2133/2400 SoC 1 HDD backplane...
-
Page 23: Jumpers
MBI-6219B-TxxN MicroBlade User’s Manual Jumpers Any jumpers present on the motherboard are used by the manufacturer only; there are no jumpers used to configure the operation of the motherboard by the user. CMOS Clear JBT1 is used to clear CMOS and will also clear any passwords. JBT1 consists of two contact pads located near the BIOS chip. -
Page 24: Blade Unit Components
Chapter 3: MicroBlade Features Blade Unit Components Figure 3-5. Exploded View of a MBI-6219B-TxxN MicroBlade Module Table 3-5. Main Components of a MBI-6219B-TxxN Blade Module Item Description Blade Unit 2.5" Storage Drives (2) DIMM slots (8) CPU/Heatsinks (2~4) Storage Drive Backplane Memory Support The MBI-6219B-TxxN MicroBlade supports up to 64 GB of ECC VLP RDIMM, 32 GB size, DDR4 2133/2400 MHz speed DIMM memory in four sockets. - Page 25 MBI-6219B-TxxN MicroBlade User’s Manual Note: Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended drives, visit the Supermicro Web site at http://www.supermicro.com/products/nfo/storage.cfm...
-
Page 26: Chapter 4 Bios
Chapter 4: BIOS Chapter 4 BIOS Introduction This chapter describes the AMI BIOS setup utility for the B2SD2-8C-TF motherboard. It also provides the instructions on how to navigate the AMI BIOS setup utility screens. The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated. -
Page 27: Main Bios Setup
MBI-6219B-T41N Microblade Module User’s Manual Main Setup When running the AMI BIOS setup utility, it starts with the Main screen. You can always return to it by selecting the Main tab on the top of the screen. The Main tab page allows you to set the date and time, and it displays system information. -
Page 28: Advanced Setup
Chapter 4: BIOS Advanced Setup Configurations Use the arrow keys to select the Advanced tab and press <Enter> to access the submenu items. Caution: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. - Page 29 MBI-6219B-T41N Microblade Module User’s Manual Bootup NumLock State Use this feature to set the Power-on state for the Numlock key. The options are Off and On. Wait For "F1" If Error This feature forces the system to wait until the F1 key is pressed if an error occurs.
- Page 30 Chapter 4: BIOS resume its last power state before a power loss. The options are Stay Off, Power On, and Last State. Throttle on Power Fail Use this feature to decrease the systems power by throttling CPU frequency when one power supply has failed. The options are Disabled and Enabled. ...
- Page 31 MBI-6219B-T41N Microblade Module User’s Manual Execute Disable Bit (Available if supported by the OS & the CPU) Set to Enable for Execute Disable Bit support, which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor or damage the system during a virus attack.
- Page 32 Chapter 4: BIOS Extended APIC Select Enable to activate APIC (Advanced Programmable Interrupt Controller) support. The options are Disable and Enable. AES-NI Select Enable to use the Intel Advanced Encryption Standard (AES) New Instructions (NI) to ensure data security. The options are Disable and Enable. Advanced Power Management Configuration Power Technology This feature allows you to configure CPU power management settings.
- Page 33 MBI-6219B-T41N Microblade Module User’s Manual CPU P State Control This feature allows you to configure the following CPU power settings: Uncore Freq Scaling (UFS) Use this feature to enable or disable uncore frequency scaling. The options are Enable and Disable.
- Page 34 Chapter 4: BIOS Hardware PM State Control Hardware P-States This setting allows you to select between OS and hardware-controlled P-states. Selecting Native Mode allows the OS to choose a P-state. Selecting Out of Band Mode allows the hardware to autonomously choose a P-state without OS guidance.
- Page 35 MBI-6219B-T41N Microblade Module User’s Manual Package C State Control Package C State This feature allows you to set the limit on the C State package register. The options are C0/C1 state, C2 state, C6 (non Retention) state, C6 (Retention) state, No Limit, and Auto.
- Page 36 Chapter 4: BIOS tCCD_L Relaxation Select Auto to get TCDD settings from SPD (Serial Presence Detect) into memory RC code to improve system reliability. Select Disable for TCCD to follow Intel POR. The options are Disable and Auto. 2X REFRESH Use this feature to select the memory controller refresh rate to 2x refresh mode.
- Page 37 MBI-6219B-T41N Microblade Module User’s Manual Correctable Error Threshold Use this feature to specify the threshold value for correctable memory error logging, which sets a limit on the maximum number of events that can be logged in the memory error log at a given time. The default setting is 100.
- Page 38 Chapter 4: BIOS IIO Configuration EV DFX Features When this feature is set to Enable, the EV_DFX Lock Bits that are located on a processor will always remain clear during electric tuning. The options are Disable and Enable. CPU Configuration IOU0 (II0 PCIe Br1) Use this feature to configure the PCI-E port Bifuraction setting for a PCI-E...
- Page 39 MBI-6219B-T41N Microblade Module User’s Manual IOAT Configuration Disable TPH Transparent Huge Pages (TPH) is a Linux memory management system that enables communication in larger blocks (pages). Enabling this feature will increase performance. The options are No and Yes. *If the feature above is set to No, Relax Ordering will be available...
- Page 40 Chapter 4: BIOS Interrupt Remapping Use this feature to enable Interrupt Remapping support, which detects and controls external interrupt requests. The options are Enable and Disable. PassThrough DMA Use this feature to allow devices such as network cards to access the system memory without using a processor.
- Page 41 MBI-6219B-T41N Microblade Module User’s Manual Legacy USB Support Select Enabled to support onboard legacy USB devices. Select Auto to disable legacy support if there are no legacy USB devices present. Select Disable to have all USB devices available for EFI applications only. The options are Enabled, Disabled, and Auto.
- Page 42 Chapter 4: BIOS sSATA Controller This feature enables or disables the onboard sSATA controller supported by the Intel PCH chip. The options are Enable and Disable. SATA HDD Unlock This feature allows you to remove any password-protected SATA disk drives. The options are Disable and Enable.
- Page 43 MBI-6219B-T41N Microblade Module User’s Manual PCIe/PCI/PnP Configuration The following information will display: • PCI Bus Driver Version • PCI Devices Common Settings: Above 4G Decoding (Available if the system supports 64-bit PCI decoding) Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address.
- Page 44 Chapter 4: BIOS enable innovative functions for the drive. The other option, AMI Native Support, is offered by the BIOS with a generic method. The options are Vendor Defined Firmware and AMI Native Support. VGA Priority Use this feature to select VGA priority when multiple VGA devices are detected. Select Onboard to give priority to your onboard video device.
- Page 45 MBI-6219B-T41N Microblade Module User’s Manual *If the feature above is set to Enabled, the next six features will be available for configuration: Ipv4 PXE Support Select Enabled to enable IPv4 PXE boot support. The options are Disabled and Enabled. Ipv4 HTTP Support Select Enabled to enable IPv4 HTTP boot support.
- Page 46 Chapter 4: BIOS Device Settings This feature displays the base I/O port address and the Interrupt Request address of a serial port specified by the user. Change Settings This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1.
- Page 47 MBI-6219B-T41N Microblade Module User’s Manual Console Redirection Settings Terminal Type This feature allows you to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set.
- Page 48 Chapter 4: BIOS VT-UTF8 Combo Key Support Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled. Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server.
- Page 49 MBI-6219B-T41N Microblade Module User’s Manual Terminal Type Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set.
- Page 50 Chapter 4: BIOS Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled. Resolution 100x31 Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.
- Page 51 MBI-6219B-T41N Microblade Module User’s Manual Console Redirection Settings This feature allows you to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user. Out-of-Band Mgmt Port The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server.
- Page 52 Chapter 4: BIOS Headless Support Enable this feature for the system to function without a keyboard, monitor, or mouse attached. The options are Disabled and Enabled. WHEA Support Select Enabled to support the Windows Hardware Error Architecture (WHEA) platform and provide a common infrastructure for the system to handle hardware errors within the Windows OS environment in order to reduce system crashes and enhance system recovery and health monitoring.
- Page 53 Use this feature to disable or enable Platform Hierarchy (PH) Randomization. The options are Disabled and Enabled. SMCI BIOS-Based TPM Provision Support Use feature to enable the Supermicro TPM Provision support. The options are Disabled and Enabled. TXT Support Intel TXT (Trusted Execution Technology) helps protect against software-based attacks and ensures protection, confidentiality and integrity of data stored or created on the system.
- Page 54 Chapter 4: BIOS iSCSI Configuration iSCSI Initiator Name This feature allows you to enter the unique name of the iSCSI Initiator in IQN format. Once the name of the iSCSI Initiator is entered into the system, configure the proper settings for the following features.
-
Page 55: Event Logs Setup
MBI-6219B-T41N Microblade Module User’s Manual Event Logs Use this tab page to configure Event Log settings. Change SMBIOS Event Log Settings Enabling/Disabling Options SMBIOS Event Log Change this feature to enable or disable all features of the SMBIOS Event Logging during system boot. - Page 56 Chapter 4: BIOS When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately. SMBIOS Event Log Standard Settings Log System Boot Event Select Enabled to log system boot events.
- Page 57 MBI-6219B-T41N Microblade Module User’s Manual IPMI Select this tab to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This feature displays the IPMI firmware revision used in your system. IPMI STATUS This feature displays the status of the IPMI firmware installed in your system.
- Page 58 Chapter 4: BIOS Erasing Settings Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, "Yes, On next reset,"...
- Page 59 MBI-6219B-T41N Microblade Module User’s Manual *If the feature above is set to Static, the Station IP Address/Subnet Mask/ Gateway IP Address features are available for configuration: Station IP Address This feature displays the Station IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).
- Page 60 Enabled and Disabled. When Disabled, the system powers on quickly by removing BIOS support for extended IPMI features. The Disable option is for applications that require faster power on time without using Supermicro Update Manager (SUM) or extended IPMI features. The BMC network configuration in the BIOS setup will also be invalid when IPMI Extended Instruction is disabled.
-
Page 61: Security
MBI-6219B-T41N Microblade Module User’s Manual Security Select this tab to configure security settings. Administrator Password Use this feature to set the administrator password which is required to enter the BIOS setup utility. The length of the password should be from 3 to 20 characters long. - Page 62 Chapter 4: BIOS Secure Boot System Mode Secure Boot Select Enable for secure boot support to ensure system security at bootup. The options are Disabled and Enabled. Secure Boot Mode This feature allows you to select the desired secure boot mode for the system. The options are Standard and Custom.
- Page 63 MBI-6219B-T41N Microblade Module User’s Manual Enroll Efi Image This feature allows the image to run in Secure Boot mode. Device Guard Ready Remove 'UEFI CA' from DB Use this feature to remove the Microsoft UEFI CA certificate from the database.
- Page 64 Chapter 4: BIOS Append Select Yes to add the KEK from factory default or No to load from a file or external media. Delete Select Yes to delete the variable or No to delete a certificate from the key database. ...
- Page 65 MBI-6219B-T41N Microblade Module User’s Manual Append Select Yes to add the dbx from factory default or No to load from a file or external media. Delete Select Yes to delete the variable or No to delete a certificate from the key database.
- Page 66 Chapter 4: BIOS Append Select Yes to add the dbr from factory default or No to load from a file or external media. Delete Select Yes to delete the variable or No to delete a certificate from the key database. 4-41...
-
Page 67: Boot
MBI-6219B-T41N Microblade Module User’s Manual Boot Select this tab to configure boot settings. Boot Configuration Boot mode select Use this feature to select the boot mode. The options are Legacy, UEFI, and DUAL. Legacy to EFI Support Select Enabled to boot EFI OS support after Legacy boot order has failed. The options are Disabled and Enabled. - Page 68 Chapter 4: BIOS • Dual Boot Option #7 • Dual Boot Option #8 • Dual Boot Option #9 • Dual Boot Option #10 • Dual Boot Option #11 • Dual Boot Option #12 • Dual Boot Option #13 • Dual Boot Option #14 •...
-
Page 69: Save & Exit
MBI-6219B-T41N Microblade Module User’s Manual Save & Exit Select this tab to configure settings for saving and exiting. Save Options Discard Changes and Exit Select this feature to quit the BIOS Setup without making any permanent changes to the system configuration and reboot the computer. Select Discard Changes and Exit from the Exit menu and press <Enter>. - Page 70 Chapter 4: BIOS Default Options Restore Optimized Defaults To set this feature, select Restore Optimized Defaults and press <Enter>. These are factory settings designed for maximum system performance but not for maximum stability. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>.
-
Page 71: 4-8 Bios Updates
MBI-6219B-T41N Microblade Module User’s Manual 4-8 BIOS Updates It may be necessary to update the BIOS used in the blade modules on occasion. However, it is recommended that you not update BIOS if you are not experiencing problems with a blade module. -
Page 72: Appendix Aami Uefi Bios Post Codes
Appendix A AMI UEFI BIOS POST Codes A status code is a data value used to indicate progress during the boot phase. A subset of these status codes, known commonly as checkpoints, indicate common phases of the BIOS boot process. Checkpoints are typically output to I/O port 80h, but Aptio 4.x core can be configured to send status codes to a variety of sources. - Page 73 MBI-6219B-TxxN MicroBlade User’s Manual Standard Checkpoints Table A-2. SEC Phase Codes Description Status Code 0x00 Not Used Progress Codes 0x01 Power on. Reset type detection (soft/hard). 0x02 AP initialization before microcode loading 0x03 North Bridge initialization before microcode loading 0x04 South Bridge initialization before microcode loading 0x05 OEM initialization before microcode loading...
- Page 74 Appendix A: AMI UEFI BIOS POST Codes Table A-3. PEI Phase Status Codes Description 0x19 Pre-memory South Bridge initialization is started 0x1A Pre-memory South Bridge initialization (South Bridge module specific) 0x1B Pre-memory South Bridge initialization (South Bridge module specific) 0x1C Pre-memory South Bridge initialization (South Bridge module specific) 0x1D –...
- Page 75 MBI-6219B-TxxN MicroBlade User’s Manual Table A-3. PEI Phase Status Codes Description 0x53 Memory initialization error. No usable memory detected 0x54 Unspecified memory initialization error. 0x55 Memory not installed 0x56 Invalid CPU type or Speed 0x57 CPU mismatch 0x58 CPU self test failed or possible CPU cache error 0x59 CPU micro-code is not found or micro-code update is failed 0x5A...
- Page 76 Appendix A: AMI UEFI BIOS POST Codes Table A-3. PEI Phase Status Codes Description 0xFA Invalid recovery capsule 0xFB – 0xFF Reserved for future AMI error codes Table A-4. PEI Beep Codes # of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found...
- Page 77 MBI-6219B-TxxN MicroBlade User’s Manual Table A-5. DXE Phase Status Codes Description 0x70 South Bridge DXE initialization is started 0x71 South Bridge DXE SMM initialization is started 0x72 South Bridge devices initialization 0x73 South Bridge DXE Initialization (South Bridge module specific) 0x74 South Bridge DXE Initialization (South Bridge module specific) 0x75...
- Page 78 Appendix A: AMI UEFI BIOS POST Codes Table A-5. DXE Phase Status Codes Description 0xA5 SCSI Reset 0xA6 SCSI Detect 0xA7 SCSI Enable 0xA8 Setup Verifying Password 0xA9 Start of Setup 0xAA Reserved for ASL (see ASL Status Codes section below) 0xAB Setup Input Wait 0xAC...
- Page 79 MBI-6219B-TxxN MicroBlade User’s Manual Table A-5. DXE Phase Status Codes Description 0xDA Boot Option is failed (StartImage returned error) 0xDB Flash update is failed 0xDC Reset protocol is not available Table A-6. DXE Beep Codes # of Beeps Description Invalid password Some of the Architectural Protocols are not available No Console Output Devices are found No Console Input Devices are found...
- Page 80 Appendix A: AMI UEFI BIOS POST Codes OEM-Reserved Checkpoint Ranges Table A-8. OEM-Reserved Checkpoint Ranges Status Codes Description 0x05 OEM SEC initialization before microcode loading 0x0A OEM SEC initialization after microcode loading 0x1D – 0x2A OEM pre-memory initialization codes 0x3F – 0x4E OEM PEI post memory initialization codes 0x80 –...
- Page 81 MBI-6219B-TxxN MicroBlade User’s Manual A-10...
-
Page 82: Appendix B Standardized Warning Statements
The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. - Page 83 MBI-6219B-TxxN MicroBlade Module User’s Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
- Page 84 안전을 위한 주의사항 경고 ! 이 경고 기호는 위험이 있음을 알려 줍니다 . 작업자의 신체에 부상을 야기 할 수 있는 상태에 있게 됩니다 . 모든 장비에 대한 작업을 수행하기 전에 전기회로와 관련된 위험 요소들을 확인하시고 사전에 사고를 방지할 수 있도록 표준 작업절차를 준수해 주시기 바랍니다...
- Page 85 MBI-6219B-TxxN MicroBlade Module User’s Manual Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. מתח את הוראות התקנה לפני חיבור המערכת למקור יש לקרוא ﻣﺼﺪر ﻟﻠﻄﺎﻗﺔ اﻟﻨﻈﺎم إﻟﻰ ﻗﺒﻞ ﺗﻮﺻﯿﻞ ﺘﺮﻛﯿﺐ اﻗﺮ إرﺷﺎدات اﻟ 시스템을 전원에 연결하기 전에 설치 안내를 읽어주십시오 . Waarschuwing Raadpleeg de installatie-instructies voordat u het systeem op de voedingsbron aansluit.
- Page 86 קצר חשמלי. יש לוודא כי המותקנת במבנים למניעת ה הגנ מוצר זה מסתמך על הוא לא יותר מ החשמלי המכשיר המגן מפני הקצר 250 V, 20 A ﻓﻲ اﻟﺘﻲ ﺗﻢ ﺗﺜﺒﯿﺘﮭﺎ ﻣﻦ اﻟﺪواﺋﺮاﻟﻘﺼﯿﺮة اﻟﺤﻤﺎﯾﺔ ﻣﻌﺪات ﯾﻌﺘﻤﺪ ﻋﻠﻰ ھﺬا اﻟﻤﻨﺘﺞ اﻟﻤﺒﻨﻰ أﻛﺜﺮ...
- Page 87 MBI-6219B-TxxN MicroBlade Module User’s Manual ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...
- Page 88 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden. ¡Advertencia! Solamente el personal calificado debe instalar, reemplazar o utilizar este equipo. Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à...
- Page 89 MBI-6219B-TxxN MicroBlade Module User’s Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial, cerradura con llave u otro medio de seguridad.
- Page 90 Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. 電池の取り扱い 電池交換が正しく行われなかった場合、破裂の危険性があります。 交換する電池は メーカーが推奨する型、または同等のものを使用下さい。...
- Page 91 MBI-6219B-TxxN MicroBlade Module User’s Manual ﻓﻌﻠﯿﻚ ﺑﻄﺮﯾﻘﺔ ﻏﯿﺮ ﺻﺤﯿﺤﺔ اﻟﺒﻄﺎرﯾﺔ اﻧﻔﺠﺎر ﻓﻲ ﺣﺎﻟﺔ اﺳﺘﺒﺪال ﻣﻦ ھﻨﺎك ﺧﻄﺮ اﺳﺘﺒﺪال اﻟﺒﻄﺎرﯾﺔ ﺑﮫ اﻟﺸﺮﻛﺔ اﻟﻤﺼﻨﻌﺔ أوﺻﺖ ﻛﻤﺎ أو ﻣﺎ ﯾﻌﺎدﻟﮭﺎ ﺑﻨﻔﺲ اﻟﻨﻮع ﻓﻘﻂ ﺘﻌﻠﯿﻤﺎت اﻟﺸﺮﻛﺔ اﻟﺼﺎﻧﻌﺔ اﻟﻤﺴﺘﻌﻤﻠﺔ وﻓﻘﺎ ﻟ ﺗﺨﻠﺺ ﻣﻦ اﻟﺒﻄﺎرﯾﺎت 경고 ! 배터리가...
- Page 92 אם קיים יותר מספק אח ד ד !אזהרה כל החיבורים על מנת לרוקן יש להסיר את .ליחדה יש יותר מחיבור אחד של ספק .דה י את היח اﻣﺪاد اﻟﻄﺎﻗﺔ ﺑﻮﺣﺪات ﻋﺪة اﺗﺼﺎﻻت ﺠﮭﺎز اﻟ ﯾﻜﻮن ﻟﮭﺬا ﻗﺪ اﻟﻜﮭﺮﺑﺎء ﻋﻦ ﻮﺣﺪة اﻟ...
- Page 93 MBI-6219B-TxxN MicroBlade Module User’s Manual מתח בפנל האחור י י !הרה אז קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך .העבודה اﻟﻠﻮﺣﺔ أواﻟﻄﺎﻗﺔ اﻟﻤﻮﺟﻮدة ﻋﻠﻰ اﻟﺘﯿﺎر اﻟﻜﮭﺮﺑﺎﺋﻲ ﻣﻦ ﺧﻄﺮ ھﻨﺎك ھﺬا اﻟﺠﮭﺎز ﺧﺪﻣﺔ ﻛﻦ ﺣﺬرا ﻋﻨﺪ ﯾﻌﻤﻞ اﻟﻨﻈﺎم...
- Page 94 תיאום חוקי החשמל הארצי !אזהרה הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים התקנת اﻟﻤﺘﻌﻠﻘﺔ اﻟﻤﺤﻠﯿﺔ واﻟﻮطﻨﯿﺔ ﻘﻮاﻧﯿﻦ ﯾﺠﺐ أن ﯾﻤﺘﺜﻞ ﻟﻠ اﻟﻜﮭﺮﺑﺎﺋﯿﺔ ﺗﺮﻛﯿﺐ اﻟﻤﻌﺪات ﺑﺎﻟﻜﮭﺮﺑﺎء B-13...
- Page 95 MBI-6219B-TxxN MicroBlade Module User’s Manual 경고 ! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다 . Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften. Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations.
- Page 96 경고 ! 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다 . Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen. Hot Swap Fan Warning Warning! The fans might still be turning when you remove the fan assembly from the chassis.
- Page 97 Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードと AC アダプター...
- Page 98 Fehlfunktion oder ein Brand entstehen. Elektrische Geräte und Material Safety Law verbietet die Verwendung von UL-oder CSA-zertifizierte Kabel, UL oder CSA auf der Code für alle anderen elektrischen Geräte als Produkte von Supermicro nur bezeichnet gezeigt haben.
- Page 99 ﻛﺎﺑﻼت اﺳﺘﺨﺪام أي أن . اﻟﺘﻲ ﻣﻊ اﻟﻤﻨﺘﺞ ﺗﻢ ﺗﻮﻓﯿﺮھﺎ ﻟﻚ UL أوCSA اﻟﻜﺎﺑﻼت ﯾﺤﻈﺮ اﺳﺘﺨﺪام اﻟﺴﻼﻣﺔ ﻗﺎﻧﻮن وﻣﻮاد اﻷﺟﮭﺰة اﻟﻜﮭﺮﺑﺎﺋﯿﺔ ﻣﻌﺘﻤﺪة ﻣﻦ ﻗﺒﻞ ﻣﻦ ﻗﺒﻞ اﻟﻤﻌﯿﻨﺔ اﻟﻤﻨﺘﺠﺎت ﻏﯿﺮ ﻛﮭﺮﺑﺎﺋﯿﺔ أﺧﺮى أﺟﮭﺰة ﻷي Supermicro ﻋﻼﻣﺔ اﻟﺘﻲ ﺗﺤﻤﻞ (UL/CSA B-18...
- Page 100 Het gebruik van andere kabels en adapters kan leiden tot een storing of een brand. Elektrisch apparaat en veiligheidsinformatiebladen wet verbiedt het gebruik van UL of CSA gecertificeerde kabels die UL of CSA die op de code voor andere elektrische apparaten dan de producten die door Supermicro alleen. B-19...
- Page 101 MBI-6219B-TxxN MicroBlade Module User’s Manual B-20...
- Page 102 Appendix C: System Specifications Appendix C Specifications and Compliance Operating Environment Operating Temperature: 10º to 35º C (50º to 95º F) Non-operating Temperature: -40º to 70º C (-40º to 158º F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) Regulatory Compliance FCC, ICES, CE, VCCI, RCM, NRTL, CB Applied Directives, Standards...
- Page 103 SuperBlade Server MBI-6219B-TxxN User's Manual General Data Center Environmental Specifications Particulate contamination specifications Air filtration: Data centers must be kept clean to Class 8 of ISO 14644-1 (ISO 2015). The air entering the data center should be filtered with a MERV 11 filter or better. The air within the data center should be continuously filtered with a MERV 8 filter or better.
- Page 104 Disclaimer The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
