  • Page 1 H13SSW USER’S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 About This Manual This manual is written for system integrators, IT technicians and knowledgeable end users. It provides information for the installation and use of the H13SSW motherboard. About This Motherboard Built upon the functionality and capability of the AMD EPYC™ 9004 series processors, the H13SSW motherboard provides superior graphics capability and system performance while consuming little power.

  • Page 4: Contacting Supermicro

    H13SSW User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support)

  • Page 5: Table Of Contents

    Preface Table of Contents Contacting Supermicro ......................4 Chapter 1 Introduction 1.1 Quick Reference ........................9 Quick Reference Table ......................10 Motherboard Features .......................11 Block Diagram ........................13 1.2 Processor and Chipset Overview ..................14 1.3 Special Features ........................14 Recovery from AC Power Loss ..................14 1.4 System Health Monitoring ....................15...
  • Page 6 H13SSW User's Manual 2.7 Connectors .........................36 Power Connections ......................36 Headers ..........................39 2.8 Jumper Settings .........................40 How Jumpers Work ......................40 2.9 LED Indicators ........................42 Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures ....................44 Before Power On ......................44 No Power ..........................44 No Video ...........................45 System Boot Failure ......................45...

  • Page 7: Chapter 1 Introduction

    • If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

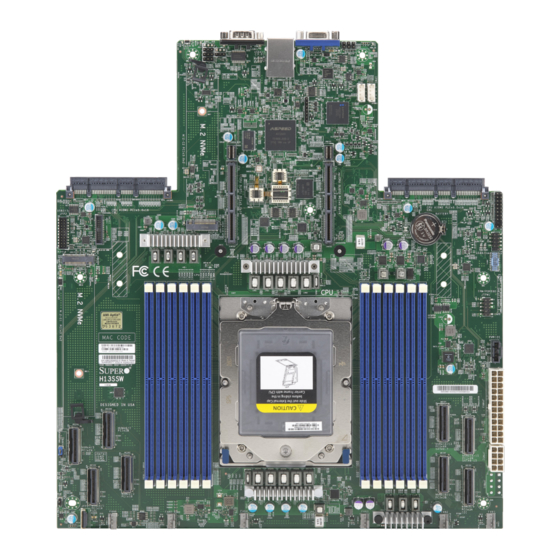

  • Page 8 H13SSW User's Manual Figure 1-1. H13SSW Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB revision available at the time of publication of the manual. The motherboard you received may or may not look...

  • Page 9: Quick Reference

    NVMe10/11 JFP1 FAN6 FAN5 FAN4 FAN3 FAN2 FAN1 Figure 1-2. H13SSW Layout Notes: • Components not documented are for internal testing only. • See Chapter 2 for detailed information on jumpers, I/O ports, and JF1 front panel connec- tions. •...

  • Page 10: Quick Reference Table

    4-Pin BMC External I C Header (For an IPMI-Supported Card) DIMMA1~DIMML1 DIMM Slots FAN1~FAN6 System Cooling Fans AIOM1~AIOM2 Supermicro® Advanced I/O Module (AIOM) Slots JFP1 Front Control Panel Header 1 LWIO/ RWIO Riser Slots IPMI LAN RJ45 Dedicated IPMI LAN Port...

  • Page 11: Motherboard Features

    Chapter 1: Introduction Motherboard Features • AMD EPYC™ 9004 series processors in Socket SP5 Memory • Up to 3TB registered ECC DDR5 4800 MT/s speed in 12 DIMM slots DIMM Size • Up to 256GB size at 1.1V Chipset • System on Chip (SoC) Expansion Slots •...
  • Page 12 H13SSW User's Manual Fan Control • One 4-pin fan header (spare) • Fan speed control System Management • IPMIView/SMCIPMITOOL/IPMICFG • SuperDoctor® 5 • SDO/SPM/SSM/SUM-OOB/InBand • Trusted Platform Module (TPM) support LED Indicators • Power / Suspend-state Indicator • UID / Remote UID Dimensions •...

  • Page 13: Block Diagram

    Chapter 1: Introduction Block Diagram H13SSW AMD SP5 Rev. 1.01 IPMI LAN RJ45 JLWIO JRWIO COM1 RTL8211F USB 3.0 DDR4 EMMC EMMC EMMC CPLD AST2600 uPD720202 BMC ROM BIOS ROM Front USB2.0 X2Front USB2.0 X2 HUB 1x4 HUB 1x4 M.2 Conn M.2-C1...

  • Page 14: Processor And Chipset Overview

    5nm process architecture, and is optimized for embedded storage solutions, networking applications, or cloud-computing platforms. With support of the new microarchitecture 5nm process technology, the H13SSW drastically increases system performance for a multitude of server applications.

  • Page 15: System Health Monitoring

    Chapter 1: Introduction 1.4 System Health Monitoring This section describes the health monitoring features of the H13SSW motherboard. The motherboard has an onboard Baseboard Management Controller (BMC) chip that supports system health monitoring. Once a voltage becomes unstable, a warning is given or an error message is sent to the screen.

  • Page 16: Acpi Features

    H13SSW User's Manual 1.5 ACPI Features ACPI stands for Advanced Configuration and Power Interface. The ACPI specification defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a computer system including its hardware, operating system and application software.

  • Page 17: Chapter 2 Installation

    Chapter 2: Installation Chapter 2 Installation 2.1 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent damage to your motherboard, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •...

  • Page 18: Motherboard Installation

    H13SSW User's Manual 2.2 Motherboard Installation All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis.
  • Page 19 Chapter 2: Installation Figure 2-1. Motherboard Mounting Holes...

  • Page 20: Installing The Motherboard

    H13SSW User's Manual Installing the Motherboard 1. Install the I/O shield into the back of the chassis. 2. Locate the mounting holes on the motherboard. See the previous page for the location. 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

  • Page 21: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing the Processor and Heatsink 1. Unscrew the screw #1 holding down the force frame.
  • Page 22 H13SSW User's Manual 2. The spring-loaded force frame will raise up after the screw securing it (#1) is removed. Gently allow it to lift up to its stopping position. 3. Lift the rail frame up by gripping the lift tabs near the front end of the rail frame. While keeping a secure grip of the rail frame, lift it to a position so you can do the next step of removing the external cap.
  • Page 23 Chapter 2: Installation 4. Remove the external cap from the rail frame by pulling it upwards through the rail guides on the rail frame. External Cap PnP Cover Cap 5. The CPU package is shipped from the factory with the carrier frame pre-assembled. Grip the handle of the carrier frame/CPU package assembly from its shipping tray, and while gripping the handle, align the flanges of the carrier frame onto the rails of the rail frame so its pins will be at the bottom when the rail frame is lowered later.
  • Page 24 H13SSW User's Manual Note: You can only install the CPU inside the socket in one direction with the handle at the top. Make sure that it is properly inserted into the CPU socket before closing the rail frame plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the rail frame plate again, and double-check that the CPU is aligned properly.
  • Page 25 Chapter 2: Installation 8. Gently lower the rail frame down onto the socket until the latches on the rail frame engage with the socket housing and it rests in place. DO NOT force it into place! 9. Note that the force frame is spring loaded and has to be held in place before it is secured.
  • Page 26 H13SSW User's Manual 10. Replace and tighten the screws in the same order they were removed. When finished, the force frame will be secure over both the rail frame and CPU package. 11. After the force frame is secured and the CPU package is in place, now you must install the heatsink to the frame.
  • Page 27 Chapter 2: Installation 12. Using a diagonal pattern, tighten the six screws down on the heatsink in a clockwise fashion until secure. The heatsink will now be secured and you have finished installing the processor and heatsink onto the motherboard. Repeat this procedure for any remaining CPU sockets on the motherboard.
  • Page 28 H13SSW User's Manual Un-installing the Processor and Heatsink 1. Remove the heatsink attached to the top of the CPU package by reversing the installation procedure. 2. Clean the thermal grease left by the heatsink on the CPU package lid to limit the risk of it contaminating the CPU package land pads or contacts in the socket housing.

  • Page 29: Memory Support And Installation

    Memory Support The H13SSW supports up to 3TB of ECC DDR5 4800 MT/s speed, RDIMM/LRDIMM/3DS memory in twelve slots. Refer to the table below for additional memory information. Note: Check the Supermicro website for possible updates to memory support.

  • Page 30: Dimm Module Population Sequence

    H13SSW User's Manual DIMM Module Population Sequence There is no specific order or sequence required when installing memory modules. However do keep the following in mind: • Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.

  • Page 31: Dimm Installation

    Chapter 2: Installation DIMM Installation 1. Insert the desired number of DIMMs into the memory slots. See Memory Support for details on memory population guidelines. 2. Push the release tabs outwards on both ends of the DIMM slot to unlock it. Receptive Point 3.

  • Page 32: Rear I/O Ports

    H13SSW User's Manual 2.5 Rear I/O Ports See Figure 2-1 below for the locations and descriptions of the various I/O ports on the rear of the motherboard. Figure 2-3. I/O Port Locations and Definitions Rear I/O Ports Description Description VGA Port...

  • Page 33: Front Control Panel

    JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the location of JF1. MEGERAC LICENSE...

  • Page 34: Front Control Panel Pin Definitions

    H13SSW User's Manual Front Control Panel Pin Definitions NMI Button The non-maskable interrupt button header is located on pins 19 and 20 of JF1. Refer to the table below for pin definitions. NMI Button Pin Definitions (JF1) Pin# Definition NMI Switch...
  • Page 35 Chapter 2: Installation UID LED The UID LED is on pins 7 and 8 of JF1. Connect the front panel UID LED to this header to indicate when the rear UID switch is turned on. Refer to the table below for pin definitions. UID LED Pin Definitions (JF1) Pin#...

  • Page 36: Connectors

    H13SSW User's Manual 2.7 Connectors Power Connections 12V 8-pin Auxiliary Power Connector (JPWR2) JPWR2 is an 8-pin ATX power input to provide auxiliary power to the processor. Refer to the table below for pin definitions. 12V 8-pin Power Connector Pin Definitions...
  • Page 37 Chapter 2: Installation NVMe Ports (NVMe 0~11) The H13SSW has twelve NVMe ports (2 ports per 1 MCIO x 8) on the motherboard. These ports provide high speed and low latency directly from the CPU to NVMe Solid State (SSD) drives.
  • Page 38 H13SSW User's Manual USB Ports (USB0/1) There are a total of four USB ports supported on the motherboard. Two are located on the front panel, and two are located on the back panel. Front Panel USB 0/1 (2.0) Pin Definitions...

  • Page 39: Headers

    Chapter 2: Installation Headers Power SMB Header (PWRI2C) Power System Management Bus (I C) header monitors power supply, fan and system temperatures. See the table below for pin definitions. Power SMB Header Pin Definitions Pin# Definition Clock Data Alert Ground +3.3V 4-pin External BMC I2C Header A System Management Bus header for IPMI 2.0 is located at JIPMB1.

  • Page 40: Jumper Settings

    H13SSW User's Manual 2.8 Jumper Settings How Jumpers Work To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin #1 is identified with a square solder pad on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2.
  • Page 41 Chapter 2: Installation JSATA1 This 3-pin power connector at JSATA1 provides power from the motherboard to internal SATA hard drive or SSD device. Refer to the table below for pin definitions. JSATA1 Pin Definitions Pin# Definition Auto (Default) Force SATA...

  • Page 42: Led Indicators

    H13SSW User's Manual 2.9 LED Indicators BMC LAN Port LEDs A dedicated BMC LAN is located on the rear I/O panel and has two LED indicators. The LED on the right indicates connection and activity, while the LED on the left indicates the speed of connection.
  • Page 43 Chapter 2: Installation Onboard Power OK LED (LED7) LED7 is an onboard power OK LED. When this LED7 is lit, it means the system is turned on, and all the system power rails are ready. When the system is turned off, or any one of the system power rails fail, this LED will turn off.

  • Page 44: Chapter 3 Troubleshooting

    H13SSW User's Manual Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/ or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.

  • Page 45: No Video

    Chapter 3: Troubleshooting No Video 1. Check that the VGA cable is connected properly, and the monitor is on. 2. Check if you follow the guidelines to install the memory module (see DIMM Module Population in chapter 2). 3. Reseat the memory DIMM modules. Note: If you are a system integrator, VAR or OEM, a POST diagnostics card is recommended.

  • Page 46: When The System Becomes Unstable

    H13SSW User's Manual 3. If the above steps do not fix the setup configuration problem, contact your vendor for repairs. When the System Becomes Unstable A. If the system becomes unstable during or after OS installation, check the following: 1. CPU/BIOS support: Make sure that your CPU is supported and that you have the latest BIOS installed in your system.

  • Page 47: Technical Support Procedures

    Chapter 3: Troubleshooting 5. Check and change one component at a time instead of changing several items at the same time. This will help isolate and identify the problem. 6. To find out if a component is good, swap this component with a new one to see if the system will work properly.

  • Page 48: Frequently Asked Questions

    3.3 Frequently Asked Questions Question: What type of memory does my motherboard support? Answer: The H13SSW motherboard supports up to 3TB of ECC DDR5 4800 MT/s speed, RDIMM/LRDIMM/3DS in twelve slots. See Section 2.4 for details on installing memory. Question: How do I update my BIOS? Answer: It is recommended that you do not upgrade your BIOS if you are not experiencing any problems with your system.

  • Page 49: Returning Merchandise For Service

    Shipping and handling charges will be applied for all orders that must be mailed when service is complete. For faster service, RMA authorizations may be requested online (http://www.supermicro.com/ support/rma/). This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

  • Page 50: Proper Battery Disposal

    H13SSW User's Manual Proper Battery Disposal Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

  • Page 51: Chapter 4 Bios

    BIOS 4.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the H13SSW motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 52: Main Setup

    H13SSW User's Manual 4.2 Main Setup When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below.
  • Page 53 Chapter 4: BIOS Supermicro H13SSW BIOS Version This item displays the version of the BIOS ROM used in the system. Build Date This item displays the date when the version of the BIOS ROM used in the system was built.

  • Page 54: Advanced

    H13SSW User's Manual 4.3 Advanced Use the arrow keys to select Boot Setup and press <Enter> to access the submenu items. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable.
  • Page 55 Chapter 4: BIOS Bootup NumLock State Use this feature to select the keyboard <Numlock> state. The options are On and Off. Wait For "F1" If Error Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled.
  • Page 56 H13SSW User's Manual CPU Configuration CPU Configuration SMT Control Use this setting to specify Symmetric Multithreading. Options include Disabled and Auto. Core Performance Boost This setting is used to configure for Core Performance Boost. Options include Disabled and Auto. Global C-state Control This setting is used to configure for Global C-state Control.
  • Page 57 Chapter 4: BIOS L1 Stream HW Prefetcher / L2 Stream HW Prefetcher This setting is used to enable or disable the L1/L2 Stream Hardware Prefetcher. The options are Disabled, Enabled and Auto. CCD Control Use this setting to disable CCDs in the CPU. Options include Auto, 2 CCDs, 4 CCDs, 6 CCDs, 8 CCDs and 10 CCDs.
  • Page 58 H13SSW User's Manual CPU1 PCIe Package Group P3 This setting selects the PCIe port bifurcation configuration for the selescted slot. The options include Auto, x4x4x4x4, x4x4x8, x8x4x4, x8x8 and x16. CPU1 PCIe Package Group G3 This setting selects the PCIe port bifurcation configuration for the selescted slot. The options include Auto, x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16 and SATA.
  • Page 59 Chapter 4: BIOS Power Profile Selection Options include High Performance Mode, Efficiency Mode and Maximum IO Performance Mode. DF Cstates Use this setting to enable/disable DF Cstates. Options include Disabled, Enabled, and Auto. Data Link Feature Cap Use this setting to set Data Link Feature Cap. Options include Enabled, Disabled and Auto. SEV-SNP Support Use this setting for SEV-SNP Support.
  • Page 60 H13SSW User's Manual CPU1 Memory Information CPU1 Memory Information These sections are for informational purposes. They will display some details about the detected memory according to each CPU on the motherboard, such as: • Detected Size (per slot, in MB) •...
  • Page 61 Chapter 4: BIOS Super IO Configuration Super IO Configuration The following Super IO information will display: • Super IO Chip AST2600 Serial Port 1 Configuration Serial Port 1 Configuration Serial Port 1 Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.
  • Page 62 H13SSW User's Manual Serial Port Console Redirection COM1 Console Redirection Select Enabled to enable console redirection support for a serial port specified by the user. The options are Disabled and Enabled. (if enabled) Console Redirection Settings  Terminal Type This feature allows the user to select the target terminal emulation type for Console Redirection.
  • Page 63 Chapter 4: BIOS Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled. Resolution 100x31 Select Enabled for extended-terminal resolution support. The options include Disabled and Enabled.
  • Page 64 H13SSW User's Manual Terminal Type This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes.
  • Page 65 Chapter 4: BIOS Above 4G Decoding This setting Disables or Enables 64-bit capable devices ability to be decoded in above 4G address space (only if the system supports 64-bit PCI decoding). The options are Disabled and Enabled. Re-Size BAR Support If system has resizable BAR capable PCIe devices, use the options Disable or Enable resizable BAR support.
  • Page 66 H13SSW User's Manual PCIe Ten Bit Tag Support Use this setting to Disable, Enable or Auto control the PCIe ten bit tags for supported devices. NVMe Firmware Source Use this setting to select between the AMI Native firmware support or the device vendor- defined firmware support.
  • Page 67 Chapter 4: BIOS IPv4 PXE Support This setting allows you to Disable or Enable IPv4 PXE boot support. If disabled, IPv4 PXE boot support will not be available. IPv4 HTTP Support This setting allows you to Disable or Enable IPv4 HTTP boot support. If disabled, IPv4 HTTP boot support will not be available.
  • Page 68 H13SSW User's Manual Gateway addresses DNS addresses Interface ID The 64-bit alternative interface ID for the device. The string is colon separated. The default setting is 7E:C2:55:FF:FE:4:29:F6. DAD Transmit Count The number of consecutive neighbor solicitation messages sent while performing dupli- cate address detection on a tentative address.
  • Page 69 Chapter 4: BIOS Enter Configuration Menu Interface Name Interface Type MAC address Host address Route Table Gateway addresses DNS addresses Interface ID The 64-bit alternative interface ID for the device. The string is colon separated. The default setting is 7E:C2:55:FF:FE:4:29:F7. DAD Transmit Count The number of consecutive neighbor solicitation messages sent while performing dupli- cate address detection on a tentative address.
  • Page 70 H13SSW User's Manual SATA Configuration SATA Configuration SATA Enable Use this feature to disable or enable OnChip SATA Controller. The options include Disabled, Enabled, and Auto. SATA Information Shows STAT devices information. HTTP Boot Configuration HTTP Boot Configuration HTTP Boot Policy Sets the HTTP boot policy to Apply to all LANs, Apply to each LAN, or Boot Priority #1 instantly.
  • Page 71 Enter IP4 address in dotted-decimal notation. Supermicro KMS TCP Port number Enter Supermicro KMS TCP port number. The default value is 5696. KMS Time Out KMS Server connecting time-out, unit is second, in the range of 5~30 seconds. The default value is 5.
  • Page 72 H13SSW User's Manual TLS Authenticate Configuration This submenu allows the user to configure Transport Layer Security (TLS) settings. Server CA Configuration Enroll Certification Enroll Certification Using File Use this feature to enroll certification from a file. Certification GUID Use this feature to enroll to input the certification GUID.

  • Page 73: Bmc

    Chapter 4: BIOS 4.4 BMC This tab allows you to configure the following IPMI settings for the system. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system. BMC Status This item indicates the status of the IPMI firmware installed in your system. System Event Log Enabling/Disabling Options SEL Components...
  • Page 74 H13SSW User's Manual Erasing Settings Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot.
  • Page 75 Chapter 4: BIOS Subnet Mask This item displays the sub-network that this computer belongs to. The value of each three- digit number separated by dots should not exceed 255. Station MAC Address This item displays the Station MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers.

  • Page 76: Event Logs

    H13SSW User's Manual 4.5 Event Logs This tab allows the user to configure the following event logs settings for the system. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 77 Chapter 4: BIOS When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately. SMBIOS Event Log Standard Settings Log System Boot Event Select Enabled to log system boot events.

  • Page 78: Security

    H13SSW User's Manual 4.6 Security This tab allows you to configure the following security settings for the system. Administrator Password Press <Enter> to create a new, or change an existing Administrator password. Note that if the Administrator Password is erased, the User Password will be cleared as well.
  • Page 79 Chapter 4: BIOS Secure Boot Mode Use this item to select the secure boot mode. The options are Standard and Custom. CSM Support Select Enabled to support the EFI Compatibility Support Module (CSM), which provides compatibility support for traditional legacy BIOS for system boot. The options are Disabled and Enabled.
  • Page 80 H13SSW User's Manual Secure Boot Variable/Size/Key Numbers/Key Source Platform Key (PK) This feature allows the user to enter and configure a set of values to be used as platform firmware keys for the system. The sizes, keys numbers, and key sources of the platform keys will be indicated as well.
  • Page 81 Chapter 4: BIOS OsRecovery Signature (dbr) This item uploads and installs an OSRecovery Signature. Use this feature to export NVRAM content of secure boot variables to files in a root folder on a file system device. The file formats accepted are: 1) Public Key Certificate a.

  • Page 82: Boot

    H13SSW User's Manual 4.7 Boot Use this tab to configure Boot Settings: Boot Mode Select Use this item to select the type of device that the system is going to boot from. The options are Legacy, UEFI, and Dual. The default setting is UEFI.
  • Page 83 Chapter 4: BIOS Delete Boot Option Use this feature to remove a pre-defined boot device from which the system will boot during startup. The default is Select one to Delete. UEFI Network Drive BBS Priorities This feature allows users to specify the Boot Device Priority sequence from available UEFI Network Drives.

  • Page 84: Save & Exit

    H13SSW User's Manual 4.8 Save & Exit Select the Save & Exit tab to enter the Save & Exit BIOS Setup screen. Save Options Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 85 Chapter 4: BIOS Default Options Restore Optimized Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>.

  • Page 86: Appendix A Software

    1. Create a method to access the Microsoft Windows installation ISO file. That can be a USB flash or media drive. 2. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
  • Page 87 Appendix A: Software 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner. Figure A-2.
  • Page 88 The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wdl/. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash or media drive.
  • Page 89 A.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 90: Appendix B Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 91 Appendix B: Warning Statements Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta.
  • Page 92 H13SSW User's Manual B.2 Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要があります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.
