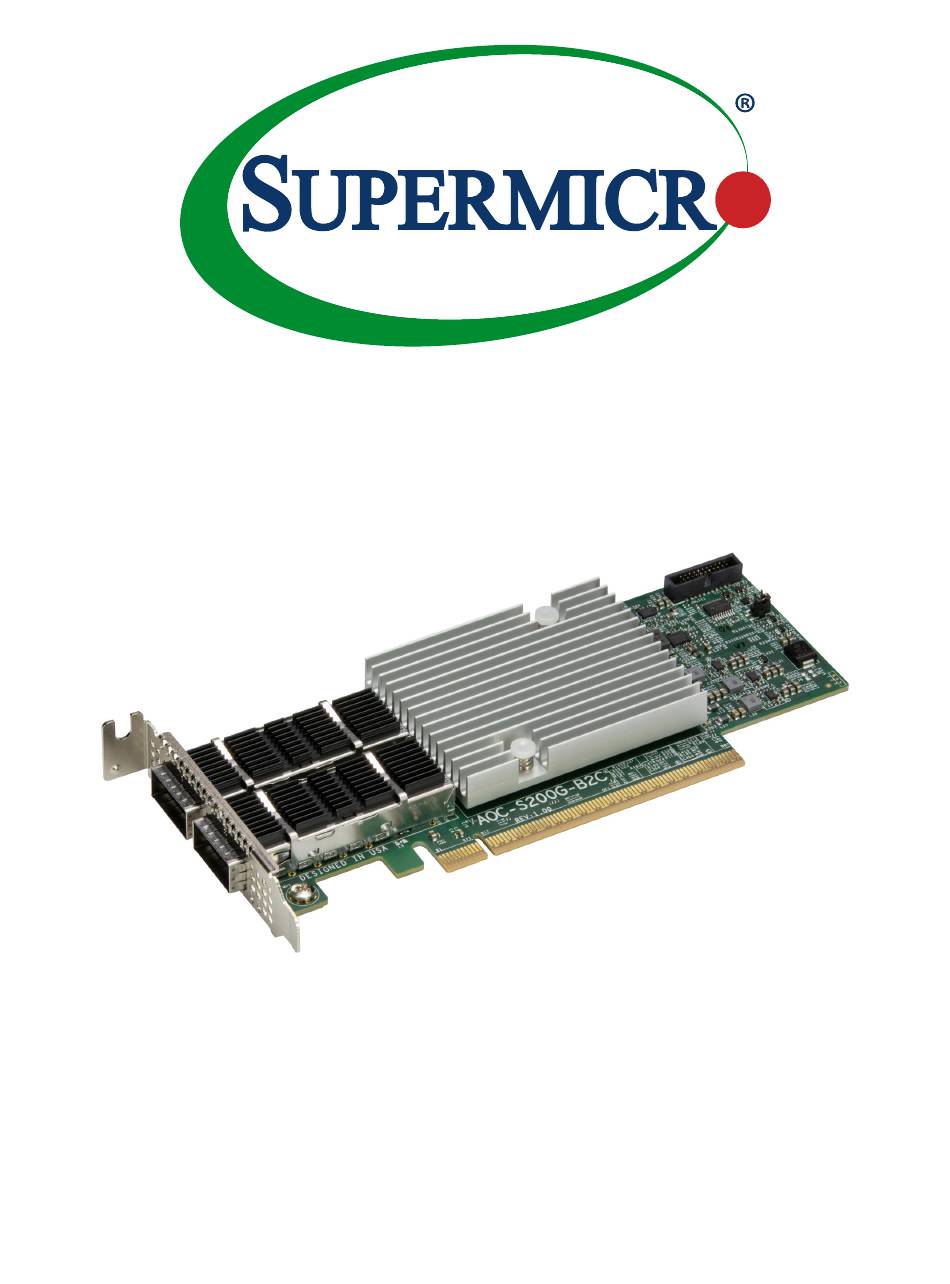

- Page 1 AOC-S200G-B2C USER'S MANUAL Revision 1.0...
- Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
- Page 3 About This Manual This user's guide is written for system integrators, PC technicians, and knowledgeable PC users. It provides information for the installation and use of the AOC-S200G-B2C add-on card. About This Add-On Card The AOC-S200G-B2C is based on the Broadcom BCM57608 Ethernet Controller and ®...
- Page 4 A secure data deletion tool designed to fully erase all data from storage devices can be found at our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/ utility/Lot9_Secure_Data_Deletion_Utility/ • If you have any questions, contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Check the Supermicro website for possible updates to the manual revision level.
- Page 5 Preface Naming Convention...
- Page 6 Super AOC-S200G-B2C User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support)
-
Page 7: Table Of Contents
Preface Table of Contents Chapter 1 Introduction 1.1 Overview ..........................8 1.2 Key Features ........................8 1.3 Specifications ........................9 Chapter 2 Hardware Components 2.1 Add-On Card Image and Layout ..................12 2.2 Major Components ......................13 2.3 QSFP112 Ethernet Connections ..................14 2.4 NC-SI Header ........................15 2.5 Jumper Settings .........................16 2.6 PCIe 5.0 x16 Connector .....................17 Chapter 3 Installation... -
Page 8: Chapter 1 Introduction
Congratulations on purchasing your add-on card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards of quality and performance. For product support and updates, please refer to our website at https://www.supermicro.com/en/products/networking/adapters. -
Page 9: Specifications
Chapter 1: Introduction 1.3 Specifications Networking Interface • Eight SerDes capable of 100/50G PAM4 and 25G NRZ • QSFP112 • Two 200/100/50/25/10 GbE • Auto-negotiation with auto-detect • IEEE-1588v2 • IEEE 802.3x flow control • IEEE 802.3ad Link Aggregation • Virtual LANs- 802.1q VLAN tagging •... - Page 10 Super AOC-S200G-B2C User's Manual • TCP Segmentation Offload (TSO) • Large Receive Offload (LRO) • Large Send Offload (LSO) • Receive Side Scaling (RSS) • Transmit Side Scaling (TSS) NIC Partitioning (NPAR) • 16 physical functions • QoS per partition •...
- Page 11 Chapter 1: Introduction TruFlow Flow Processing • Exact/Wildcard Match Flow Lookup • VLAN insertion/deletion • NAT/NAPT/Mirroring Data Center Bridging • Priority-based flow control (PFC; IEEE 802.1Qbb) • Enhanced transmission selection (ETS; IEEE 802.1Qau) • Quantized Congestion Notification (QCN; IEEE 802.1Qau) •...
-
Page 12: Chapter 2 Hardware Components
Super AOC-S200G-B2C User's Manual Chapter 2 Hardware Components 2.1 Add-On Card Image and Layout AOC-S200G-B2C View JNCSI1 JPAUX1 AOC-S200G-B2C LED2 DESIGNED IN USA REV:1.01 LED1 AOC-S200G-B2C Layout... -
Page 13: Major Components
Chapter 2: Hardware Components 2.2 Major Components The following major components are installed on AOC-S200G-B2C: AOC-S200G-B2C Major Components Component Name Definition Broadcom BCM57608 Ethernet 200 GbE controller ® PCIe Gen 5.0 x16 connector Connector Cage Connector Cage J1A1 Quad Small Form-Factor Pluggable112... -
Page 14: Qsfp112 Ethernet Connections
Super AOC-S200G-B2C User's Manual 2.3 QSFP112 Ethernet Connections QSFP112 Ports Two Quad Small Form-Factor Pluggable 112 (QSFP112) connectors are located at J1/J2 on the add-on card. The QSFP112 ports operate at up to 200 Gb/s. Plug the Direct Attached Copper (DAC) cable into the QSFP112 ports for network connections. -
Page 15: Nc-Si Header
Network Interface Controller (NIC) for remote management. For the network sideband interface to work properly, you will need to use a motherboard that supports NC-SI and also need to have a special cable. Please contact Supermicro at www.supermicro.com to purchase the cable for this header. -
Page 16: Jumper Settings
Super AOC-S200G-B2C User's Manual 2.5 Jumper Settings Connector Explanation of Jumpers Pins To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. -
Page 17: Pcie 5.0 X16 Connector
A PCIe 5.0 x16 connector is located at GF1 on the add-on card. Insert this connector into a PCIe 5.0 x16 slot on a motherboard to use this add-on card. 1. PCI-e 5.0 x16 connector JNCSI1 JPAUX1 AOC-S200G-B2C LED2 DESIGNED IN USA REV:1.01 LED1... -
Page 18: Chapter 3 Installation
Chapter 3 Installation Your system came with the AOC-S200G-B2C add-on card, which is designed as a part of an integrated solution. We do not recommend that any part of your system components be removed and reinstalled. However, if you do need to remove or re-install a system component, including this add-on card, follow the instructions below to ensure proper system setup. -
Page 19: Before Installation
Chapter 3: Installation 3.2 Before Installation To install the add-on card properly, be sure to follow the instructions below. 1. Power down the system. 2. Remove the power cord from the wall socket. 3. Use industry-standard antistatic equipment (such as gloves or wrist strap) and follow the instructions listed on page 18 to avoid damage caused by ESD. -
Page 20: Installing Drivers (For Broadcom ® Bcm57608)
3.4 Installing Drivers (for Broadcom BCM57608) ® To install drivers for the AOC-S200G-B2C add-on card for either Linux or Windows, follow the instructions below. Before Installing the Drivers for the Linux Operating System Infiniband-diags is a set of utilities designed to help configure, debug, and maintain infiniband fabrics. - Page 21 RoCE, please follow the additional steps below: 1. Download the Linux driver package file: libbnxt_re-<ver>.tar.gz. Note: This driver can be found on either the Supermicro website, or by going to the RoCE_Lib directory from following site (https://www.supermicro.com/wdl/Network-...
- Page 22 Super AOC-S200G-B2C User's Manual Installing 200G Drivers for the Windows Operating System Follow the steps below to install the drivers on the Windows operating system: 1. From the FTP site or CDR-NIC LAN driver CD, go to the following directory: Broadcom.
- Page 23 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
