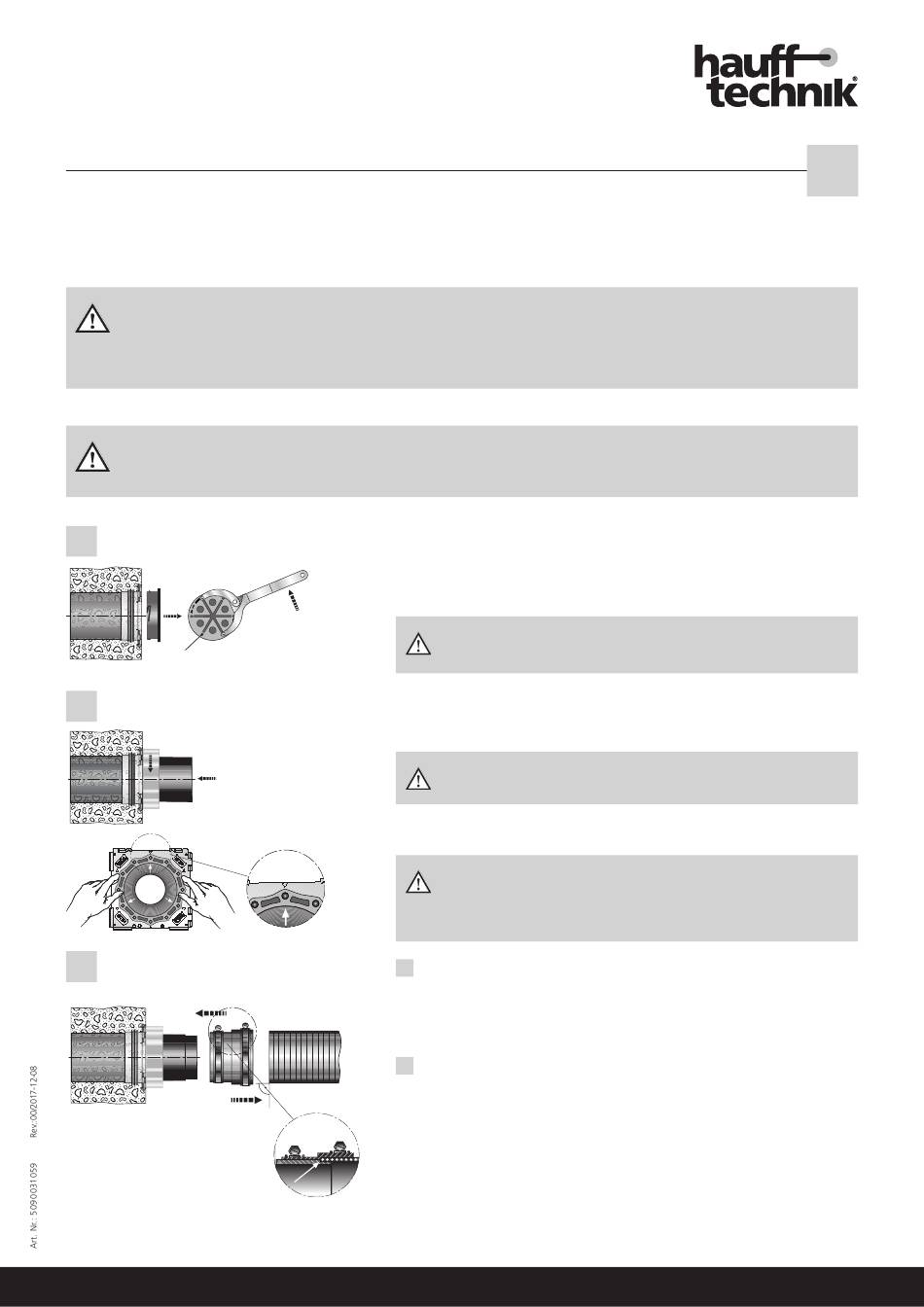

Assembly instruction
SI 150 (cable entry system KES-M150)
H
Sleeve method KES-M150-D/ -KVB/ -D 3/58(-D 7/33) .
Any national regulations regarding the laying and backfi lling of pipework must be followed.
General information
• Pack the foundations and cable support well before laying the duct in order to prevent the system from sinking.
• The incorrect laying of cable or ducts and improper fi lling of the cable trench causes settlement, which can cause damage and leaks.
• Cable entries should only be opened just before fi tting with cables to avoid accidental damage during shell construction work.
• The entry must not be stressed mechanically by cables or pipes.
• Do not use solvent-based cleaning agents to clean the cable entries! (We recommend using Hauff cable cleaner KR M.T.X.).
• For further accessories and information see our website www.hauff-technik.de and our technical data sheets.
General processing advice
• Minimum installation temperature of the rubber sleeves up to + 5° C, preheat system if necessary.
• Duct connection must not be stressed with tractive and compressive forces.
• Rubber sleeves and spiral hose must not be greased.
• The end of the spiral hose must be cut to length at right angles, clean and free of sharp edges or burrs.
1
Open closing cover
Key receptacle
2
Installing system cover
3
Preparation of variant -
D125(D140)
2.
1.
Remove completely protective foil if applicable (after warming slightly). Open closing
cover with the SLS 6G fl exible head spanner (accessory) or with SLS 6G(D) (accessory)
if fi tted with perimeter insulation via the wrench receptacles with a twist to the left.
If necessary, clean out concrete residue from the wrench receptacles on the black
closing cover.
Insert the pre-assembled system cover with a slight twist into the bayonet of the wall
insert and screw in tight clockwise to limit stop (red union nut must not be tightened
at this point).
The red union nut is then tightened clockwise by hand or with the SLS 6G(D) fl exible
Detail
head spanner until fl ush with the wall insert.
3a
Hatefl ex spiral hose 14150
Then insert the rubber sleeve onto the spiral hose 14150 up to the limit stop (1.) and
tighten the clamp using a A/F 13/10 Nm torque spanner. Then push the hose with the
mounted sleeve onto the head nozzle up to the limit stop (2.) and tighten clamping
strap using a A/F 13/10 Nm torque spanner.
3b Hatefl ex spiral hose 14125
Push the sleeve with the small opening side, loose, approx. 5 cm wide, over the Hatefl ex
Detail
spiral hose 14125 (1.).
Then push the spiral hose approx. 4-5 cm (up to the limit stop) into the system cover
(2.). Push the sleeve onto the pre-mounted head nozzle up to the red clamping nut
and tighten both clamping straps using a A/F 13/10 Nm torque spanner.
Limit stop
• Do not knock the closing cover in with a hammer or sharp object.
• Before mounting the system cover in the wall insert, clean the interior of
dirt and check the sealing faces for damage.
Check fi nal position by matching the marker arrows on the wall insert with
the arrows on the system cover.
• Unneeded cable entries can be used as pressure-sealed back-up entries as long
as the Hauff quality seal on the closing cover is undamaged.
• We recommend fi tting existing open cable entries, which are to be used
as back-up entries, with new HSI 150-D closing covers and not to reuse
the removed or possibly damaged closing cover.
