Support
Responsible: Uwe Laarmann
Date: 17.07.2012

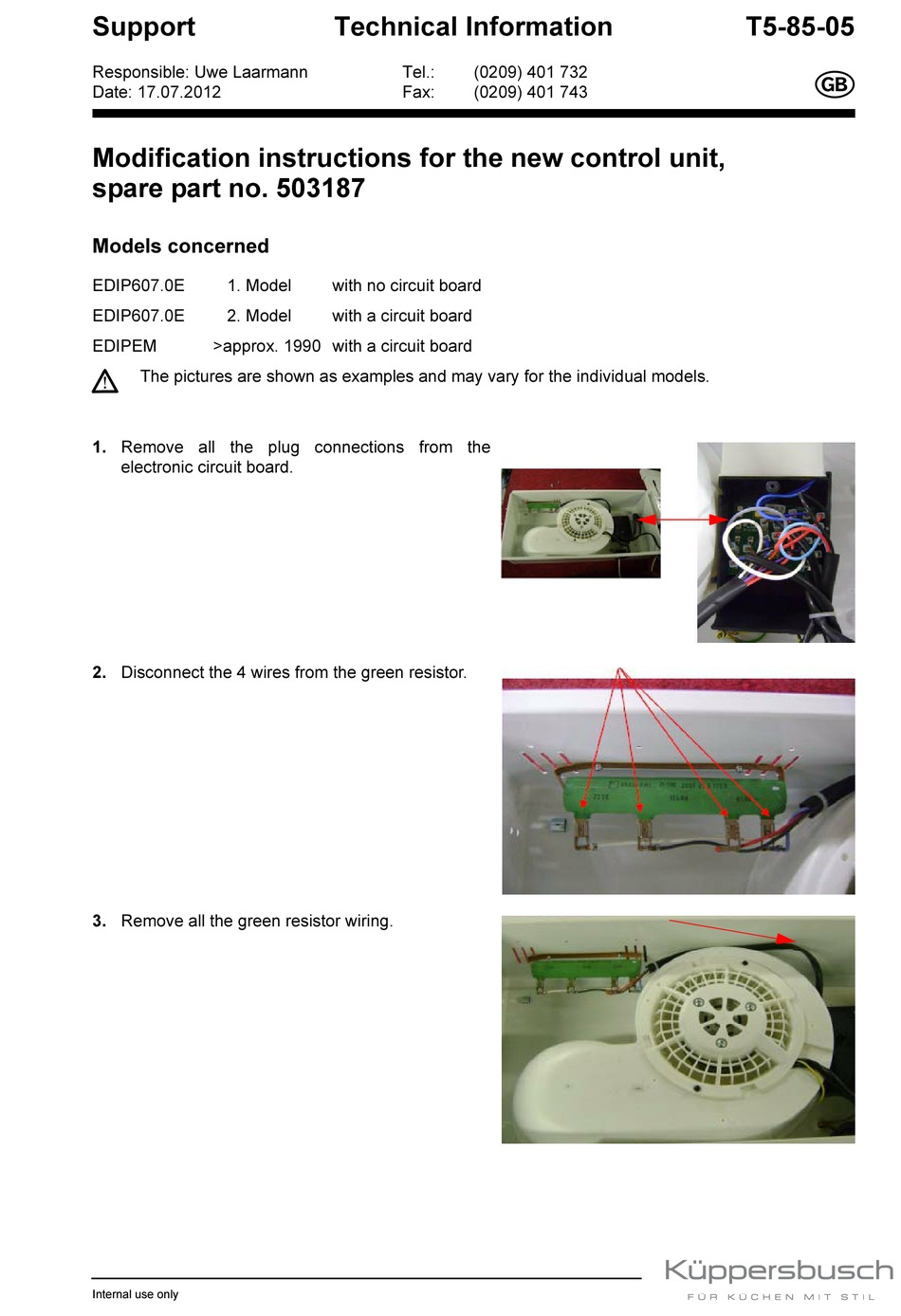

Modification instructions for the new control unit,
spare part no. 503187
Models concerned
EDIP607.0E
1. Model
EDIP607.0E
2. Model
EDIPEM
>approx. 1990 with a circuit board
Z
The pictures are shown as examples and may vary for the individual models.
1. Remove all the plug connections from the
electronic circuit board.
2. Disconnect the 4 wires from the green resistor.
3. Remove all the green resistor wiring.
Internal use only
Technical Information
Tel.:
(0209) 401 732
Fax:
(0209) 401 743
with no circuit board
with a circuit board
T5-85-05
Advertisement
Table of Contents
Related Manuals for Kuppersbusch 503187
Summary of Contents for Kuppersbusch 503187
- Page 1 Responsible: Uwe Laarmann Tel.: (0209) 401 732 Date: 17.07.2012 Fax: (0209) 401 743 Modification instructions for the new control unit, spare part no. 503187 Models concerned EDIP607.0E 1. Model with no circuit board EDIP607.0E 2. Model with a circuit board EDIPEM >approx.
- Page 2 T5-85-05 New control unit (spare-part no. 503187) • If you have an appliance WITHOUT a circuit board, please carry out steps 4, 5 and 6. • If you have an appliance WITH a circuit board, 4, 5 and 6 will not apply. Commence with step 7.
- Page 3 T5-85-05 7. Connect the cables to the circuit board as shown on the adjacent chart. Caution! 8. Take special care not to mix up the cables for the mains connection (18/19) and the lamp cables (32/33). Check this with the numbers on the lamp cables.
