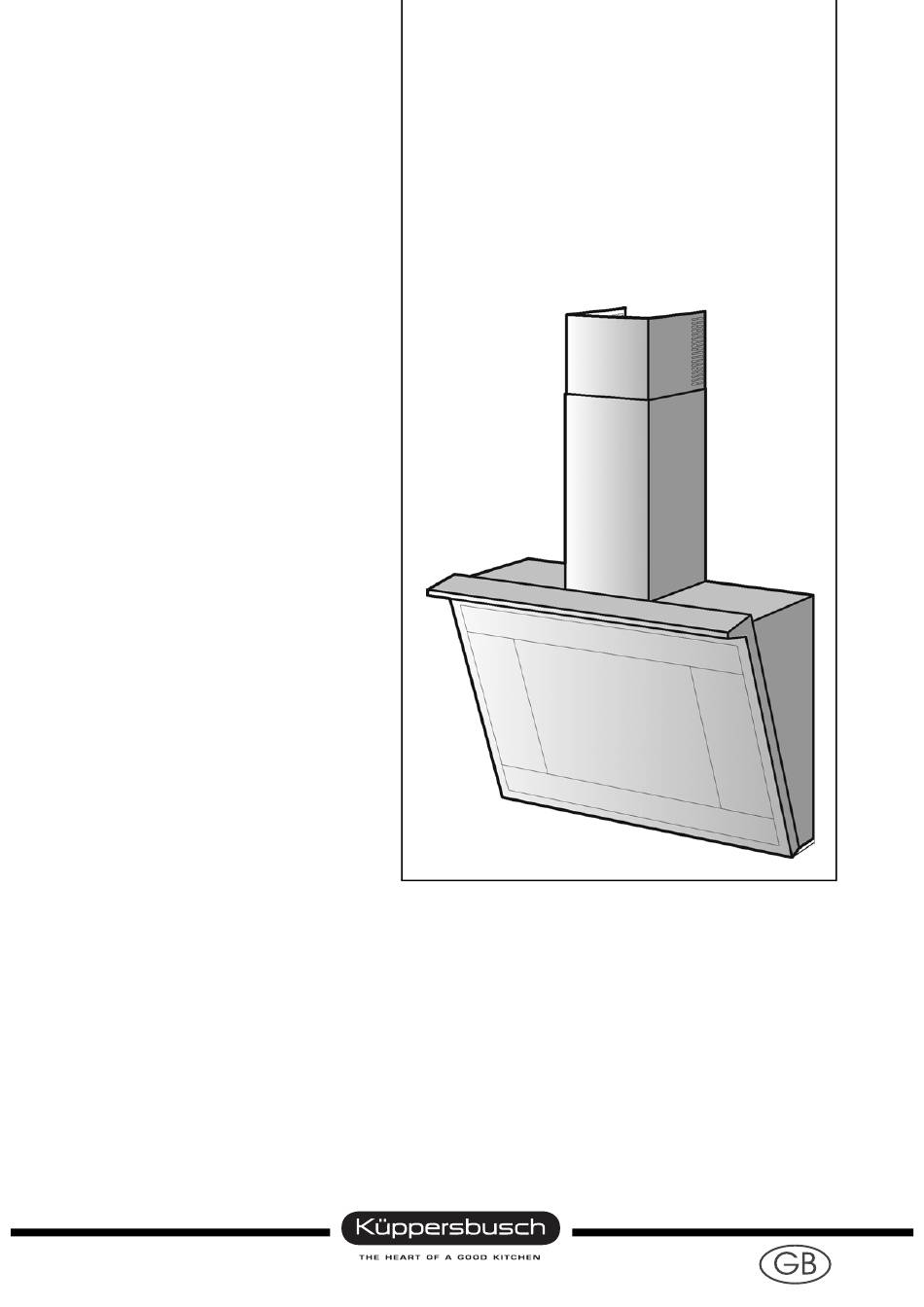

- Page 1 Chimney cooker hood KD 9875.1...
- Page 2 Service Manual: H5-76-01 Responsible: U. Laarmann KÜPPERSBUSCH HAUSGERÄTE AG E-mail: uwe.laarmann@kueppersbusch.de Phone: (0209) 401-732 Kundendienst Fax: (0209) 401-743 Postfach 100132 Date: 05.09.2007 45801 Gelsenkirchen...
-
Page 3: Table Of Contents
Service Manual Contents Safety ..........................4 General Information ....................... 5 Dimensions ........................6 Mounting holes ....................... 7 Screw specification ......................8 Buttons and functions ....................9 Buttons ........................9 Functions......................10 Procedure for repairs ....................12 Changing the halogen lamp ................13 Removing the touch controls ................ -
Page 4: Safety
Service Manual Safety Danger! Repairs may only be carried out by a qualified electrician! Improper repairs can be extremely dangerous for the user. It is essential that you observe the following instructions in order to prevent electric shocks: • The casing and the frame may be live in the event of faults! •... -
Page 5: General Information
Service Manual General Information A clearance of at least 30 cm must be maintained between the pan support area on the hob and the bottom of the cooker hood. If the instructions for installation of the hob specify a larger clearance, this is to be maintained. -
Page 6: Dimensions
Service Manual Dimensions For internal use only... -
Page 7: Mounting Holes
Service Manual Mounting holes Draw a line on the wall which is vertical to your hob. Mark the first four holes to be made (Ø 8 mm) on the wall in accordance with the dimension shown on the diagram. For internal use only... -
Page 8: Screw Specification
Service Manual Screw specification The cooker hood comes with the following equipment: Screws for fastening the clamps, dimensions: 4.8 x 38mm, code 02000069. Screws for adjusting the hood, dimensions M4 x 10mm, code 02000115. Screws for fastening the deflector, dimensions: 3.4 x 15mm, code 02000043. -
Page 9: Buttons And Functions
Service Manual Buttons and functions The extractor hood is equipped with a fully automatic system for administrating all of the available functions (Advanced Sensor Control). The air in the kitchen stays pleasant and fresh without requiring any manual controls. The sensitive sensors detect any type of steam, vapours, odours and GAS and automatically adjust the hood to the required fan power. -
Page 10: Functions
Service Manual Functions Minute counting device with an acoustic signal The hood is fitted with a minute counting device which gives off an acoustic signal in the zero posi- tion. Press the MENU button to make a setting (the symbol will appear on the display) and then press the OK button. - Page 11 Service Manual Outside temperature display (optional) In order to show the outside temperature on the display, press the MENU button, then press the – button (or the + button) repeatedly until the display shows “out 15°C” or a similar indication. Con- firm with the OK button.
-
Page 12: Procedure For Repairs
Service Manual Procedure for repairs We recommend that you follow this procedure: Visual inspection of the product and assessment of its installation. Determine the problem and replace faulty parts if necessary. Carry out function tests to assess whether the corrective action has been carried out properly. First steps •... -
Page 13: Changing The Halogen Lamp
Service Manual Changing the halogen lamp If the lighting does not work the lamps will firstly need to be checked and you will need to make sure that the control switch on the control panel of the hood has not developed a fault. The hood must be disconnected from the mains power supply before it is cleaned or before any maintenance work is carried out. -
Page 14: Removing The Electrical Components
Service Manual Move the block of the touch controls to the left. Disconnect the flat cable and remove the complete block and all of the control elements. Removing the electrical components The hood must be disconnected from the mains power supply before it is cleaned or before any maintenance work is carried out. - Page 15 Service Manual Remove the board (Illustration 6). 7.3.2 Accessing the switching cabinet Remove the board as explained above. Remove the four screws (A) of the switch box. 7.3.3 Accessing the capacitor Remove the board as explained above. Screw off the two screws (B) on the capacitor box.
- Page 16 Service Manual 7.3.4 Accessing the connection box Remove the board as explained above. Remove the screw (C) from the connection box. 7.3.5 Removing the transformer Remove the board as explained above. Screw off the screw (D) on the transformer. Remove the two screws (E) and take off the transformer cap.
-
Page 17: Removing The Motor Block
Service Manual Screw off screw (F) from the opposite side of the board. Disconnect the connections. Remove the transformer. Removing the motor block The hood must be disconnected from the mains power supply before it is cleaned or before any maintenance work is carried out. -
Page 18: Technical Data
Service Manual Technical data Voltage/frequency 220-240 V / 50 Hz Appliance dimensions (WxDxH) 898 x 440 x 1178.5(min)/1448.5(max) Electrical connection 250W Halogen lighting 3 x 20W Air rate Level 1 170 m³/h Level 2 295m³/h Level 3 455m³/h Level 4 620m³/h Pressure Level 1... -
Page 19: Faults And The Cause
Faults and the cause Attention!! Repairs may only be carried out by qualified electricians or specialists! Problem Probable cause Solution The cooker hood does not work. The power cable has not been connected to a live • Check to ensure that the cable has been socket. -
Page 20: Circuit Diagram
Circuit diagram...
