Summary of Contents for Kuppersbusch KD6590.0GE

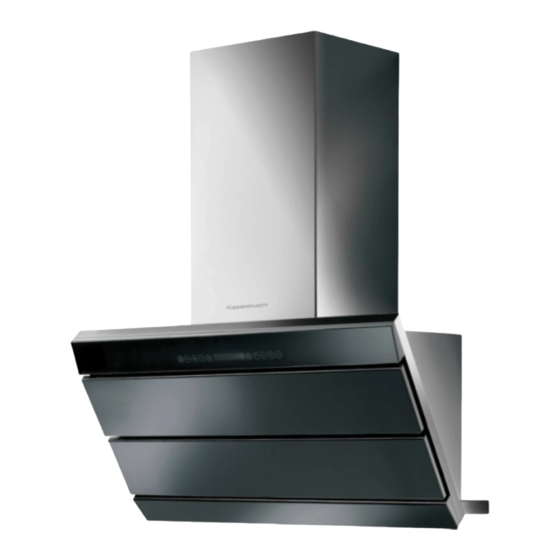

- Page 1 Cooker hoods KD6590.0GE and KD9590.0GE Accessing the components...
- Page 2 Service Manual: H5-85-04 Responsible: U. Laarmann KÜPPERSBUSCH HAUSGERÄTE AG E-mail: uwe.laarmann@kueppersbusch.de Tel.: (0209) 401-732 Customer Service Fax: (0209) 401-743 Postfach 100 132 Date: 18.06.2013 45801 Gelsenkirchen...
-
Page 3: Table Of Contents
Service Manual Contents Safety..........................4 Accessing the components inside the hood ............... 5 Removing the controls................... 5 Accessing the electronic unit and the transformer ..........6 Accessing the halogen lamp ................. 6 Circuit diagram ....................... 7 Controls ........................... 8 Filters..........................10 Metal grease filters .................... -
Page 4: Safety
Service Manual Safety Danger! Repairs may only be carried out by a qualified electrician! Improper repairs can be extremely dangerous for the user. It is essential that you observe the following instructions in order to prevent electric shocks: • The casing and the frame may be live in the event of faults! •... -
Page 5: Accessing The Components Inside The Hood
Service Manual Accessing the components inside the hood Two models of the hood are produced: stainless steel with Soft Touch electronic controls and stainless steel/glass with Touch Control electronic controls. The middle panels of both models can be opened when pulled out. This gives you access to the components inside the hood. -
Page 6: Accessing The Electronic Unit And The Transformer
Service Manual Accessing the electronic unit and the transformer When the edge suction panels and the grease filter are removed, the components inside the hood can be accessed. The ATF circuit board and the transformer of appliances fitted with an Athena electronic system are located in a box within the Easy Cube. -
Page 7: Circuit Diagram
Service Manual Circuit diagram For internal use only... -
Page 8: Controls
Service Manual Controls Function Display Switches the extractor motor on and off. Reduces the operating speed. The illuminated segments are reduced. Increases the operating speed. The illuminated segments are increased. Activates the intensive speed, apart from the I blinks and all the segments on the delay and 24 h speeds, which is timed for ten display light up. - Page 9 Service Manual Reduces the intensity of lighting cyclically every time the key is pressed. Switches the lighting system on and off at the highest level of intensity. Increases the intensity of lighting cyclically every time the key is pressed. Keyboard lock control command: The keyboard can be locked, for example when the glass panes need to be cleaned, provided that the hood motor and lighting system are switched off.
-
Page 10: Filters
Service Manual Filters Metal grease filters The filters can be cleaned in the dishwasher; they should be cleaned when the drop symbol appears on the display, or at least approx. every 2 months, or more frequently when the hood is used very intensively. - Page 11 Service Manual Switch off the lighting and the extraction motor. Press key D for approx. 5 seconds. When the C symbol blinks twice, the alarm for the charcoal filter setting is ACTIVATED. When the C symbol blinks once, the alarm for the charcoal filter setting is DEACTIVATED. 5.2.2 Replacing the charcoal odour filter Resetting the saturation display...
