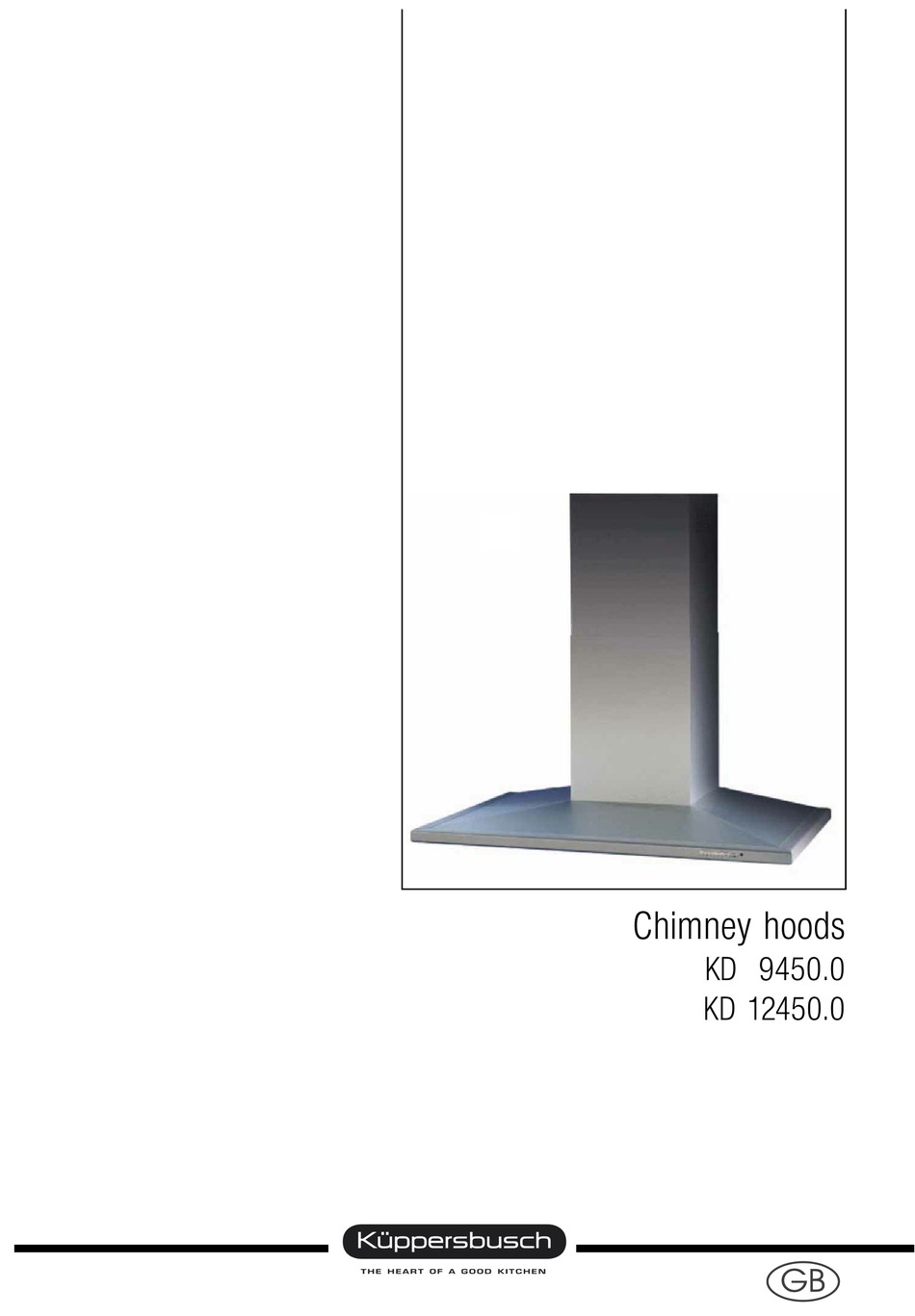

- Page 1 [€…†}‘ €‡‡|‹ c\ QLMHFH c\ IJLMHFH...
- Page 2 Service Manual: H5-60-85-01 Responsible: U. Laarmann KÜPPERSBUSCH HAUSGERÄTE AG E-mail: uwe.laarmann@kueppersbusch.de Tel.: (0209) 401-732 Kundendienst Fax: (0209) 401-743 Postfach 100 132 Date: 12.09.2003 45801 Gelsenkirchen...
-
Page 3: Table Of Contents
H5-60-85-01 Contents Safety..........................4 General Information ....................... 5 Functional characteristics ..................... 6 Control panel ......................6 Automatic switch-off for the period in which the high-power setting is in operation6 Automatic switch-off device for the fan follow-up time .......... 7 Recirculating air – exhaust air programming ............8 Grease filters........................ -
Page 4: Safety
H5-60-85-01 Safety Danger! Repairs may only be carried out by a qualified electrician! Repairs carried out improperly may put the user at risk. To prevent electric shocks, please observe the following: • In the event of faults, the housing and the frame may be live. •... -
Page 5: General Information
H5-60-85-01 General Information Altering the specifications or attempting to modify the product is dangerous. For your own safety, have spare parts installed by a professional electrician. The manufacturer is not liable for any damage resulting from improper installation or the non-observance of current regulations for this type of application. -
Page 6: Functional Characteristics
H5-60-85-01 Functional characteristics Both cooker hoods have the following features: • Programmable exhaust air or recirculating air operation • Automatic switch-off for the duration of the high-power setting • Automatic switch-off for the follow-on time of the fan • Grease filter saturation indicator •... -
Page 7: Automatic Switch-Off Device For The Fan Follow-Up Time
H5-60-85-01 The high-power setting is activated by means of pressing LED 5 (Max.) once. The fan is automati- cally switched back to the previously-set power level when the “ 5 minutes follow-up time “ of the high-power setting has elapsed. The high-power setting is switched off by means of activating LED 5 (Max.) once again. -
Page 8: Recirculating Air - Exhaust Air Programming
H5-60-85-01 Recirculating air – exhaust air programming The cooker hood has been programmed for exhaust air operation in the factory. In order to adjust the cooker hood for recirculating air operation, please carry out the following steps: Recirculating air operation The motor and the lamp must be switched off. -
Page 9: Grease Filters
H5-60-85-01 Grease filters When the cooker hood has been in operation for 200 hours, LED 1 will blink to indicate that the grease filters are saturated. Resetting the grease filter indicator The motor and the lamp must be switched off. Press the 4 (+) switch for approximately 3 - 4 seconds. If all 5 LEDs light up briefly "reset"... -
Page 10: Charcoal Filters
Charcoal filter ZUB 870 Spare-part no. 56 45 11 Additional reinforcement for hoods produced prior to October 2002 KD 9450.0 Stainless steel reinforcement Spare-part no. 56 55 16 KD 12450.0 Stainless steel reinforcement Spare-part no. 5655 17 Details on attachment KD 12450 U-shaped... - Page 11 H5-60-85-01 Charcoal filter support u-shaped support frame Stainless steel reinforcement In order to install the stainless steel reinforcement, loosen all 4 screws (A) and install the new reinforcement. For internal use only...
-
Page 12: Access To Components
H5-60-85-01 Access to components Replacing the aluminium front strip Unscrew the 2 screws on each side of the upper chimney Fig. 1 part (fig. 1). Remove the upper and lower chimney parts of the hood Fig. 2 (fig. 2). Switch off the appliance and disconnect it from the electrical socket if it is fitted with a plug, or, if the appliance is hard-wired by means of a double-pole switch, disconnect the fuse. -
Page 13: Disassembling The Aluminium Front Strip
H5-60-85-01 Disassembling the aluminium front strip Fig. 4 Unscrew the 3 screws on the left-hand sideand on the right- hand side of the hood (fig. 5). Details fig. 6 Fig. 6 Unscrew the 4 screws on the inner front edge of the hood (fig. 6). For internal use only... -
Page 14: Removing The Switch Block
H5-60-85-01 Removing the switch block Unscrew the 2 screws on the inner rear cover (fig. 7). Fig. 7 Remove the inner rear cover (fig. 8). Fig. 8 Unscrew the 2 screws on the inner rear cover, (fig. 9 and 10). Fig. -
Page 15: Replacing The Right-Hand Side Aluminium Trim
H5-60-85-01 Remove the aluminium front trim (fig. 12). Fig. 12 Replacing the right-hand side aluminium trim To replace the right-hand trim, unscrew the 4 screws (fig. 13) Fig. 13 Replacing the left-hand side aluminium trim To replace the left-hand trim, unscrew the 4 screws (fig. 14) Fig. -
Page 16: Replacing The Aluminium Front Trim
H5-60-85-01 Replacing the aluminium front trim Unscrew the 4 screws illustrated in fig. 13 and 14, item , remove the switch block bracket (fig. 15) and place it in the front strip as indicated in fig. 16. Fig. 16 Fig. 15 Ensure the flat multiwires are replaced correctly. -
Page 17: Replacing The Control Panel
H5-60-85-01 Replacing the control panel Remove the switch block as indicated on page 14. Take the control element in your hand as illustrated (fig. 18). Fig. 18 Loosen the 2 screws on each side of the control box (fig. 19) and then remove the bracket from the control box . -
Page 18: Replacing The Halogen Lights
H5-60-85-01 Remove the control board of the control box (fig. 22). Fig. 22 Disconnect the connector from the control board (fig. 23). Replace the control board of the control panel. Re-insert in reverse order. Re-position the control box in the aperture in the aluminium front trim. -
Page 19: Replacing The Control Board
H5-60-85-01 Replacing the control board Disconnect the hood from the mains supply as described on page 12. Remove the glass lighting diffuser as explained on page 18. Then remove the metal filters as shown on page 9. Loosen the two screws (1 and 2) on each side of the bracket which supports the halogen light (fig. -
Page 20: Replacing The Flat Multiwires Of The Control Panel
H5-60-85-01 Remove the control board box cover (fig. 30). Fig. 30 Replace the control board (fig. 31). Fig. 31 Disconnect the connector L between the control board and the brown blue flat multiwires (fig. 32). pink Disconnect the wires as indicated in fig. 32. Replace the control board by reversing the disassembling white process. -
Page 21: Replacing The Processor
H5-60-85-01 6.11 Replacing the processor Remove the processor as indicated on page 19 and 20. Disconnect the connector (L) between the control board and the flat multiwires. Fig. 34 Positioning aid Fig. 33 Processor Remove the processor as indicated in fig. 35 and 36. Fig. -
Page 22: Technical Data
H5-60-85-01 Technical data Voltage/frequency 230V / 50Hz Air extraction rate (free-blowing) MIN setting 440 m³/h MED setting 540 m³/h MAX setting 780 m³/h HIGH-POWER 950 m³/h Electrical connection 470 W Halogen lighting (high-voltage halogen) 2 x 60 W Exhaust air connection 150 mm For internal use only... -
Page 23: Circuit Diagram
H5-60-85-01 Circuit diagram blue black light blue brown green-yellow For internal use only... -
Page 24: Illustration Of Dimensions
H5-60-85-01 Illustration of dimensions Data in decibels Free-blowing: Min. setting 42 dB(A) Med. setting 57 dB(A) Max. setting 65 dB(A) High-power setting 69 dB(A) Attention: There is currently no standard gauging procedure for these figures. These figures may only be used as reference figures for determining the noise level. A higher number of decibels - dB(A) - is detemined in the case of the recirculating air mode. -
Page 25: Faults And Their Cause
Faults and their cause Attention: Any measures required may only be undertaken by qualified electricians or specialists. Problem Probable cause Comment Remedy The extractor hood does not The power cable has not been connected to Check to ensure that the cable has been function. - Page 26 Problem Probable cause Comment Remedy Problems with automatic functions: This section has been drawn up to ensure a Firstly take a look at the procedure in the Pre-set stop of the cooker hood. smooth procedure: instruction manual. Saturation display of the The majority of problems are the result of Replace the processor.
-
Page 27: Installing The Hood
H5-60-85-01 Installing the hood Draw a vertical line on the installation surface (wall) for the cooker hood. (Fig. 1, Screw on the duct support . Determine the installation height of the hood in order to position the supports (Fig. 3, The body of the hood is attached to the wall supports. - Page 28 H5-60-85-01 Insert the top part of the hood into the bottom part and fasten it onto the supporting plate with the 4x8 screws. Recirculating air operation The recirculating air diverter is screwed to the wall bracket, (fig. 2). • Connect the recirculation air casing (which is the same color as the hood and is provided with a ventilation opening) to the recirculating airdiverter.
