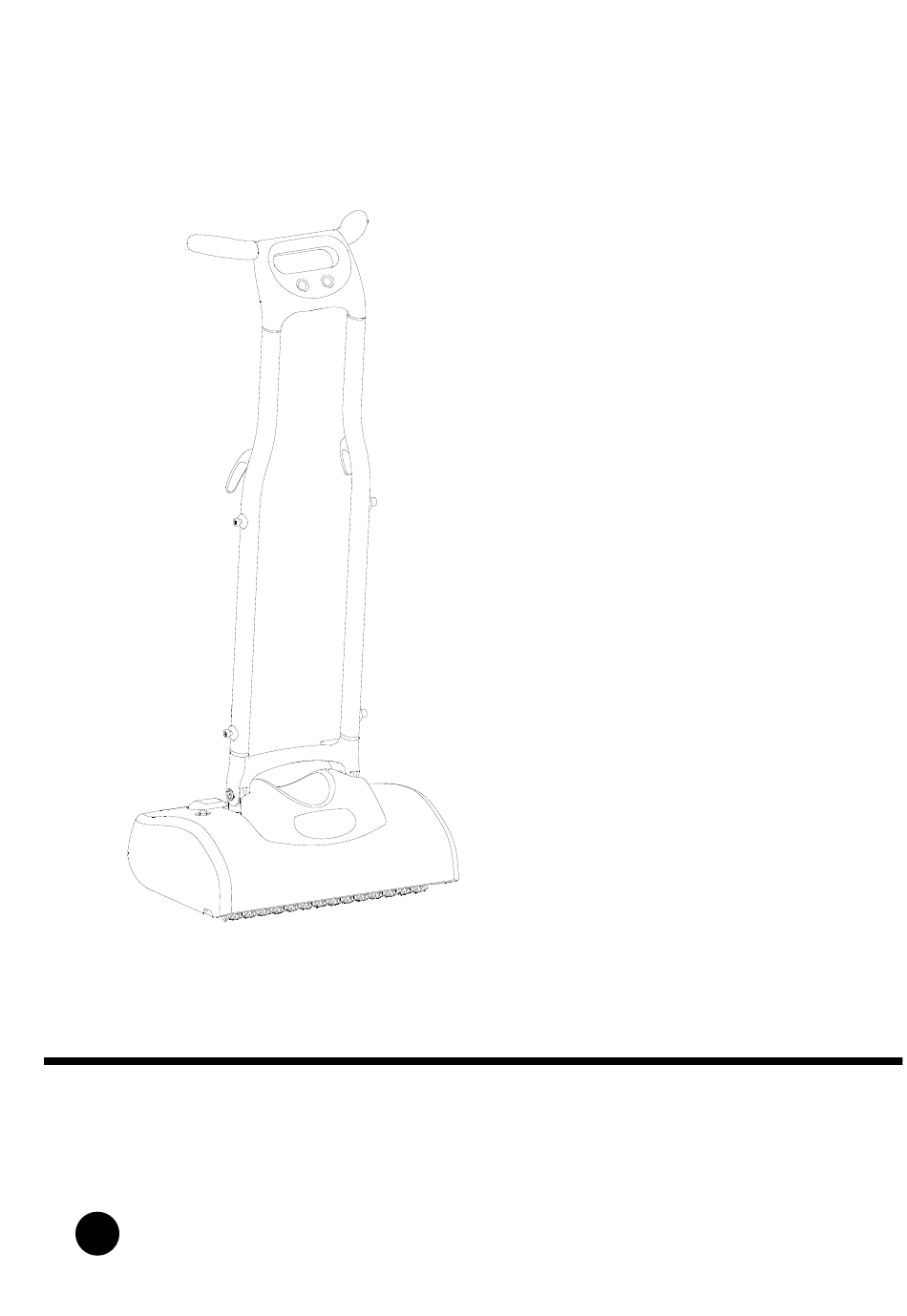

Carpet Maintainer
MODELS: IM
10066360
IMIE17
10066550
IMX
10066400
IMXIE17
10066410
IMIE 17 AU
10060990
IMXIE17 AU
10061030
IMIE17 UK
10060980
IMXIE17 UK
10061020
Operating Instructions (ENG)
Read instructions before operating the machine.
H
86269870
PRV NO. 980305
01/02/08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMIE 17 AU and is the answer not in the manual?

Questions and answers

Related Manuals for Windsor IMIE 17 AU

Summary of Contents for Windsor IMIE 17 AU

  • Page 1 Carpet Maintainer MODELS: IM 10066360 IMIE17 10066550 10066400 IMXIE17 10066410 IMIE 17 AU 10060990 IMXIE17 AU 10061030 IMIE17 UK 10060980 IMXIE17 UK 10061020 Operating Instructions (ENG) Read instructions before operating the machine. 86269870 PRV NO. 980305 01/02/08...

  • Page 2: Data Log/Overview

    DATA LOG/OVERVIEW MODEL _______________________________________ DATE OF PURCHASE __________________________ SERIAL NUMBER ______________________________ SALES REPRESENTATIVE # _____________________ YOUR DEALER NAME: __________________________________________________________________________________________________ ADDRESS: _______________________________________________________________________________________________ PHONE NUMBER: _______________________________________________________________________________________ OVERVIEW The Carpet Maintainer is designed to maintain carpet using the Quick Dry Carpet Care System. The machine has two counter rotating brushes that scrub chemical into the carpet.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Data Log/Overview........2 PARTS LIST Table of Contents........3 Brush ............5-1 HOW TO USE THIS MANUAL Brush Lift ........... 5-3 Decal............5-5 How to use this Manual......1-1 Electrical-120V........... 5-7 Electrical-230V........... 5-9 SAFETY Frame ............5-11 Frame-Deluxe ..........5-13 Handle ............

  • Page 4: How To Use This Manual

    HOW TO USE THIS MANUAL This manual contains the following sections: The PARTS LIST section contains assembled parts illustrations and corresponding parts list. The parts HOW TO USE THIS MANUAL lists include a number of columns of information: SAFETY OPERATIONS REF –...

  • Page 5: Safety

    SAFETY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. WARNING: To reduce the risk of fire, electric shock, or injury: Connect to a properly grounded outlet. See Grounding Instructions. Do not leave the machine unattended.

  • Page 6: Hazard Intensity Level

    SAFETY HAZARD INTENSITY LEVEL T he following symbols are used throughout this guide as indicated in their descriptions: There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING - Hazards or unsafe practices which could result in severe personal injury or death .

  • Page 7: Grounding Instructions

    SAFETY THIS PRODUCT IS FOR COMMERCIAL USE ONLY. ELECTRICAL In the USA, this machine operates on a standard 15 amp 120V, 60 hz, A.C. power circuit. The amp, hertz, and voltage are listed on the data label found on each machine. Using voltages above or below those indicated on the data label will cause serious damage to the motors.

  • Page 8: Safety Label Location

    SAFETY SAFETY LABEL LOCATION The following WARNING LABEL(S) are found on your cleaning unit. These labels point out important Warnings and Cautions which should be followed at all times. Failure to follow warnings and cautions could result in fatality, personal injury to yourself and/or others, or property damage. Follow these instructions carefully! DO NOT remove these labels.

  • Page 9: Operations

    OPERATIONS TECHNICAL SPECIFICATIONS 120V ITEM DIMENSION/CAPACITY Electrical 120V Nominal Power 0.5 HP Rated Amperage 7 Amps Brush Width 17 – 16.5” (430 - 420 mm) Brush RPM 470 RPM Wheels 3 inches (75 mm) non-marking grey Dimensions - Weight 48 lbs. (22 kg) - Weight - Deluxe 56 lbs.

  • Page 10: How The Machine Works

    Carpet Maintainer in conjunction with 5. Brush treated area to emulsify soils using iCapsol or Prochem ProCaps chemical solution, you the Windsor iCapsol or other carpet- can perform a regular light cleaning and grooming of brushing machine. your carpet very quickly, and have the carpet dry and ready for traffic within 20 minutes.

  • Page 11: Machine Operation

    Move the machine in multiple directions and For best results use Windsor iCapsol or Prochem overlapping strokes. ProCaps products. For best results use Windsor iCapsol or Prochem ProCaps products.

  • Page 12: Shut-Down And Storage

    OPERATIONS SHUT-DOWN AND STORAGE TRANSPORTING A SPRAYER 1. Flush the spray jet and tank with hot water 1. This machine has the capability to mount a (Deluxe only) small pump-up sprayer. 2. After flushing, uncouple quick disconnect to TRANSPORTING CHEMICAL - DELUXE prevent water from dripping out of front jet.

  • Page 13: Components

    COMPONENTS iCapsol Mini Deluxe iCapsol Mini 5. Tank 1A. Stop Switch (red-120V only) 6. Strainer 1B. On/Off Switch (black-230 only) 7. Jet Start Switch (green) 8. Spray Pump Switch Brushes Handle Release 86269870 07/11/07...

  • Page 14: Maintenance

    MAINTENANCE BRUSH CLEANING AND MAINTENANCE DAILY MAINTENANCE After each session of carpet cleaning, the brushes 1. Clean and inspect brushes. and the brush housing should be cleaned. Before cleaning or changing the brushes, always unplug the 2. Clean and inspect brush housing, debris tray machine from the power supply.

  • Page 15: Machine Troubleshooting

    MAINTENANCE MACHINE TROUBLESHOOTING PROBLEM CAUSE SOLUTION No power to machine Tripped electrical circuit Check building circuit breaker breaker in fuse box of building Faulty power cord Replace power cord Power switch failure or relay Replace power switch or failure relay Tripped circuit breaker Reset circuit breaker.

  • Page 16: Brush

    BRUSH 86269870 01/02/08...
  • Page 17 BRUSH SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86217340 270130 COVER, BELT, RIGHT 86172630 57314 NUT, M4, LK, SST 86172870 70898 SCR, M4X14, PHMS, DIN7985 SST 86224670 730396 SPRING, BRUSH CLIP 86214850 12544 ASSY, BRUSH & HUB 86217330 270129 COVER, BELT, LEFT 86216070...

  • Page 18: Brush Lift

    BRUSH LIFT 86269870 04/02/07...
  • Page 19 BRUSH LIFT SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86215580 141042 BRACKET, CROSSOVER PUSH 86172700 67606 RING, E-TYPE, 5MM ID, DIN6799 86215750 09156 BRG, FLNG, 6MM IDX7MM LONG 86224760 73997 SPRING, COM, 18.28 OD X 25L 86215740 09155 BRG, FLNG, 6MM IDX24MM LONG 86223620 67605...

  • Page 20: Decal

    DECAL 86269870 01/02/08...
  • Page 21 DECAL SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86221620 501260 LABEL, CHEMICAL INSTR. DELUXE ONLY 86244630 501190 LABEL, MAIN, ICAPSOL MINI WINDSOR ONLY 86244920 501247 LABEL, PROCAP PROCHEM, PROCHEM ONLY 86269870 01/02/08...

  • Page 22: Electrical-120V

    ELECTRICAL-120V 86269870 01/02/08...
  • Page 23 ELECTRICAL-120V SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86230900 14942 BOOT, 3/8 CIRCUIT BREAKER 86217120 23729 CORD SET, 18/3 X 40FT SJT 86295150 ASM, BUTTON, RED, W/BEZEL 86295180 ASM, BUTTON, GREEN, W/BEZEL SWITCH, TONELUCK, MQS- 86292780 1CPG400S 86198450 20005 CLAMP, 5/16 NYLON 86225320...

  • Page 24: Electrical-230V

    ELECTRICAL-230V 14 13 86269870 01/02/08...
  • Page 25 ELECTRICAL-230V SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86299810 SWITCH, BLACK, ROCKER, DPST 86295180 ASM, BUTTON, GREEN, W/BEZEL 86292780 SWITCH, TONELUCK 86172880 70901 SCR, M4X6, BSHCS, SST 86198450 20005 CLAMP, 5/16 NYLON 86217200 23738 CORD SET, 18/3 X 40FT SJT 86002010 14942 BOOT, 3/8 CIRCUIT BREAKER...

  • Page 26: Frame

    FRAME 86269870 04/02/07 5-11...
  • Page 27 FRAME SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86225340 78952 TRAY, IRENEW MINI 86217930 34450 FRAME, 3.5”, SINGLE MOTOR 86214820 05262 ASSY, COVER, INSULATION 86277600 70882 SCR, M4X20, PPHMS, SST NUT, M4X0.7, U-CLAMP, 3MM 86222360 58009 PANEL 86214830 05263 ASSY, DOME, INSULATION 86173050...

  • Page 28: Frame-Deluxe

    FRAME – DELUXE 86269870 04/02/07 5-13...
  • Page 29 FRAME-DELUXE SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86173050 70920 SCR, M4 X 40 PPHMS, SS 86173040 70919 SCR, M4 X 10 SHCSB BUTHD 86011610 ASSY, COVER, INSULATION, DLX 86217930 34450 FRAME, 3.5, SINGLE MOTOR 86225340 78952 TRAY, IRENEW MINI 86012550 JET, PROMAX, 11001 86004570...

  • Page 30: Handle

    HANDLE 86269870 01/02/08 5-15...
  • Page 31 HANDLE SERIAL PART NO. PRV NO. DESCRIPTION NOTES: 86299750 GRIP, HANDLE, OVERMOLD 86305580 CONSOLE, BOTTOM, DLX DELUXE ONLY 86293330 CONSOLE, BOTTOM 86277600 70882 SCR, M4X20, PPHMS, SST 86217230 38326 CORD HOOK, UPPER 86217220 38325 CORD HOOK, LOWER 86218680 38357 HANDLE, EXTRUSION, LEFT DELUXE ONLY 86218510 38321...

  • Page 32: Hopper

    HOPPER 86269870 04/02/07 5-17...
  • Page 33 HOPPER SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86214790 41584 ASM, GUIDE, HOPPER 86173040 70919 SCR, M4X10, BSHCS, SST 86214800 41585 ASM, HOPPER FRAME & PLATE 86173080 70933 SCR, 4.2 X 9.5, TAP, ZN 86216310 140977 BUMPER, STOP, HOPPER 86172630 57314 NUT, M4, LK, SST...

  • Page 34: Motor

    MOTOR 86269870 04/02/07 5-19...
  • Page 35 MOTOR SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86215320 BELT, HTD, 15MM X 300, 60 11058 TOOTH, RH 86215300 BELT, HTD, 15MM X 325, 65 11055 TOOTH, LH 86215960 140979 BRKT, MTR MOUNT, RH 86173310 87499 WASHER, SPRING LK, 6MM, SS 86173060 70921 SCR, SHCS, M6X60, SST...

  • Page 36: Rear Wheel

    REAR WHEEL 86269870 04/02/07 5-21...
  • Page 37 REAR WHEEL SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86172790 70867 SCR, SHCS, M8X50, ISO4762, BLK 86216450 140942 BUSHING, 11.25MM X 8.0MM, SST WHEEL, 3” DIA. CUSHION 86011020 89202 RUBBER 86173300 87495 WASHER, M8, FL, ISO7089, SST 86172640 57507 NUT, M8, LK, ISO7040, SST 86269870 04/02/07...

  • Page 38: Solution Tank-Deluxe

    SOLUTION TANK - DELUXE 86269870 01/02/08 5-23...
  • Page 39 SOLUTION TANK - DELUXE SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86299710 CPLR, BODY, 1/4" BARB, GRY 86299720 CPLR, PNL MNT, 1/4" BARB, GRY 86012500 SEAL, COUPLER, EPDM RUBBER 86219230 41581 HOSE, SUCTION, TANK, DELUXE 86225300 75489 TANK, DLX (MACH) 86013850 WASHER, M6, FNDR, SS 86172820...

  • Page 40: Wiring-120V

    WIRING-120V N.C. N.O. GREEN RECTIFIER MOTOR RELAY 86269870 01/02/08 5-25...
  • Page 41 WIRING-120V SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86218820 41563 HARNESS, MAIN 86226220 880462 WIRE, 10” BLK/18 76040 86226260 880468 WIRE, 15” ORG/18 76040 X 76040 86226270 880469 WIRE, 18” ORG/18 86226280 880471 WIRE, 9” BLK/18 76040 X 76040 86269870 01/02/08 5-26...

  • Page 42: Wiring-230V

    WIRING-230V N.O. GREEN ON/OFF RECTIFIER RELAY MOTOR 86269870 01/02/07 5-27...
  • Page 43 WIRING-230V SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86218880 41594 HARNESS, MAIN, 230VAC, IMIE 86226220 880462 WIRE, 10” BLK/18 76040 86226260 880468 WIRE, 15” ORG/18 76040 X 76040 86226270 880469 WIRE, 18” ORG/18 86226280 880471 WIRE, 9” BLK/18 76040 X 76040 86302450 ASM, FILTER, EMI MAIN 86302480...
  • Page 44 WIRING – 120V DELUXE N.O. N.O. BLUE BLUE N.C. N.O. GREEN PUMP MOTOR RECTIFIER MOTOR RELAY 86269870 01/02/08 5-29...
  • Page 45 WIRING - 120V DELUXE SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86218820 41563 HARNESS, MAIN 86226220 880462 WIRE, 10” BLK/18 76040 862286260 880468 WIRE, 15” ORG/18 76040 X 76040 86226270 880469 WIRE, 18” ORG/18 86226280 880471 WIRE, 9” BLK/18 76040 X 76040 86013120 HARNESS, PUMP HOUSING, DLX 86013090...
  • Page 46 WIRING - 230 DELUXE N.O. N.O. BLUE BLUE N.O. GREEN ON/OFF PUMP MOTOR RECTIFIER RELAY MOTOR 86269870 08/20/07 5-31...
  • Page 47 WIRING-230V DELUXE SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86218880 41594 HARNESS, MAIN, 230VAC, IMIE 86226220 880462 WIRE, 10” BLK/18 76040 X 76040 86226260 880468 WIRE, ORG/18 76040 X 76040 86226270 880469 WIRE, 18” ORG/18 76040 X 76040 86226280 880471 WIRE, 9”...

  • Page 48: Suggested Spare Parts

    SUGGESTED SPARE PARTS SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86216180 141057 BRUSH SET, MTR, 54206/54216 86215800 11055 BELT, HTD, 15MM X 325, 65 TOOTH 86215320 11058 BELT, HTD, 15MM X 300, 60 TOOTH 86214850 12544 ASSY, BRUSH & HUB 86217230 38326 CORD HOOK, UPPER...
