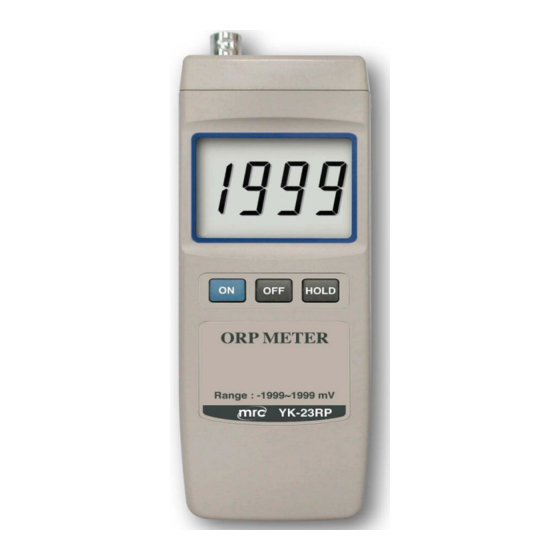

ORP METER
Model : YK-23RP
Your purchase of this
ORP METER marks a
step forward for you
into the field of
precision measurement.
Although this ORP
METER is a complex and
delicate instrument, its
durable structure will
allow many years of use
if proper operating
techniques are
developed. Please read
the following
instructions carefully
and always keep this
manual within easy
reach.
OPERATION MANUAL
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION
Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529
mrc@mrclab.com
MRC.2.22
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MRC YK-23RP
Summary of Contents for MRC YK-23RP
- Page 1 ORP METER Model : YK-23RP Your purchase of this ORP METER marks a step forward for you into the field of precision measurement. Although this ORP METER is a complex and delicate instrument, its durable structure will allow many years of use...
- Page 2 TABLE OF CONTENTS 1. FEATURES......................2. SPECIFICATIONS......................3. FRONT PANEL DESCRIPTIONS................3-1 Display........................ 3-2 Power ON Button....................3-3 Power OFF Button....................3-4 Hold Button......................3-5 BNC Socket for ORP electrode ..............3-6 Calibration VR ...................... 3-7 Battery compartment/Cover................... 3-8 Stand....................... 3-9 ORP Electrode, optional..................
- Page 3 1. FEATURES * Use for ORP ( Oxidation Reduction Potential ) measurement in plating baths, waste water monitoring and other applications such as Aquarium, Beverage, Fish hatcheries, Food processing, Photography, Laboratory, Quality control, School & Colleges, Swimming Pools..* Large LCD display with high accuracy. * Compact size with the separate electrode.
- Page 4 Sampling Approx. 0.4 second. Time Operating 0°C to 50°C ( 32°F to 122°F ) Temperature Operating Less than 80% RH. Humidity Power Supply DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent. Power Approx. DC 1.0 mA. Consumption Dimension 205 x 68 x 30 mm ( 8.1 x 2.7 x 1.2 inch ).
- Page 5 3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Display 3-2 Power ON Button 3-3 Power OFF Button 3-4 Hold Button 3-5 BNC Socket for ORP electrode 3-6 Calibration VR 3-7 Battery compartment/Cover 3-8 Stand 3-9 ORP Electrode ( optional ) 3-10 BNC Plug of ORP Electrode ( optional )
- Page 6 4. MEASURING PROCEDURE 1) Connect the ORP Electrode ( optional ) to the " BNC socket " ( 3-5, Fig. 1 ). 2) Power on the instrument by pressing the " Power ON Button " ( 3-2, Fig. 1 ). 3) Plug in the "...
- Page 7 5. REPLACEMENT OF BATTERY 1) When the left corner of LCD display show " " , it is necessary to replace the battery. However, in-spec measurement may still be made for several hours after " Low Battery Indicator " appears before the instrument become inaccurate.
