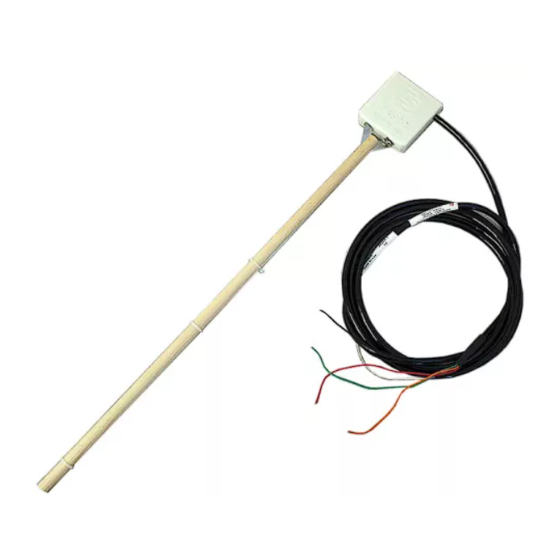

- Page 1 MODEL CS205 10-HOUR FUEL TEMPERATURE STICK INSTRUCTION MANUAL 7/98 COPYRIGHT (c) 1998 CAMPBELL SCIENTIFIC, INC.
- Page 2 WARRANTY AND ASSISTANCE The CS205 10-HOUR FUEL TEMPERATURE STICK is warranted by CAMPBELL SCIENTIFIC (CANADA) CORP. (“CSC”) to be free from defects in materials and workmanship under normal use and service for twelve (12) months from date of shipment unless specified otherwise. CSC's obligation under this warranty is limited to repairing or replacing (at CSC's option) defective products.
- Page 3 The CS205 Fuel Temperature Stick mounts on the 10974 Fuel Moisture/Temperature Mounting Stake. The CS205 is most commonly installed along with a CS505 Fuel Moisture Sensor but can be used alone. FIGURE 1-1. The 107 probe inserts into the CS205 Fuel Moisture Stick...
- Page 4 MODEL CS205 10-HOUR FUEL TEMPERATURE STICK FIGURE 3-1. The CS205 mounts on the mounting stake with the CS505 EXAMPLE 1. Sample CR500/CR10(X)/21X 3. INSTALLATION AND WIRING Instructions Insert a 107 temperature probe into the CS205 Temp 107 Probe Fuel Moisture Stick. The CS205 installs in the...
- Page 5 MODEL CS205 10-HOUR FUEL TEMPERATURE STICK 5. MAINTENANCE AND CALIBRATION The 107 Probe requires minimal maintenance. The CS205 Fuel Moisture Stick should be changed annually or more frequently as required. The wood should visually appear fresh and new not gray or discolored.
