Make Noise Soundhack Spectraphon Manual page 9

Panel Controls

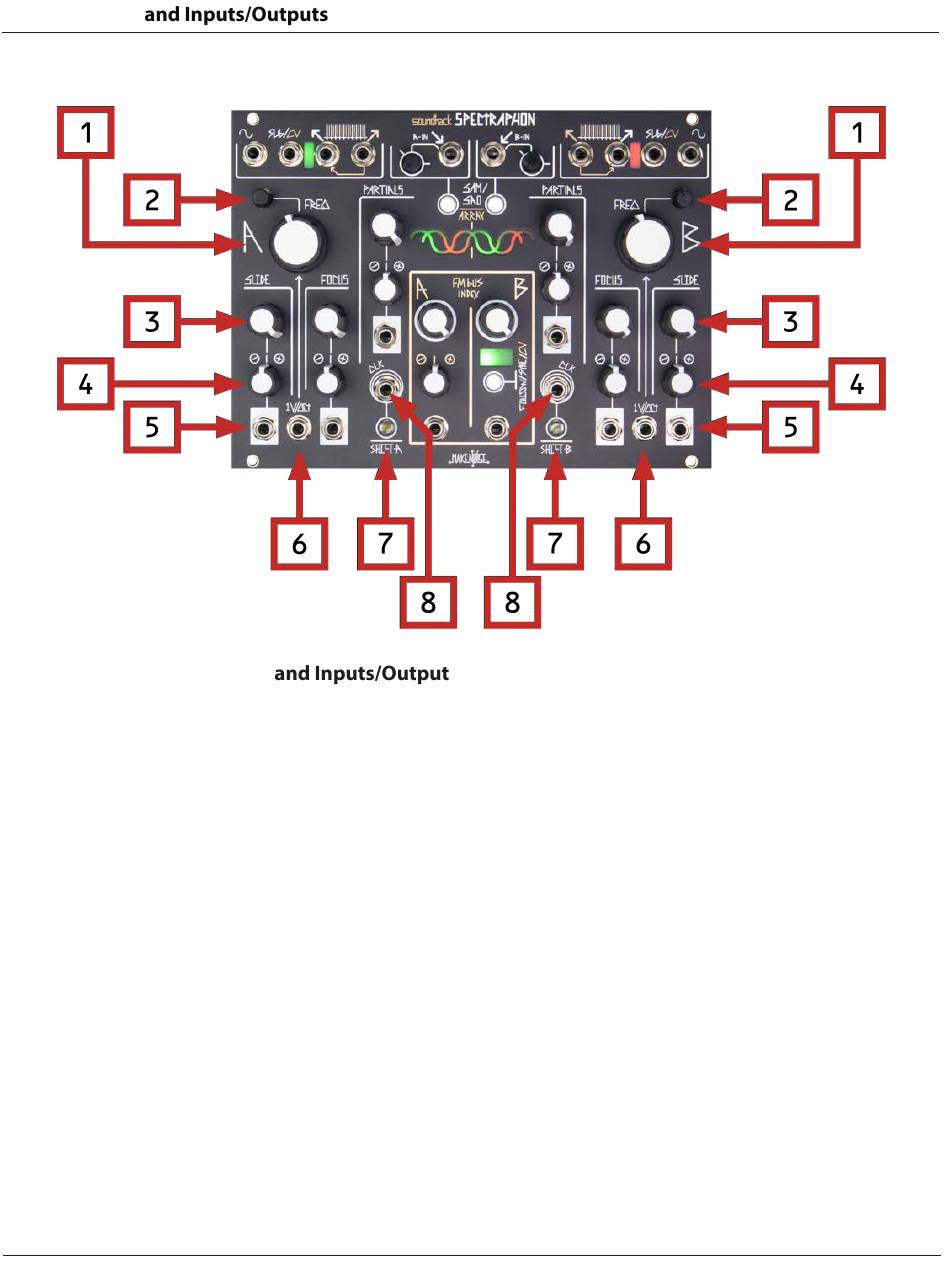

Spectraphon Panel Controls
Side A and B
1. Frequency Panel Control. Sets the Frequency of the Side. Summed with Fine-Tune and 1v/oct.
2. Fine Tune. Fine Tune of the Side's Frequency.
3. Slide. Modulates the current Spectrum, depending on mode.
4. Slide Attenuverter. Bipolar input attenuverter for Slide.
5. Slide CV Input. CV Input for Slide.
6. 1v/oct. Sets core Frequence of the Side via external control, tracks one volt per octave.
7. Shift Button. Press to manually Clock the Spectraphon. Hold to access Shift-functions on other
buttons (Array Creation, CV Type, Shift Array)
8. Clock Input. Clocks the Spectraphon. Steps through the Spectra of the current Array (SAO), writes
Spectrum during Array Creation (SAM), clock input for CV outputs when applicable.
