Make Noise soundhack ECHOPHON Manual

Hide thumbs Also See for soundhack ECHOPHON:
Table of Contents

Advertisement

Quick Links

Download this manual
v. 2.0

Advertisement

Table of Contents
loading

Related Manuals for Make Noise soundhack ECHOPHON

Summary of Contents for Make Noise soundhack ECHOPHON

  • Page 1 v. 2.0...
  • Page 2 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes / modi cations not approved by the Make Noise Co. could void the user’s authority to operate the equipment.

  • Page 3: Limited Warranty

    Limited WARRANTY: Make Noise warrants this product to be free of defects in materials or construction for a period of one year from the date of purchase (proof of purchase/invoice required). Malfunction resulting from wrong power supply voltages, backwards or reversed eurorack bus board cable connection, abuse of the product or any other causes determined by Make Noise to be the fault of the user are not covered by this warranty, and normal service rates will apply.

  • Page 4: Electrocution Hazard

    Eurorack style bus board, minding the polarity so that the RED stripe on the cable is oriented to the NEGATIVE 12 Volt line on both the module and the bus board. On the Make Noise 6U or 3U Busboard, the negative 12 Volt line is indicated by the white stripe.

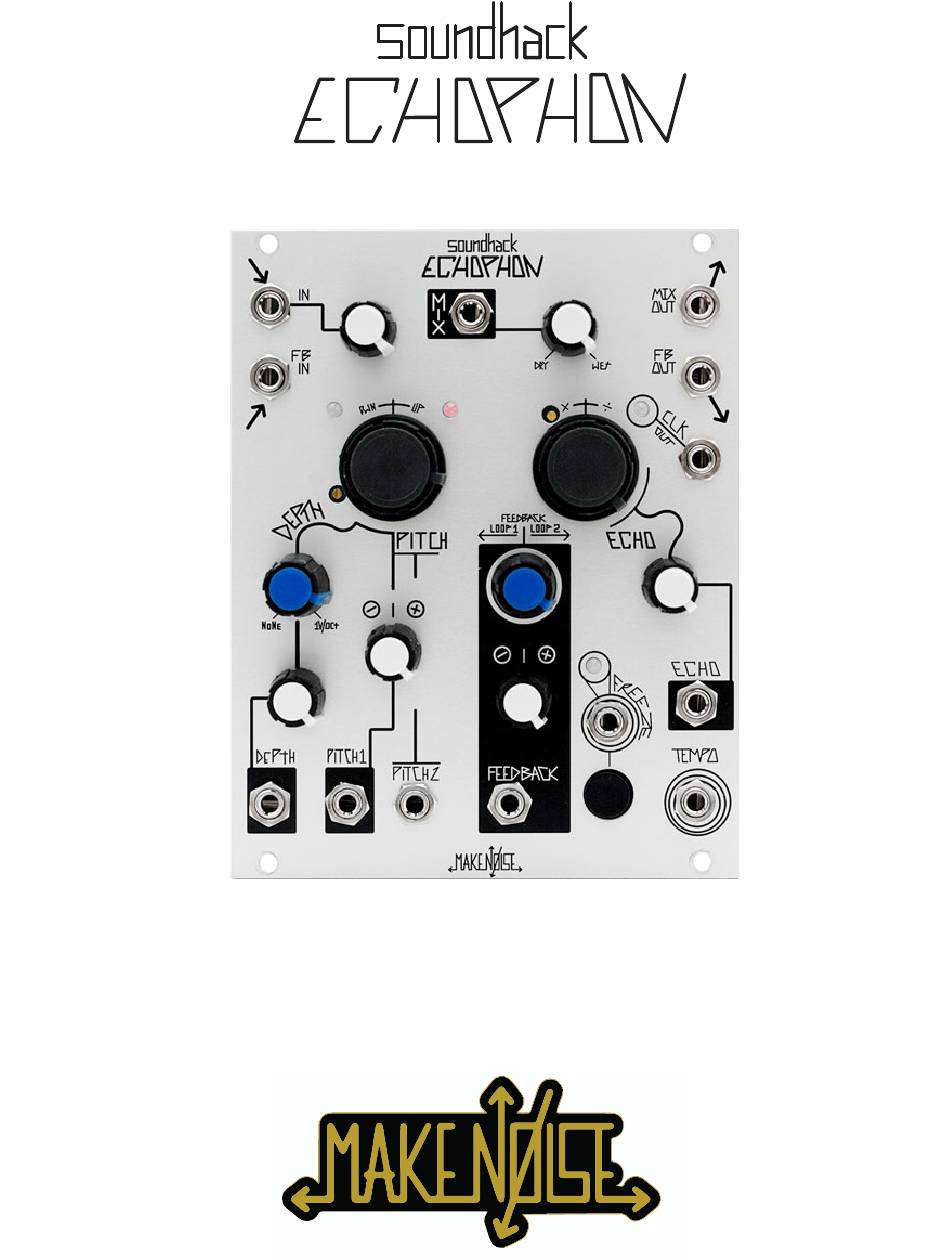

  • Page 5 Echophon Panel Controls Audio Input/ Output 1A. Signal IN: AC coupled, expects standard signal level of 10Vpp signal. 2A. Level Control for Signal IN: overloads at 70% to 100% 3A. Mix CV IN: unipolar control input. Range 0V to +5V. 4A.
  • Page 6 Echophon Panel Controls (cont’d) Pitch Shift 1C. Temphonic LEDs: indicate mechanics of the pitch-shifting machine. 2C. Pitch Panel Control: bipolar panel control. At 50% no pitch shift, greater than 50% shifts pitch UP and less than 50% shifts pitch DOWN. Range is ALWAYS dependent upon DEPTH setting. 3C.
  • Page 7 Echophon Panel Controls (cont’d) Echo 1D ECHO TIME LED: Indicates Tempo of the ECHO CLOCK 2D ECHO CLOCK OUT: outputs the ECHO TIME as 4ms wide clock pulse. 0V-5Vpp 3D ECHO TIME Panel Control: sets time/ length of Echo, from 7ms to 1.7 sec 4D ECHO TIME CV Attenuator: unipolar attenuator for Echo Time CV IN.

  • Page 8: Getting Started

    Getting Started: Patch the signal to be processed into the SIGNAL IN (1A). The associated Level Control (2A) accommodates modular synthesizer signals of 10Vpp for the rst 70% of its rotation. Beyond 70% on the Level Control, there will be clipping followed by digital overloading. Take your output from the MIX OUT (6A) and patch to your nal mixer/ monitoring system.
  • Page 9 Using the External Feedback Loop: Patch the FB OUT (2B) to an external module such as the modDemix. Set up the external module to process the FB OUT signal. For the modDemix you could set up the typical Ring Modulation patch where you have a sine or triangle waveform from a VCO patched to the CARRIER input on the modDemix.

  • Page 10: Patch Ideas

    Patch Ideas: All patches require signal to be processed patched to Signal IN with Level Control set to accommodate incoming signal and MIX OUT patched to nal mixer/ monitoring system. The Pillars of Hercules: this patch is designed for processing percussive sounds. Mix 50%, DEPTH 75%, PITCH 0%, FEEDBACK 0% (for LOOP 1), ECHO Time 0% Mult Envelope used for controlling Amplitude of the percussive sound to ECHOPHON DEPTH CV IN and set associated attenuator to 50%...
